Description
Mogami W269700328 Overview

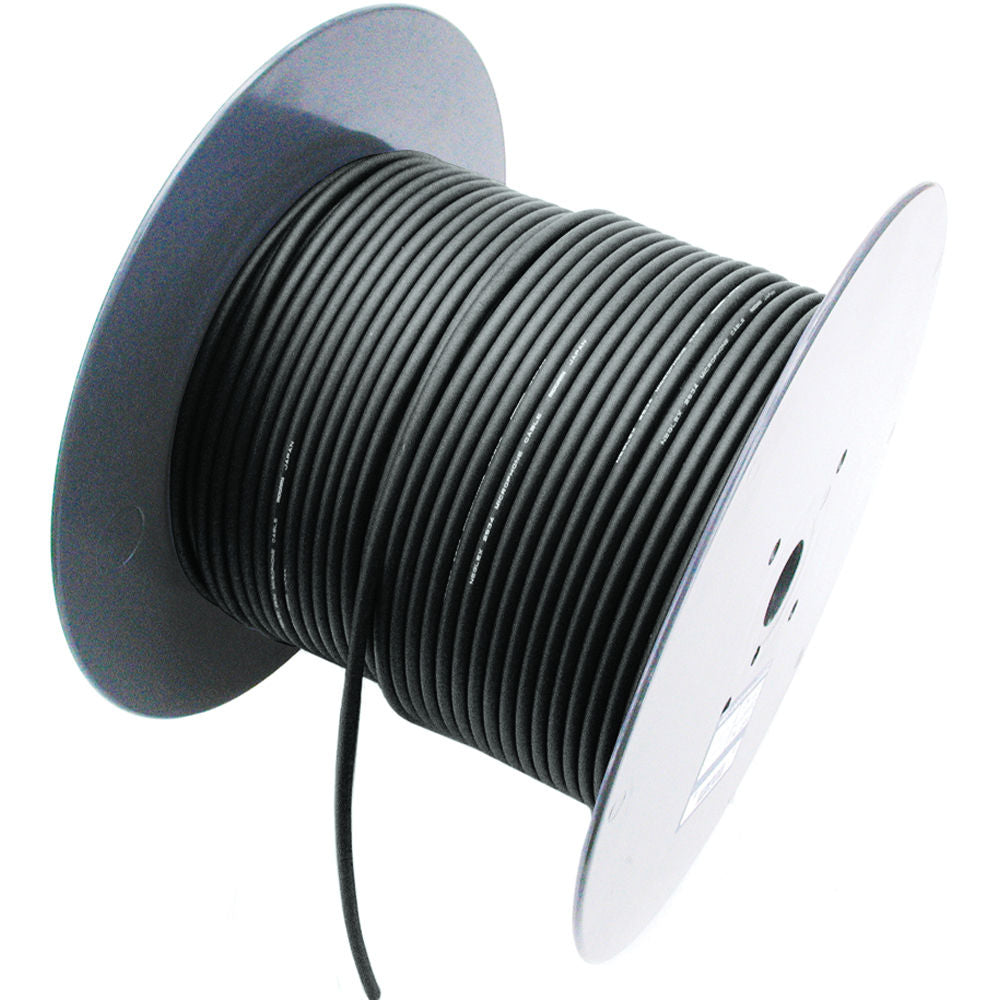

Presented in a 328' roll, the black Mogami W2697 Miniature Balanced/Lavalier Microphone Bulk Cable offers a lightweight and flexible solution for wiring lavalier mics or making your own balanced mic cable. Constructed with 28 AWG conductors, served (spiral) shield, PVC insulation, and a flexible PVC outer jacket, the W2697 cable boasts high tensile strength and long flex life while maintaining a low-profile diameter of 2.5mm.
UPC: 801813008340
Mogami W269700328 Specs
| Connector 1 | None |
| Connector 2 | None |
| Cable Length | 328' / 99.97 m |
| Number of Conductors | 2 |
| Wire Gauge | 28 AWG |
| Outer Diameter | 0.098" / 2.5 mm |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Shielding | Spiral |
| Insulation Type | Polyvinyl Chloride (PVC) |
| Conductor Capacitance | 92 pF/ft at 1 kHz |
| Conductor DC Resistance | 0.07 Ohms/ft (Up to 656' / 199.95 m) |
| Shield DC Resistance | 0.02 Ohms/ft (Up to 656' / 199.95 m) |
| Inductance | 0.24 ?H/ft |
| Maximum Voltage | 500 V |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Weight | 1.98 lb / 0.9 kg |
Packaging Info
| Package Weight | 2.3 lb |
| Box Dimensions (LxWxH) | 8.2 x 8.2 x 1.5" |
