Description
Mogami GOLDAESTDDB25XLR03 Overview

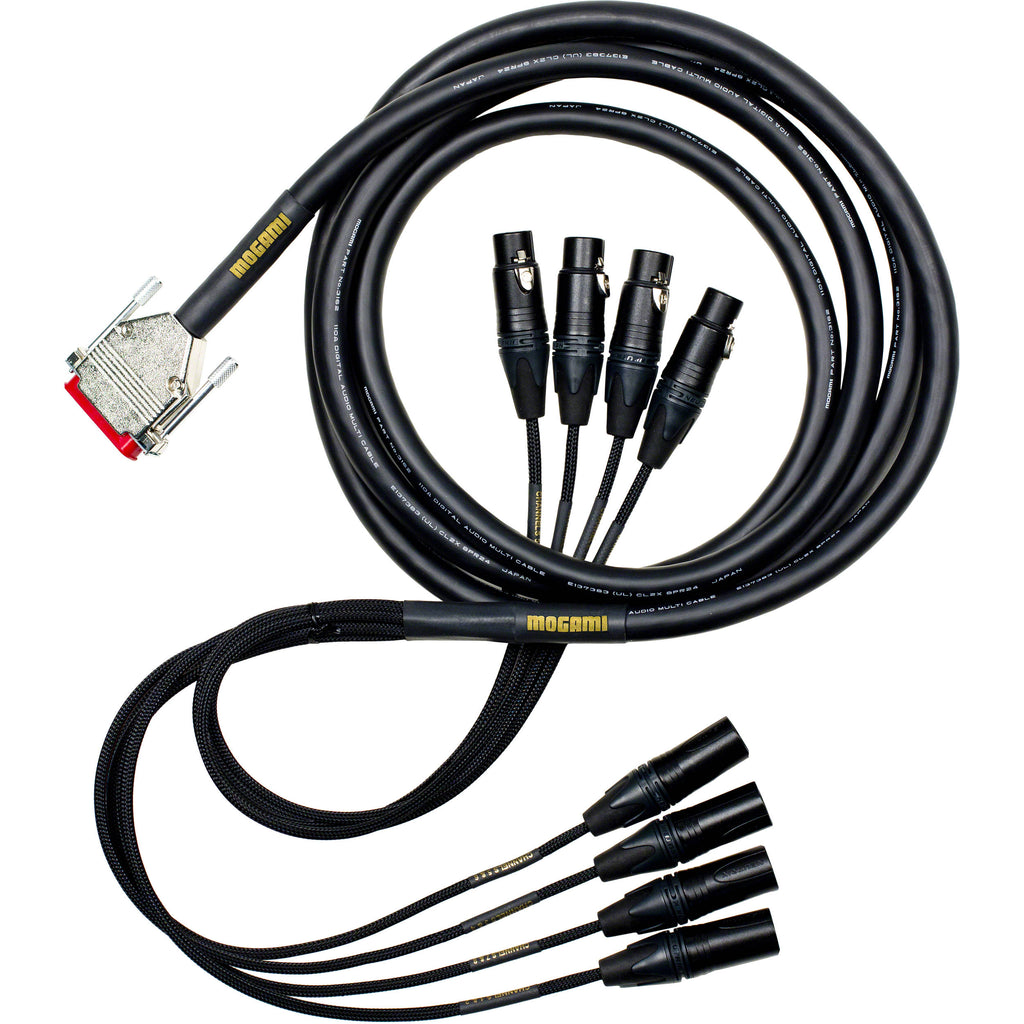

This 3' Mogami Gold AES TD DB-25 to 4 XLR Male & 4 XLR Female Digital Breakout Cable enables you to connect a digital audio interface with Tascam Digital DB-25 wiring protocol to a device with AES/EBU XLR I/O. It is compatible with popular digital recording formats including Avid, Digidesign, Panasonic, and Tascam digital recording machines.
The cable offers eight channels of AES/EBU I/O and meets AES/EBU specifications with a 110 Ohm impedance. It features the company's W3162 8-core AES digital cable, one DB-25 male connector at one end, four XLR male connectors and four XLR female connectors at the other, gold-plated contacts, a spiral shield, and a flexible PVC jacket�all designed for loss-free data transmission.
Key Features
- 3' AES/EBU breakout cable
- Connect digital audio interface with Tascam Digital DB-25 wiring protocol to a device with AES/EBU XLR I/O
- Supports 8 channels I/O
- One DB-25 connector to four XLR male and four XLR female AES/EBU connectors
- Connectors with gold-plated contacts
- Uses 8-core W3162 AES digital cable (two conductors per core)
- Rigid adherence to 110 Ohm AES/EBU standards
- Precision dielectrics for loss-free transmission
- Spiral shield
- Supports popular digital recording formats including Avid, Digidesign, Panasonic, and Tascam
In the Box
- Mogami Gold AES TD DB-25 to 4 XLR Male & 4 XLR Female Digital Breakout Cable (3')
- Limited Lifetime Warranty
Mogami GOLDAESTDDB25XLR03 Specs
| Standards | 110 Ohm AES/EBU |
| Channels | 8 x digital channels I/O |
| Connector 1 | DB-25, male, Tascam Digital (TD) pinout |
| Connector 2 | 4 x XLR, male AES/EBU 4 x XLR, female AES/EBU |
| Cable | Mogami W3162 AES digital |
| Conductors | 8 x cores 2 x conductors per core |
| Outer Diameter | 0.543" / 13.8 mm |
| Wire Gauge | 24 AWG |
| Shield | Spiral shield |
| Jacket | PVC |
| Insulation | Cellular polypropylene |
| Length | 3' / 0.9 m |
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 10.3 x 8.2 x 2.1" |
