Minuteman PRO1000RT2U Overview

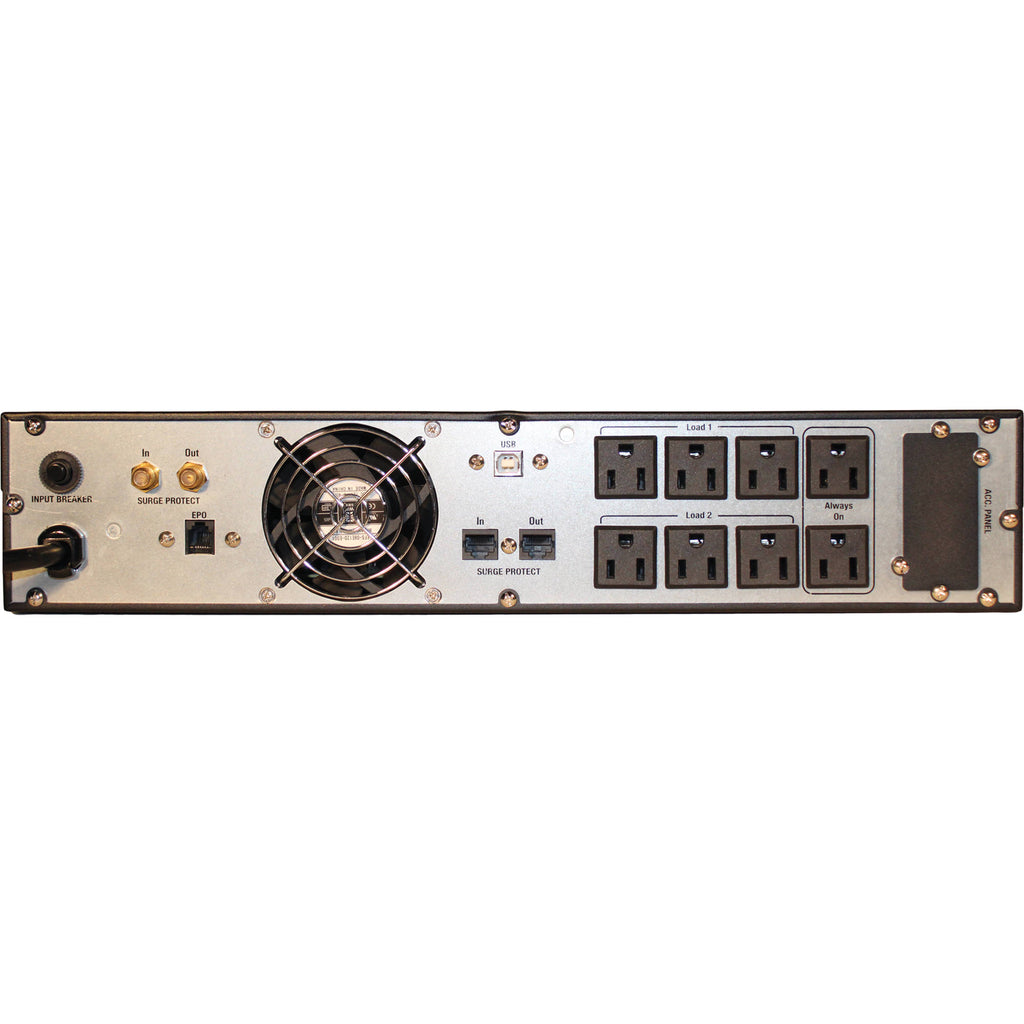

Protect your rackmount system with the PRO1000RT2U 1000VA 700W 8-Outlet Line-Interactive UPS from Minuteman. Designed to keep crucial systems in action, this uninterruptible power supply offers surge protection and back-up battery power via eight NEMA 5-15R outlets. Additionally, a coax input and output extend protection to satellite and cable equipment while RJ45 and RJ11 ports allow users to protect fax, modem, and network data lines. Protecting surges up to 960 joules, the PRO1000RT2U also features a 6-10 ms transfer time, ensuring your connected hardware stays up and running.
In addition to hot-swap support and independent battery bypass for more reliable backup power, the Minuteman PRO1000RT2U offers monitoring options via an integrated LCD panel, as well as via Minuteman SentryHD software, communicating via USB and incorporating a web-based interface for easy management. An optional SNMP card can also be installed, allowing the UPS to be controlled from a Network Management System. Featuring a rackmount design, this UPS fits 2RU server racks, but can also be used on a desktop in a standing tower orientation, or attached to a wall with the correct mounting hardware, available separately. A 10� power cord provides plenty of reach for optimal placement in your work setup.
Minuteman SentryHD
Minuteman SentryHD management software supports automatic saving and shutting down of unfinished applications, as well as properly powering down your computer during extended blackouts. This control software also offers monitoring capabilities via a convenient web interface.

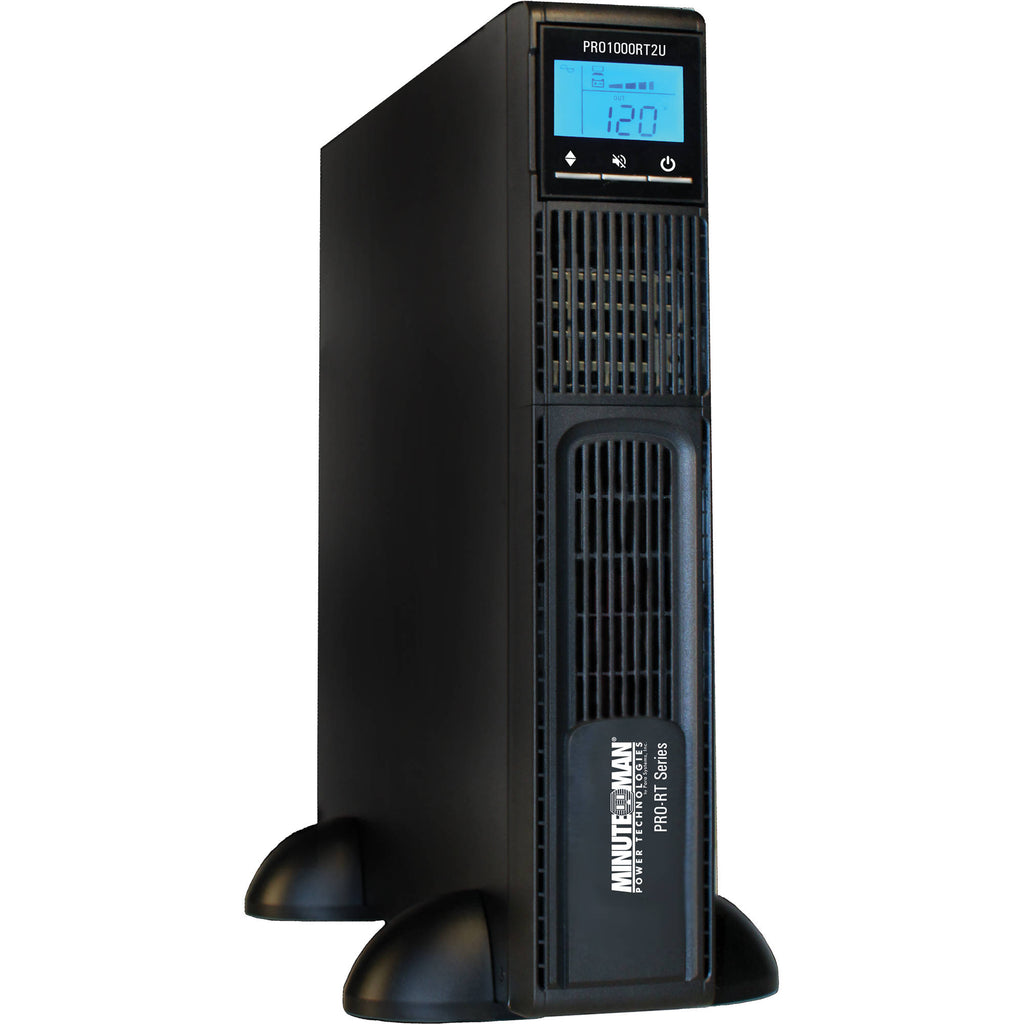

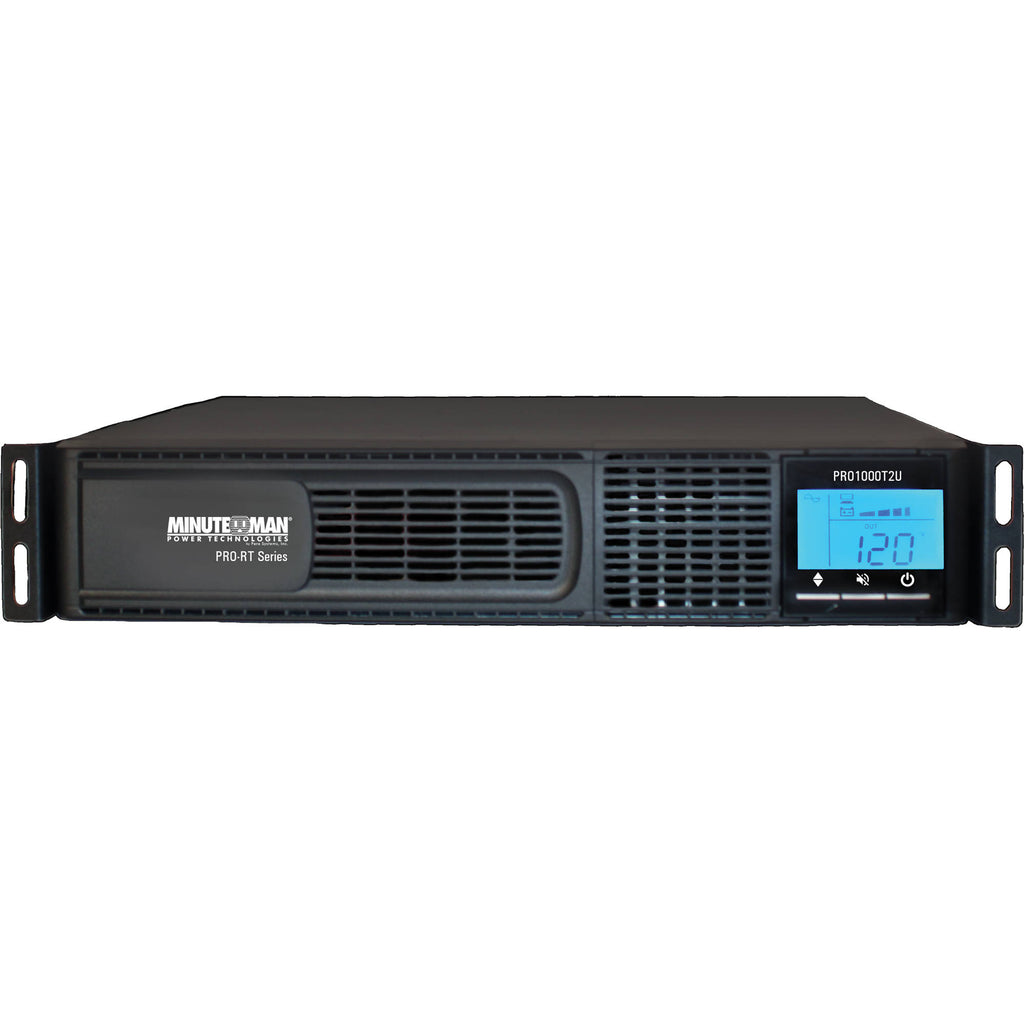

LCD Panel
Monitor input and output voltage and frequencies, UPS and battery mode and status, load capacity, or estimated run times using the convenient LCD panel.
![]()
UPC: 784755154941
In the Box
- Minuteman PRO1000RT2U 1000VA 700W 8-Outlet Line-Interactive UPS
- Limited 3-Year Warranty
Minuteman PRO1000RT2U Specs
General
| Total Outlets |
8 x NEMA 5-15R |
| Protected Outlets |
8 x NEMA 5-15R (Battery and Surge) |
| Plug Type |
NEMA 5-15P |
| USB Charging Ports |
None |
| Coax Protection |
1-In
1-Out |
| Data Line Protection |
RJ11, RJ45 |
| Communications |
USB via Type-B |
| Topology |
Line Interactive |
| Transfer Time |
6 to 10 ms |
Power
| Surge Energy Rating |
960 Joules |
| Maximum Wattage |
700 W |
| Nominal Input Voltage |
120 VAC |
| Input Voltage Range |
90 to 150 VAC |
| Input Frequency |
60 Hz ± 6 Hz |
| Nominal Output Voltage |
120 VAC |
| Output Voltage Range |
103 to 136 VAC |
| Output Frequency |
60 Hz ± 6 Hz |
| Load Capacity |
1000 VA |
| Maximum Efficiency |
96% |
| Waveform |
Sine Wave |
Battery
| Battery Capacity |
204 VAh |
| Chemistry |
Lead-Acid |
| Full-Load Runtime |
4 Minutes |
| Half-Load Runtime |
14 Minutes |
| User Replaceable |
Yes |
| Replacement Battery |
BM0073 |
| Hot-Swap Support |
Yes |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
5 to 95% |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
5 to 95% |
| Operating Altitude |
0.00 to 9842' / 0 to 3000 m |
| Storage Altitude |
0.00 to 49,212' / 0 to 15,000 m |
| Certifications |
CE, CSA, FCC, RoHS, cTUVus, as per Manufacturer |
Physical
| Cable Length |
10' / 3.05 m |
| Rackmount Size |
2 RU |
| Dimensions (W x H x D) |
18.9 x 3.39 x 16.1" / 480 x 86 x 409 mm |
| Weight |
35.71 lb / 16.2 kg |
Packaging Info
| Package Weight |
41.65 lb |
| Box Dimensions (LxWxH) |
22.5 x 22.5 x 10" |
