Description
Miller CompassXV 8 Tripod System Overview

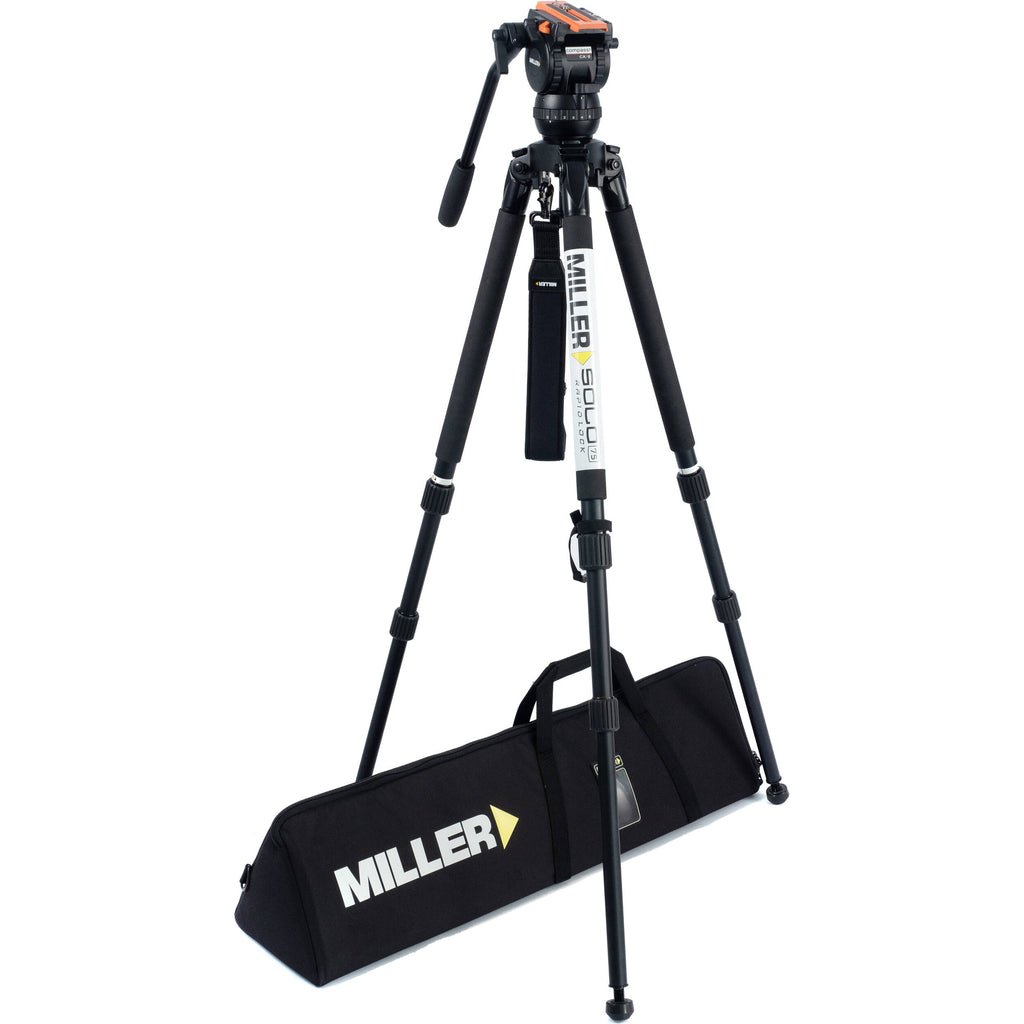

The Versa CXV8 Head, Solo 75 2-Stage Alloy Tripod & Soft Case Kit from Miller includes the Versa CXV8 fluid head, a pan handle, a quick release plate, the Solo 75 2-stage alloy tripod legs, a shoulder strap for the tripod, and a soft carry case.
The Versa CXV8 head is designed to accommodate a payload up to 26.4 lb and has 16 steps of counterbalance with CB Plus, a quick release plate with 3.9" of sliding range to balance your rig, a 75mm ball base, an illuminated bubble level, and a fixed-length pan handle. The 2-stage telescoping legs are made from durable alloy and have a 16.3 to 71.1" height range, a 75mm bowl, and a 34.3" transport length.

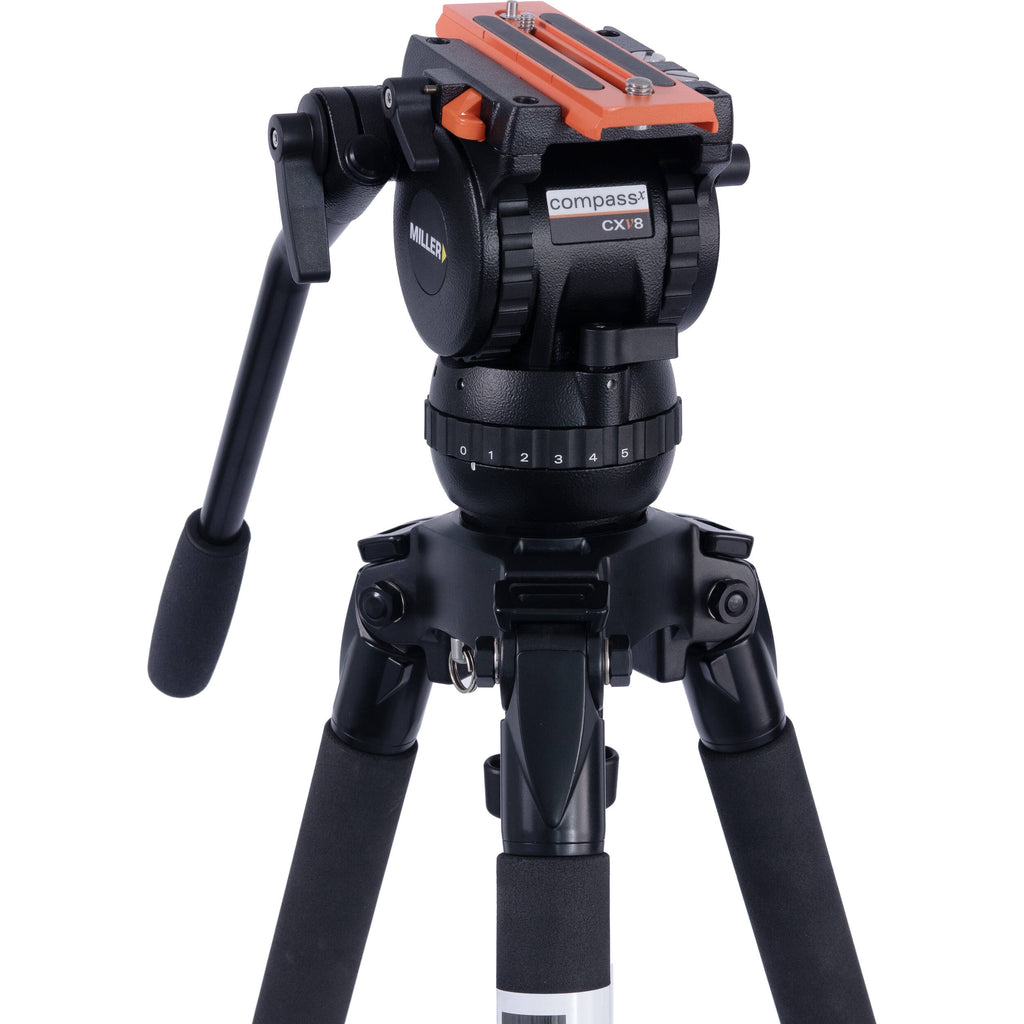

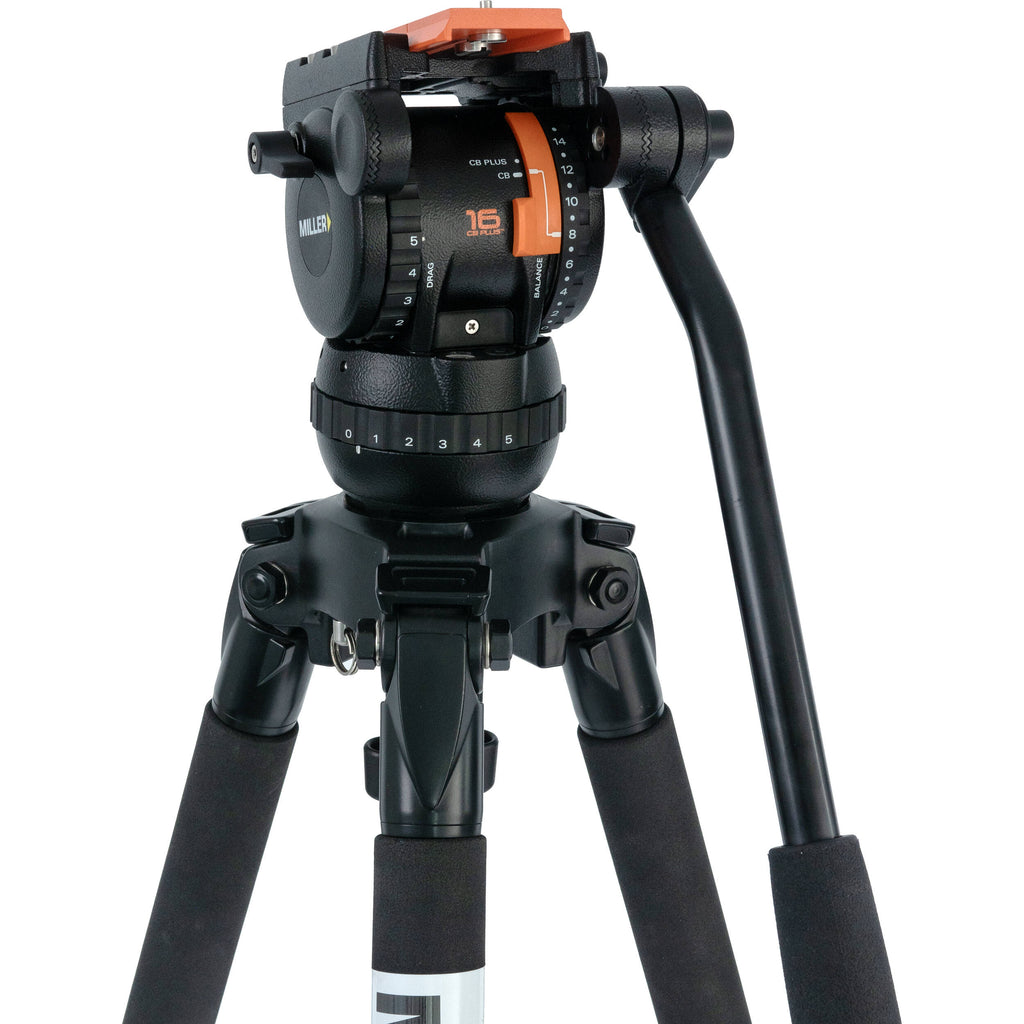

The Versa CXV8 Fluid Head with Pan Handle from Miller is designed to accommodate a wide payload range with 16 steps of counterbalance using CB Plus for fine adjustments as well as five selectable pan/drag settings. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 26.4 pounds, adequate for a DSLR or mirrorless camera, a smaller cinema camera, or a small ENG camcorder. Securing your camera or rig is easy. The sideload quick release plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 3.9" of sliding range to balance your rig.
To survive fast-paced shooting environments, the CXV8 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball bearings for smooth mechanical operation. Even in harsh conditions, the CXV8 will perform reliably. The base of the CXV8 is a 75mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CXV8 in dark environments. A fixed-length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
The Miller Solo DV aluminum tripod is a unbraced ultra-light support meant for rapid setup and breakdown while supporting a substantial load of 44 lb (20 kg). The industry standard 75mm bowl will accommodate many fluid heads, and the spiked legs wind-down rubber pads assure the best footing no matter the terrain.
The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.
- Miller Solo DV tripods
Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
In the Box
- Miller Versa CXV8 Fluid Head with Pan Handle
- Quick Release Sideload Plate
- Pan Handle
- Limited 3-Year Manufacturer Warranty
- Miller Solo DV Aluminum Tripod w/75mm bowl
- Limited 3-Year Manufacturer Warranty
- Miller 1520 Solo DV Strap
- Limited 1-Year Manufacturer Warranty
- Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Miller CompassXV 8 Tripod SystemSpecs
| Camera Mounting |
1/4"-20 & 3/8"-16 Screws with Locating Pin (Sideload Quick Release w/ Sliding Balance Plate: Versa Plate)
|
| Head Type |
Fluid Head
|
| Drag Control |
Yes
|
| Load Capacity |
26.5 lb / 12 kg
|
| Weight |
5.5 lb / 2.5 kg
|
| Camera Mounting |
1/4"-20 & 3/8"-16 Screws with Locating Pin (Sideload Quick Release w/ Sliding Balance Plate: Versa Plate)
|
| Head Type |
Fluid Head
|
| Base Mount |
75 mm Half Ball
|
| Counter Balance |
Incremental 15-Step Plus 0 (26.5 lb / 12 kg)
|
| Dimensions |
Base Diameter: 2.9" / 7.4 cm
Height: 6.9" / 17.5 cm |
| Drag Control |
Yes
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Vertical Tilt |
+90° to -75°
|
| Lateral Tilt |
No
|
| Load Capacity |
26.5 lb / 12 kg
|
| Accessory Mounting |
2x Pan Handle Fitting
|
| Bubble Level |
Yes (Illuminated)
|
| Weight |
5.5 lb / 2.5 kg
|
| Package Weight |
8.6 lb
|
| Box Dimensions (LxWxH) |
13.75 x 11.25 x 10.5"
|
Miller CompassXV 8 Tripod SystemSpecs
| Head Mount Type |
75 mm Bowl
|
| Primary Material |
Aluminum
|
| Maximum Working Height |
63.5" / 161.4 cm
|
| Minimum Working Height |
9.2" / 23.4 cm
|
| Closed Length |
27.6" / 70 cm
|
| Weight |
6.6 lb / 3 kg
|
| Head Mount Type |
75 mm Bowl
|
| Primary Material |
Aluminum
|
| Leg Lock |
Twist Lock
|
| Leg Sections |
3
|
| Independent Leg Spread |
Yes
|
| Foot Features |
Spiked, Retractable
|
| Maximum Working Height |
63.5" / 161.4 cm
|
| Minimum Working Height |
9.2" / 23.4 cm
|
| Closed Length |
27.6" / 70 cm
|
| Weight |
6.6 lb / 3 kg
|
| Package Weight |
10 lb
|
| Box Dimensions (LxWxH) |
37.5 x 12.7 x 10.5"
|
Miller CompassXV 8 Tripod SystemSpecs
| Item Type |
1x Neck/Shoulder Strap for Tripod
|
| Attachment Method |
To Tripod: Clasp
|
| Materials |
Nylon
|
| Strap Length |
31 to 43" / 78.7 to 109.2 cm
|
| Strap Width |
1.5" / 3.8 cm
|
| Package Weight |
0.7 lb
|
| Box Dimensions (LxWxH) |
7 x 5.6 x 5.2"
|
Miller CompassXV 8 Tripod SystemSpecs
| Material |
Cordura nylon exterior, high-density foam padding, and brushed polyester interior
|
| Type of Closure |
Zipper
|
| Padded |
Yes
|
| Carrying/Transport Options |
Dual, top strap handles
|
| Interior Dimensions |
36.6 x 10.2 x 9.5" / 93.0 x 26.0 x 24.0 cm
|
| Weight |
2.7 lb / 1.2 kg
|
| Package Weight |
5.1 lb
|
| Box Dimensions (LxWxH) |
38.5 x 10 x 10"
|
