Miller DS10 Tripod System Overview
-
1Description
-
2Miller DS-10 Fluid Head (75mm Ball Base)
-
3Miller 681 Pan Bar Handle for Select Video Heads
-
4Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
-
5Miller Solo 75 2-Stage Bag (Black)

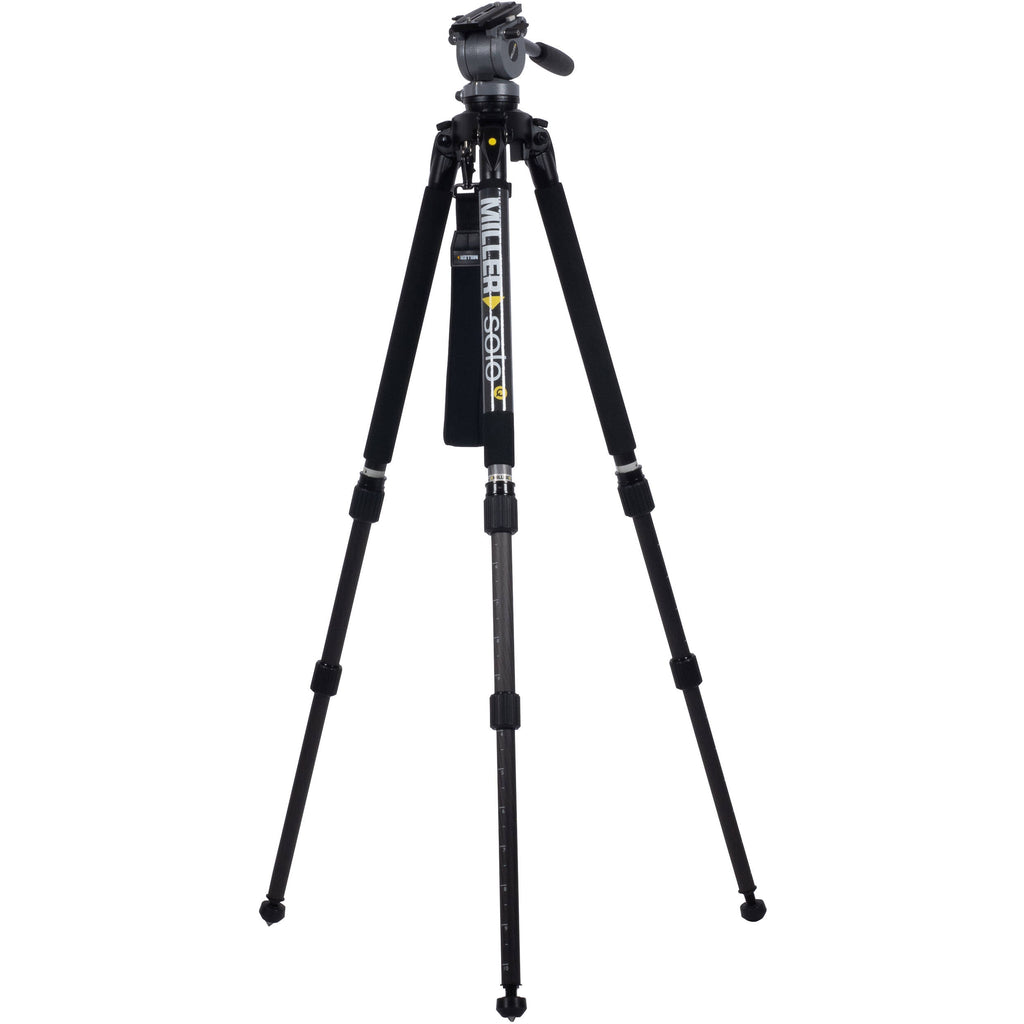

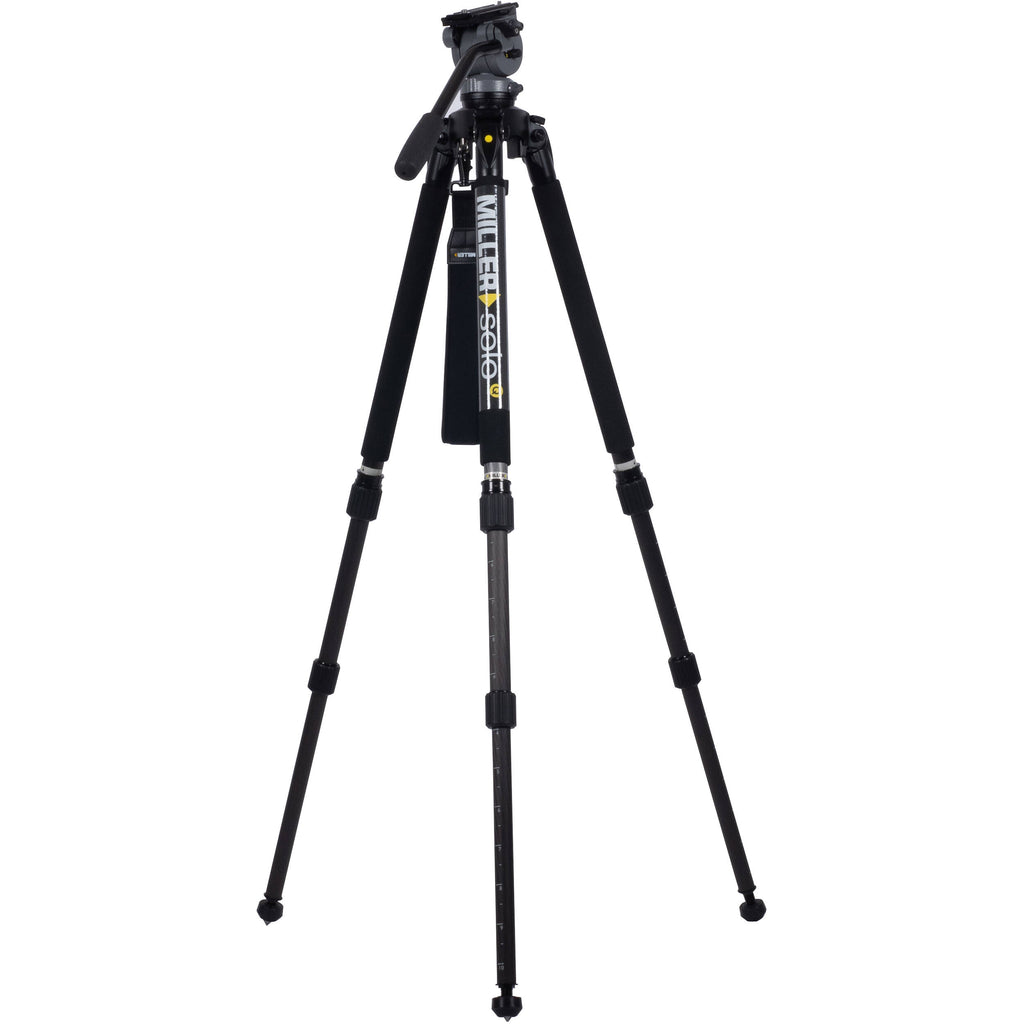

The Miller DS10 SOLO-Q 75 2-Stage Tripod is a compact and lightweight tripod system that brings smooth yet precise pan and tilt control to cameras and rigs weighing up to 11 pounds. It features the DS-10 fluid head, carbon fiber legs, a carry strap, and a tripod bag for storing and carrying all your gear.
The head features a sliding balance plate, independent pan and tilt locks, variable pan and tilt drag, a precision bubble level, and an integral 75mm ball for leveling. The included Solo carbon fiber legs feature two stages, providing a height range of 14.9 to 69.5", while selectable leg angle locks ensure rapid setup and excellent stability without a spreader. The 75mm bowl allows for quick leveling, optimum torsional rigidity, and long term durability.

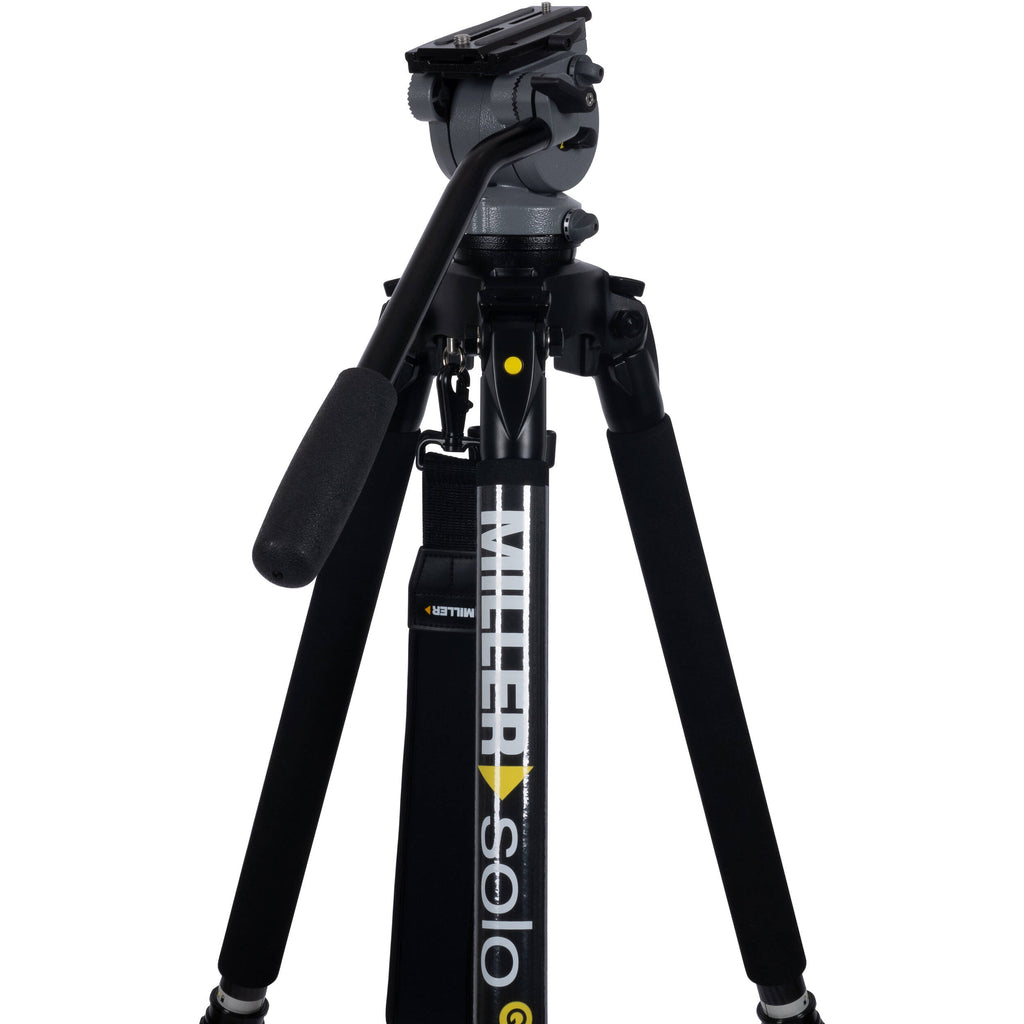

Miller DS-10 Fluid Head (75mm Ball Base)
The Miller DS-10 fluid head delivers the level of quality only found in more expensive (high-priced) heads, for today's compact digital camcorder shooters. Features a multi-step fluid drag system, an integrated counterbalance system combined with a sliding balance plate and a quick release and automatic locking system.
Multi-Step Pan & Tilt Fluid Drag System
The DS-10 fluid head incorporates Miller's multi-step Fluid Drag system ensuring smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings.
Preset Counterbalancing
The DS-10 uses a special designed counterbalanced system, to neutralize the effect of payloads and their centers of gravity.
Quick Release Camera Platform
This device is fitted with a precision, quick release camera platform that incorporates a sliding balance plate for fine tune payload balancing.
Safe at Any Temperature
Pressure or temperature does not influence the damping system, it has an operating range from -40°F to +149°F, and works without friction.
Miller 681 Pan Bar Handle for Select Video Heads
This Miller Pan Bar Handle is compatible with the Miller DS5, DS10, DS20, and Miller Compass 23 fluid video heads. It connects and locks into either side of those heads with a clamp and bolt for right- or left-handed use. A rubberized handle provides a comfortable means to move its aluminum-alloy shaft, which measures 15.4".
This angled pan bar handle can rotate within its clamp, allowing a downward-pointing orientation for right or left-handed use.
Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.
1.5 inch wide tripod carry strap
17 inch long shoulder pad
Miller Solo 75 2-Stage Bag (Black)
Store, transport, and protect your 75mm Solo tripod system or other gear with the black Miller Solo 75 2-Stage Bag. This sturdy case is constructed from nylon with foam padding. The tapered triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual magnetic strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
Compatible with both 2 and 3-Stage systems
In the Box
- Miller DS-10 Fluid Head (75mm Ball Base)
- 1x Pan Bar (#686)
- Miller 490 Camera Mounting Plate with 1/4"-20 Screw and Locating Pin - for DS-10 Fluid Head
- Limited 3-Year Warranty
- Miller 681 Pan Bar Handle for Select Video Heads
- Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
- Miller Solo 75 2-Stage Bag (Black)
- 2-Stage Carbon Fiber Tripod Legs
Table of Contents
- Description
- Miller DS-10 Fluid Head (75mm Ball Base)
- Miller 681 Pan Bar Handle for Select Video Heads
- Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
- Miller Solo 75 2-Stage Bag (Black)
Miller DS-10 Fluid Head (75mm Ball Base) Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate, Quick Release |
| Camera Mounting Screw |
1 x 1/4"-20 Male
1 x 3/8"-16 Male |
Tripod Platform
| Base Mount |
75 mm Half Ball |
Pan & Tilt
| Drag Control |
Continuous |
| Vertical Tilt |
+90° to -75° |
| Panning Range |
360° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
Physical
| Load Capacity |
11 lb / 5 kg |
| Counter Balance |
Incremental 2-Step (10 lb / ) |
| Bubble Level |
1 |
| Operating Temperature |
-40 to 149°F / -40 to 65°C |
| Weight |
3.4 lb / 1.5 kg |
Packaging Info
| Package Weight |
5.775 lb |
| Box Dimensions (LxWxH) |
14 x 12.3 x 10.6" |
Miller 681 Pan Bar Handle for Select Video Heads Specs
Physical
| Compatibility |
Miller DS5 Video Head
Miller DS10 Video Head
Miller DS20 Video Head
Miller Compass 23 Video Head |
| Material |
Aluminum alloy with rubberized handle |
| Length |
15.4" (39.1 cm) |
| Weight |
0.6 lb (0.3 kg) |
Packaging Info
| Package Weight |
1.14 lb |
| Box Dimensions (LxWxH) |
18.4 x 6.9 x 6.4" |
Miller 1520 Solo DV Strap - for Miller Solo DV Tripods Specs
Physical
| Attachment Method |
Spring-Loaded Clasp |
| Shoulder Strap Length |
31 to 43" / 78.7 to 109.2 cm |
| Strap Width |
1.5" / 3.8 cm |
| Material |
Nylon |
Packaging Info
| Package Weight |
0.7 lb |
| Box Dimensions (LxWxH) |
7 x 5.6 x 5.2" |
Miller Solo 75 2-Stage Bag (Black) Specs
Physical
| Material |
Nylon with foam padding |
| Type of Closure |
Zipper |
| Padded |
Yes |
| Carrying/Transport Options |
Dual, top strap handles |
| Interior Dimensions |
6.15 x 33.5" / 16.5 x 85.0 cm |
| Weight |
1.1 lb / 0.5 kg |
Packaging Info
| Package Weight |
2.85 lb |
| Box Dimensions (LxWxH) |
38.5 x 10 x 10" |
