Description
Miller Combo Live 30 Overview
- 1Description
- 2Miller Versa CXV14 Fluid Head with Pan Handle
- 3Miller Telescopic Pan Handle for ArrowX Heads
- 4Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
The CXV14 Combo Live 30 Pedestal System with Versa Plate from Miller combines the CXV 14 fluid head with the 100mm ball Combo Live 30 pedestal. This live-broadcast pedestal system supports rigs weighing up to 30.9 lb and provides a 17.7" elevation stroke on a pneumatic column extending from 38.3 to 60.5". System features include the side-loading Versa plate with 3.9" travel, an 11.6" steering wheel, locking 4.9" wheels, 16 counterbalance settings, and both linear and radius dolly tracking.

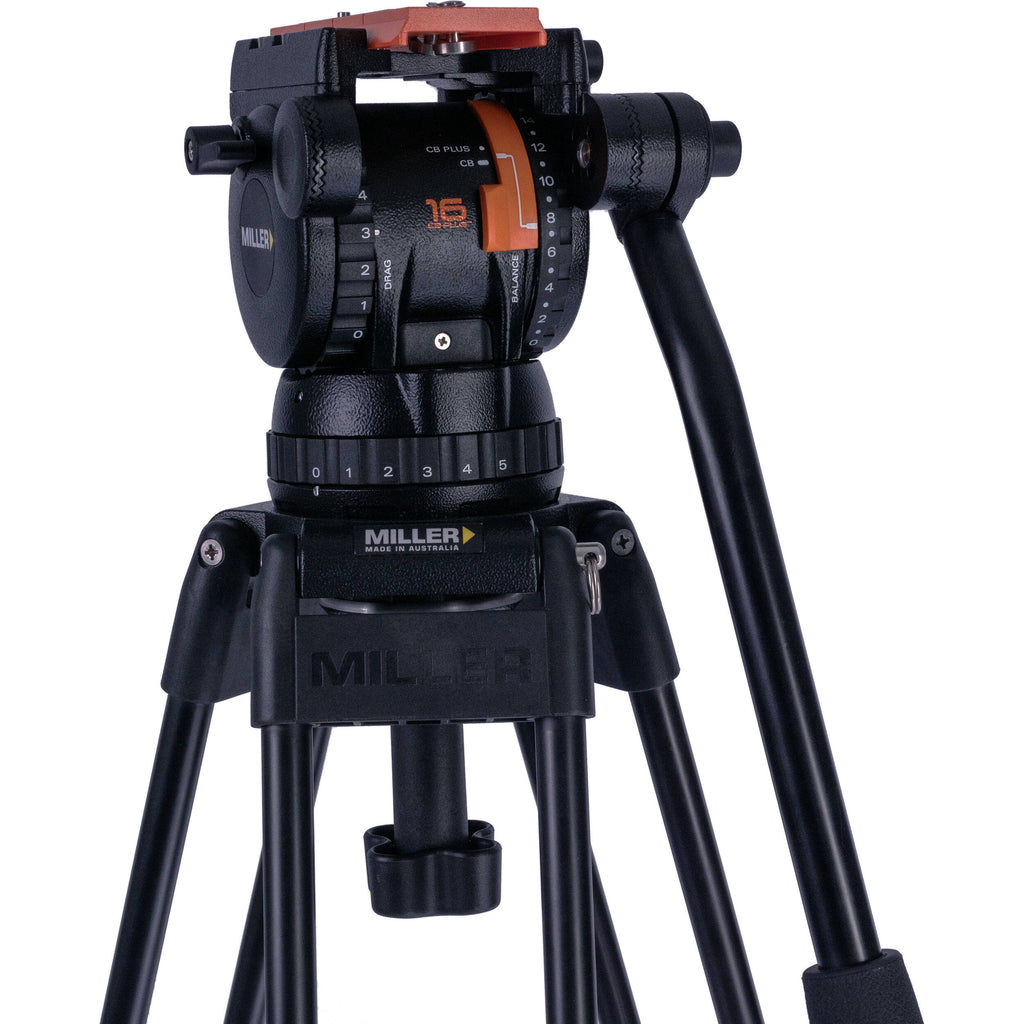

The Versa CXV14 Fluid Head with Pan Handle from Miller is designed to accommodate a wide payload range, 16 steps of counterbalance with CB Plus for fine adjustments, as well as five selectable pan/drag settings. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 30.9 lb, adequate for a DSLR or mirrorless camera, a cinema camera, or a ENG camcorder. Securing your camera or rig is easy. The sideload quick release plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 3.9" of sliding range to balance your rig.
To survive fast-paced shooting environments, the CXV14 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball bearings for smooth mechanical operation. Even in harsh conditions, the CXV14 will perform reliably. The base of the CXV14 is a 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CXV14 in dark environments. A fixed-length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
This Telescopic Pan Handle from Miller is compatible with ArrowX series video heads. The black alloy handle extends from 15.4 to 23.2" in length, offering 7.9" of adjustment. Handle features include a long locking lever for a secure connection and a comfortable rubber grip.

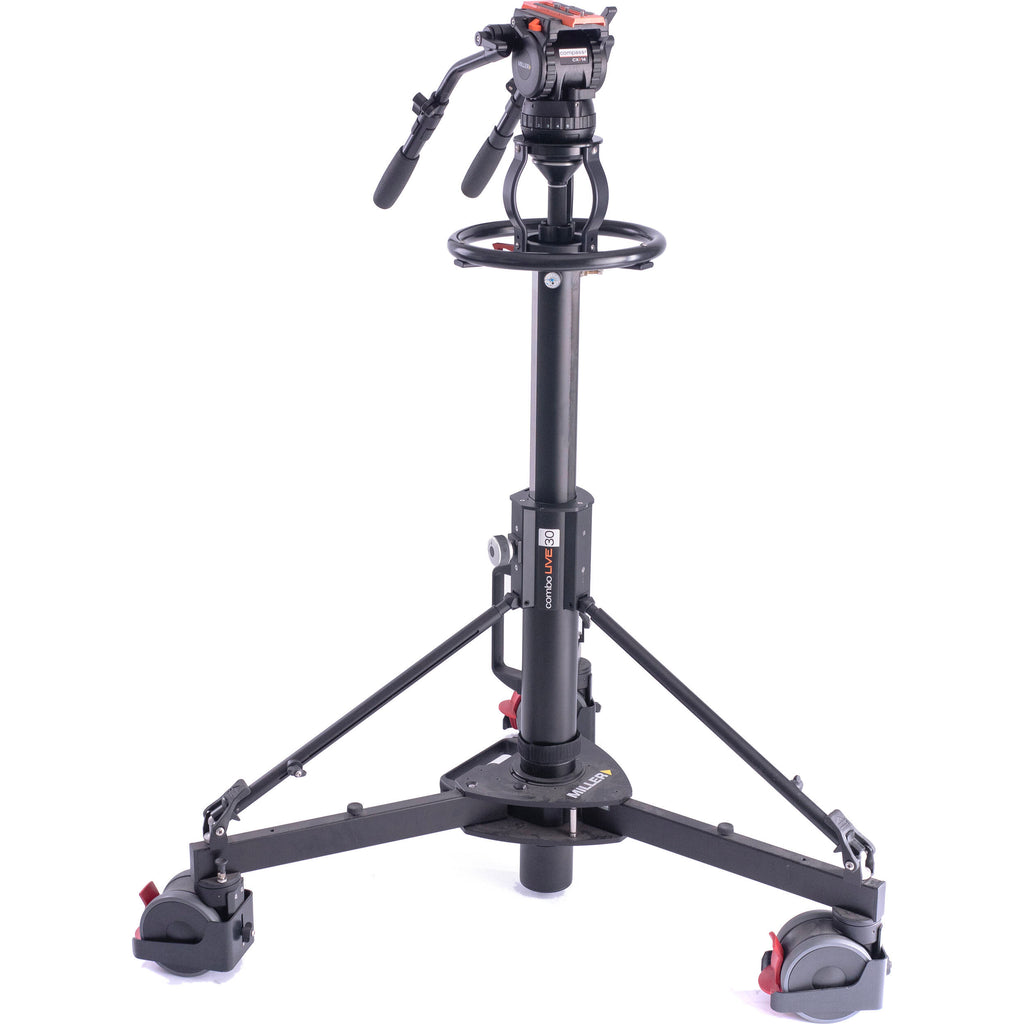

The Combo Live 30 Pedestal System from Miller is a lightweight pedestal and floor dolly system for 100mm ball fluid heads. With an adjustable air column system for quick payload balancing, the pedestal features a 31.8 to 54.1" height adjustment and a load capacity of 66 lb. Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth movement, with multiple wheel locking positions for linear or radius dolly tracking. The Combo Live 30 is simple and easy to set up and use with a drag control knob pressure column and a lock lever pressure column. It is also compact and portable with a carry handle for the column and dolly.
In the Box
- Miller Versa CXV14 Fluid Head with Pan Handle
- Quick Release Sideload Plate
- Pan Handle
- Limited 3-Year Manufacturer Warranty
- Miller Telescopic Pan Handle for ArrowX Heads
- Limited 3-Year Manufacturer Warranty
- Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
- Limited 3-Year Manufacturer Warranty
- Description
- Miller Versa CXV14 Fluid Head with Pan Handle
- Miller Telescopic Pan Handle for ArrowX Heads
- Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
Miller Versa CXV14 Fluid Head with Pan Handle Specs
| Camera Plate Features |
Quick Release, Sideload, Sliding Balance Plate
|
| Camera Plate Type |
Versa Plate
|
| Camera Mounting Screw |
1x 1/4"-20 Male
1x 3/8"-16 Male with Locating Pin |
| Base Mount |
100 mm Half Ball
|
| Counter Balance |
Incremental 15-Step Plus 0 (30.9 lb / 14 kg)
|
| Battery Type |
11A
|
| Drag Type |
Fluid
|
| Load Capacity |
30.9 lb / 14 kg at CoG 3.9" / 100 mm
|
| Camera Plate Features |
Quick Release, Sideload, Sliding Balance Plate
|
| Camera Plate Type |
Versa Plate
|
| Camera Mounting Screw |
1x 1/4"-20 Male
1x 3/8"-16 Male with Locating Pin |
| Balance Plate Sliding Range |
3.9" / 10 cm
|
| Safety Lock |
Yes
|
| Base Mount |
100 mm Half Ball
|
| Counter Balance |
Incremental 15-Step Plus 0 (30.9 lb / 14 kg)
|
| Center of Gravity |
3 to 6.9" / 75 to 175 mm
|
| Pan Handle Fittings |
2x Rosette
|
| Included Pan Handle Length |
15.4" / 39.1 cm
|
| Bubble Level |
1x Illuminated
|
| Battery Type |
11A
|
| Base Diameter |
3.9" / 9.9 cm
|
| Height |
6.2" / 15.7 cm
|
| Drag Control |
Tilt: Stepped 5-Step Plus 0
Pan: Stepped 5-Step Plus 0 |
| Drag Type |
Fluid
|
| Vertical Tilt |
+90° to -75°
|
| Panning Range |
360°
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Lateral Tilt |
No
|
| Load Capacity |
30.9 lb / 14 kg at CoG 3.9" / 100 mm
|
| Weight |
5.5 lb / 2.5 kg
|
Miller Telescopic Pan Handle for ArrowX Heads Specs
| Material |
Metal Alloy, Rubber
|
| Telescoping Range |
15.4 to 23.2" / 390 to 590 mm
|
| Extension Length |
7.9" / 200 mm
|
| Weight |
13.4 oz / 380 g
|
| Package Weight |
1.3 lb
|
| Box Dimensions (LxWxH) |
18.45 x 6.6 x 6.35"
|
Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload) Specs
| Load Capacity |
66 lb / 30 kg
|
| Height Range |
31.8 to 54.1" / 81.0 x 137.5 cm
|
| Mounting Base |
?3.9" / 100 mm Ball Leveling
|
| Dimensions |
Column In-Shot Stroke: 17.7" / 45 cm
Steering Wheel Diameter: 11.6" / 29.4 cm Tracking Width: 38.2" / 97 cm Wheel Diameter: 4.9" / 12.5 cm |
| Weight |
38.9 lb / 17.7 kg
|
| Package Weight |
53 lb
|
| Box Dimensions (LxWxH) |
34 x 20 x 14"
|
