Description
Miller CX14 Tripod System Overview
- 1Description
- 2Miller CX14 Fluid Head
- 3Miller Pan Handle for Compass15 and Compass20 Fluid Heads
- 4Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
- 5Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)

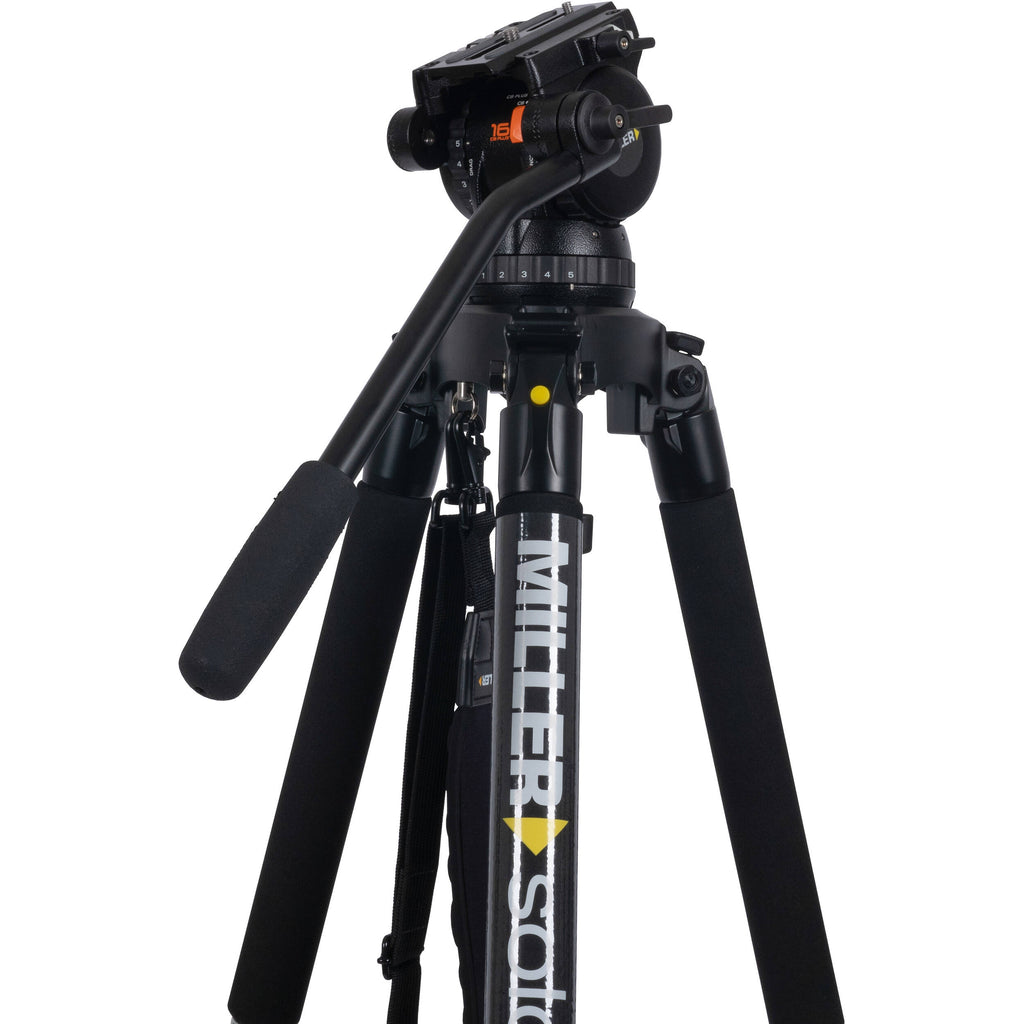

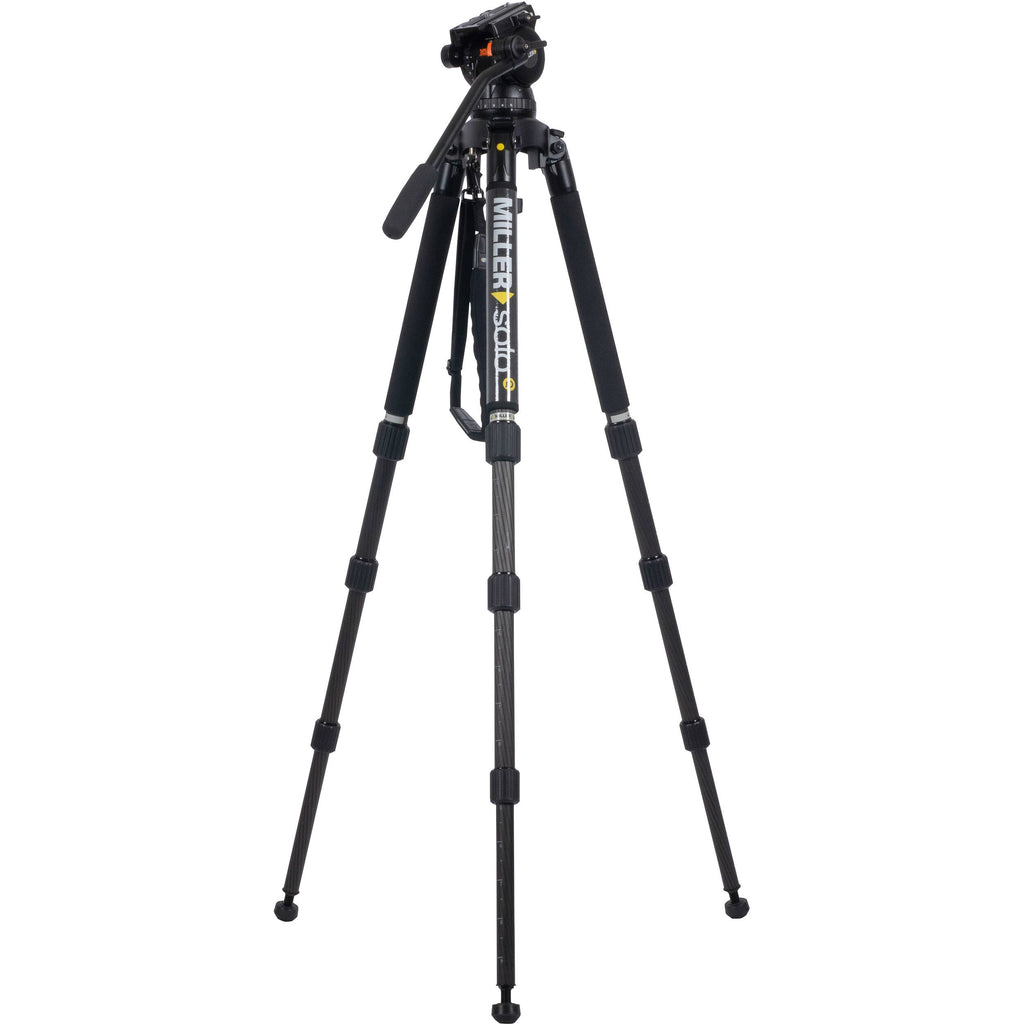

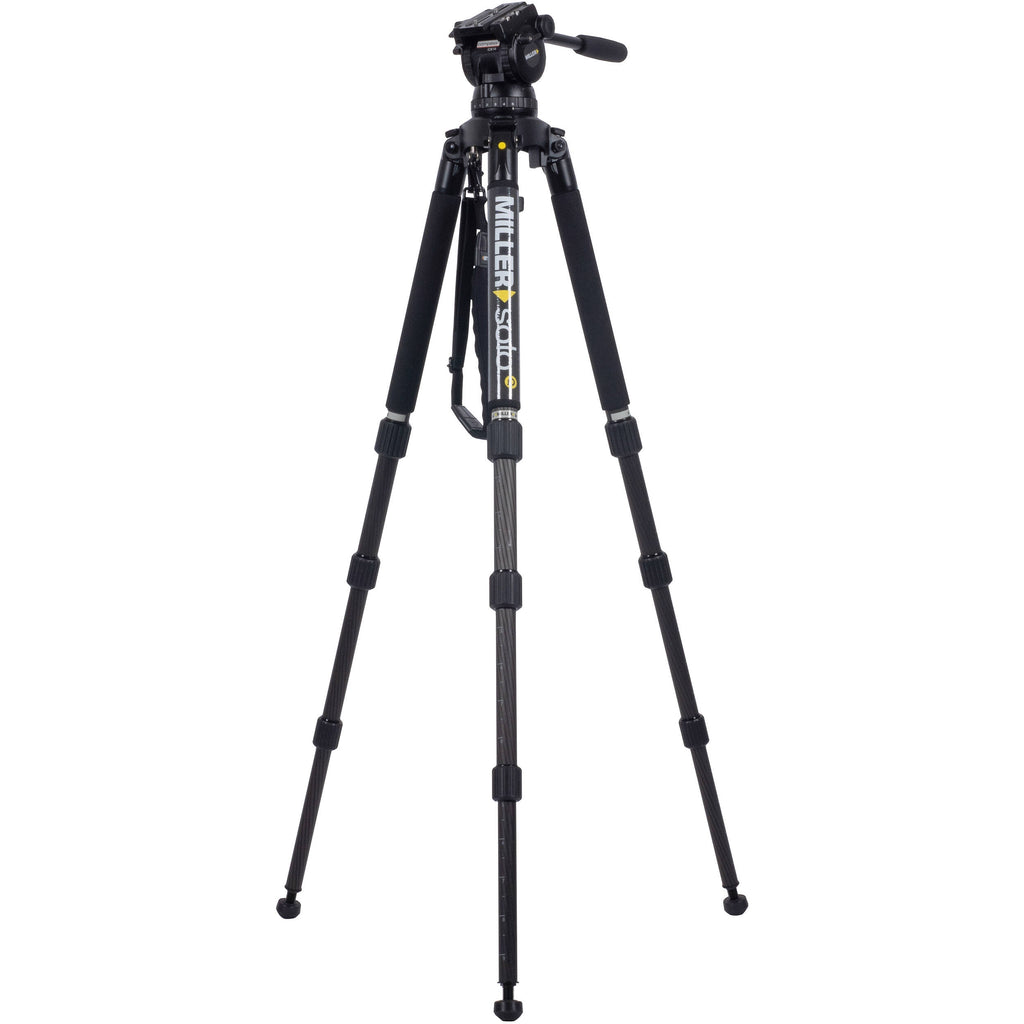

The Miller CX14 SOLO-Q 100 3-Stage Tripod is a compact and lightweight tripod system that brings smooth yet precise pan and tilt control to cameras and rigs weighing up to 30.9 pounds. It features the CX14 fluid head, carbon fiber legs, a carry strap, and a tripod bag for storing and carrying all your gear.
The head features a sliding balance plate, independent pan and tilt locks, five steps of pan and tilt drag, 15 steps plus a zero setting of counterbalance for fine-tuning the head's operation, a precision bubble level, and an integral 100mm ball for leveling. The included Solo-Q carbon fiber legs feature three stages, providing a height range of 15.4 to 80.4", while selectable leg angle locks ensure rapid setup and excellent stability without a spreader. The 100mm bowl allows for quick leveling, optimum torsional rigidity, and long-term durability.

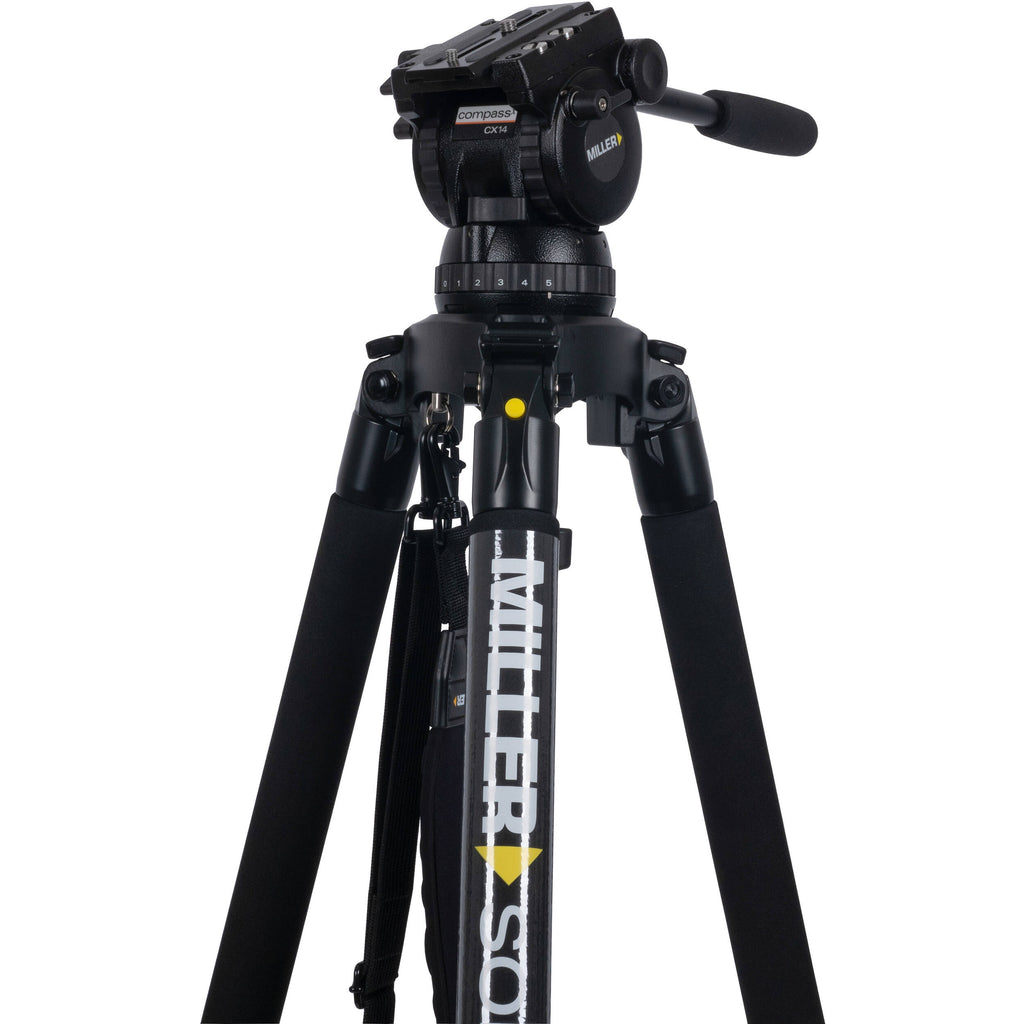

Miller CX14 Fluid Head
The Miller CX14 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. The head has a tilt range of +90 to -75°, which allows you to tilt the camera straight down, then nearly straight up. Pan, tilt, and counterbalance can all be set to zero, for totally free movement of the head, often useful for whip pans. The fluid head accommodates cameras and rigs weighing up to 30.9 pounds, more than adequate for use with small cinema cameras with rigs or medium sized ENG camcorders. The sideload plate design enables you to simply drop in your camera from the top without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.
The CX14 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX14 will perform reliably. The base of the CX14 is a removable 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX14 in dark environments. A fixed length pan handle is included, and an integrated second rosette is available for attaching an optional second pan handle.
Miller Pan Handle for Compass15 and Compass20 Fluid Heads
The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminum alloy and features a comfortable rubber grip.
Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.
Compatible with;
- Miller Solo DV tripods
Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
Store, transport, and protect your gear with the black Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems. The case features zipper closure, top and bottom cradles with straps to secure your tripod, and back pack straps with a storage pocket. For strength and durability, the case is constructed with a ballistic nylon shell and hard plastic skid pads. Carry the case with the dual strap handles or padded grab handle. You can also attach a sold-separately shoulder strap to the case D-links. An external pocket and card holder makes case identification easier.
In the Box
- Miller CX14 Fluid Head
- Miller Standard Camera Plate for AIR, DS10, DS20, Compass, CompassX Heads (2.4")
- 1/4"-20 Camera Tie-Down Screw
- 3/8"-16 Camera Tie-Down Screw
- Pan Handle
- Limited 3-Year Warranty
- Miller Pan Handle for Compass15 and Compass20 Fluid Heads
- 3-Year Warranty
- Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
- 1 Year Warranty
- Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
- Back Pack Straps
- Limited 3-Year Warranty
- 3-Stage Carbon Fiber Tripod Legs
- Description
- Miller CX14 Fluid Head
- Miller Pan Handle for Compass15 and Compass20 Fluid Heads
- Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
- Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
Miller CX14 Fluid Head Specs
| Camera Plate Features | Sideload, Sliding Balance Plate |
| Camera Plate Type | Euro Plate, Miller 1205, Sideload Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
| Balance Plate Sliding Range | 2.4" / 6 cm |
| Plate Dimensions | 4.72 x 1.91 x 0.31" / 120 x 48.5 x 8 mm |
| Camera Platform Adjustment | No |
| Base Mount | 100 mm Half Ball |
| Drag Control | Pan: 5-Step Plus 0 Tilt: 5-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum |
| Load Capacity | 0 to 26.4 lb / 0 to 12 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 15.35" / 390 mm |
| Bubble Level | 1 x Illuminated |
| Base Diameter | 3.94" / 100 mm |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 5.51 lb / 2.5 kg |
| Package Weight | 7.45 lb |
| Box Dimensions (LxWxH) | 11.7 x 9.9 x 7.8" |
Miller Pan Handle for Compass15 and Compass20 Fluid Heads Specs
| Material | Anodized aluminum alloy and rubber |
| Length | 15.4" (39.0 cm) |
| Weight | 0.6 lbs (285 g) |
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 15.75 x 3 x 2.15" |
Miller 1520 Solo DV Strap - for Miller Solo DV Tripods Specs
| Attachment Method | Spring-Loaded Clasp |
| Shoulder Strap Length | 31 to 43" / 78.7 to 109.2 cm |
| Strap Width | 1.5" / 3.8 cm |
| Material | Nylon |
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 7 x 5.6 x 5.2" |
Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black) Specs
| Material | Ballistic nylon outer shell |
| Type of Closure | Zipper |
| Padded | Yes |
| Carrying/Transport Options | Dual top handles and padded end handle D-links for optional, user-supplied shoulder strap Back pack straps |
| Dimensions | 37.8 x 10.2 x 12.6" / 96.0 x 26.0 x 32.0 cm |
| Weight | 9.7 lb / 4.4 kg |
| Package Weight | 12.68 lb |
| Box Dimensions (LxWxH) | 39 x 13.75 x 12" |
