Description
Miller Combo Live 30 Overview
- 1Description
- 2Miller CX14 Fluid Head
- 3Miller Telescopic Pan Handle for ArrowX Heads
- 4Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
The CX14 Combo Live 30 Pedestal from Miller combines the CX14 fluid head with the 100mm ball Combo Live 30 pedestal. This live-broadcast pedestal system supports 0 to 30.9 lb and provides a 17.7" elevation stroke on a pneumatic column extending from 38.3 to 60.5". System features include an 11.6" steering wheel, locking 4.9" wheels, 16 counterbalance settings, and both linear and radius dolly tracking.

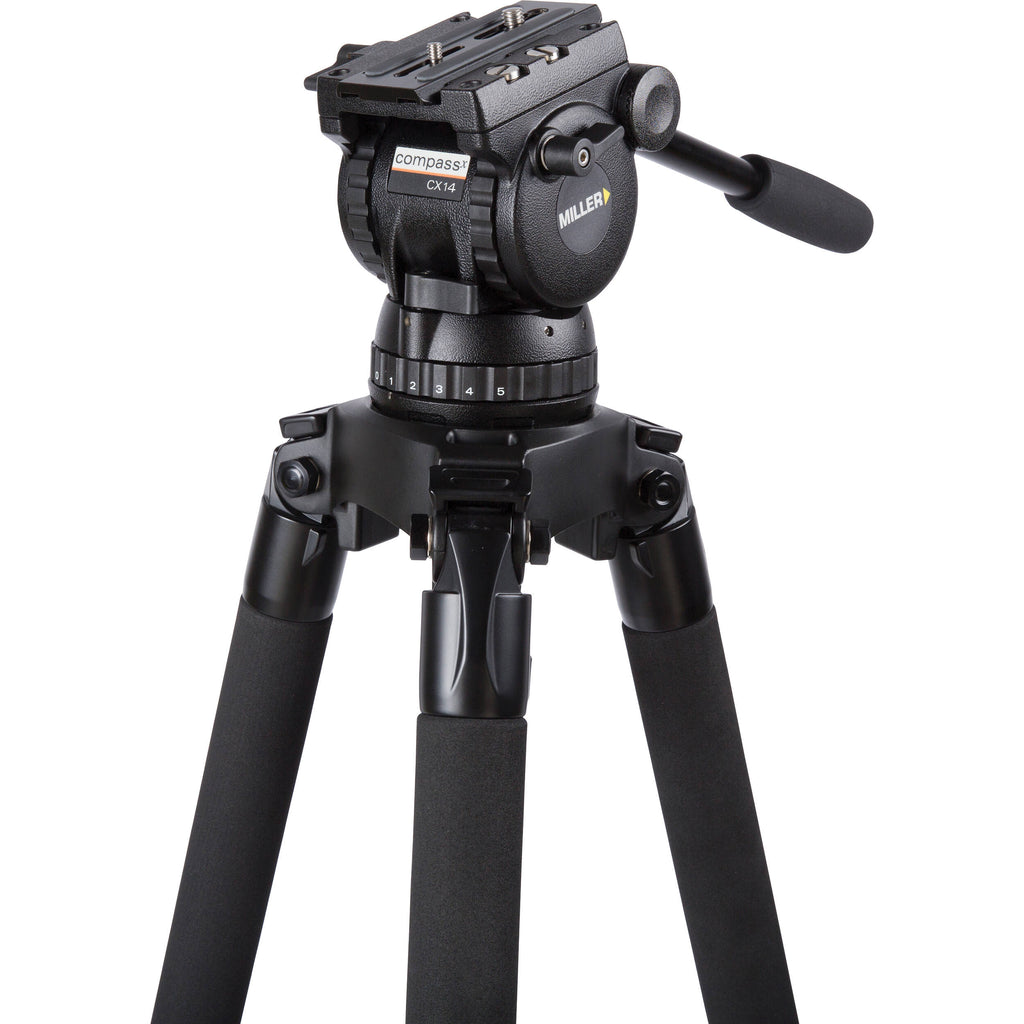

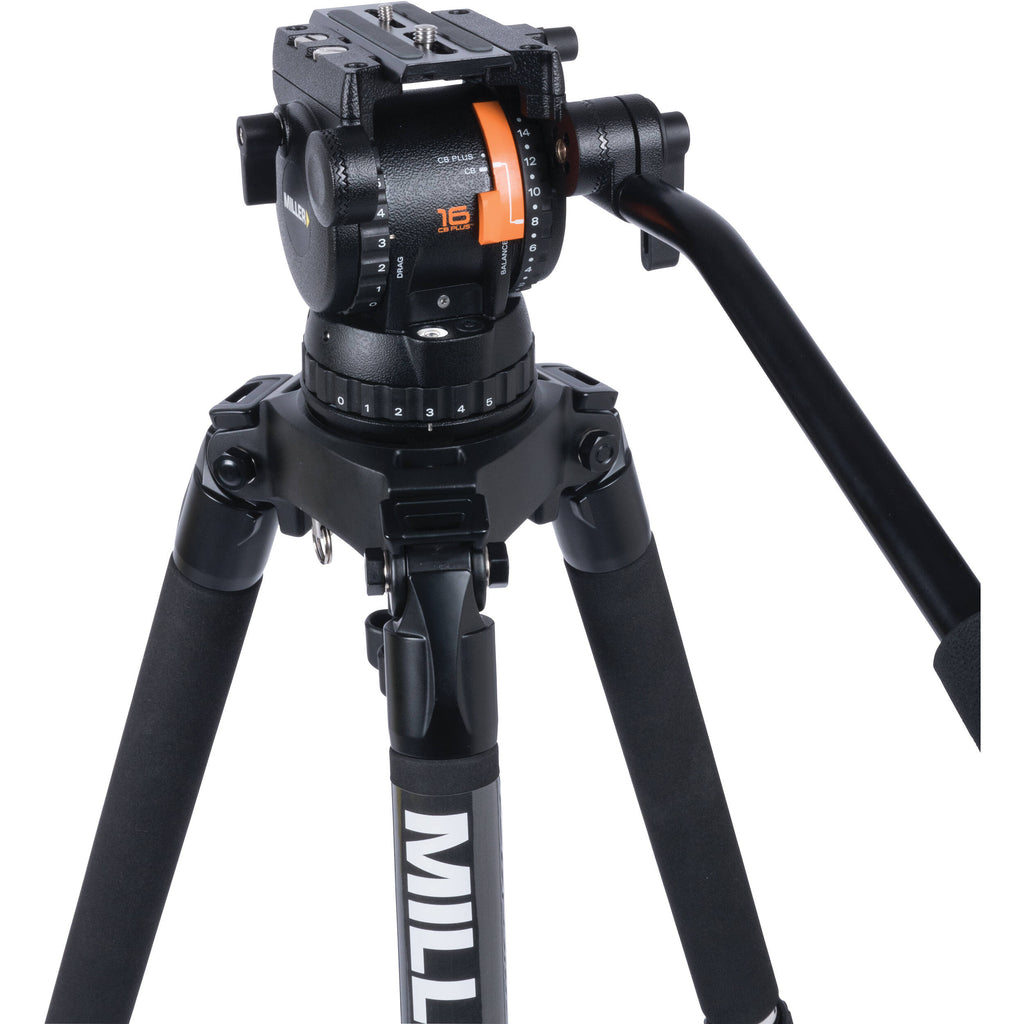

Miller CX14 Fluid Head
The Miller CX14 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. The head has a tilt range of +90 to -75°, which allows you to tilt the camera straight down, then nearly straight up. Pan, tilt, and counterbalance can all be set to zero, for totally free movement of the head, often useful for whip pans. The fluid head accommodates cameras and rigs weighing up to 30.9 pounds, more than adequate for use with small cinema cameras with rigs or medium sized ENG camcorders. The sideload plate design enables you to simply drop in your camera from the top without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.
The CX14 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX14 will perform reliably. The base of the CX14 is a removable 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX14 in dark environments. A fixed length pan handle is included, and an integrated second rosette is available for attaching an optional second pan handle.
Miller Telescopic Pan Handle for ArrowX Heads
This Telescopic Pan Handle from Miller is compatible with ArrowX series video heads. The black alloy handle extends from 15.4 to 23.2" in length, offering 7.9" of adjustment. Handle features include a long locking lever for a secure connection and a comfortable rubber grip.
Compatibility

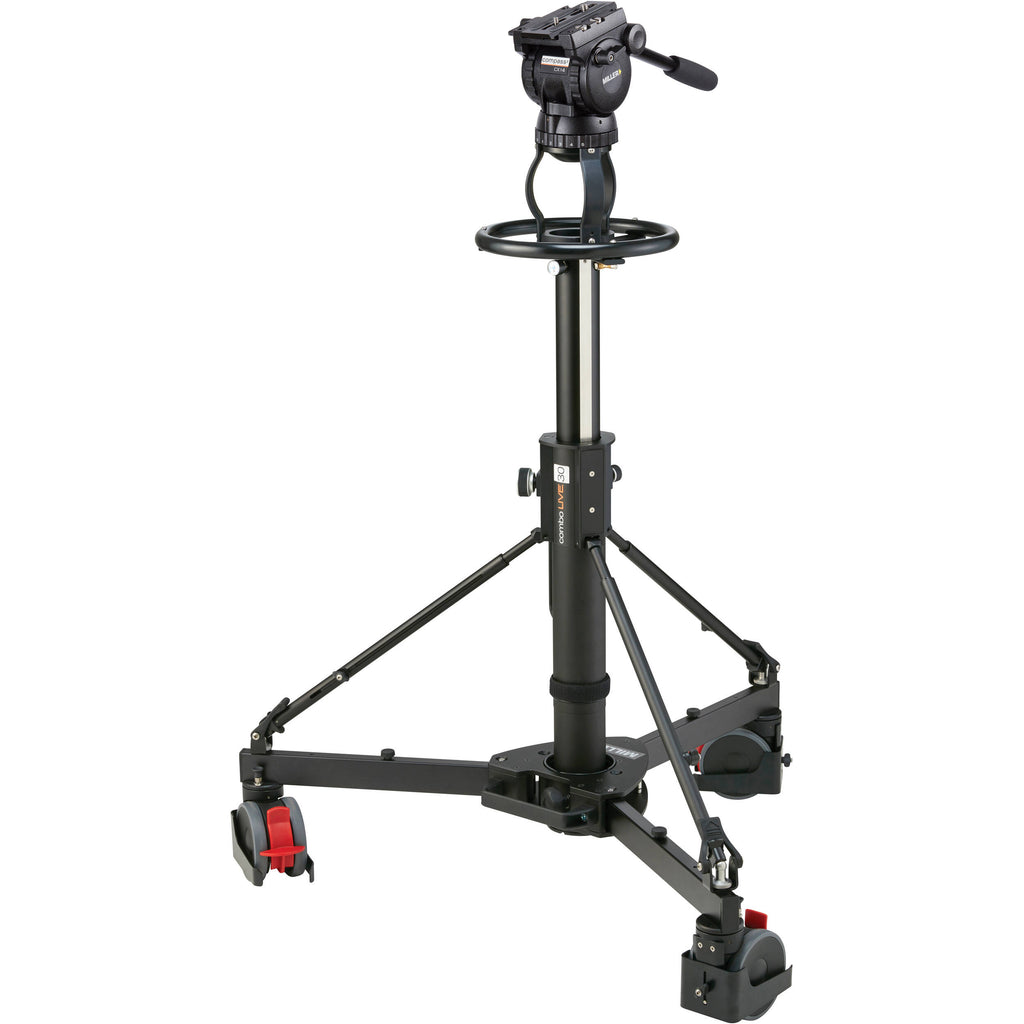

Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
The Combo Live 30 Pedestal System from Miller is a lightweight pedestal and floor dolly system for 100mm ball fluid heads. With an adjustable air column system for quick payload balancing, the pedestal features a 31.8 to 54.1" height adjustment and a load capacity of 66 lb. Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth movement, with multiple wheel locking positions for linear or radius dolly tracking. The Combo Live 30 is simple and easy to set up and use with a drag control knob pressure column and a lock lever pressure column. It is also compact and portable with a carry handle for the column and dolly.
In the Box
- Miller CX14 Fluid Head
- Miller Standard Camera Plate for AIR, DS10, DS20, Compass, CompassX Heads (2.4")
- 1/4"-20 Camera Tie-Down Screw
- 3/8"-16 Camera Tie-Down Screw
- Pan Handle
- Limited 3-Year Warranty
- 2 x Miller Telescopic Pan Handle for ArrowX Heads
- Limited 3-Year Warranty
- Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
- Limited 3-Year Warranty
- Description
- Miller CX14 Fluid Head
- Miller Telescopic Pan Handle for ArrowX Heads
- Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
Miller CX14 Fluid Head Specs
| Camera Plate Features | Sideload, Sliding Balance Plate |
| Camera Plate Type | Euro Plate, Miller 1205, Sideload Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
| Balance Plate Sliding Range | 2.4" / 6 cm |
| Plate Dimensions | 4.72 x 1.91 x 0.31" / 120 x 48.5 x 8 mm |
| Camera Platform Adjustment | No |
| Base Mount | 100 mm Half Ball |
| Drag Control | Pan: 5-Step Plus 0 Tilt: 5-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum |
| Load Capacity | 0 to 26.4 lb / 0 to 12 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 15.35" / 390 mm |
| Bubble Level | 1 x Illuminated |
| Base Diameter | 3.94" / 100 mm |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 5.51 lb / 2.5 kg |
| Package Weight | 7.45 lb |
| Box Dimensions (LxWxH) | 11.7 x 9.9 x 7.8" |
Miller Telescopic Pan Handle for ArrowX Heads Specs
| Material | Metal Alloy, Rubber |
| Telescoping Range | 15.4 to 23.2" / 390 to 590 mm |
| Extension Length | 7.9" / 200 mm |
| Weight | 13.4 oz / 380 g |
| Package Weight | 1.465 lb |
| Box Dimensions (LxWxH) | 18.45 x 6.6 x 6.35" |
Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload) Specs
| Load Capacity | 66 lb / 30 kg |
| Height Range | 31.8 to 54.1" / 81.0 x 137.5 cm |
| Mounting Base | �3.9" / 100 mm Ball Leveling |
| Dimensions | Column In-Shot Stroke: 17.7" / 45 cm Steering Wheel Diameter: 11.6" / 29.4 cm Tracking Width: 38.2" / 97 cm Wheel Diameter: 4.9" / 12.5 cm |
| Weight | 38.9 lb / 17.7 kg |
| Package Weight | 53 lb |
| Box Dimensions (LxWxH) | 34 x 20 x 14" |
