Description
Miller CiNX 7 HDC Overview

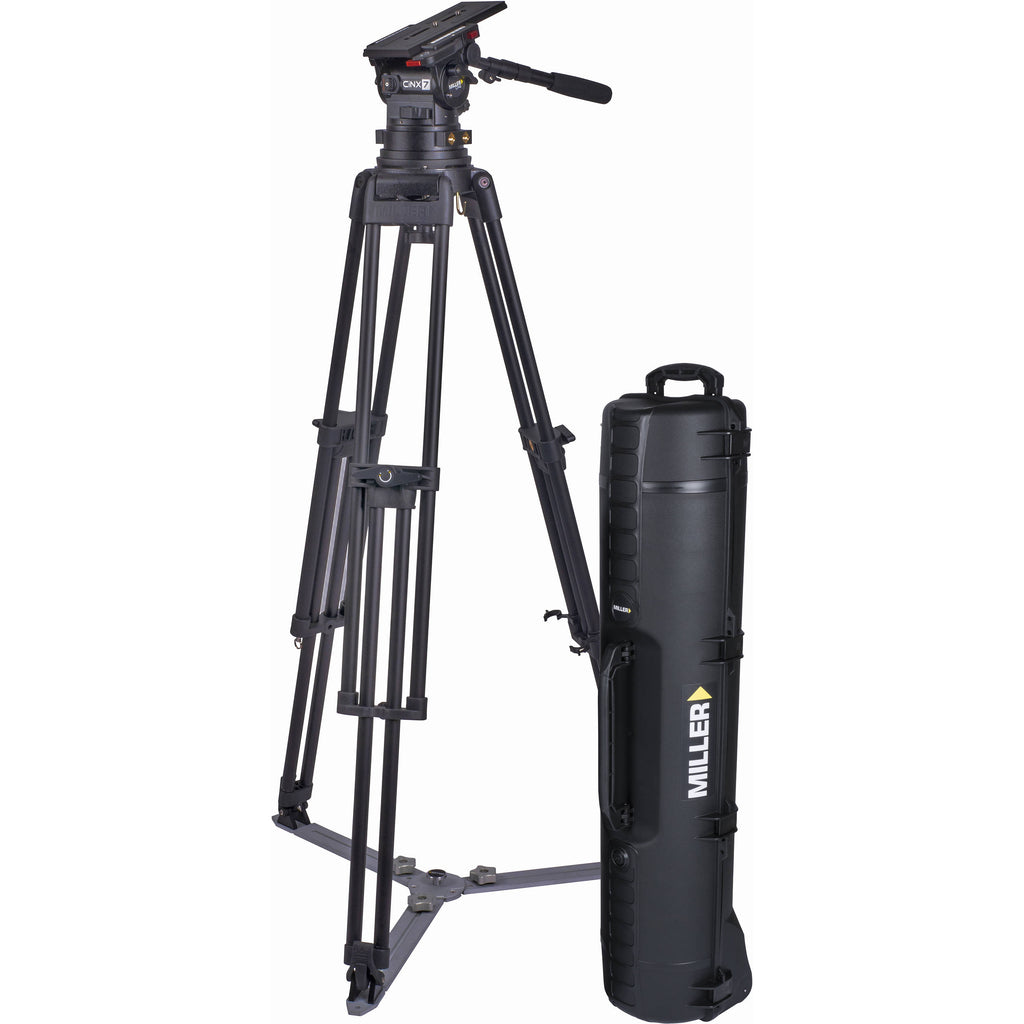

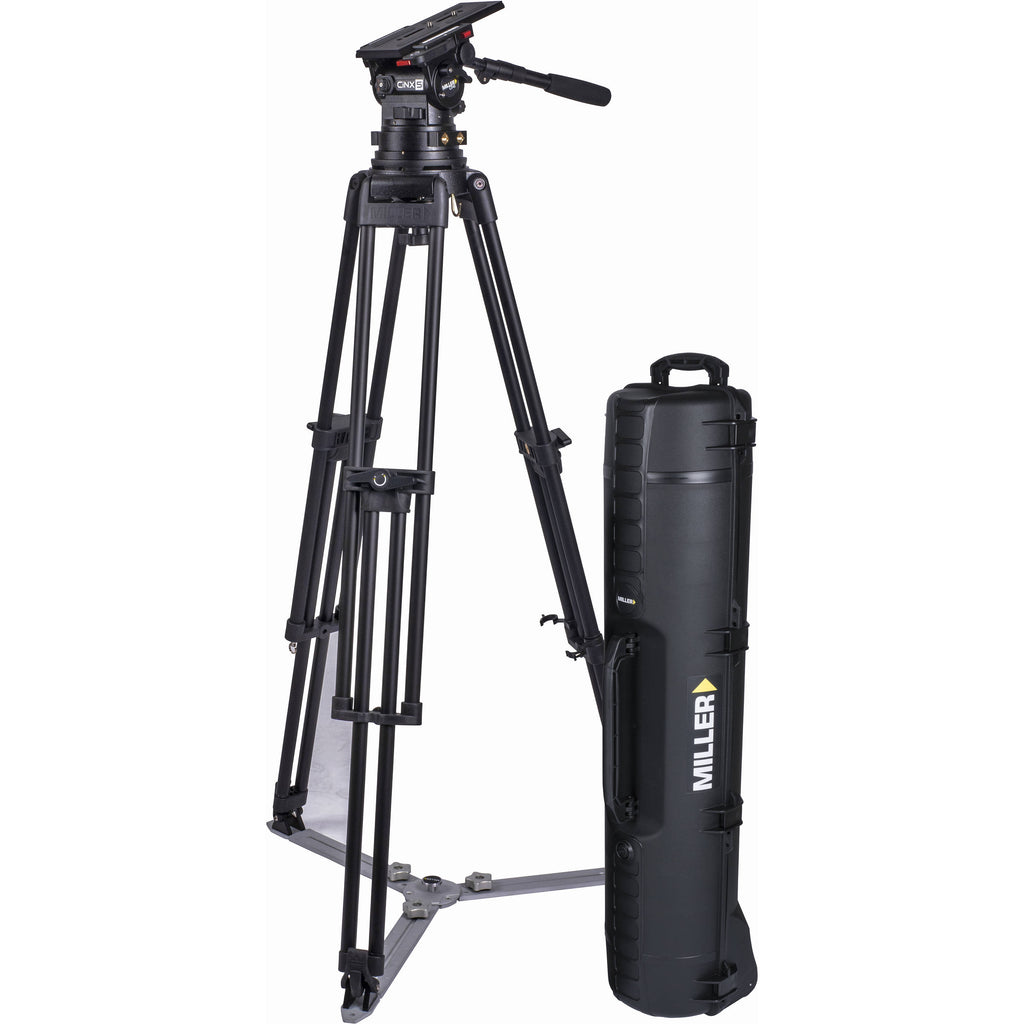

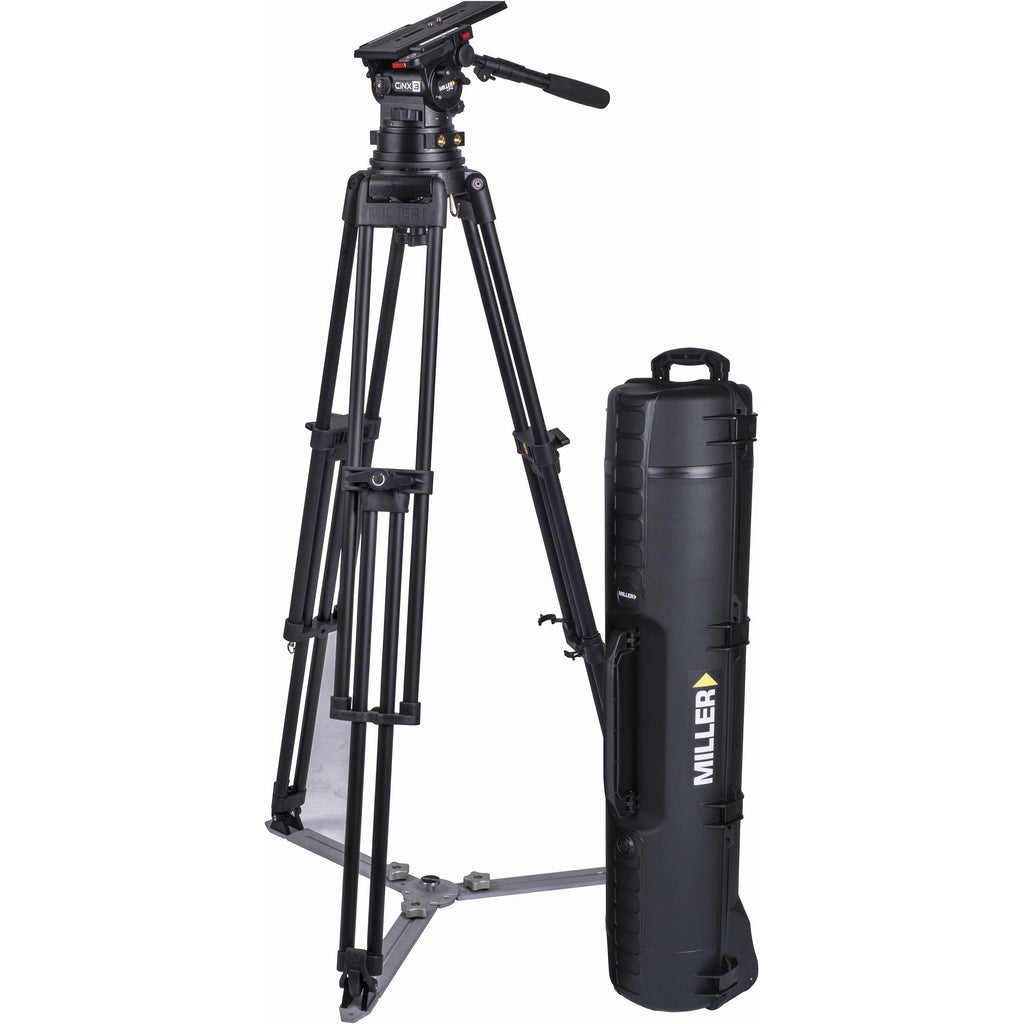

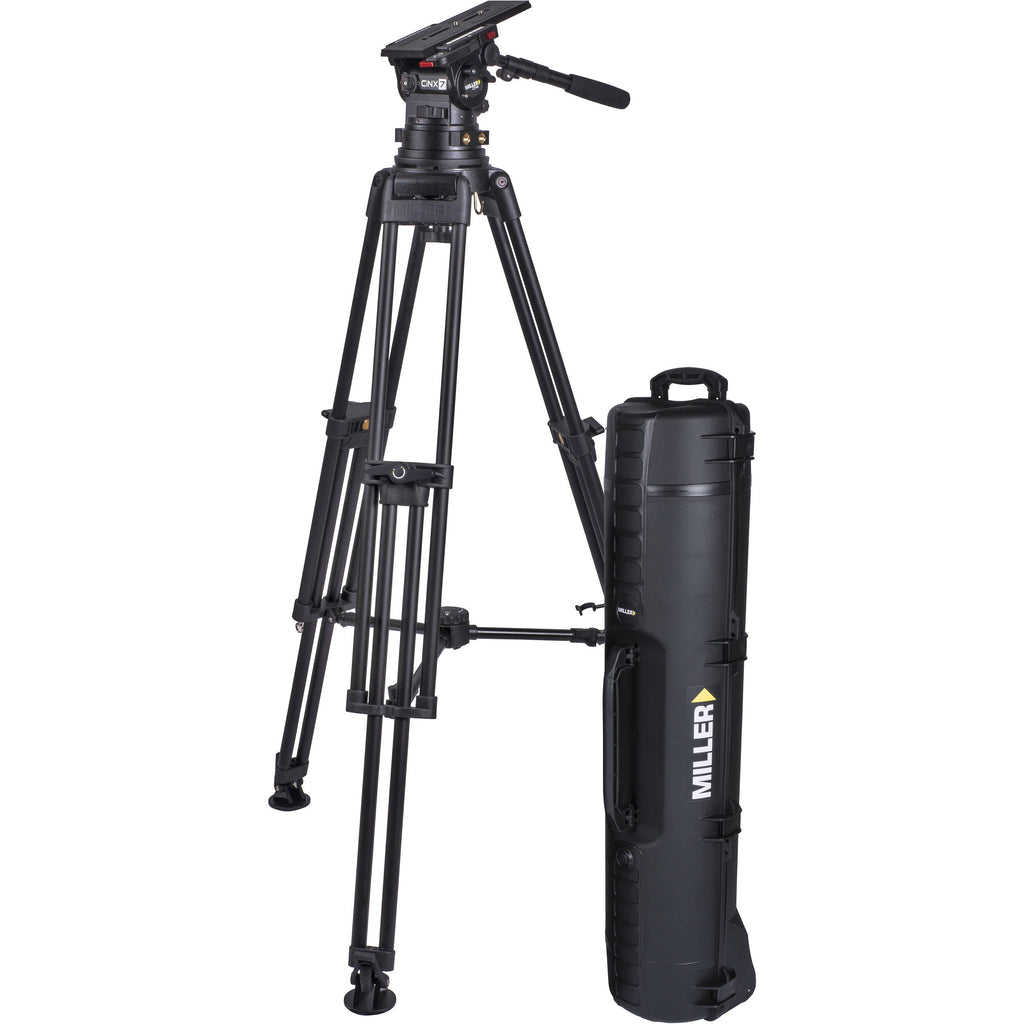

This Miller CiNX 7 and HDC 150 1-Stage Tripod System features the CiNX 7 fluid head, 150mm bowl tripod legs, mid-level spreader, and a wheeled carry case. The tripod legs have 24mm tubing and integrated spiked feet and are optimized for a mid-spreader. Heavy-duty rubber foot pads are also included.
The CiNX 7 supports 13.2 to 55 lb loads and offers 16 steps of counterbalance and 7 + 0 steps of pan and tilt drag. It natively features a flat base with a 3/8"-16 thread, and this bundle adds a 150mm bowl claw adapter. This head is designed to achieve ultra-soft starts and stops and balanced diagonal transitions. A sideload camera plate system allows you to efficiently mount and remove your camera.
With the head and mid-spreader attached, the tripod offers a height range of 39 to 68.5" in one stage of adjustment.
The wheeled case is designed with high-pressure resin, polymer, and aluminum materials and has a top handle, side handle, and bottom wheels. It's IP67 watertight and resistant to dust, moisture, acids, and sand. Other features include an automatic air pressure valve and inner padding

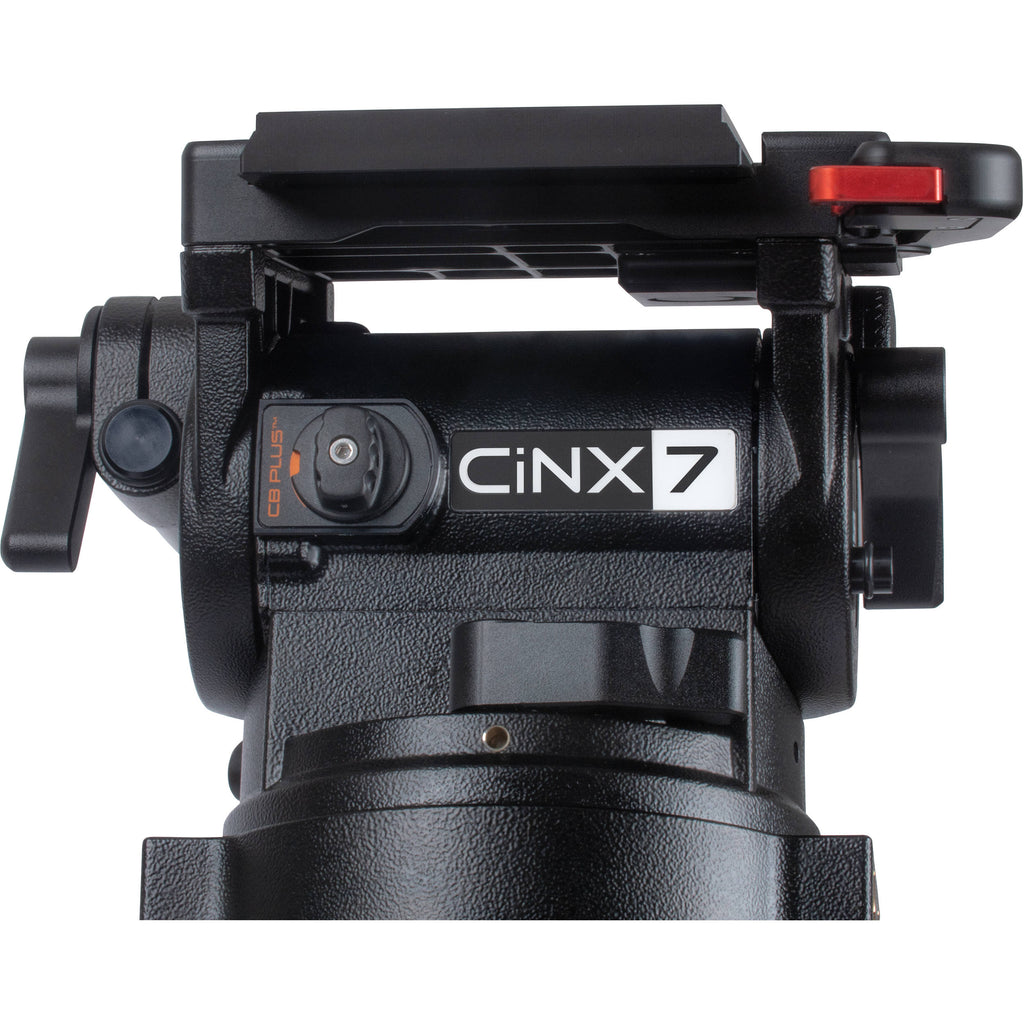

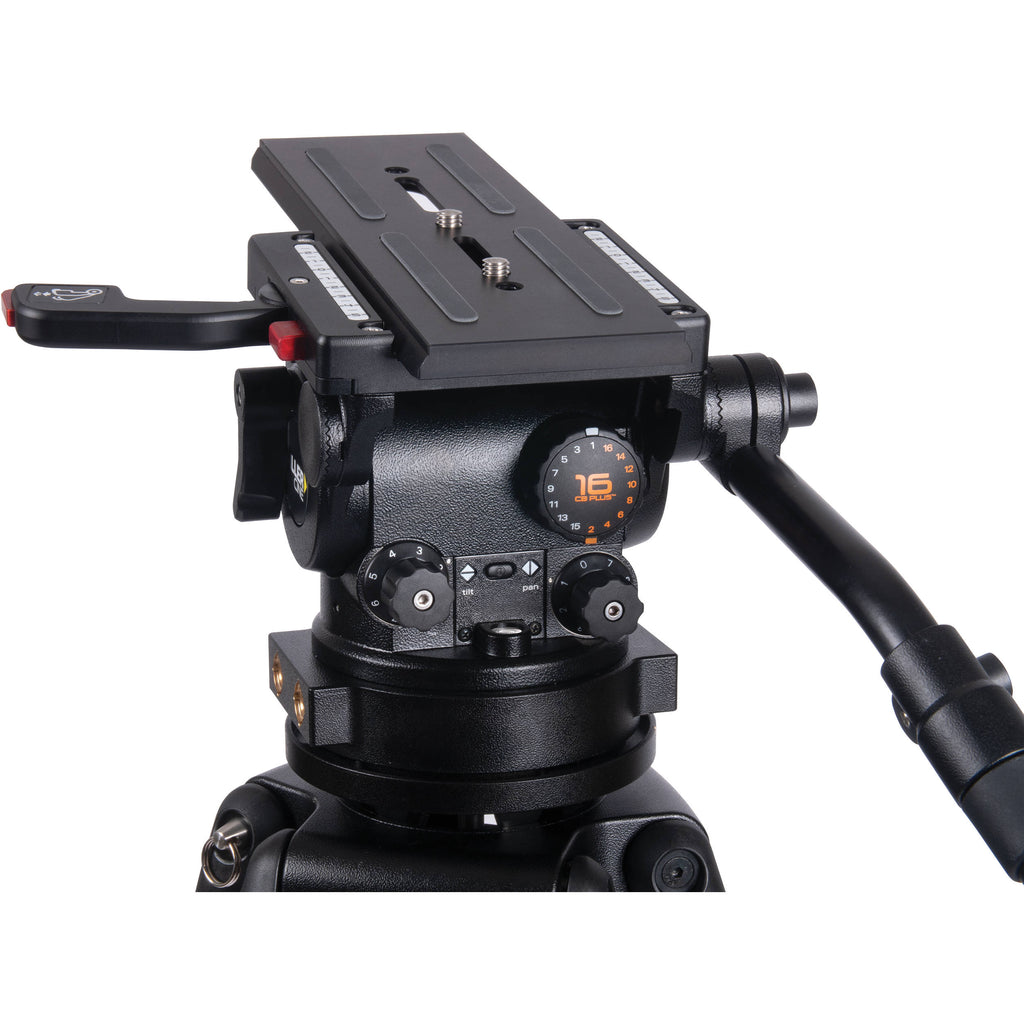

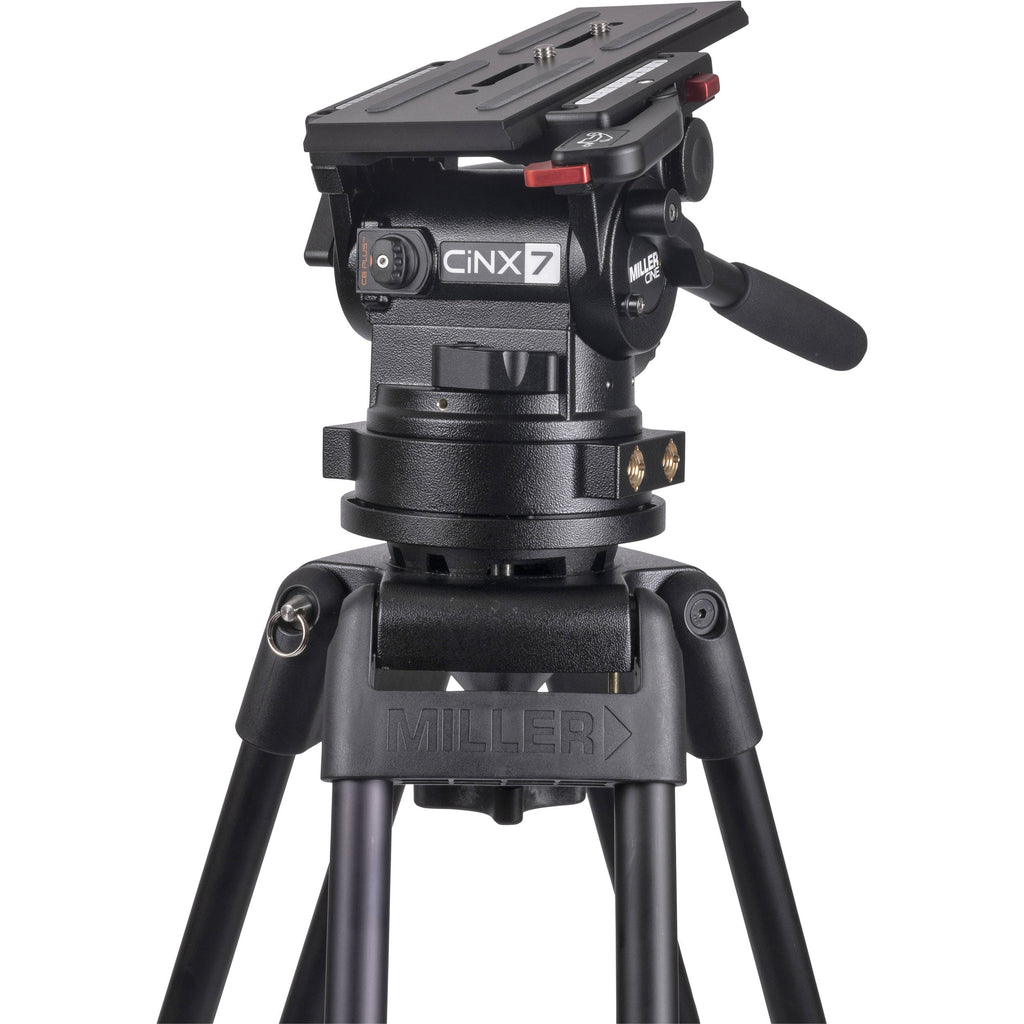

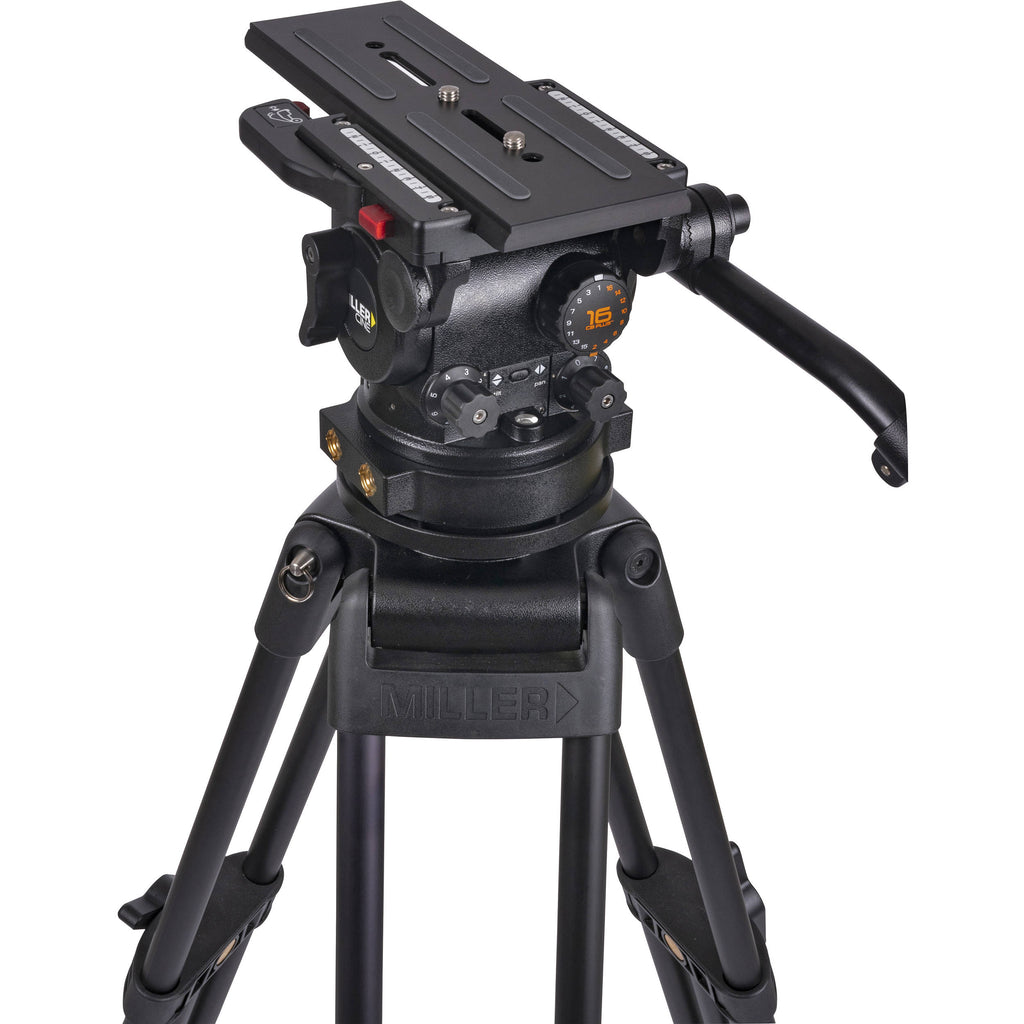

CiNX 7 Fluid Head Features
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- 3/8"-16 threaded flat base (a 150mm bowl claw adapter is included in this bundle)
- 16 steps counterbalance
- Payload range of 13.2 to 55 lb
- 7 + 0 steps of pan and tilt drag; illuminated controls
- Sideload platform with safety lock
- 5.9" camera plate sliding range
- Four anti-twist ARRI accessory mounts
- Illuminated bubble level
- Wide operating temperature range of -40 to 149°F
In the Box
- Miller CiNX 7 & HDC 150 1-Stage Tripod System with Mid-Spreader
- CiNX 7 Fluid Head
- Miller ARRI Camera Plate for Cineline 70 Fluid Head
- Miller 698 Telescopic Pan Handle with Clamp for Cineline 70 and Skyline 70 Head
- Miller D150 Claw Ball Level Adapter for ArrowFX Fluid Head and 150mm Bowl
- Miller 2115 HDC 150 1-Stage Aluminum Tripod
- Miller 993 Mid-level Spreader
- Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
- Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)
Miller CiNX 7 HDC Specs
| Camera Plate Features | Quick Release |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 5.91" / 150 mm |
| Safety Lock | Yes |
| Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
| Base Mount | 150 mm Half Ball 3/8"-16 Female |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 4 x ARRI Accessory Mount Female |
| Drag Control | Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Leg Lock Type | Rotating Locking Lever |
| Leg Sections | 2 |
| Leg Diameter | 0.94" / 24 mm (Maximum) |
| Feet Features | Spiked |
| Spreader | Mid-Level (Included) |
| Load Capacity | 13.2 to 55 lb / 5.99 to 24.95 kg |
| Maximum Working Height | 68.58" / 174.2 cm |
| Minimum Working Height | 39.06" / 99.2 cm |
| Folded Length | 43.62" / 110.8 cm |
| Materials | Aluminum |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 26.9 lb / 12.20 kg |
