Description
Miller CiNX 7 HD Overview
- 1 Description
- 2 Miller CiNX 7 Fluid Head
- 3 Miller ENG Carbon Fiber 2-Stage Heavy-Duty Tripod Legs (100mm Bowl) - Supports 200 lbs
- 4 Miller 993 Mid-level Spreader
- 5 Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
- 6 Miller Arrowx Shell Case with Wheels for Sprinter II & HD Tripod Systems (Black)

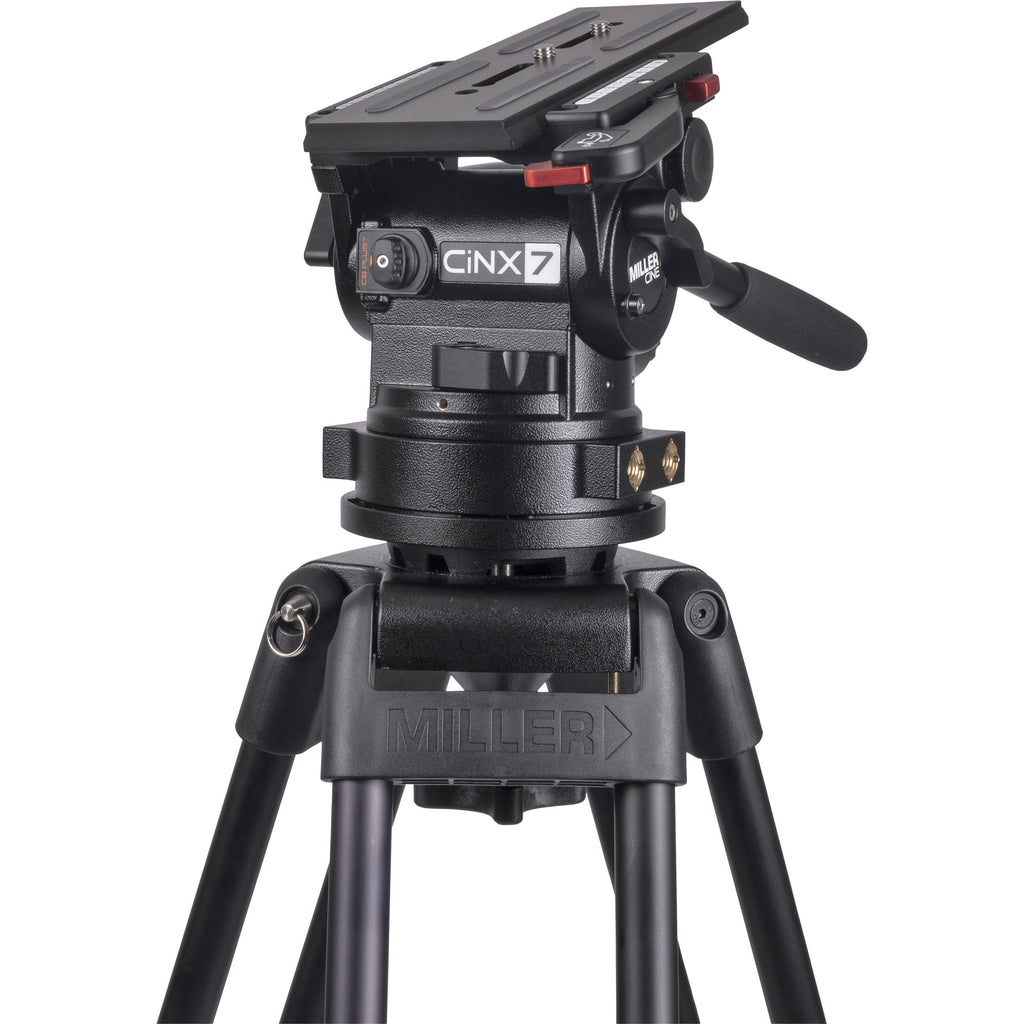

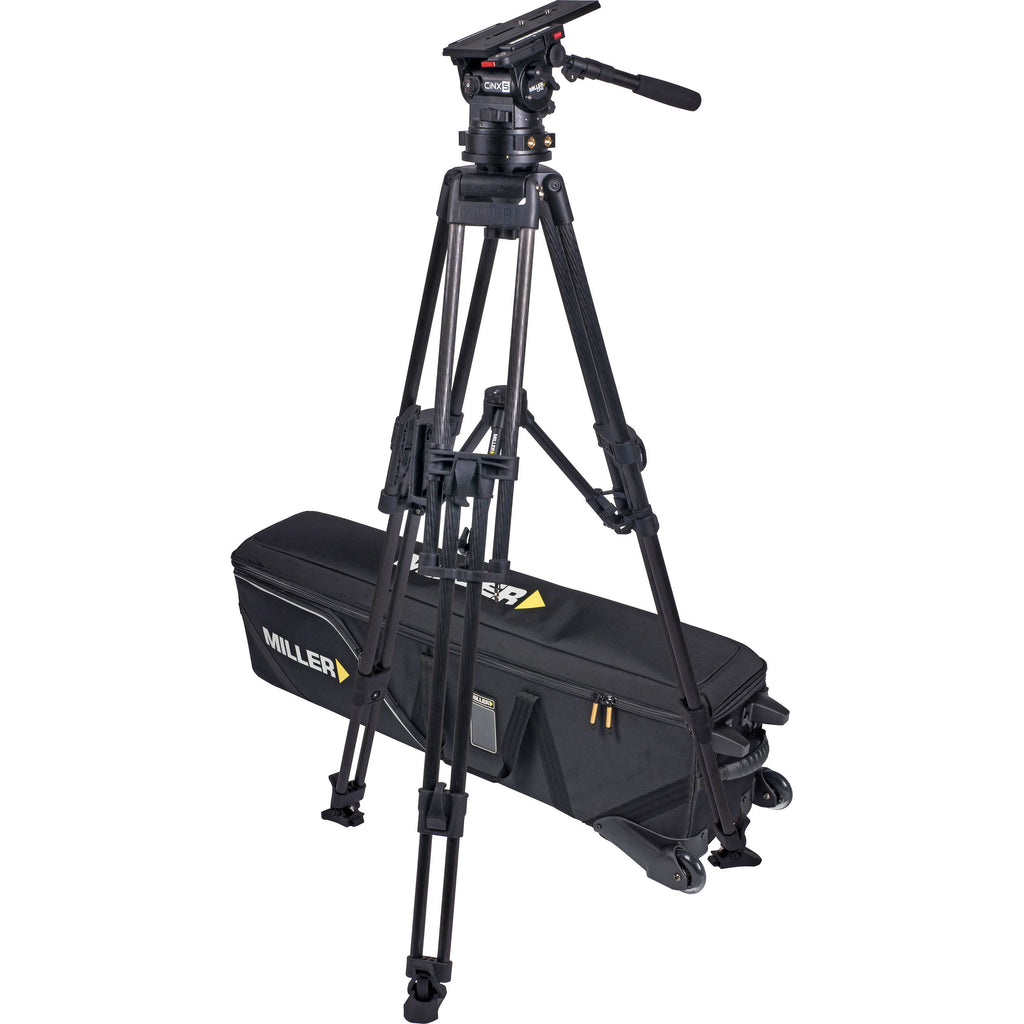

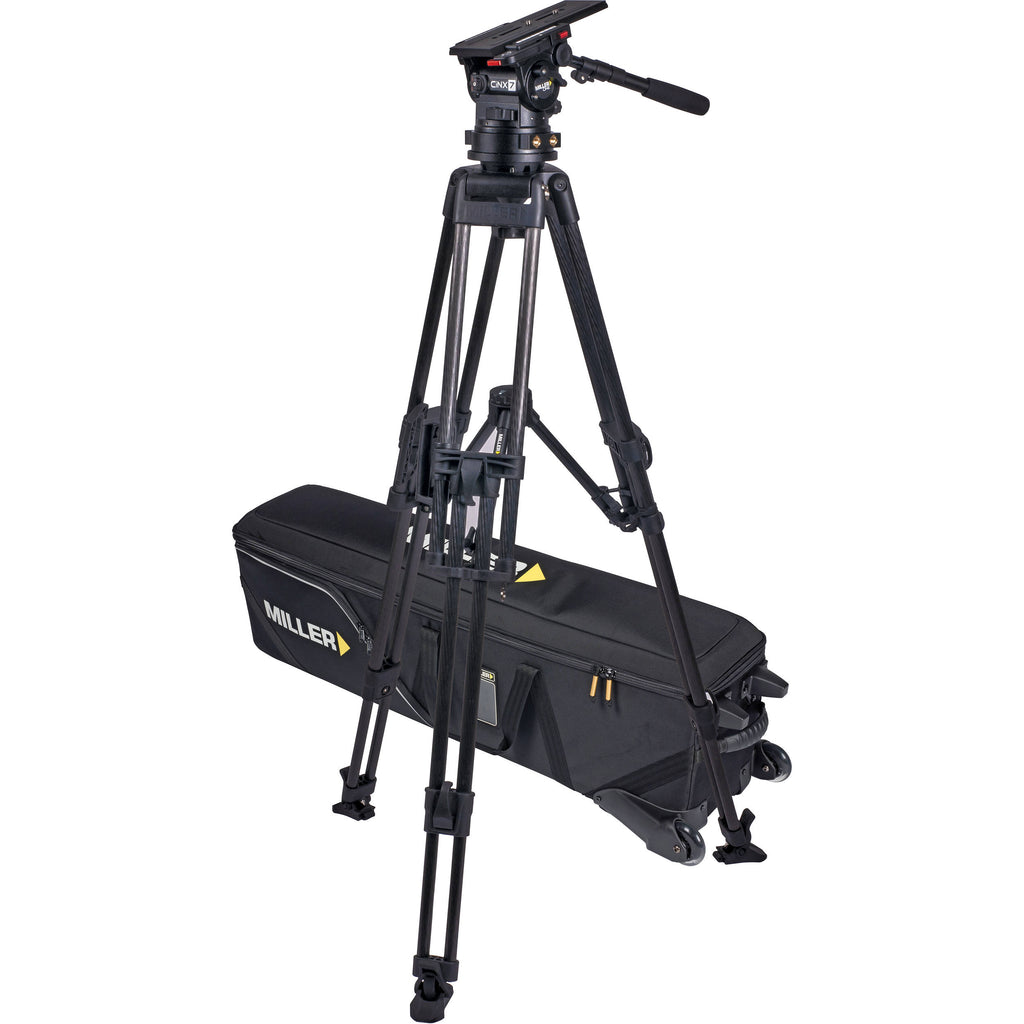

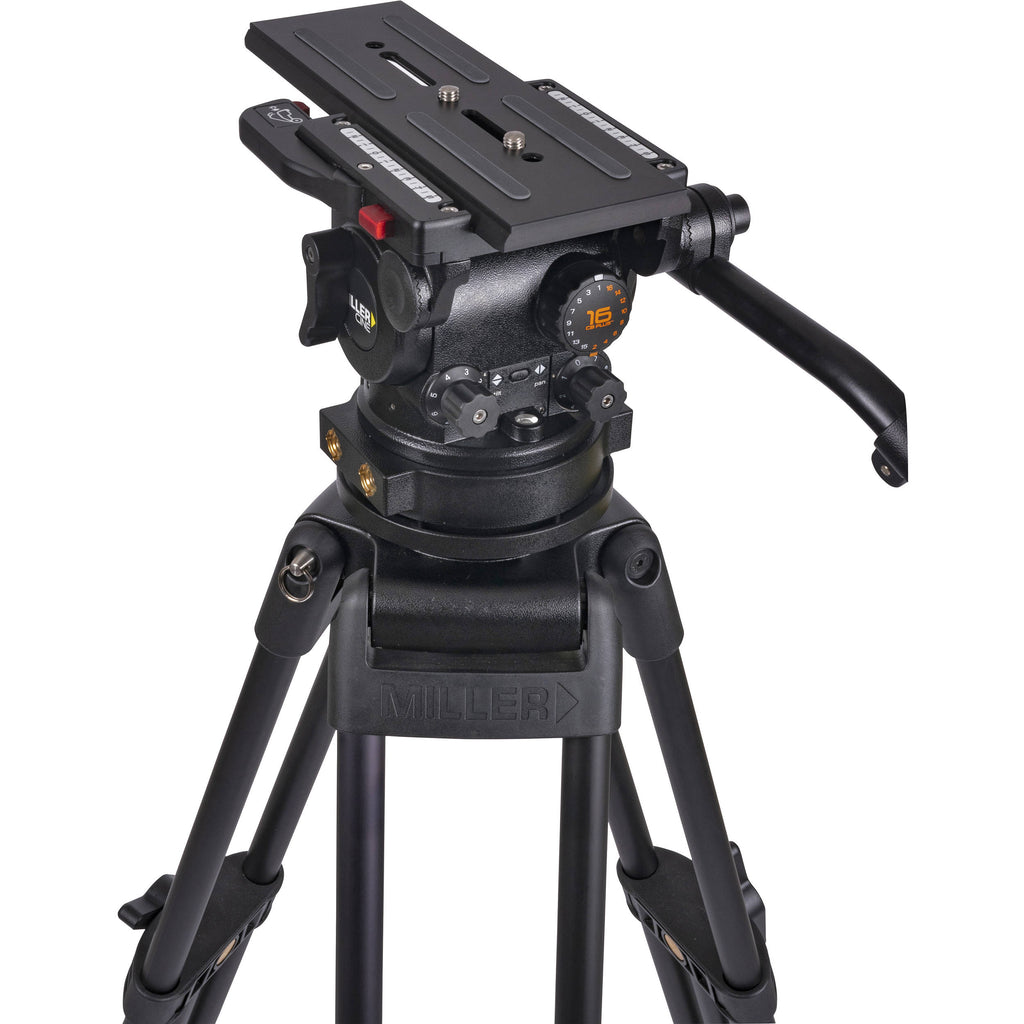

The Miller CiNX 7 and HD 100 2-Stage Carbon Fiber Tripod System features the CiNX 7 fluid head, 100mm bowl tripod legs, mid-level spreader, and a wheeled carry case. The tripod legs have 24mm carbon fiber tubing and integrated spiked feet, and are optimized for a mid-spreader. Heavy-duty rubber foot pads are also included.
The CiNX 7 supports 13.2 to 55 lb loads and offers 16 steps of counterbalance and 7 + 0 steps of pan and tilt drag. It features a flat base and comes with a 100mm bowl claw adapter. This head is designed to achieve ultra-soft starts and stops and balanced diagonal transitions. A sideload camera plate system allows you to efficiently mount and remove your camera.
With the head and mid-spreader attached, the tripod offers a height range of 26.8 to 70.5" in two stages of adjustment.
The wheeled case is made with a ballistic nylon shell and hard plastic skid pads. It offers dual strap handles, padded grab handle, bottom haul handle, and wide-set wheels. It also has two bottom feet that let you set it down in an upright position.

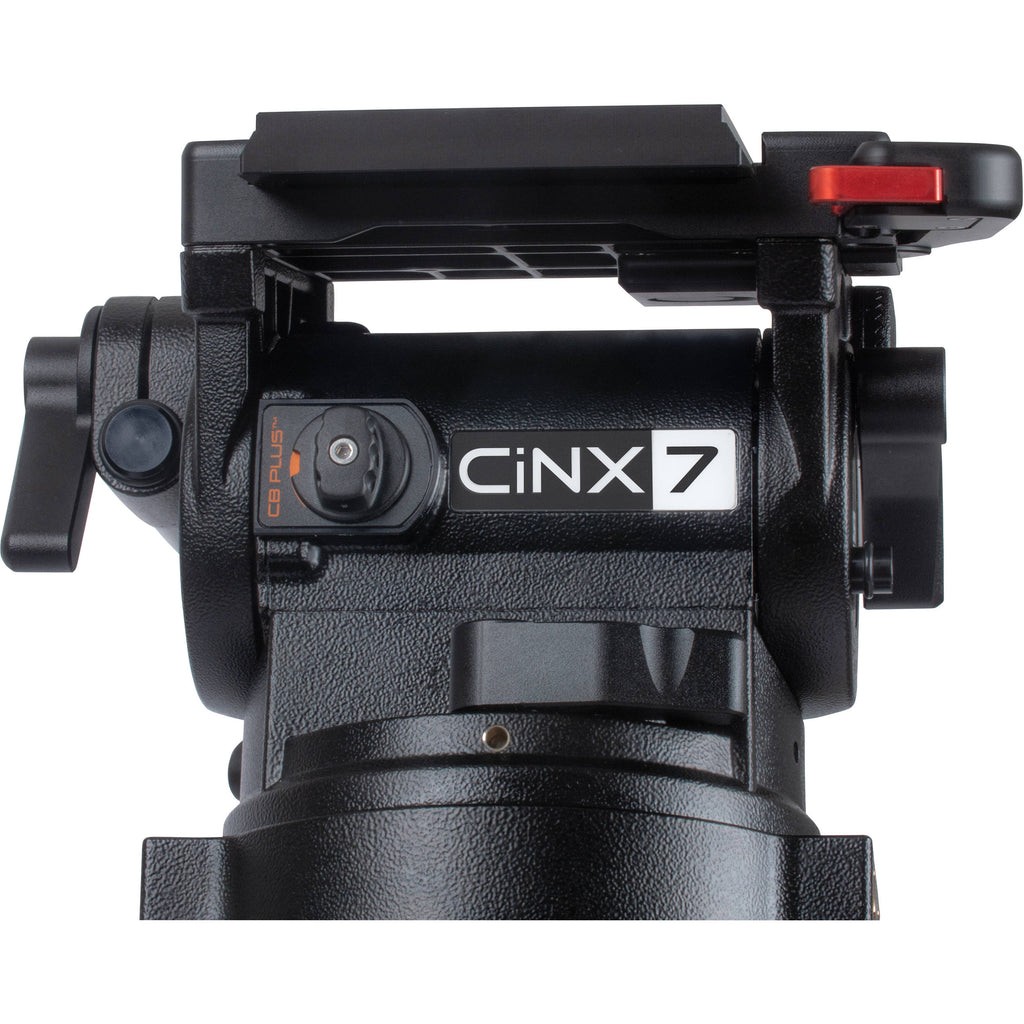

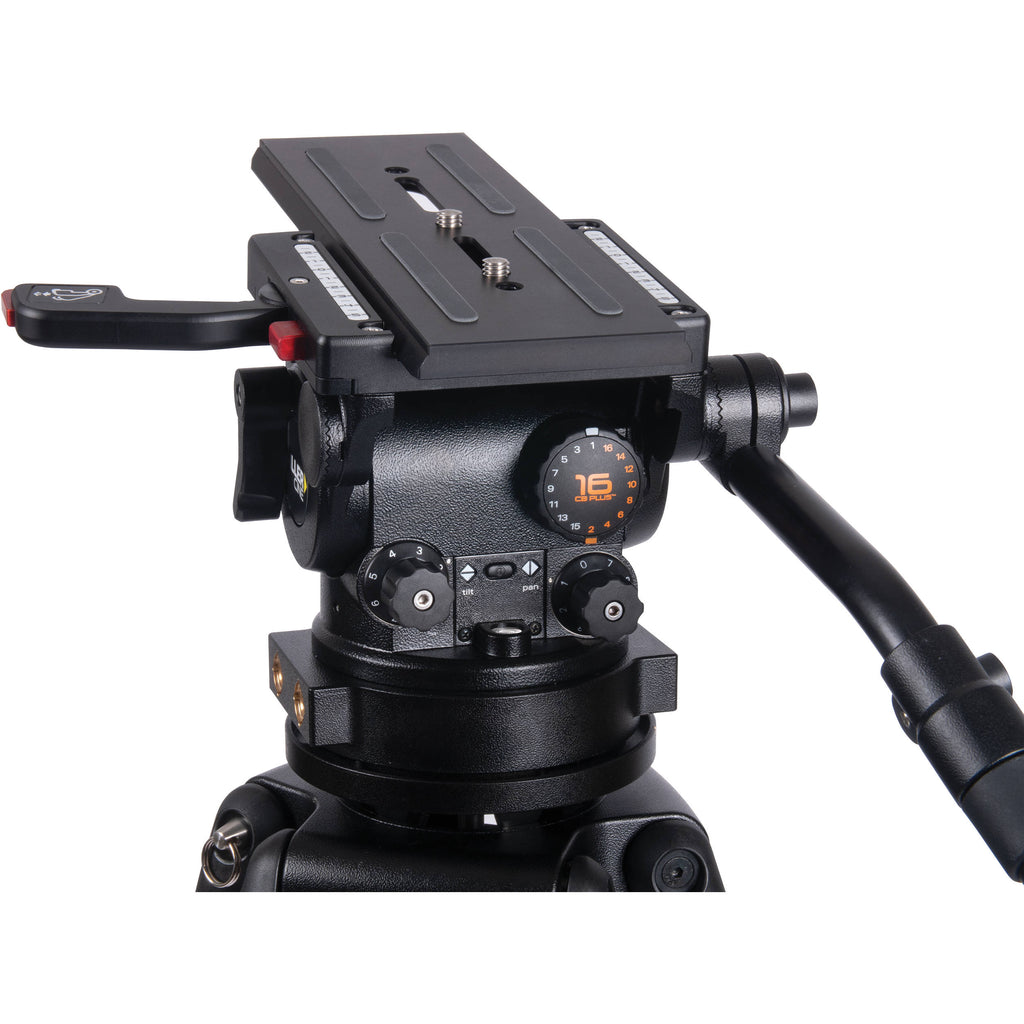

Miller CiNX 7 Fluid Head
Miller 's CiNX 7 Fluid Head features a payload of 13.2-55 lb, 16 steps of counterbalance, and 7 + 0 steps of pan and tilt drag. It's designed with a strength-to-size ratio that provides an optimal solution for the supported load capacity. The drag and counterbalance systems offer progressive and equal increments of drag and torque to ensure ultra-soft starts and stops and balanced diagonal transitions. The CiNX 7 provides a smooth and effective workflow for heavy camera setups.
The CiNX 7 features a 3/8"-16 threaded flat base and includes a 100mm bowl claw adapter. Additionally, optional 150mm bowl or Mitchell base adapters from Miller are also supported.
The pan/tilt controls and a bubble level are all illuminated at the press of an illumination button. The CiNX 7 comes with a GP23A type battery already installed for illumination but supports multiple other types as you will find in the user manual.
For ultimate efficiency with heavy cameras, the CiNX 7 has a sideload camera plate platform with a safety lock, and it comes with an ARRI-type camera plate that can be adjusted approximately 6". It also includes a rosette-mount telescopic pan handle while supporting two in total for dual-handed operation. On the sides, it provides four anti-twist ARRI accessory mounts. The head is made of lightweight yet high-strength die-cast aluminum and rigid composite polymers. It's finished with a durable black ripple and anti-corrosive pretreatment. It also has water- and dust-resistant sealing.
The head also has a very wide operating temperature range of -40 to 149°F.
Key Features
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- 3/8"-16 threaded flat base
- Includes a 100mm bowl claw adapter (optional 150mm bowl or Mitchell base adapters supported)
- 16 steps counterbalance
- Payload range of 13.2 to 55 lb
- 8 steps of pan and tilt drag; illuminated controls
- Sideload platform with safety lock
- 5.9" camera plate sliding range
- Four anti-twist ARRI accessory mounts
- Illuminated bubble level
- Pan handle included; optional second one supported
- Wide operating temperature range of -40 to 149°F
Miller ENG Carbon Fiber 2-Stage Heavy-Duty Tripod Legs (100mm Bowl) - Supports 200 lbs
HD Series tripods are designed with single or two-stage legs, and made of aluminum alloy or carbon fiber material. Offers a 100 or 150mm bowl fixing, attached to a ball-leveling mount that ensures bowl-to-leg fastening, resists loosening and eliminates joint instability. Innovated Quik-Lok locking mechanism, lets you set up the tripod within seconds. These heavy-duty tripods offer utmost strength and tortional rigidity to take the full ENG/EFP workload providing optimum security when supporting studio camera configurations.
Miller 993 Mid-level Spreader
The Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.
Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
The 478 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with the HD MB 1-stage tripod (alloy).
Miller Arrowx Shell Case with Wheels for Sprinter II & HD Tripod Systems (Black)
Store, transport, and protect your gear with the black Miller Arrowx Shell Case with Wheels for Sprinter II & HD Tripod System . The case features zipper closure, head-end cradle with straps to secure your fluid head, and zippered storage pockets. For strength and durability, the case is constructed with a ballistic nylon shell, HDPE lining, and hard plastic skid pads. Carry the case with the dual strap handles, padded grab handle, or bottom haul handle. You can also roll the case with the built-in, wide-set wheels. Two bottom feet allow the case to be stored in an upright position. An external pocket and card holder makes case identification easier.
In the Box
- Miller CiNX 7 Fluid Head
- Miller ARRI Camera Plate for Cineline 70 Fluid Head
- Miller 698 Telescopic Pan Handle with Clamp for Cineline 70 and Skyline 70 Head
- Miller D100 Claw Ball Level Adapter for ArrowFX Fluid Head and 100mm Bowl
- Limited 3-Year Warranty
- Miller ENG Carbon Fiber 2-Stage Heavy-Duty Tripod Legs (100mm Bowl) - Supports 200 lbs
- Limited 3-Year Warranty
- Miller 993 Mid-level Spreader
- Spreader
- 3 Year Warranty
- Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
- Limited 3-Year Warranty
- Miller Arrowx Shell Case with Wheels for Sprinter II & HD Tripod Systems (Black)
- Limited 3-Year Warranty
- Description
- Miller CiNX 7 Fluid Head
- Miller ENG Carbon Fiber 2-Stage Heavy-Duty Tripod Legs (100mm Bowl) - Supports 200 lbs
- Miller 993 Mid-level Spreader
- Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
- Miller Arrowx Shell Case with Wheels for Sprinter II & HD Tripod Systems (Black)
Miller CiNX 7 Fluid Head Specs
| Camera Plate Features | Quick Release |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 5.91" / 150 mm |
| Safety Lock | Yes |
| Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
| Base Mount | 100 mm Half Ball 3/8"-16 Female |
| Drag Control | Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum, Composite |
| Load Capacity | 13.2 to 55 lb / 5.99 to 24.95 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 4 x ARRI Accessory Mount Female |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 8.8 lb / 3.99 kg |
Miller ENG Carbon Fiber 2-Stage Heavy-Duty Tripod Legs (100mm Bowl) - Supports 200 lbs Specs
| Head Mount Type | 100 mm Bowl |
| Load Capacity | 200 lb / 90.7 kg |
| Maximum Working Height | 63" / 160.02 cm |
| Minimum Working Height | 19" / 48.26 cm |
| Folded Length | 29.5" / 74.93 cm |
| Materials | Carbon Fiber |
| Weight | 9.8 lb / 4.4492 kg |
| Leg Lock Type | Flip Lock |
| Leg Sections | 3 |
| Feet Features | Spiked |
| Spreader | (Not Included) |
| Center Column Features | Center Brace |
| Package Weight | 14.6 lb |
| Box Dimensions (LxWxH) | 44.5 x 13 x 11.5" |
Miller 993 Mid-level Spreader Specs
| Construction | Alloy |
| Type | Mid-Level |
| Adjustable | Continuously variable through all height settings |
| Minimum Length | 12.4" (315mm) |
| Maximum Length | 20.3" (515mm) |
| Weight | 1.7 lbs (0.75kg) |
| Package Weight | 2.385 lb |
| Box Dimensions (LxWxH) | 18.35 x 6.55 x 6.4" |
Miller 478 Rubber Feet Pads for Select Tripods (Set of 3) Specs
| Dimensions | 3.1 x 1.5" (80 x 40 mm) |
| Weight | 1.2 lb (0.5 kg) |
Miller Arrowx Shell Case with Wheels for Sprinter II & HD Tripod Systems (Black) Specs
| Material | Ballistic nylon outer shell HDPE lining |
| Type of Closure | Zipper |
| Padded | Yes |
| Carrying/Transport Options | Dual top handles, padded top and bottom haul handles Built-in, wide-set wheels |
| Dimensions | 43.7 x 10.2 x 13.4" / 111.0 x 26.0 x 34.0 cm |
| Weight | 15.0 lb / 6.8 kg |
