Miller CiNX 7 Overview

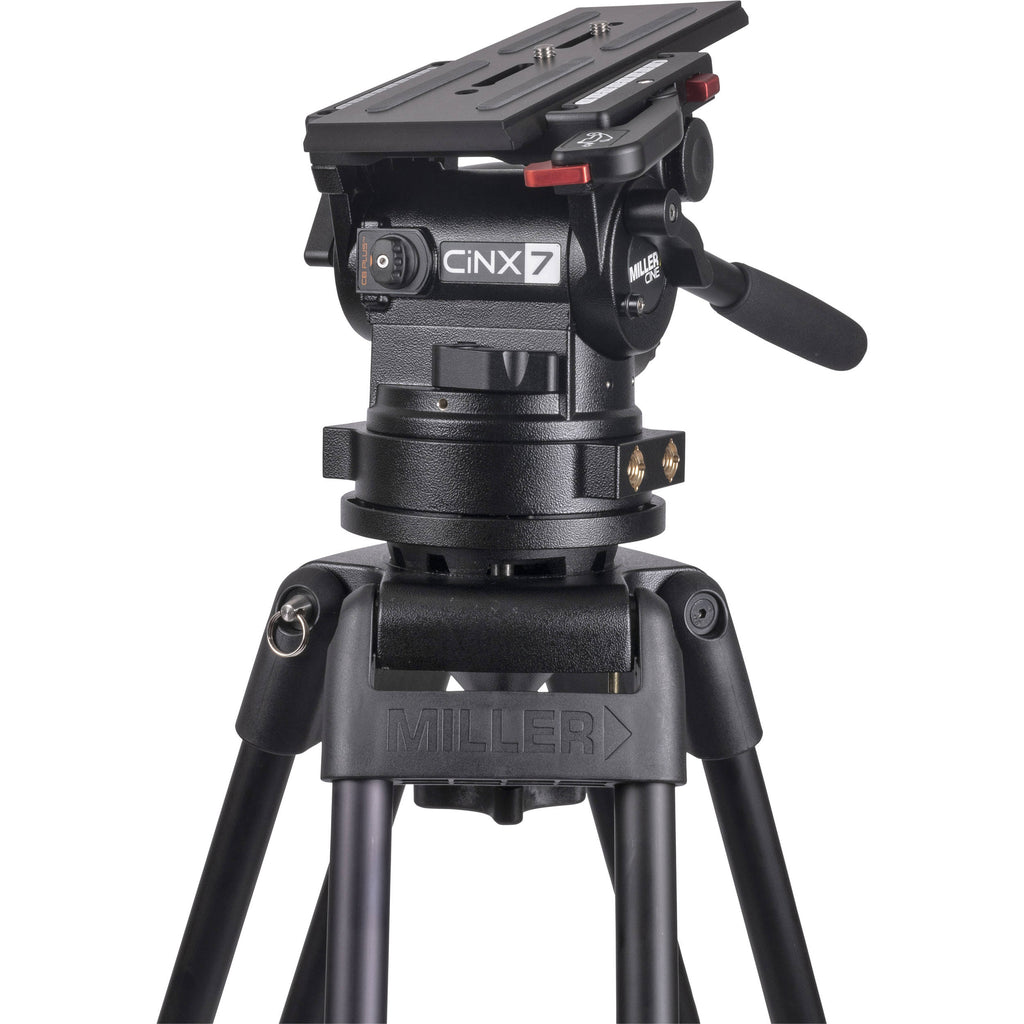

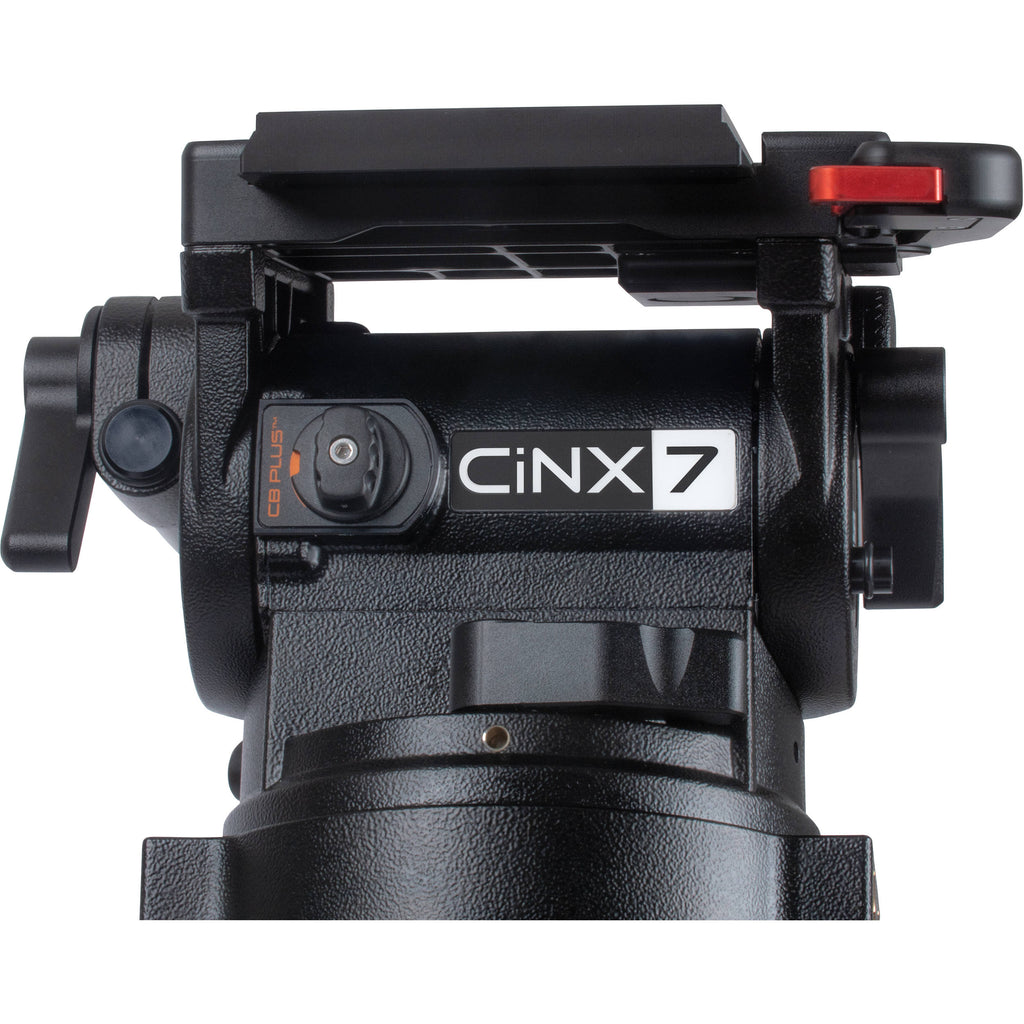

Miller 's CiNX 7 Fluid Head features a payload of 13.2-55 lb, 16 steps of counterbalance, and 7 + 0 steps of pan and tilt drag. It's designed with a strength-to-size ratio that provides an optimal solution for the supported load capacity. The drag and counterbalance systems offer progressive and equal increments of drag and torque to ensure ultra-soft starts and stops and balanced diagonal transitions. The CiNX 7 provides a smooth and effective workflow for heavy camera setups.
The CiNX 7 features a 3/8"-16 threaded flat base and includes a 100mm bowl claw adapter. Additionally, optional 150mm bowl or Mitchell base adapters from Miller are also supported.

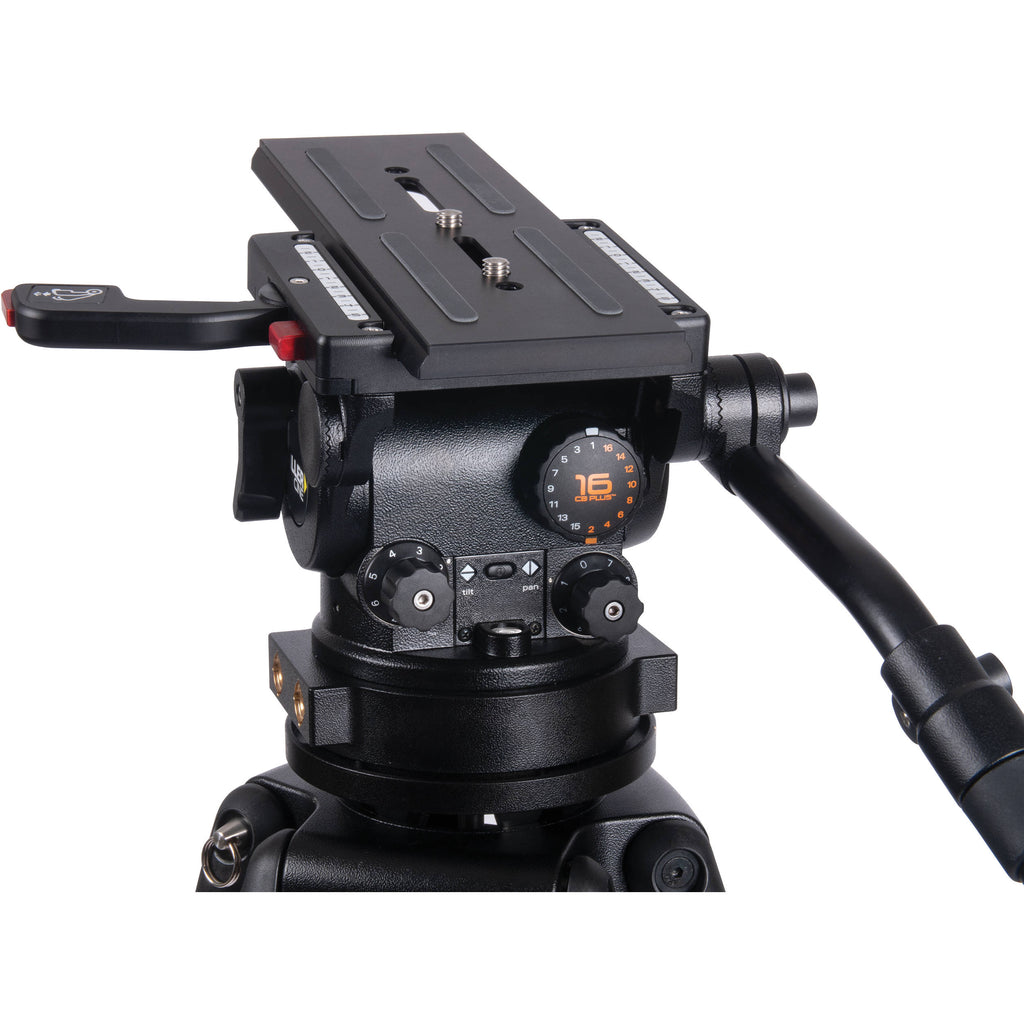

The pan/tilt controls and a bubble level are all illuminated at the press of an illumination button. The CiNX 7 comes with a GP23A type battery already installed for illumination but supports multiple other types as you will find in the user manual.

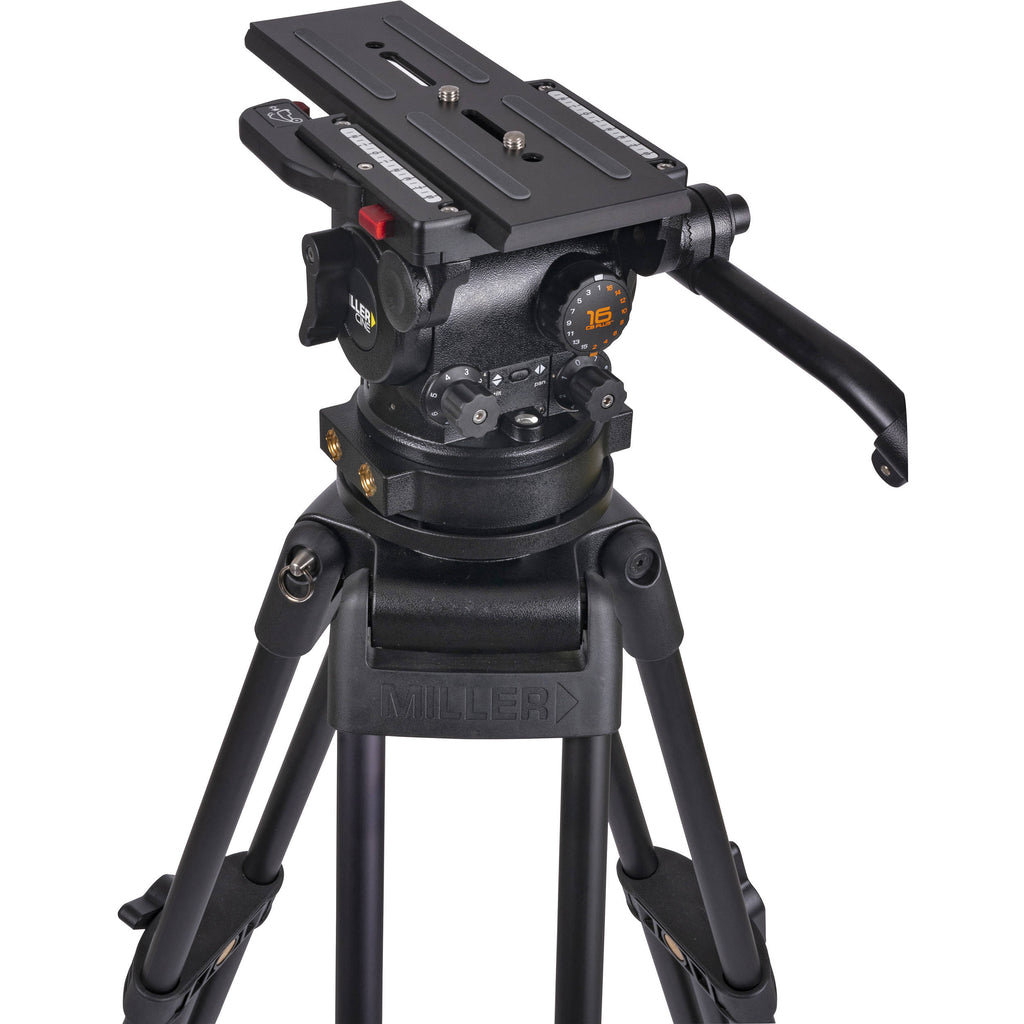

For ultimate efficiency with heavy cameras, the CiNX 7 has a sideload camera plate platform with a safety lock, and it comes with an ARRI-type camera plate that can be adjusted approximately 6". It also includes a rosette-mount telescopic pan handle while supporting two in total for dual-handed operation. On the sides, it provides four anti-twist ARRI accessory mounts. The head is made of lightweight yet high-strength die-cast aluminum and rigid composite polymers. It's finished with a durable black ripple and anti-corrosive pretreatment. It also has water- and dust-resistant sealing.
The head also has a very wide operating temperature range of -40 to 149°F.
Key Features
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- 3/8"-16 threaded flat base
- Includes a 100mm bowl claw adapter (optional 150mm bowl or Mitchell base adapters supported)
- 16 steps counterbalance
- Payload range of 13.2 to 55 lb
- 8 steps of pan and tilt drag; illuminated controls
- Sideload platform with safety lock
- 5.9" camera plate sliding range
- Four anti-twist ARRI accessory mounts
- Illuminated bubble level
- Pan handle included; optional second one supported
- Wide operating temperature range of -40 to 149°F
In the Box
- Miller CiNX 7 Fluid Head
- Miller ARRI Camera Plate for Cineline 70 Fluid Head
- Miller 698 Telescopic Pan Handle with Clamp for Cineline 70 and Skyline 70 Head
- Miller D100 Claw Ball Level Adapter for ArrowFX Fluid Head and 100mm Bowl
- Limited 3-Year Warranty
Miller CiNX 7 Specs
Camera Plate
| Camera Plate Features | Quick Release |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 5.91" / 150 mm |
| Safety Lock | Yes |
| Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
Tripod Platform
| Base Mount | 100 mm Half Ball
3/8"-16 Female |
Pan & Tilt
| Drag Control | Pan: Stepped 7-Step Plus 0
Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Physical
| Material | Aluminum, Composite |
| Load Capacity | 13.2 to 55 lb / 5.99 to 24.95 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 4 x ARRI Accessory Mount Female |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 8.8 lb / 3.99 kg |
