Miller CiNX 5 Overview
- 1 Description
- 2 Miller CiNX 5 Fluid Head
- 3 Miller D150 Claw Ball Level Adapter for ArrowFX Fluid Head and 150mm Bowl
- 4 Miller Mitchell Base Adapter for Skyline 70 Fluid Head
- 5 Miller AX Accessory Mounting Block for AX and Arrow Fluid Heads

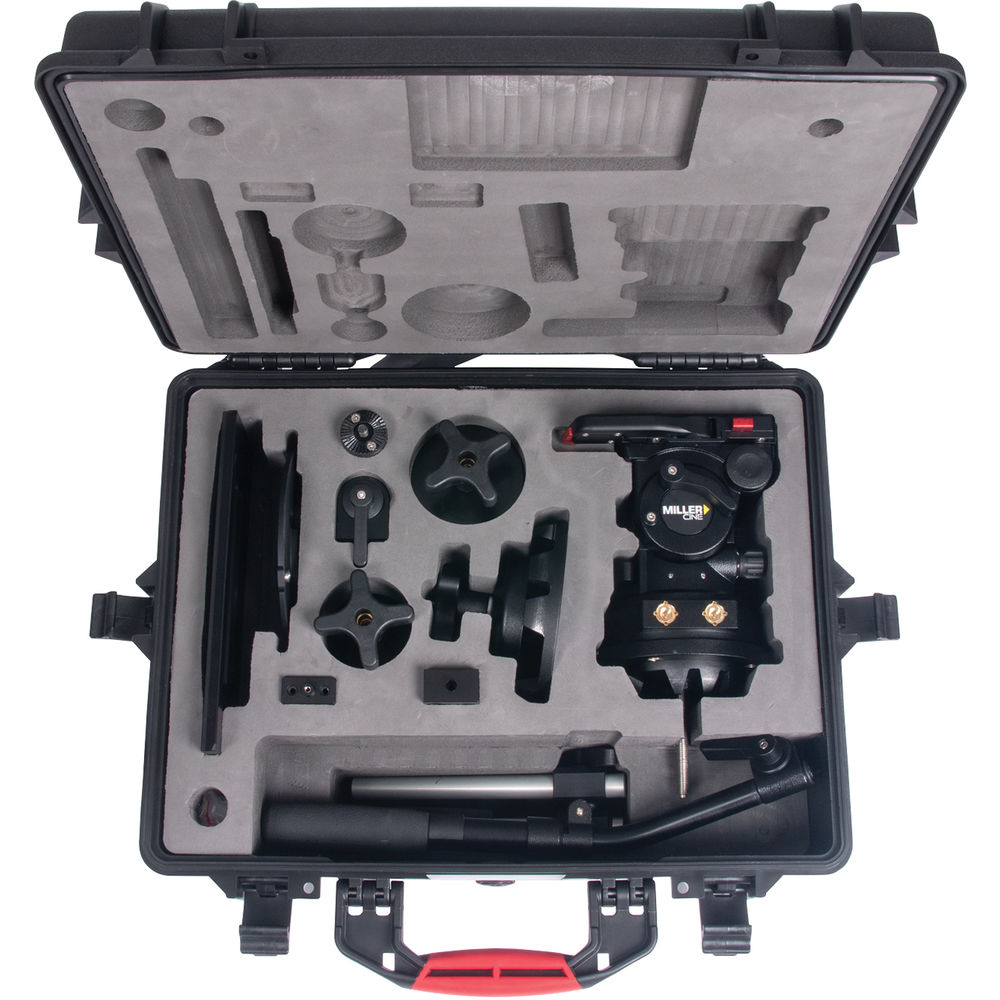

The Miller CiNX 5 Fluid Head Kit features the CiNX 5 fluid head, several key accessories, and a resin transit case with custom-cut foam. The foam provides a dedicated slot for each of the included components of this kit.
The CiNX 5 natively has a flat base, and when purchased separately it comes with a 100mm bowl adapter. This kit includes the 100mm adapter plus a 150mm bowl adapter. Furthermore, it includes a Mitchell base adapter. Between the flat base and three adapters, you get the versatility to use the head with virtually any tripod.
When bought separately, the head is supplied with a telescoping pan handle. In this kit, the pan handle is included, and a second, articulated one is added, along with a serrated extender for it. Lastly, the kit includes an accessory mounting block that lets you attach a viewfinder, monitor, or other accessory to the fluid head. It attaches to the head and allows you to mount up to 6.6 lb loads via 1/4"-20 and 3/8"-16 threads.

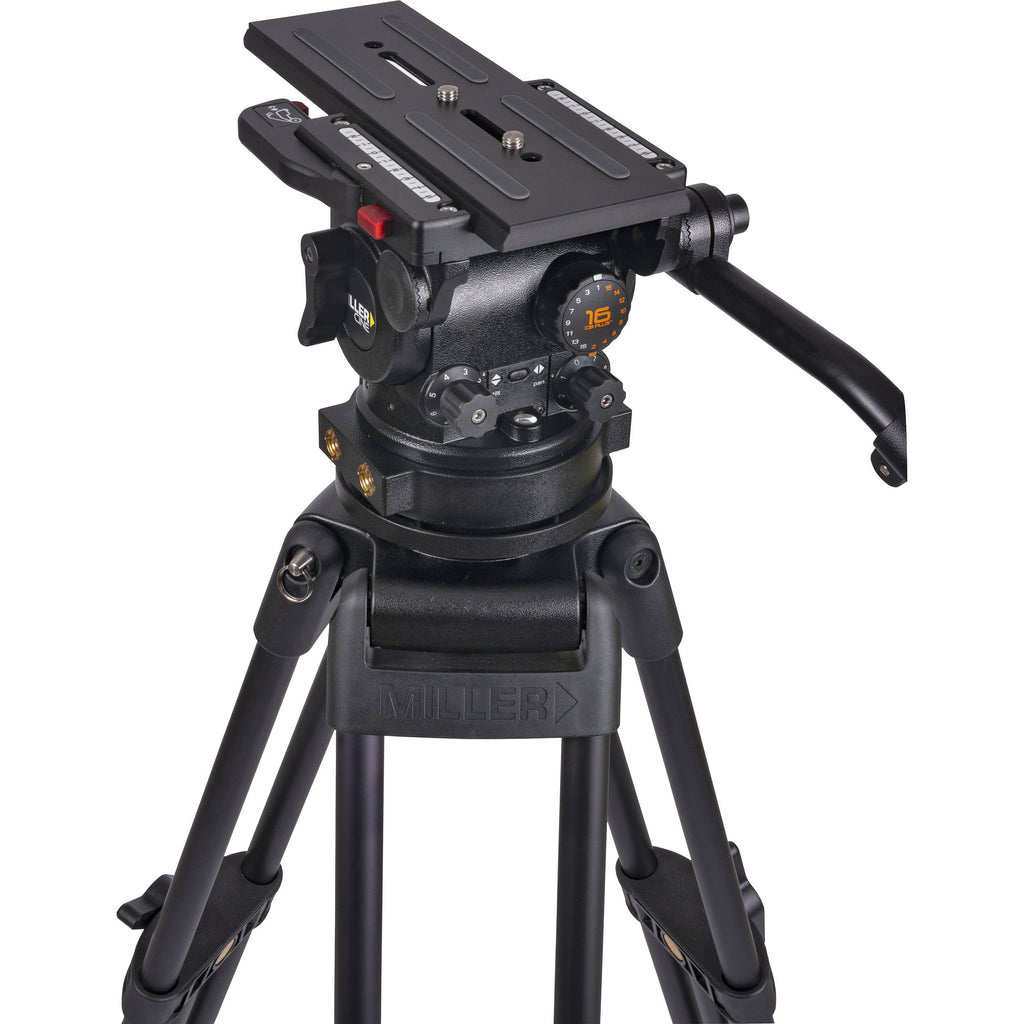

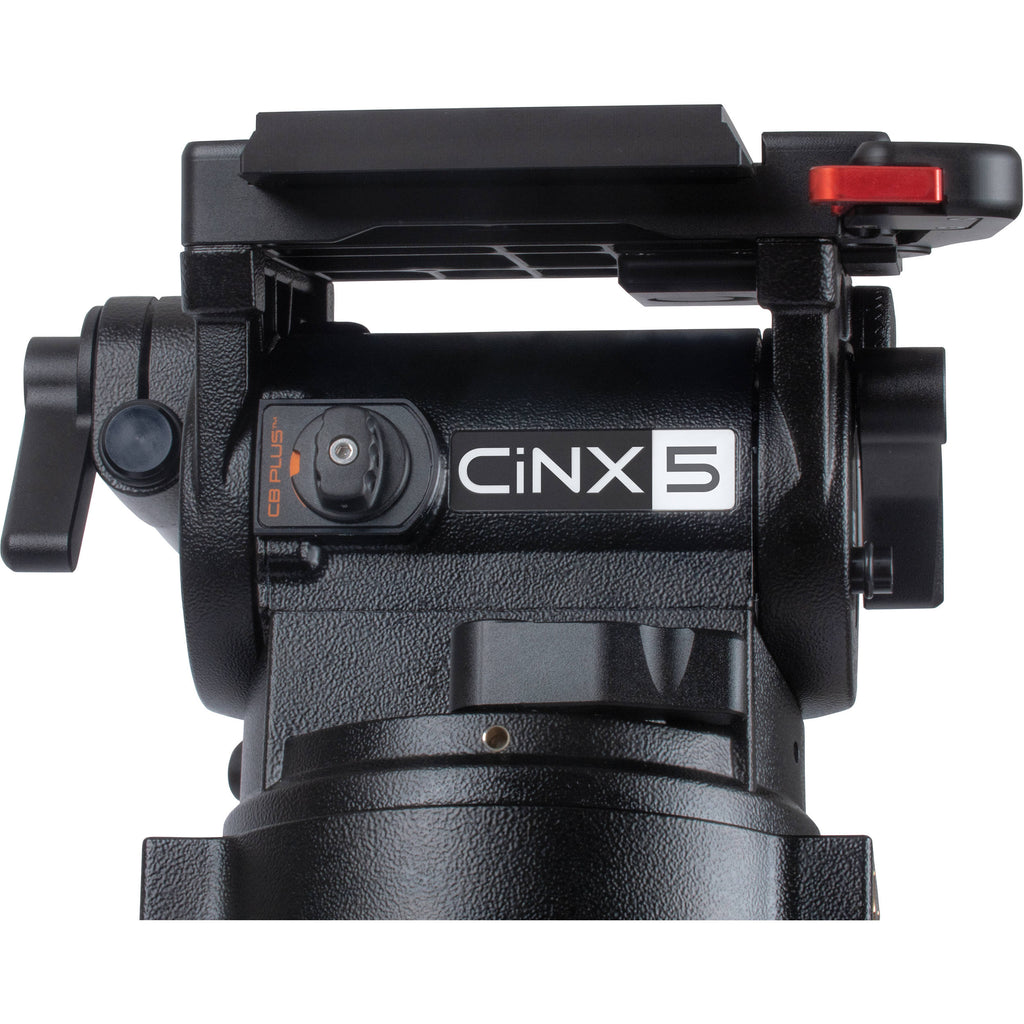

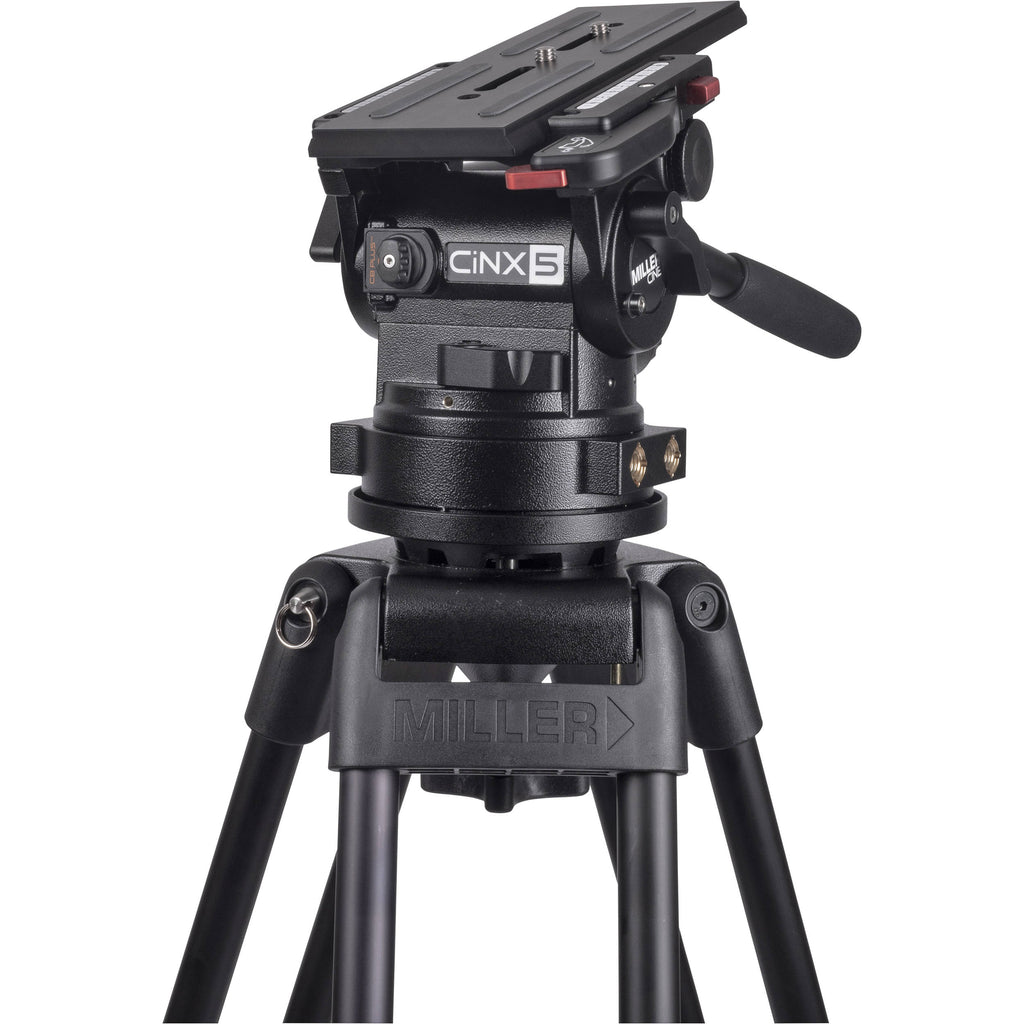

Miller CiNX 5 Fluid Head
In comparison to the CiNX 3 head, Miller 's CiNX 5 Fluid Head offers 7 + 0 steps of pan and tilt drag and a slightly higher payload of 4.4 to 46.2 lb, while counterbalance remains at 16 steps. The CiNX series is designed with a strength-to-size ratio that provides an optimal solution for supported load capacities. At the same time, the drag and counterbalance systems offer progressive and equal increments of drag and torque to ensure ultra-soft starts and stops and balanced diagonal transitions. In this regard, the additional two steps of drag allow for even smoother and more effective operation.
The CiNX 5 features a 3/8"-16 threaded flat base and includes a 100mm bowl claw adapter. Optional 150mm bowl or Mitchell base adapters from Miller are also supported.

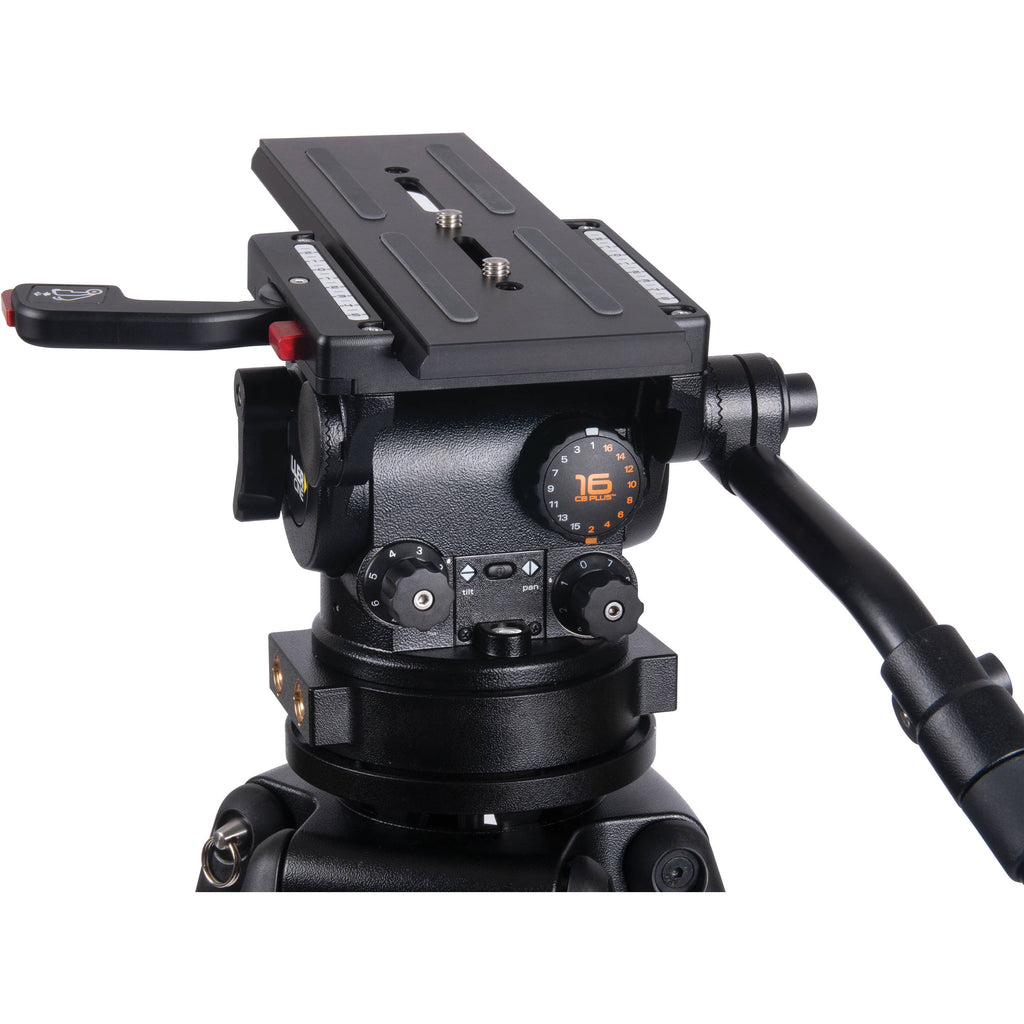

The pan/tilt controls and a bubble level are all illuminated at the press of an illumination button. The CiNX 5 comes with a GP23A-type battery already installed for illumination but supports multiple other types as you will find in the user manual.
For ultimate efficiency with heavy cameras, the CiNX 5 has a sideload camera plate platform with a safety lock, and it comes with an ARRI-type camera plate that can be adjusted approximately 6". It also includes a rosette-mount telescopic pan handle while supporting two in total for dual-handed operation. On the sides, it provides four anti-twist ARRI accessory mounts. The head is made of lightweight yet high-strength die-cast aluminum and rigid composite polymers. It's finished with a durable black ripple and anti-corrosive pretreatment. It also has water- and dust-resistant sealing.
The head also has a very wide operating temperature range of -40 to 149°F.
Key Features
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- 3/8"-16 threaded flat base
- Includes a 100mm bowl claw adapter (optional 150mm bowl or Mitchell base adapters supported)
- 16 steps counterbalance
- Payload range of 4.4 to 46.2 lb
- 8 steps of pan and tilt drag; illuminated controls
- Sideload platform with safety lock
- 5.9" camera plate sliding range
- Four anti-twist ARRI accessory mounts
- Illuminated bubble level
- Pan handle included; optional second one supported
- Wide operating temperature range of -40 to 149°F
Miller D150 Claw Ball Level Adapter for ArrowFX Fluid Head and 150mm Bowl
Mount your flat-based ArrowFX fluid head onto a tripod with a 150mm bowl using this D150 Claw Ball Level Adapter from Miller . This durable metal alloy adapter attaches to the flat base of the ArrowFX head or other compatible head via three M5 threads or four 3/8" universal mounting holes. The adapter is secured onto the tripod using the long center screw and a D150 clamp assembly that tightens with a locking nut. The center screw is removable if you require a different screw length for your tripod.
Miller Mitchell Base Adapter for Skyline 70 Fluid Head
The Miller Mitchell Base Adapter allows the Skyline 70 Fluid Head to be connected with a Mitchell base and can be used with heavy-duty Mitchell tripods.
Miller AX Accessory Mounting Block for AX and Arrow Fluid Heads
Mount additional accessories like a viewfinder, monitor, or light onto your AX or Arrow tripod fluid head with this AX Accessory Mounting Block from Miller . This solid metal alloy block attaches to your fluid head, allowing you to mount up to 6.6 lb of accessories using its 1/4"-20 and 3/8"-16 mounting threads.
In the Box
- Miller CiNX 5 Fluid Head
- Miller ARRI Camera Plate for Cineline 70 Fluid Head
- Miller 698 Telescopic Pan Handle with Clamp for Cineline 70 and Skyline 70 Head
- Miller D100 Claw Ball Level Adapter for ArrowFX Fluid Head and 100mm Bowl
- Limited 3-Year Warranty
- Miller Articulated Pan Handle with Extender for Cineline 70 Fluid Head (15")
- Miller D150 Claw Ball Level Adapter for ArrowFX Fluid Head and 150mm Bowl
- D150 Clamp Nut Assembly
- Limited 3-Year Warranty
- Miller Mitchell Base Adapter for Skyline 70 Fluid Head
- Miller AX Accessory Mounting Block for AX and Arrow Fluid Heads
- Miller Resin Transit Case for CiNX Head
- Miller Resin Transit Case for CiNX Head
Table of Contents
- Description
- Miller CiNX 5 Fluid Head
- Miller D150 Claw Ball Level Adapter for ArrowFX Fluid Head and 150mm Bowl
- Miller Mitchell Base Adapter for Skyline 70 Fluid Head
- Miller AX Accessory Mounting Block for AX and Arrow Fluid Heads
Miller CiNX 5 Fluid Head Specs
Camera Plate
| Camera Plate Features | Quick Release |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 5.91" / 150 mm |
| Safety Lock | Yes |
| Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
Tripod Platform
| Base Mount | 100 mm Half Ball
3/8"-16 Female |
Pan & Tilt
| Drag Control | Pan: Stepped 7-Step Plus 0
Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Physical
| Material | Aluminum, Composite |
| Load Capacity | 4.4 to 46.2 lb / 2 to 20.96 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 4 x ARRI Accessory Mount Female |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 8.8 lb / 3.99 kg |
Miller Articulated Pan Handle with Extender for Cineline 70 Fluid Head (15") Specs
General
| Accessory Type | Pan handle for tripod head |
| Length | 1.2 ft |
| Weight | 25.39 oz |
Kit Content
| Kit Content | (1) x pan handle
(1) x clamp extender |
Miller D150 Claw Ball Level Adapter for ArrowFX Fluid Head and 150mm Bowl Specs
Kit Content
| Material of Construction | Metal Alloy |
| Mounting | Base: 150 mm Bowl
Head: 3 x M5 Threads and 4 x 3/8" Holes |
| Dimensions | 5.9 x 1.1" / 150 x 27 mm |
| Weight | 1.2 lb / 544.3 g |
Packaging Info
| Package Weight | 1.78 lb |
| Box Dimensions (LxWxH) | 5.9 x 5.9 x 4.05" |
Miller Mitchell Base Adapter for Skyline 70 Fluid Head Specs
| Payload Capacity | 200.0 lb (90.7 kg) |
| Mounting Base | Mitchell |
Packaging Info
| Package Weight | 1.78 lb |
| Box Dimensions (LxWxH) | 6.95 x 6.8 x 3.25" |
Miller AX Accessory Mounting Block for AX and Arrow Fluid Heads Specs
Kit Content
| Material of Construction | Metal Alloy |
| Payload Capacity | 6.6 lb / 3 kg |
| Dimensions | 1.6 x 1 x 2.2" / 40 x 25 x 55 mm |
| Weight | 4.6 oz / 131.5 g |
