Description

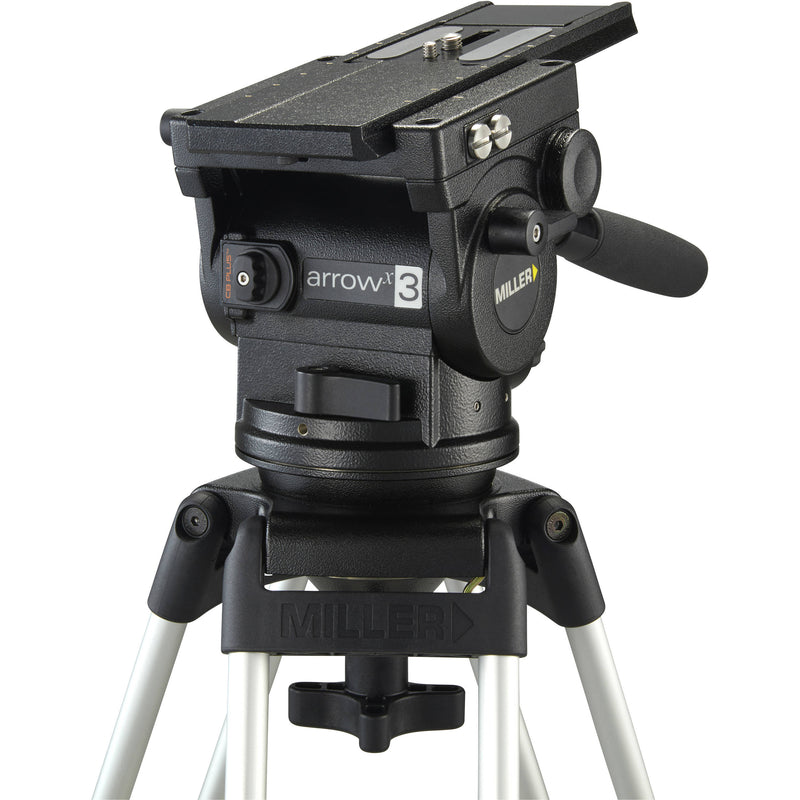

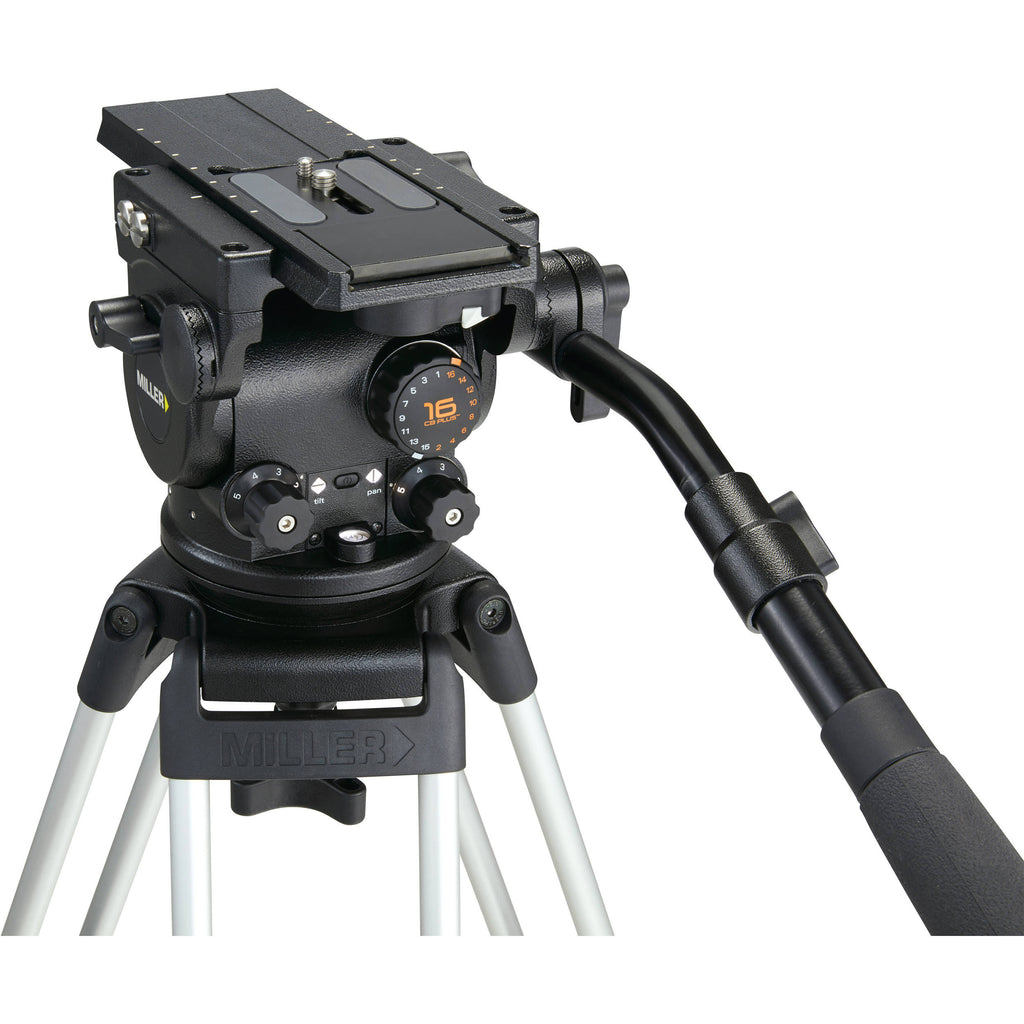

The Arrow x 3 Fluid Head from Miller offers a 2.2 to 41.8 lb payload range and five selectable pan-tilt fluid drag positions, making it suitable for news gathering and documentaries. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, featuring eight larger counterbalance steps that allow you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
- Compact, lightweight, and versatile
- 5-step plus zero pan and tilt drag
- 16-position CB Plus counterbalance system
- Wide payload range of 2.2 to 41.8 lb
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- Controls all-in-one design for fast, easy and practical use
- Illuminated bubble level and pan-tilt drag controls
- Precise floating pan-tilt caliper locks ensure bounce-free, on-off performance
- Quick-release, 120mm sliding camera platform with Euro-style camera plate
- Removable 100mm ball level stud allows for flat base mounting with 3/8" screw thread
- Mitchell base adaptable
- Robust construction for rugged outdoor shooting conditions
- Optional second pan handle mount
- Side mounting points for viewfinders and accessories
| Load Capacity | 2.2 to 41.8 lb (1 to 19 kg) |
| Diameter/Thread | 100 mm ball levelling with three M5 holes for flat base mounting |
| Counter Balance System | 16 selectable positions |
| Counter Balance Range | Not Specified by Manufacturer |
| Center of Gravity | Not Specified by Manufacturer |
| Quick Release/Wedge Plate | Yes |
| Camera Plate Sliding Range | 4.7" (120 mm) |
| Balance Plate | Yes |
| Tilt Drag | 5-step plus zero |
| Tilt Range | +90° / -75° |
| Tilt Lock | Positive lock caliper brake system |
| Pan Drag | 5-step plus zero |
| Pan Range | 360° |
| Pan Lock | Positive lock caliper brake system |
| Pan Handle | Telescopic 15.4 to 23.2" (390 to 590 mm) |
| Leveling Bubble/Illuminated | Yes/Yes |
| Construction | Material: Lightweight die-cast aluminum alloy and rigid composite polymers Anti-corrosive treated surface Water- and dust-resistant sealing |
| Temperature Range | -40 to 149°F (-40 to 65°C) |
| Height | 6.4" (162 mm) above bowl |
| Weight | 6.8 lb (3.1 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 13.25 lb |
| Box Dimensions (LxWxH) | 17.4 x 14.0 x 11.5" |
In the Box
Miller Arrowx 3 Fluid Head
- Limited 3-Year Warranty
