Description
Miller Arrowx 1 Tripod System Overview
- 1Description
- 2Miller Arrowx 1 Fluid Head (100mm)
- 3Miller Sprinter II 2-Stage Alloy Tripod (Ground Spreader Ready)
- 4Miller 470 Ground Spreader for Sprinter II Tripod Legs
- 5Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)

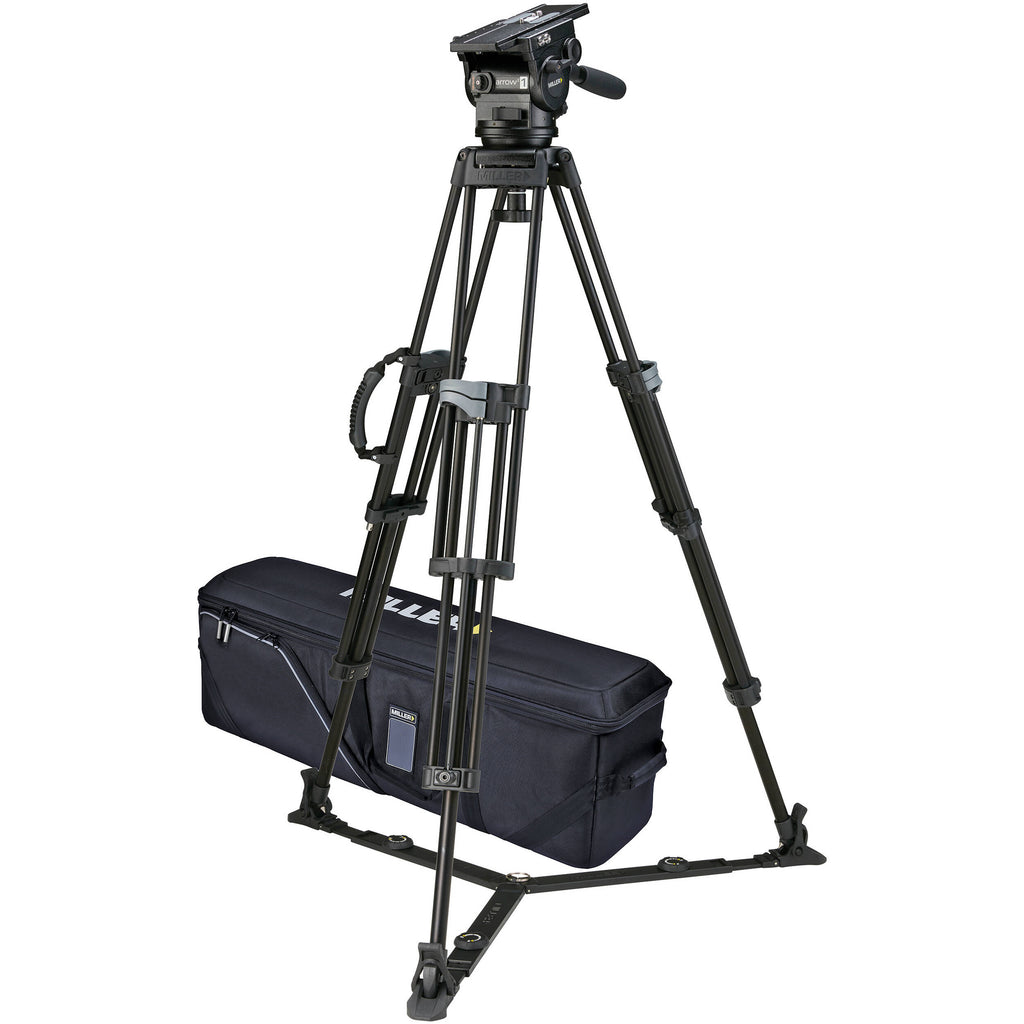

The Miller Arrowx 1 Sprinter II 2 Stage Aluminum Alloy Tripod System with Ground Spreader includes an Arrowx 1 fluid head with 1 x pan handle, a Sprinter II 100mm 2-stage carbon fiber tripod, a ground spreader and an Arrowx softcase. The 35.3 lb capacity Arrowx 1 fluid head employs 16 CB Plus technology, providing 8 positions of counterbalance with a half step switch for fine tuning. The head also features 5+0 levels of pan and tilt settings of fluid drag with 4.7" of camera plate travel.
The head is matched with the 2-stage Sprinter II aluminum alloy tripod and together the system has a height range of 23.7 to 66.6", The included ground spreader folds up neatly inside the legs and can protect delicate floors from the tripod's foot spikes as well as provide grip on hard or slick surfaces. The softcase has an integrated head cradle to protect your tripod.

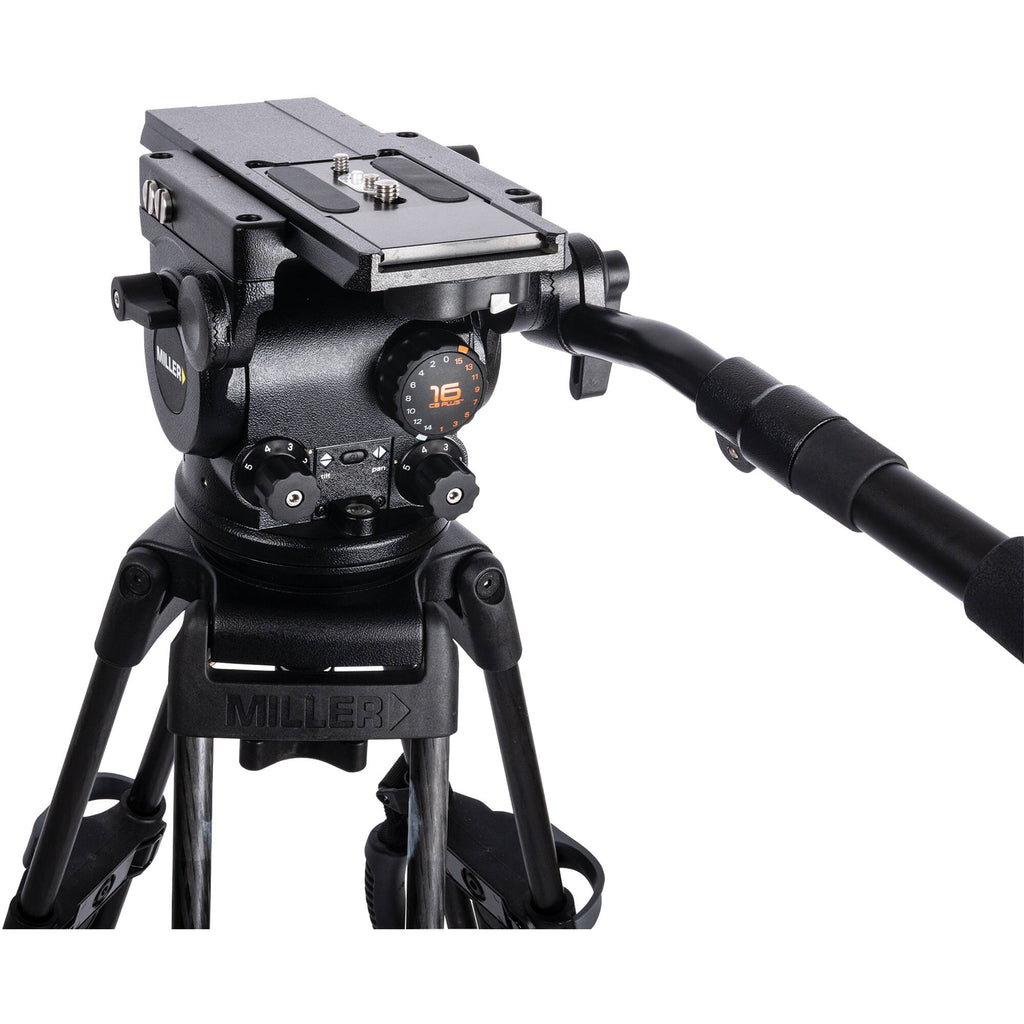

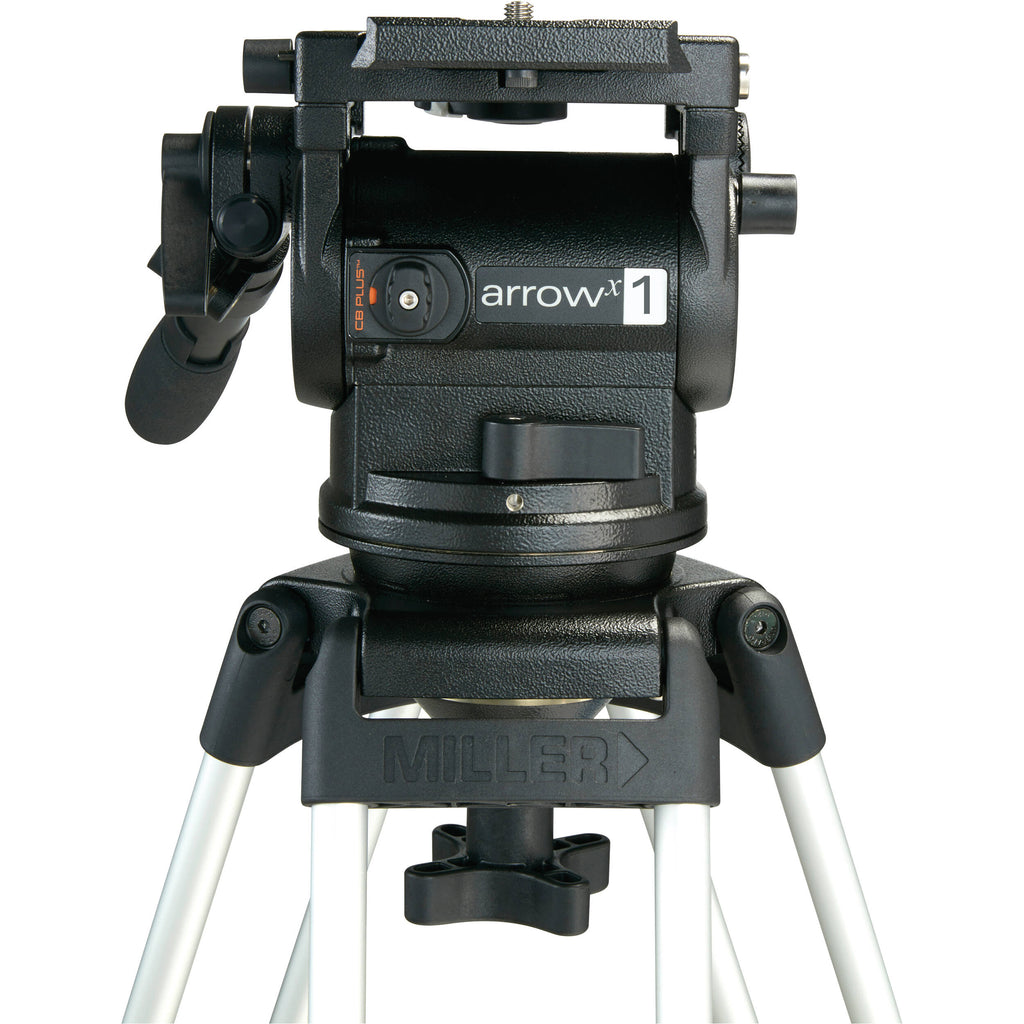

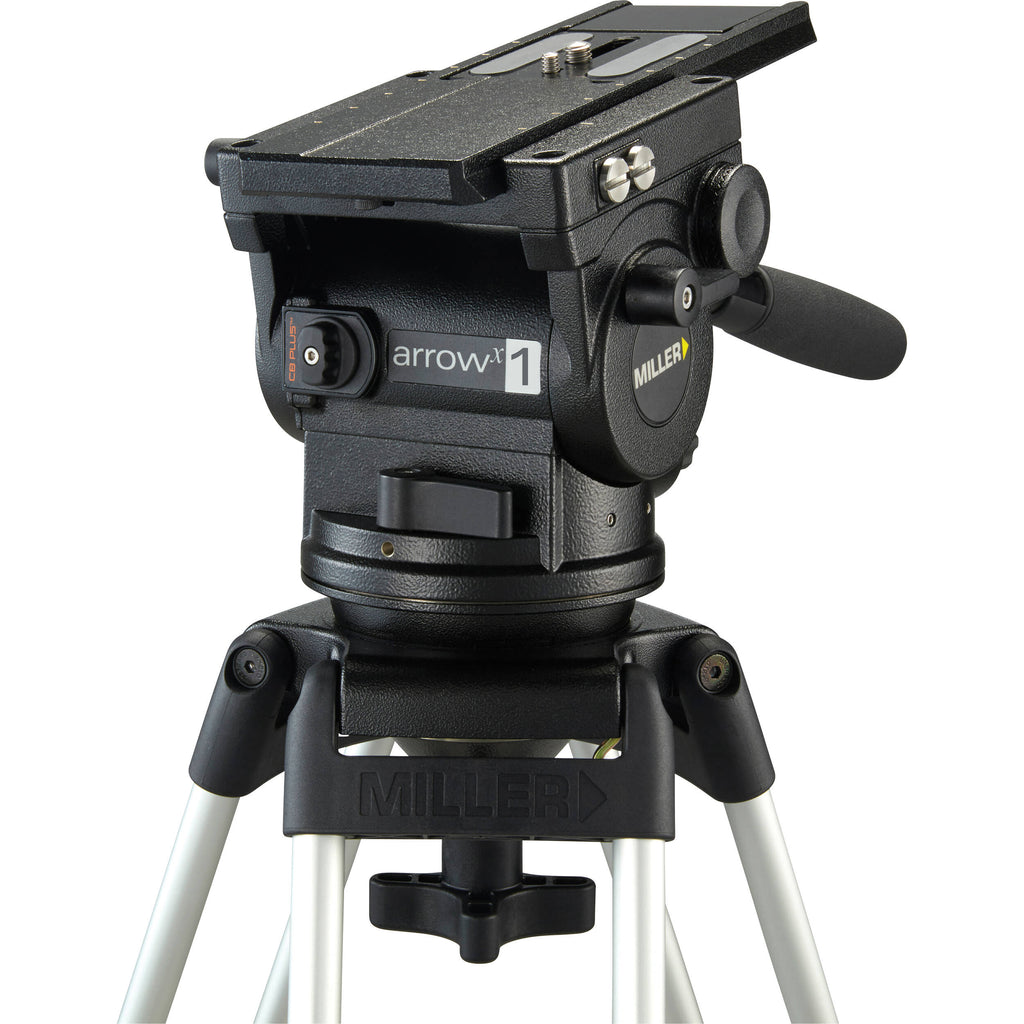

Miller Arrowx 1 Fluid Head (100mm)
The versatile Miller Arrowx 1 Fluid Head accommodates a wide payload range of 0 to 35.3 lb using 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero to support even the lightest cameras. This pro video head offers five steps each of pan and tilt drag plus zero and counterbalance with CBPlus for precise control. The side-load Euro plate has a 4.7" sliding range and features easy drop-in mounting without the alignment issues posed by rear-loading designs.
The CBPlus counterbalance system features eight larger steps for quick setup plus interspersed half steps for fine-tuned control. The "one-flick" switch used to activate the half steps is positioned at the front of the head near the pan and tilt locks, keeping all the controls centrally located. Constructed from a lightweight yet durable aluminum alloy with composite polymers, the Arrowx 1 head has an illuminated bubble level and pan/tilt controls. Its 100mm ball base may be removed for 3/8"-16 mounting on a slider or other flat support. The Arrowx 1 head includes a telescoping pan handle and can be used with an optional second pan handle.
Features
- Wide 0 to 35.3 lb payload range
- Five steps of pan and tilt drag
- 16 steps of counterbalance with CB Plus for precision control
- Quick release, side-load Euro plate with 4.7" sliding range
- Fluid drag system with smooth, soft start and stops
- Centrally grouped controls at front/left side of head
- Illuminated bubble level and pan/tilt controls
- Precision caliper locks for bounce-free on/off usage
- Removable half ball for flat base mounting on 3/8"-16 sliders
- Mitchell base adaptable
- Includes one telescoping pan handle
- Robust aluminum and composite build
- Side mounting points for viewfinder supports and accessories
Miller Sprinter II 2-Stage Alloy Tripod (Ground Spreader Ready)
The Miller Sprinter II 2-Stage Alloy Tripod is a quick-setup solution for a tripod head with 100mm ball base. Its light weight, flip-locks, and rigid construction allow for durability without compromising usability in ENG, EFP, and other pro video applications. Unlike many traditional multi-stage designs, both flip-locks are located on the same section for easy reaching, no matter the height setting. The fast setup is complemented by an in-line carry handle, for portability on set or in the field. Compatible spreaders, rubber feet, and dollys are available separately.
Miller 470 Ground Spreader for Sprinter II Tripod Legs
The Miller 470 Ground Spreader works with all Sprinter II tripod legs. The spreader features pullover rubber stirrups that securely hold your tripod's feet, holding your legs fast while providing grip on hard surfaces. Once mounted, you can adjust the length of each of the spreader's arms individually as needed without detaching the spreader from the tripod. The spreader's flexible construction enables your tripod to remain stable on flat or uneven terrain. A pull ring in the center of the spreader helps fold the spreader up into your tripod when you close the legs.
Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
Store, transport, and protect your gear with the black Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems. The case features zipper closure, top and bottom cradles with straps to secure your tripod, and back pack straps with a storage pocket. For strength and durability, the case is constructed with a ballistic nylon shell and hard plastic skid pads. Carry the case with the dual strap handles or padded grab handle. You can also attach a sold-separately shoulder strap to the case D-links. An external pocket and card holder makes case identification easier.
In the Box
- Miller Arrowx 1 Fluid Head (100mm)
- Miller 860 Quick Release Plate
- Miller Telescopic Pan Handle for ArrowX Heads
- Locking Handle
- Limited 3-Year Warranty
- Miller Sprinter II 2-Stage Alloy Tripod (Ground Spreader Ready)
- Limited 3-Year Warranty
- Miller 470 Ground Spreader for Sprinter II Tripod Legs
- Limited 1-Year Warranty
- Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
- Back Pack Straps
- Limited 3-Year Warranty
- Description
- Miller Arrowx 1 Fluid Head (100mm)
- Miller Sprinter II 2-Stage Alloy Tripod (Ground Spreader Ready)
- Miller 470 Ground Spreader for Sprinter II Tripod Legs
- Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
Miller Arrowx 1 Fluid Head (100mm) Specs
| Camera Plate Features | Quick Release, Sideload, Sliding Balance Plate |
| Camera Plate Type | 120 mm Euro Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
| Balance Plate Sliding Range | 4.72" / 120 mm |
| Safety Lock | Yes |
| Plate Dimensions | 3.13 x 2.56 x 0.24" / 79.5 x 65 x 6 mm |
| Base Mount | 100 mm Half Ball |
| Drag Control | Pan: Stepped 5-Step Plus 0 Tilt: Stepped 5-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum, Composite |
| Load Capacity | 0 to 35.27 lb / 0 to 16 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 15.35 to 23.23" / 390 to 590 mm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Dimensions | 9.33 x 7.64 x 7.48" / 237 x 194 x 190 mm |
| Weight | 6.39 lb / 2.9 kg |
| Package Weight | 12.565 lb |
| Box Dimensions (LxWxH) | 18.1 x 14.6 x 12.3" |
Miller Sprinter II 2-Stage Alloy Tripod (Ground Spreader Ready) Specs
| Head Mount Type | 100 mm Bowl |
| Load Capacity | 100 lb / 45 kg |
| Maximum Working Height | 60.4" / 153 cm |
| Minimum Working Height | 17.3" / 44 cm |
| Folded Length | 27.6" / 70 cm |
| Materials | Aluminum |
| Weight | 8.3 lb / 3.8 kg |
| Leg Sections | 3 |
Miller 470 Ground Spreader for Sprinter II Tripod Legs Specs
| Type | Ground Spreader |
| Adjustable | Yes |
| Footprint Diameter | 35.83 x 51.57" / 91 x 131 cm |
| Transport Length | 17.52" / 44.5 cm |
| Weight | 1.3 lb / 589.7 g |
| Package Weight | 2.115 lb |
| Box Dimensions (LxWxH) | 18.4 x 7.25 x 6.85" |
Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black) Specs
| Material | Ballistic nylon outer shell |
| Type of Closure | Zipper |
| Padded | Yes |
| Carrying/Transport Options | Dual top handles and padded end handle D-links for optional, user-supplied shoulder strap Back pack straps |
| Dimensions | 37.8 x 10.2 x 12.6" / 96.0 x 26.0 x 32.0 cm |
| Weight | 9.7 lb / 4.4 kg |
| Package Weight | 12.68 lb |
| Box Dimensions (LxWxH) | 39 x 13.75 x 12" |
