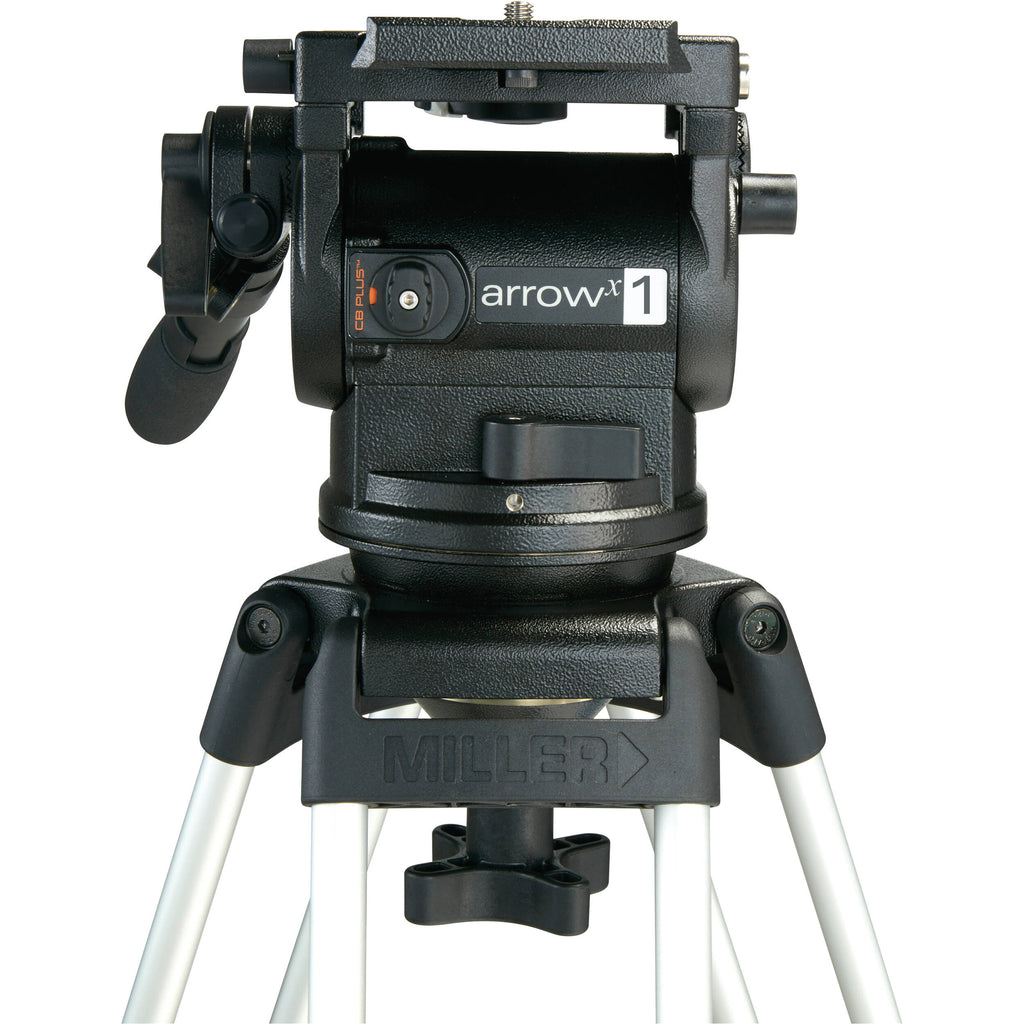

Supports 0 to 35.3 lb100mm Half Ball16-Step Counterbalance (15+0)0 to 5 Grades of Tilt & Pan Drag The versatile Miller Arrowx 1 Fluid Head accommodates a wide payload range of 0 to 35.3 lb using 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero to support even the lightest cameras. This pro video head offers five steps each of pan and tilt drag plus zero and counterbalance with CBPlus for precise control. The side-load Euro plate has a 4.7" sliding range and features easy drop-in mounting without the alignment issues posed by rear-loading designs.

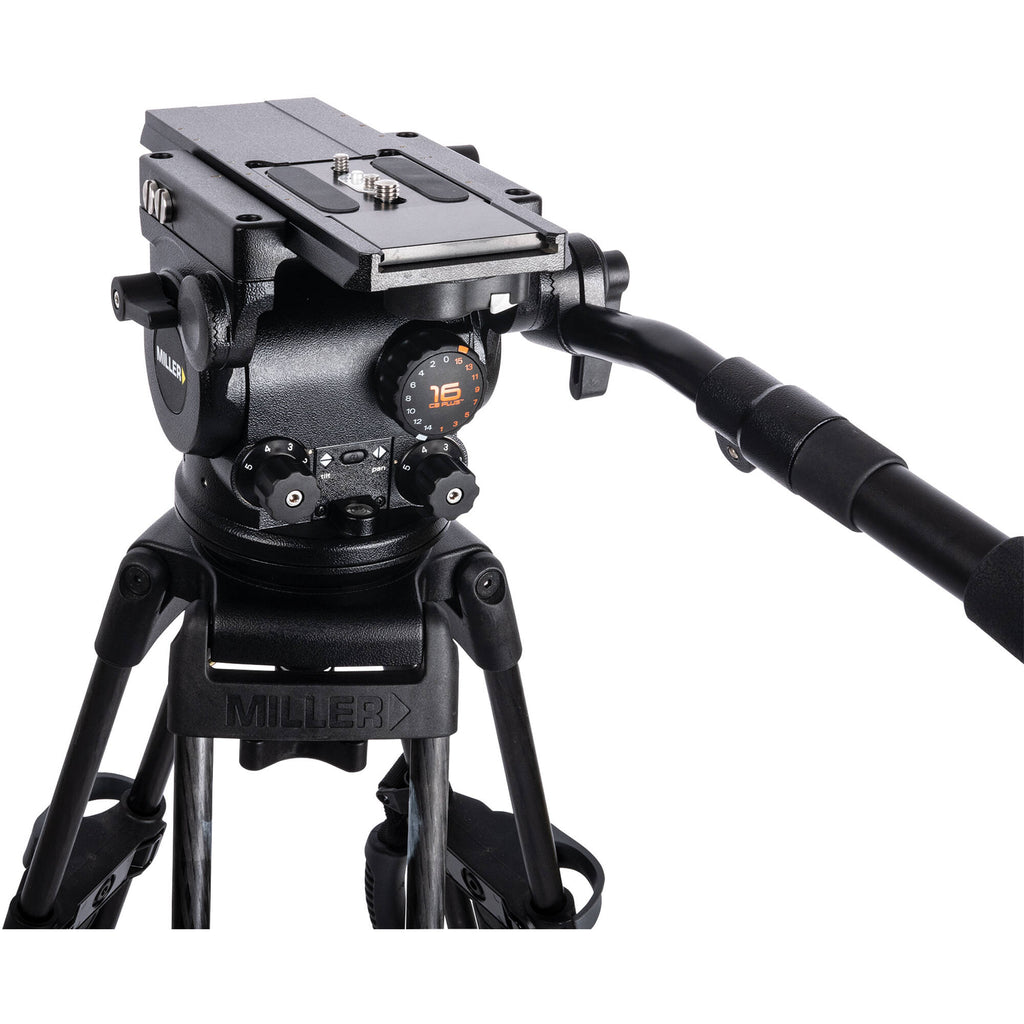

The CBPlus counterbalance system features eight larger steps for quick setup plus interspersed half steps for fine-tuned control. The "one-flick" switch used to activate the half steps is positioned at the front of the head near the pan and tilt locks, keeping all the controls centrally located. Constructed from a lightweight yet durable aluminum alloy with composite polymers, the Arrowx 1 head has an illuminated bubble level and pan/tilt controls. Its 100mm ball base may be removed for 3/8"-16 mounting on a slider or other flat support. The Arrowx 1 head includes a telescoping pan handle and can be used with an optional second pan handle.
Features
- Wide 0 to 35.3 lb payload range
- Five steps of pan and tilt drag
- 16 steps of counterbalance with CB Plus for precision control
- Quick release, side-load Euro plate with 4.7" sliding range
- Fluid drag system with smooth, soft start and stops
- Centrally grouped controls at front/left side of head
- Illuminated bubble level and pan/tilt controls
- Precision caliper locks for bounce-free on/off usage
- Removable half ball for flat base mounting on 3/8"-16 sliders
- Mitchell base adaptable
- Includes one telescoping pan handle
- Robust aluminum and composite build
- Side mounting points for viewfinder supports and accessories
| Camera Plate Features | Quick Release, Sideload, Sliding Balance Plate |
| Camera Plate Type | 120 mm Euro Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male |
| Balance Plate Sliding Range | 4.72" / 120 mm |
| Safety Lock | Yes |
| Plate Dimensions | 3.13 x 2.56 x 0.24" / 79.5 x 65 x 6 mm |
| Base Mount | 100 mm Half Ball |
| Drag Control | Pan: Stepped 5-Step Plus 0
Tilt: Stepped 5-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum, Composite |
| Load Capacity | 0 to 35.27 lb / 0 to 16 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 15.35 to 23.23" / 390 to 590 mm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Dimensions | 9.33 x 7.64 x 7.48" / 237 x 194 x 190 mm |
| Weight | 6.39 lb / 2.9 kg |
| Package Weight | 12.565 lb |
| Box Dimensions (LxWxH) | 18.1 x 14.6 x 12.3" |
In the Box
- Miller Arrowx 1 Fluid Head (100mm)
- Miller 860 Quick Release Plate
- Miller Telescopic Pan Handle for ArrowX Heads
- Locking Handle
- Limited 3-Year Warranty
