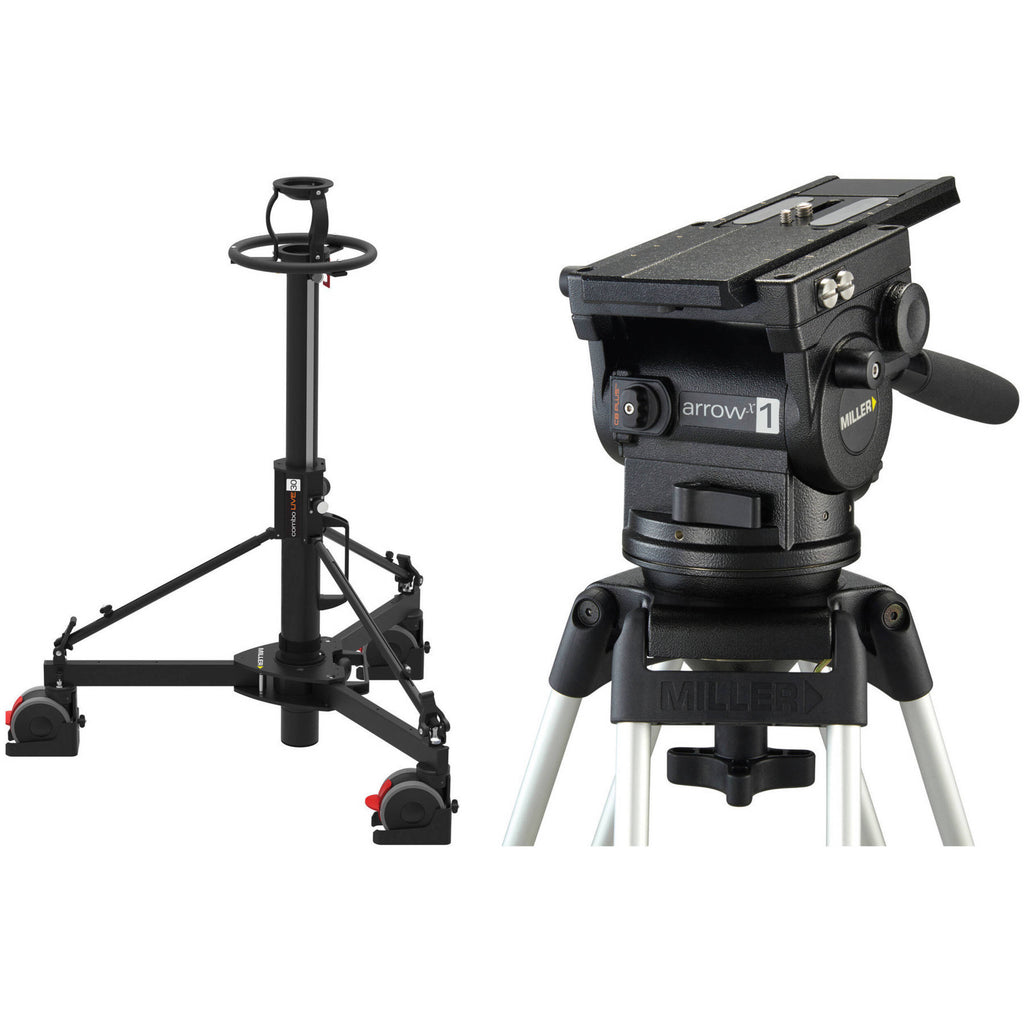

Miller ARROWX 1 COMBO LIVE 30 PEDESTAL

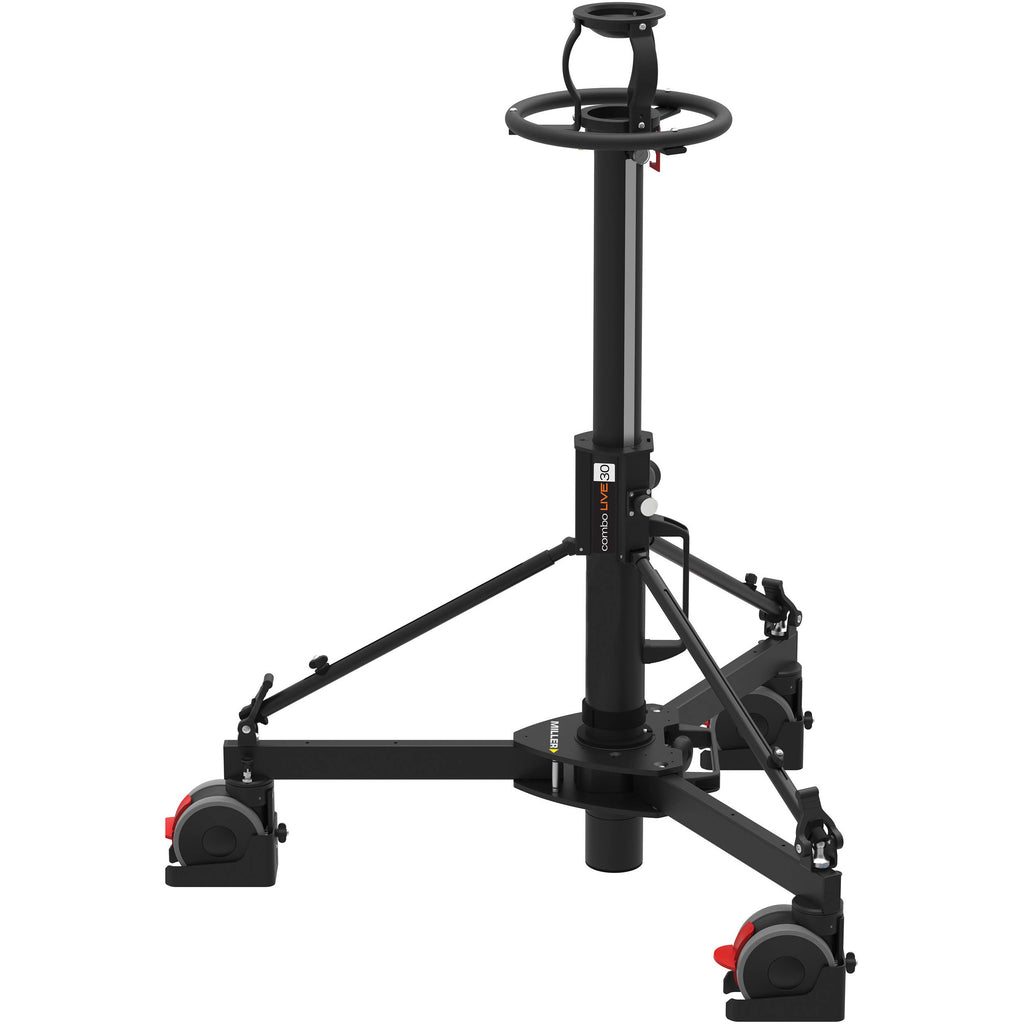

The Combo Live 30 Pedestal System from Miller is a lightweight pedestal and floor dolly system for 100mm ball fluid heads. With an adjustable air column system for quick payload balancing, the pedestal features a 31.8 to 54.1" height adjustment and a load capacity of 66 lb. Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth movement, with multiple wheel locking positions for linear or radius dolly tracking. The Combo Live 30 is simple and easy to set up and use with a drag control knob pressure column and a lock lever pressure column. It is also compact and portable with a carry handle for the column and dolly.

Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)

The Combo Live 30 Pedestal System from Miller is a lightweight pedestal and floor dolly system for 100mm ball fluid heads. With an adjustable air column system for quick payload balancing, the pedestal features a 31.8 to 54.1" height adjustment and a load capacity of 66 lb. Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth movement, with multiple wheel locking positions for linear or radius dolly tracking. The Combo Live 30 is simple and easy to set up and use with a drag control knob pressure column and a lock lever pressure column. It is also compact and portable with a carry handle for the column and dolly.

Precise, smooth, and low noise in-shot column with 17.7" stroke Air adjustable column system for quick payload balancing Independent dolly wheel axle brake system eliminates wheel tire indents 4.9" dual ball bearing wheels for quick swivel-turn action Center hub locking column with adjustable spider arm supports Sturdy adjustable cable guards Portable hand pump with pressure gauge Miller Arrowx 1 Fluid Head (100mm)

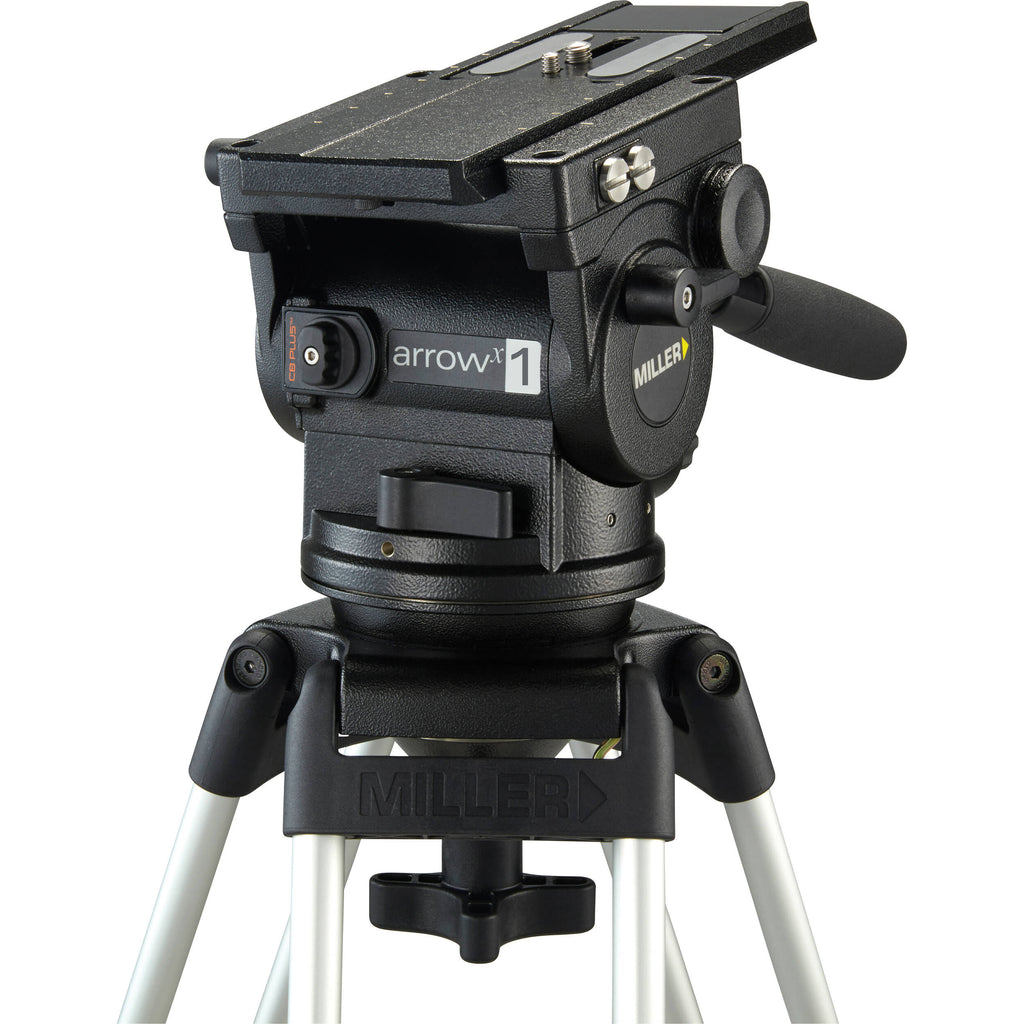

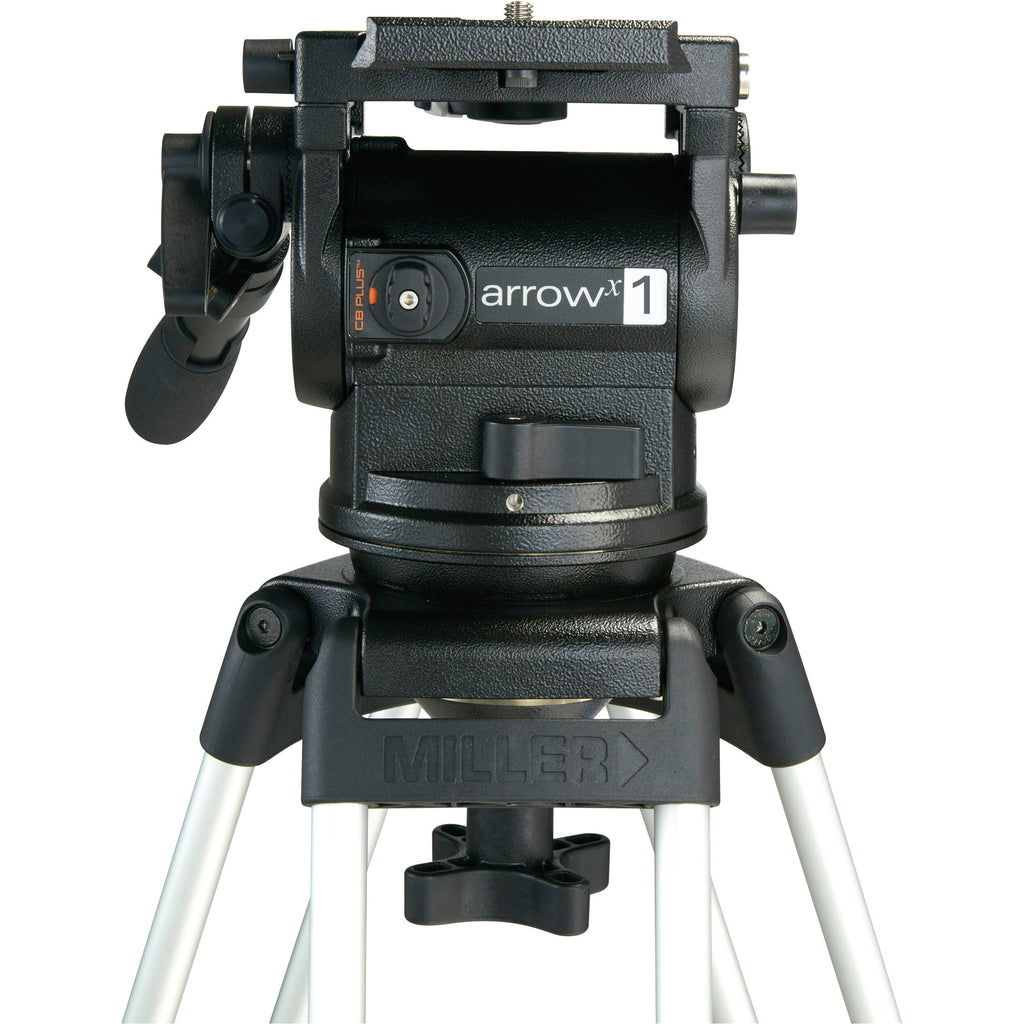

The versatile Miller Arrowx 1 Fluid Head accommodates a wide payload range of 0 to 35.3 lb using 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero to support even the lightest cameras. This pro video head offers five steps each of pan and tilt drag plus zero and counterbalance with CBPlus for precise control. The side-load Euro plate has a 4.7" sliding range and features easy drop-in mounting without the alignment issues posed by rear-loading designs.

The CBPlus counterbalance system features eight larger steps for quick setup plus interspersed half steps for fine-tuned control. The "one-flick" switch used to activate the half steps is positioned at the front of the head near the pan and tilt locks, keeping all the controls centrally located. Constructed from a lightweight yet durable aluminum alloy with composite polymers, the Arrowx 1 head has an illuminated bubble level and pan/tilt controls. Its 100mm ball base may be removed for 3/8"-16 mounting on a slider or other flat support. The Arrowx 1 head includes a telescoping pan handle and can be used with an optional second pan handle.

Features

• Wide 0 to 35.3 lb payload range
• Five steps of pan and tilt drag
• 16 steps of counterbalance with CB Plus for precision control
• Quick release, side-load Euro plate with 4.7" sliding range
• Fluid drag system with smooth, soft start and stops
• Centrally grouped controls at front/left side of head
• Illuminated bubble level and pan/tilt controls
• Precision caliper locks for bounce-free on/off usage
• Removable half ball for flat base mounting on 3/8"-16 sliders
• Mitchell base adaptable
• Includes one telescoping pan handle
• Robust aluminum and composite build
• Side mounting points for viewfinder supports and accessories

Load Capacity	66 lb / 30 kg
Height Range	31.8 to 54.1" / 81.0 x 137.5 cm
Mounting Base	?3.9" / 100 mm Ball Leveling
Dimensions	Column In-Shot Stroke: 17.7" / 45 cm Steering Wheel Diameter: 11.6" / 29.4 cm Tracking Width: 38.2" / 97 cm Wheel Diameter: 4.9" / 12.5 cm
Weight	38.9 lb / 17.7 kg

Package Weight	53 lb
Box Dimensions (LxWxH)	34 x 20 x 14"

Camera Plate Features	Quick Release, Sideload, Sliding Balance Plate
Camera Plate Type	120 mm Euro Plate
Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male
Balance Plate Sliding Range	4.72" / 120 mm
Safety Lock	Yes
Plate Dimensions	3.13 x 2.56 x 0.24" / 79.5 x 65 x 6 mm

Base Mount

100 mm Half Ball

Drag Control	Pan: Stepped 5-Step Plus 0 Tilt: Stepped 5-Step Plus 0
Drag Type	Fluid
Vertical Tilt	+90° to -75°
Panning Range	360°
Independent Pan Lock	Yes
Independent Tilt Lock	Yes

Material	Aluminum, Composite
Load Capacity	0 to 35.27 lb / 0 to 16 kg
Counter Balance	Incremental 15-Step Plus 0
Pan Handle Fittings	2 x Rosette
Included Pan Handle Length	15.35 to 23.23" / 390 to 590 mm
Bubble Level	1 x Illuminated
Operating Temperature	-40 to 149°F / -40 to 65°C
Dimensions	9.33 x 7.64 x 7.48" / 237 x 194 x 190 mm
Weight	6.39 lb / 2.9 kg

Package Weight	12.565 lb
Box Dimensions (LxWxH)	18.1 x 14.6 x 12.3"
