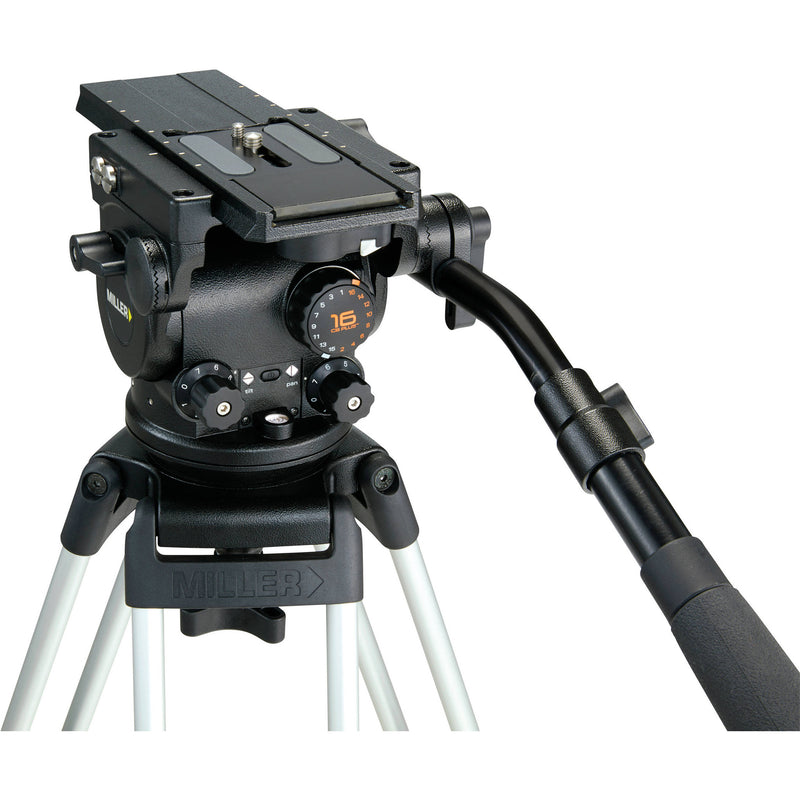

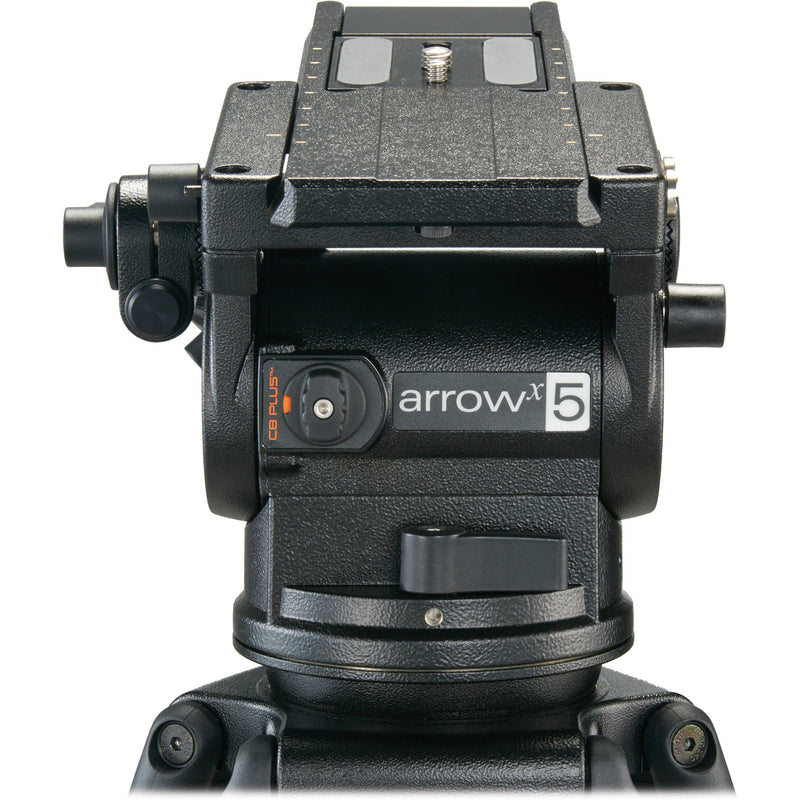

The Arrow X5 Fluid Head from Miller is suitable for use with ENG and EFP camcorders. It offers a 4.4 to 46.2 lb payload range and seven selectable pan-tilt fluid drag positions. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, features eight larger counterbalance steps, allowing you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required. The Arrow X5 fluid head features a 100mm ball leveling with three M5 holes for flat base mounting. The pan and tilt locks utilize caliper disc brakes for reliable, short-throw fixing.
- Compact, lightweight, and versatile
- 7-step plus zero pan and tilt drag
- 16-position CB Plus counterbalance system
- Wide payload range of 4.4 to 46.2 lb
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- Controls all-in-one-location design for fast, easy and practical use
- Illuminated bubble level and pan-tilt drag controls
- Precise floating pan-tilt caliper locks ensure bounce free on-off performance
- Quick-release, 120mm sliding camera platform with Euro-style camera plate
- Removable 100mm ball leveling with three 3/8" holes for flat base mounting
- Mitchell base adaptable
- Robust construction for rugged outdoor shooting conditions
- Optional second pan handle mount
- Side mounting points for viewfinders and accessories
| Load Capacity | 4.4 to 46.2 lb (2 to 21 kg) |
| Diameter/Thread | 100 mm |
| Sliding Range | 4.7" (120 mm) |
| Counter Balance System | 16 selectable positions |
| Counter Balance Range | Not Specified by Manufacturer |
| Center of Gravity | Not Specified by Manufacturer |
| Quick Release/Wedge Plate | Yes |
| Balance Plate | Yes |
| Tilt Drag | 7-step plus zero |
| Tilt Lock | Caliper disc brake system |
| Pan Range | 360° |
| Pan Drag | 7-step plus zero |
| Pan Lock | Caliper disc brake system |
| Pan Handle | Telescopic 15.4 to 23.2" (390 to 590 mm) |
| Leveling Bubble/Illuminated | Yes/Yes |
| Temperature Range | -40 to 149°F (-40 to 65°C) |
| Height | 6.4" (162 mm) above bowl |
| Weight | 7.5 lb (3.4 kg) |
| Packaging Info |
| Package Weight | 12.0 lb |
| Box Dimensions (LxWxH) | 16.3 x 14.0 x 11.5" |
In the Box
Miller Arrow X5 Fluid Head
