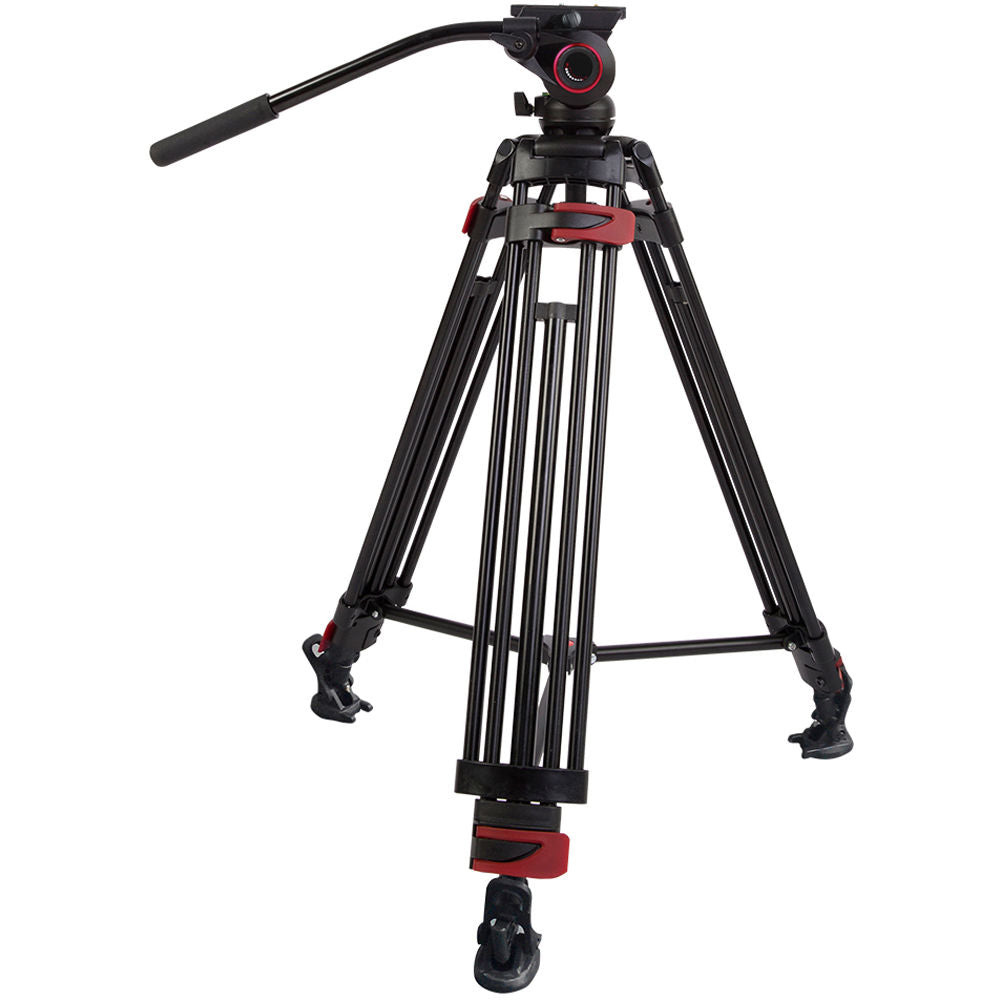

miliboo MTT604 Overview

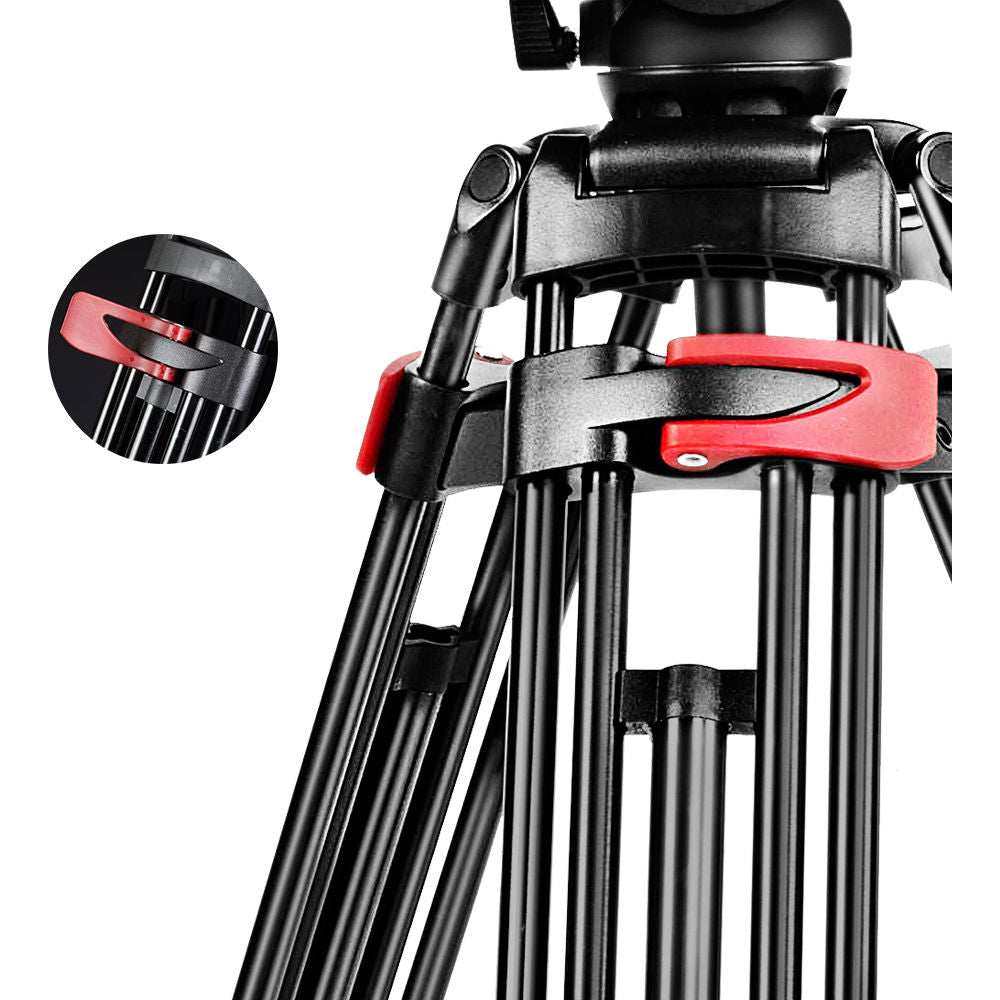

This MTT604A Professional Aluminum Tripod and Fluid Head with Mid-Level Spreader from miliboo features aluminum tripod legs and the MYT803 fluid head with a 75mm flat base. The three-section, reinforced legs are secured by flip locks, and the base features a mid-level spreader and non-slip rubber feet.

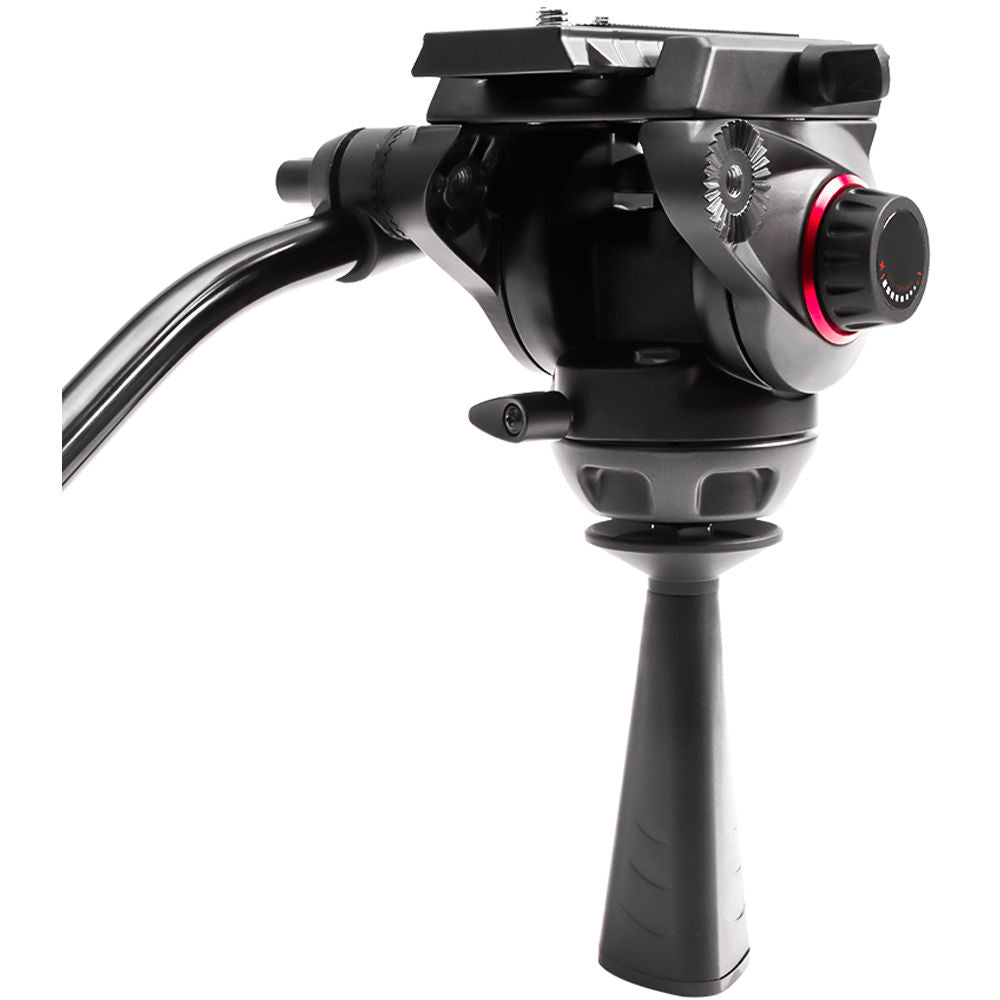

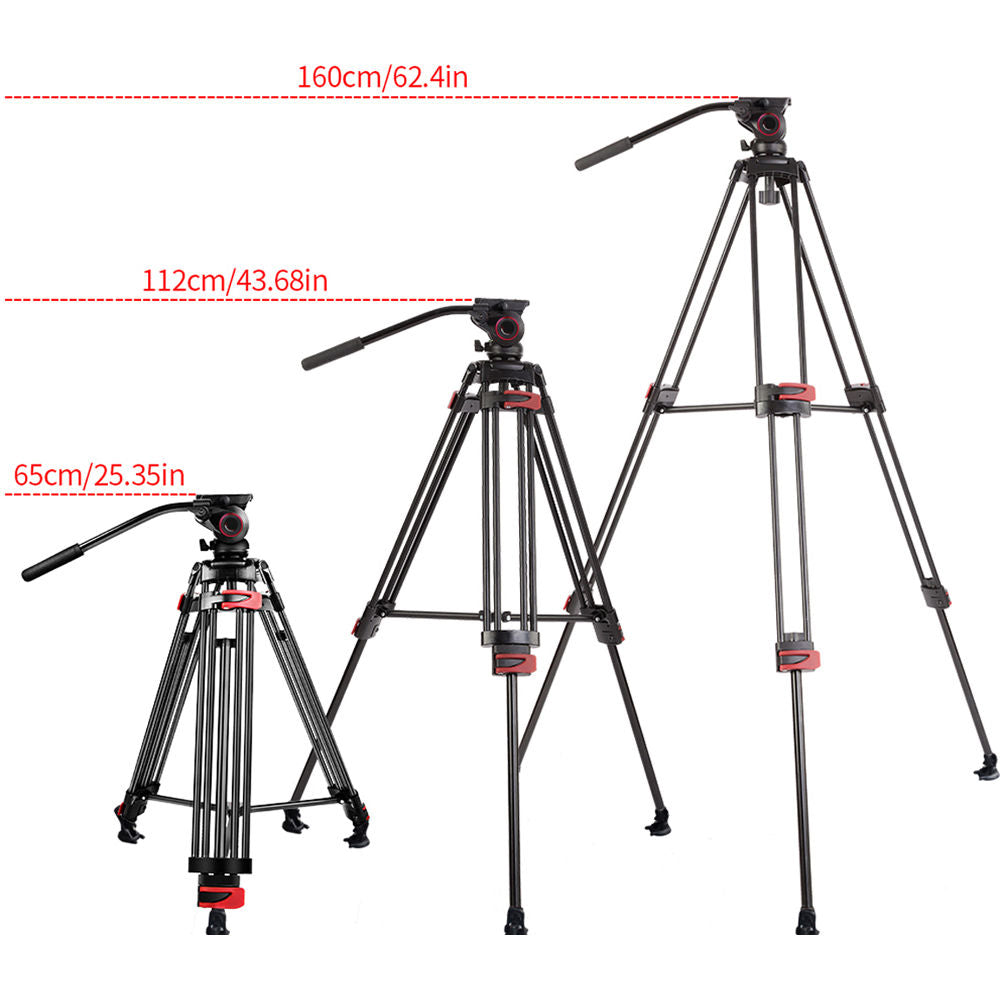

The tripod has a 31.5" minimum height, it extends to a maximum height of 63", and it folds down to 32.7" in length for transport. The fluid head features a 360° pan rotation and a -70 to 90° tilt range, and it includes a pan bar and bubble level to make balance and movement smooth and easy. The full tripod and fluid head kit weighs 10.4 lb and has a maximum load capacity of 17.6 lb.
In the Box
- miliboo MTT604A Professional Aluminum Tripod and Fluid Head with Mid-Level Spreader
- miliboo MYT803 Fluid Head with 75mm Bowl Base with Advanced Damping
- Mid-Level Spreader
- Padded Carry Bag
- Limited 3-Year Warranty
miliboo MTT604 Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate, Quick Release |
| Camera Plate Type |
Sideload Plate |
| Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
1 x 3/8"-16 Male with Locating Pin |
| Safety Lock |
Yes |
| Plate Dimensions |
5.71 x 1.97" / 145 x 50 mm |
Head
| Base Mount |
75 mm Half Ball |
| Pan Handle Fittings |
2 x Rosette |
| Bubble Level |
1 |
| Base Diameter |
2.95" / 75 mm |
Pan & Tilt
| Drag Type |
Fluid |
| Vertical Tilt |
+90° to -70° |
| Panning Range |
360° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
Legs
| Leg Lock Type |
Flip Lock |
| Leg Positions |
3 Positions |
| Independent Leg Spread |
No |
| Leg Sections |
3 |
| Leg Diameter |
0.87" / 22 mm (Maximum)
0.63" / 16 mm (Minimum) |
| Feet Features |
Rubber |
| Spreader |
Mid-Level (Included) |
General
| Load Capacity |
17.6 lb / 7.98 kg |
| Maximum Working Height |
62.99" / 160 cm |
| Minimum Working Height |
31.50" / 80 cm |
| Folded Length |
32.68" / 83 cm |
| Materials |
Aluminum |
| Weight |
10.36 lb / 4.7 kg |
Packaging Info
| Package Weight |
14.25 lb |
| Box Dimensions (LxWxH) |
37.5 x 7.5 x 7.5" |
