Description
Product Overview

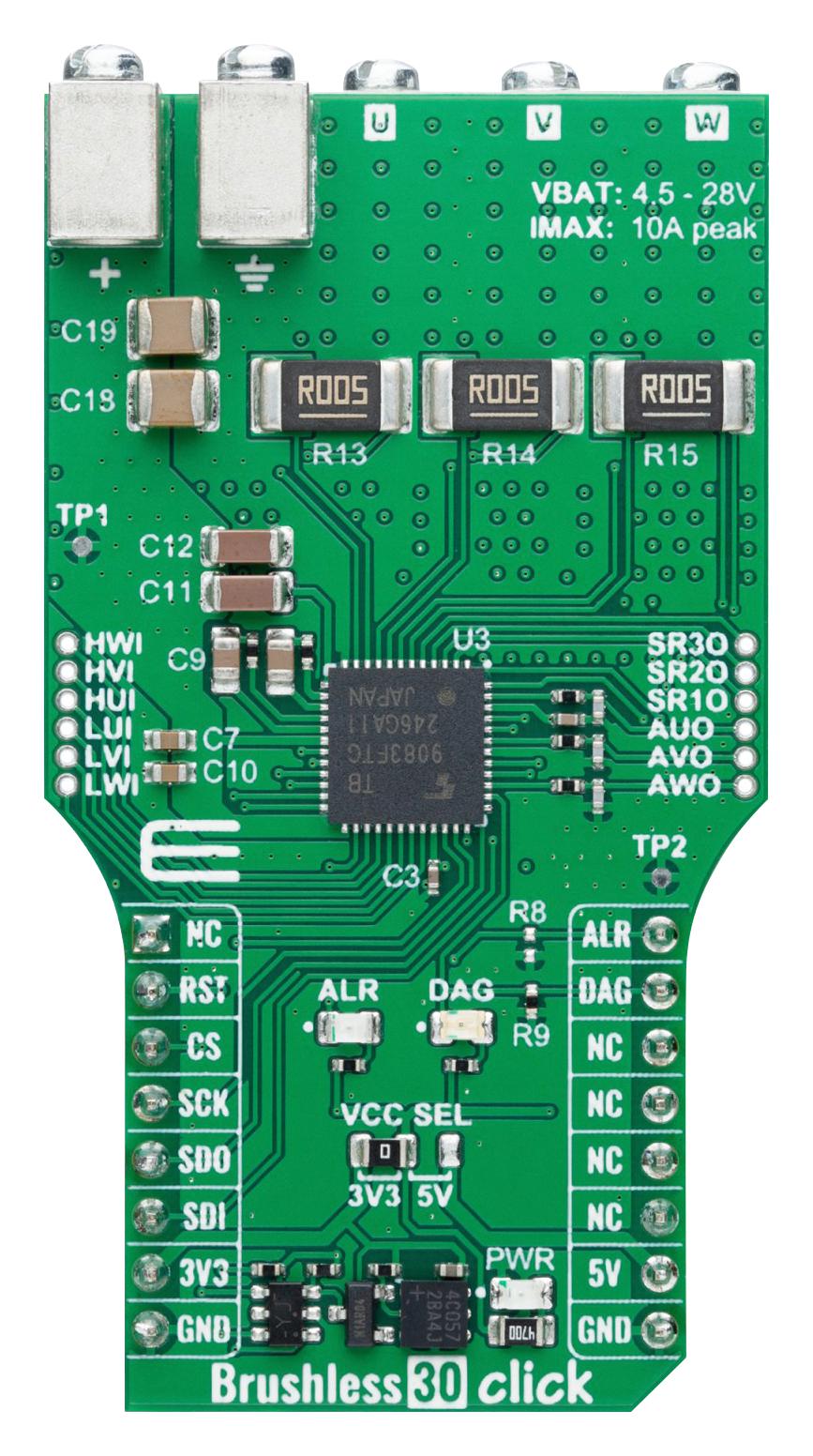

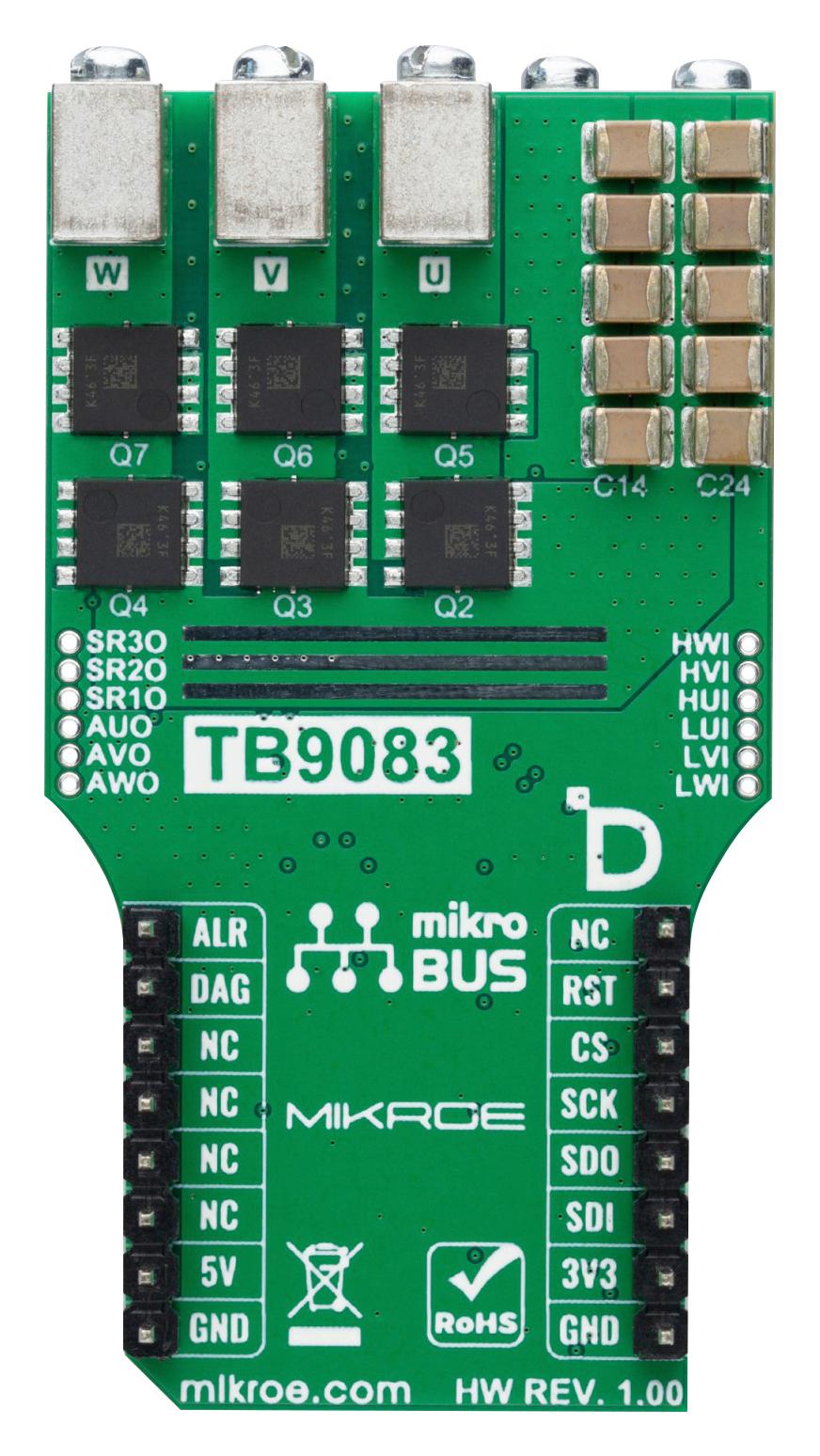

MIKROE-6337 is a Brushless 30 click compact add-on board for precise and reliable control of brushless motors. This board features the TB9083FTG, a gate-driver IC from Toshiba Semiconductor, known for its robust performance in automotive environments. It also includes additional header pins for 6 PWM inputs, safety relays and current sense amplifiers. Comprehensive error detection capabilities, as required from automotive devices, are included. Brushless 30 Click is ideal for demanding automotive applications such as electric power steering (EPS), powered brakes, and automotive pumps where high-precision motor control is crucial. Brushless 30 Click is fully compatible with the mikroBUS� socket and can be used on any host system supporting the mikroBUS� standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization.
- SPI interface
- Click board size L is 57.15 x 25.4mm
- 3.3V or 5V, external input voltage
- Alarm and diagnostic indicators
- Qualified under AEC-Q100 and AEC-Q006 standards
- Safety relay pre-driver with multiple error detection
- Peak output current of up to 10A
Product details
Other details
| Brand | MIKROELEKTRONIKA |
| Part Number | MIKROE-6337 |
| Quantity | Each |
| Technical Data Sheet EN |  |
