MIKROELEKTRONIKA MIKROE-6024 Add-On Board, 6DOF IMU 22 Click, ICM-42670-P, 6-Axis MEMS Motion Tracking IMU, I2C, SPI, 3.3V

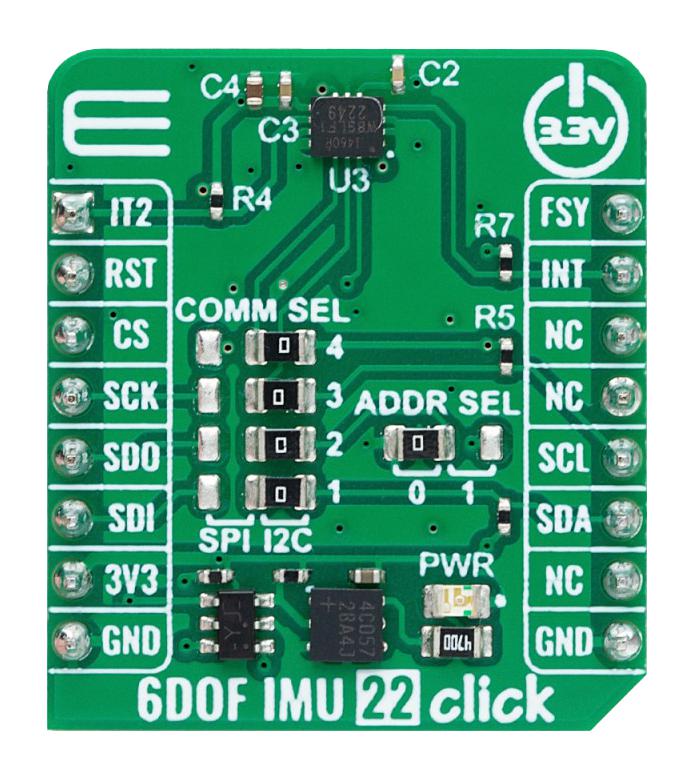

MIKROE-6024 is a 6DOF IMU 22 Click compact add-on board for advanced motion tracking. This board features the ICM-42670-P, a high-performance 6-axis MEMS MotionTracking IMU from TDK InvenSense. The ICM-42670-P integrates a 3-axis gyroscope and accelerometer, offering exceptional precision in motion detection. It supports both I2C and SPI interfaces for communication, features a substantial 2.25Kbytes FIFO, and includes two programmable interrupts that enhance power efficiency through a wake-on-motion feature. The IMU's gyro and accel are adjustable across a range of full-scale settings, accommodating a variety of usage scenarios. With its low noise levels, high stability under various conditions, and an on-board APEX Motion Processing engine for gesture and step recognition, this Click board� is an ideal choice for developing wearable technology, smart home devices, robotics, and AR/VR applications.

• Ultra-low power with wake-on-motion support
• Lowest noise levels in class
• High stability against temperature, shock, and offset
• On-chip APEX motion processing engine for gesture and pedometer

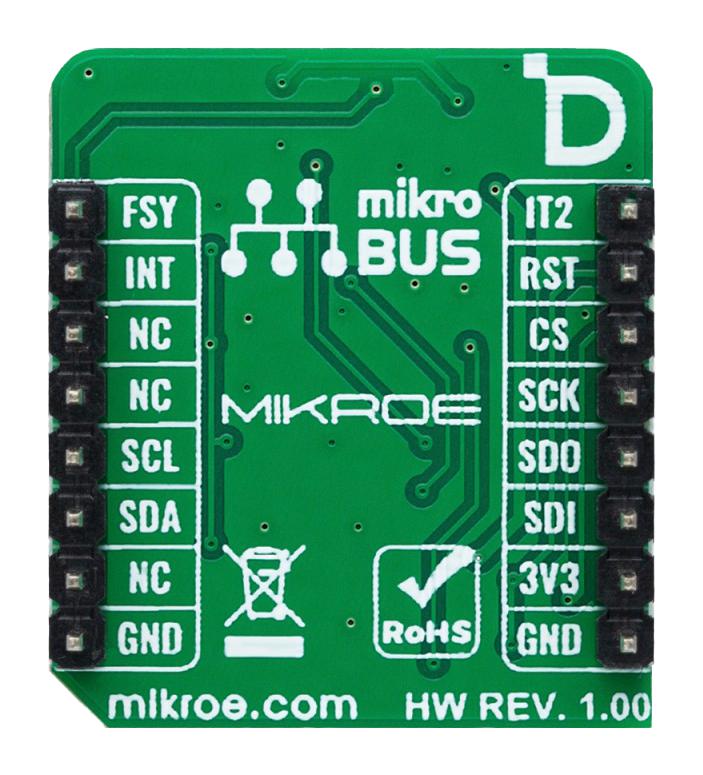

• Fully compatible with the mikroBUS� socket
• Can be used on any host system supporting the mikroBUS� standard
• Programmable full-scale range
• Programmable digital filters
• Click board size S is 28.6 x 25.4mm
• 3.3V input voltage
