MIKROELEKTRONIKA MIKROE-5979 Add-On Board, Opto Encoder 4 Click, MikroE mikroBUS Compatible Development Boards

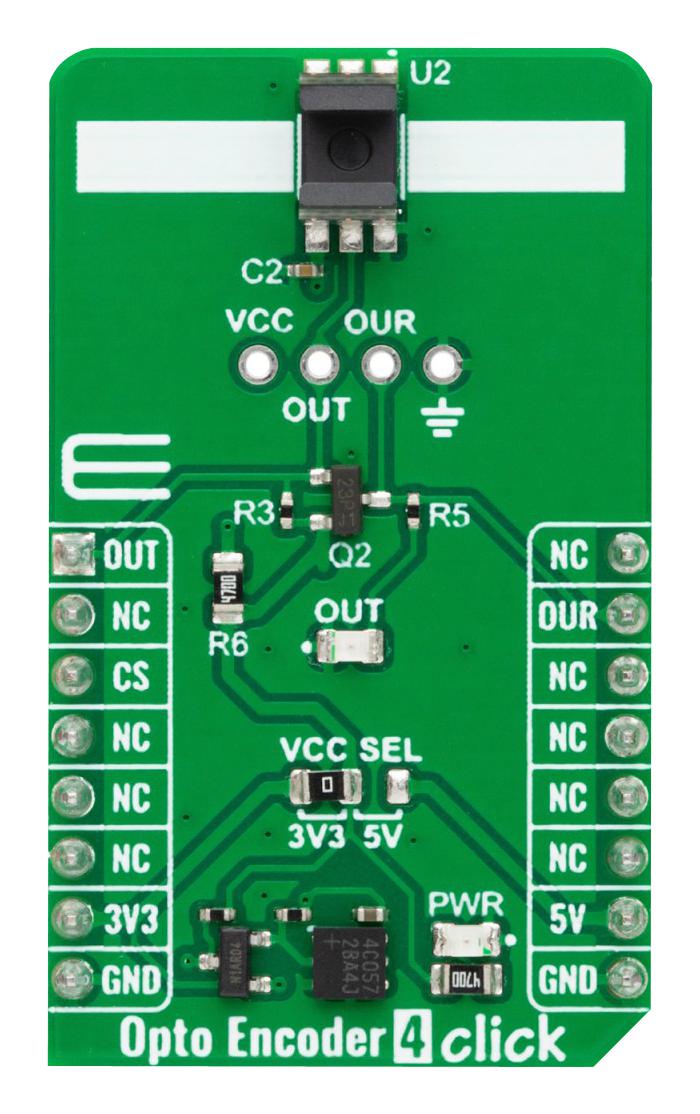

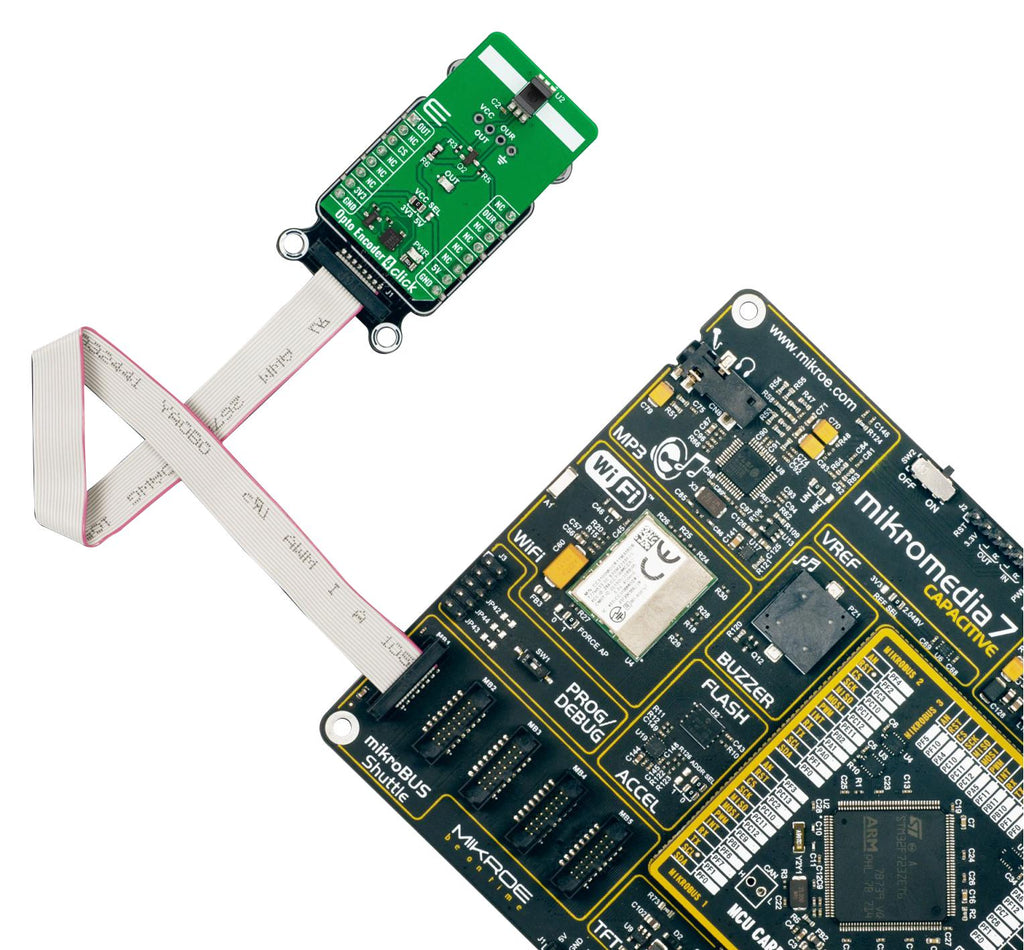

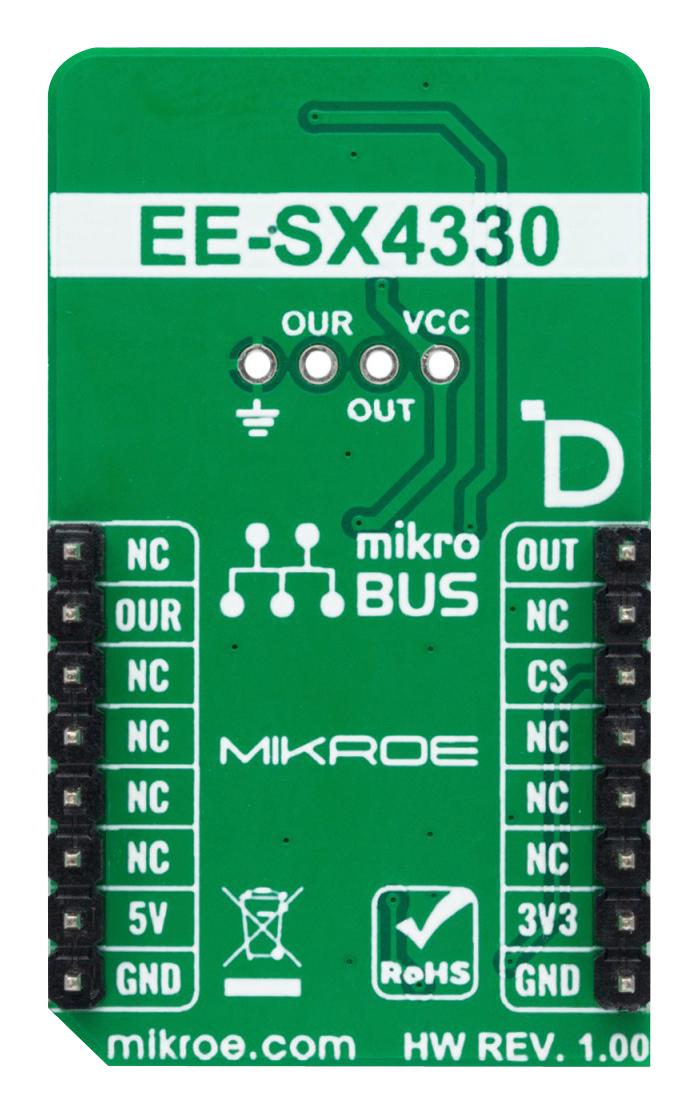

MIKROE-5979 is a Opto Encoder 4 Click compact add-on board that contains an optical sensor/encoder that can be used for movement or rotation encoding. This board features the EE-SX4330, a transmissive photo-microsensor from OMRON. It is intended to be used with an encoder disk or similar device that will act as a barrier between the emitter and detector of the sensor. Usually, it will be the disk with perforations, which is commonly used to detect the rotation speed. This Click board� makes the perfect solution for the development of optical sensors in automotive applications, motion, speed, precise motor shaft positioning applications, knob encoder applications, and more. Opto Encoder 4 Click is fully compatible with the mikroBUS� socket and can be used on any host system supporting the mikroBUS� standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization.

• In combination with an encoder disk or similar object
• Can detect movement and the spinning speed
• Fast response delay time and precise readings
• Minimal response frequency of 3KHz
• Two-tower design and low power consumption
• Analog, GPIO interface
• Yes ClickID
• 3.3V or 5V input voltage
• Click board size M of 42.9 x 25.4mm
• Input voltage of 3.3V or 5V
