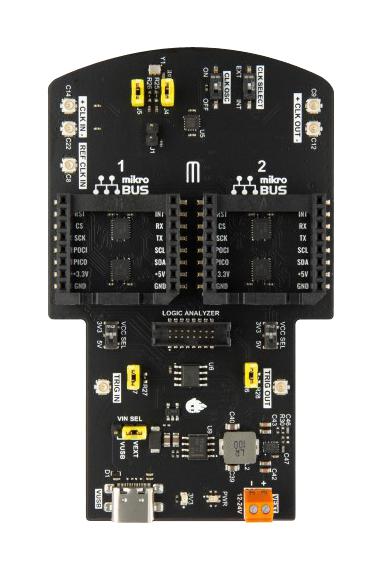

MIKROELEKTRONIKA MIKROE-5942 Click Shield, Red Pitaya, MikroE mikroBUS Compatible Development Boards

MIKROE-5942 is a red Pitaya Click Shield which is a perfect way to expand your development board's functionalities with Red Pitaya pinout. The Red Pitaya Click Shield provides two mikroBUS� sockets to add any functionality from our ever-growing range of Click boards�. This versatile Click Shield offers users a seamless experience, with features like flexible power supply options, logic level control, logic analyser capabilities, and clock signal distribution, ensuring a comprehensive solution for advanced engineering needs. Red Pitaya Click Shield comes equipped with two mikroBUS� sockets, allowing all the Click board� devices to be interfaced with the Red Pitaya host board without effort. This way, MIKROE allows its users to add any functionality from our ever-growing range of Click boards� such as Wi-Fi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more.

• 2x mikroBUS� sockets
• One shuttle connector for logic analyser
• Connector for connecting compatible Red Pitaya board
• LVDS clock fan-out buffer
• Trigger signal distribution and synchronization
• Four TXS0108 level-shifting voltage translators
• Power part for converting 5V USB to the 3.3V
• Analog, GPIO, I2C, PWM, SPI, UART interfaces
• mikroBUS�, RedPitaya compatible
• Click Shield is the ideal companion for Red Pitaya, designed to unlock even more possibilities
