MIKROELEKTRONIKA MIKROE-5901 Add-On Board, ISO ADC 6 Click, 8 Channel, 24 Bit, MikroE mikroBUS Compatible Development Board

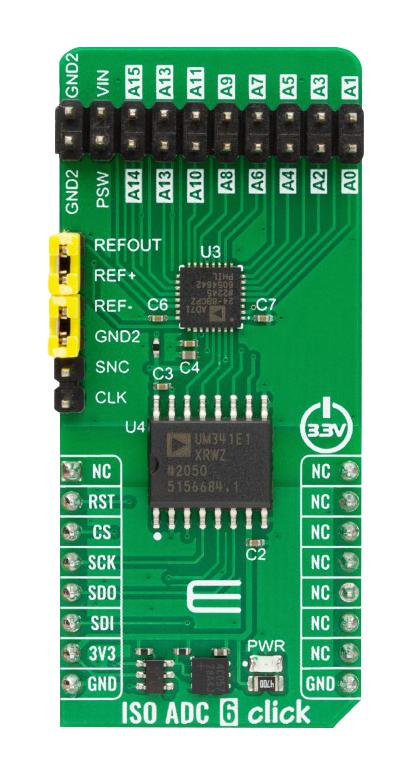

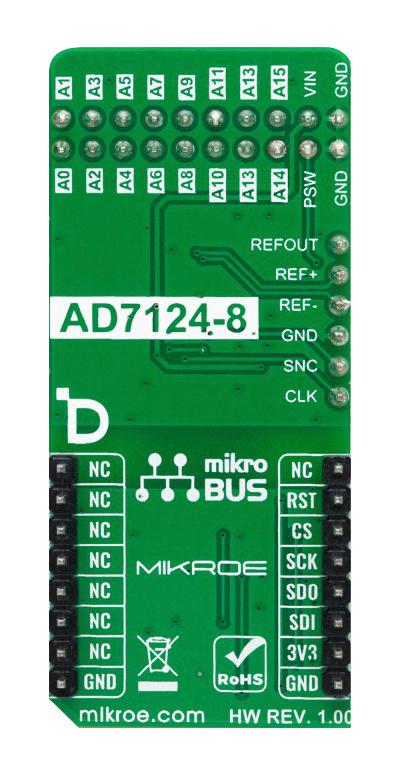

MIKROE-5901 is a ISO ADC 6 Click compact add-on board that contains an eight-channel isolated ADC. This board features the AD7124-8, an 8-channel, low noise, low power, 24-bit, sigma-delta ADC from Analog Devices. The ADC has a programmable gain array (PGA) that allows gains of 1, 2, 4, 8, 16, 32, 64, and 128. Additionally, the ADC contains a 2.5V reference, which can be used with reference buffers, along with the externally applied references. The host MCU is isolated from the ADC by the ADuM341E, a 5kVrms quad digital isolator from Analog Devices. This Click board� makes the perfect solution for the development of a wide variety of industrial measurements, data acquisition systems, monitoring functions, and more. ISO ADC 6 Click is fully compatible with the mikroBUS� socket and can be used on any host system supporting the mikroBUS� standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization.

• Full SPI serial interface isolation
• 8 ADC channels
• Wide output data rate and low RMS noise
• Three power modes and rail-to-rail analogue inputs
• Diagnostic functions and programmable gain
• Crosspoint multiplexed analogue inputs
• 8 differential/15 pseudo differential inputs
• SPI interface
• Input voltage of 3.3V
• Click board size L is 57.15 x 25.4mm
