MIKROELEKTRONIKA MIKROE-5882 Add-On Board, Charger 26 Click, MAX1811, Battery Charger, GPIO, 3.3V/5V in

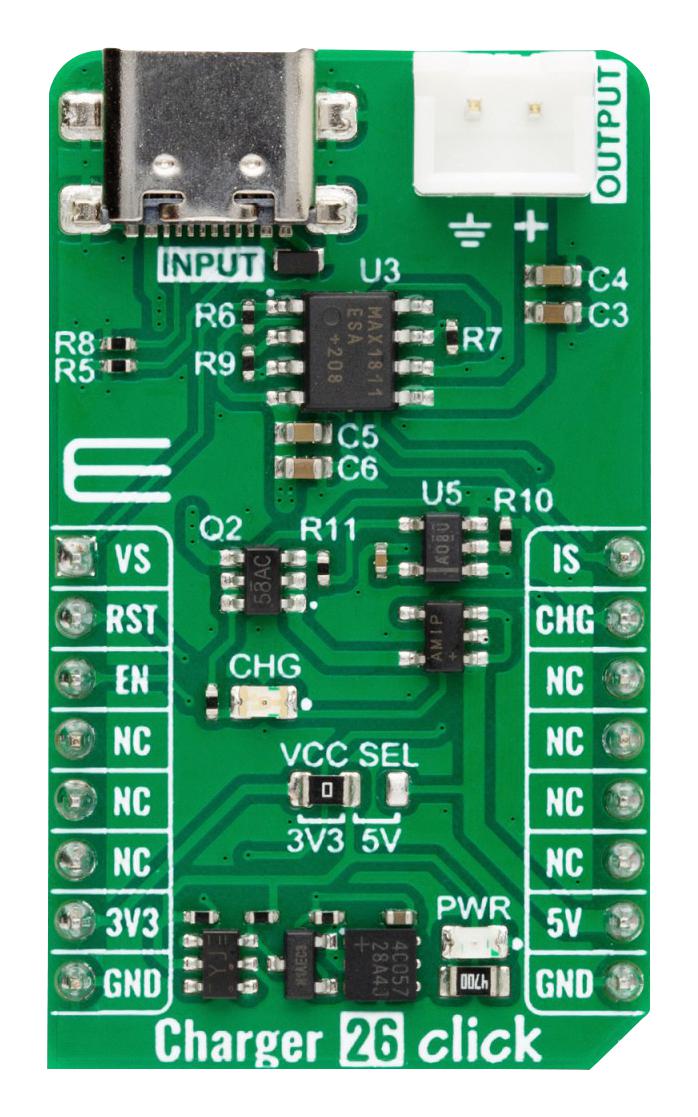

MIKROE-5882 is a Charger 26 Click board which is a compact add-on board that provides a single-cell charging solution. This board features the MAX1811, a USB-powered Li+ charger from Analog Devices. The charger uses an internal FET to deliver the battery up to 500mA charging current. It has pre-conditioning that soft-starts a near-dead battery cell before charging. The other safety features include continuous monitoring of voltage and current and initial checking for fault conditions before charging. This Click board� makes the perfect solution for the development of PDAs, digital still cameras, MP3 players, cell phones, hand-held devices, and more.

• 3.3V or 5V, external input voltage
• Charges single-cell Li+ batteries directly from USB C connector or over 5V rail of mikroBUS� socket
• High overall charging accuracy
• Selectable charging current and voltage
• GPIO interface
• Charging indicator, soft start of near-dead battery, checking for fault conditions
• mikroSDK compliant library, which includes functions that simplify software development
• 42.9 x 25.4mm click board size M
• Comes as a fully tested product, ready to be used on a system equipped with mikroBUS� socket
• Features ClickID
