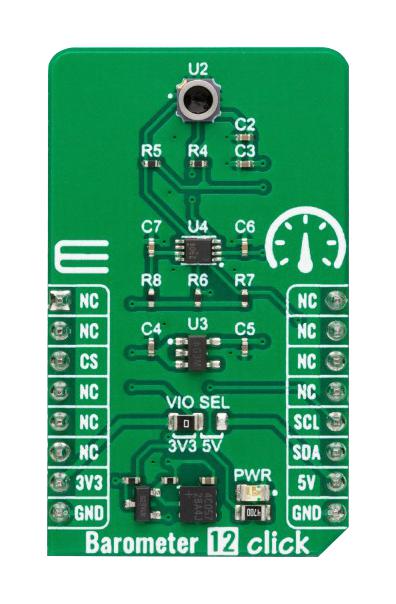

MIKROE-5775 is a Barometer 12 Click compact add-on board that measures air pressure in a specific environment. This board features the ICP-10125, a high-accuracy, low-power, 10-atm waterproof barometric pressure and temperature sensor from TDK InvenSense. It has a normal pressure operating range from 95 to 105KPa (extended from 30 to 110KPa) and a maximum temperature operating range from -40 to 85°C. The sensor comes in a chimney package with water proofing gel providing IPx8 waterproofing at 10atm. This Click boardâ�¢ makes the perfect solution for the development of sports and fitness activity monitoring applications, altimeters, and barometers for portable devices, indoor/outdoor navigation, and more.
- Low power consumption
- Good relative pressure and temperature accuracy
- Low noise and small footprint
- IPx8 waterproof to 10atm
- Measure differentials of altitude as small as 8.5cm and ideal for battery-powered applications
- Supported by mikroSDK compliant library, which includes functions that simplify software development
- I2C interface
- Click board size M is 42.9 x 25.4mm
- 3.3V, 5V input voltage
- Fully tested product, ready to bb used on a system equipped with the mikroBUS� socket
Product details
| Accessory Type:
Barometer 12 Click Add-On Board
|
| For Use With:
MikroBUS Compatible Development Boards
|
| Product Range:
-
|
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-5775 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
