Description

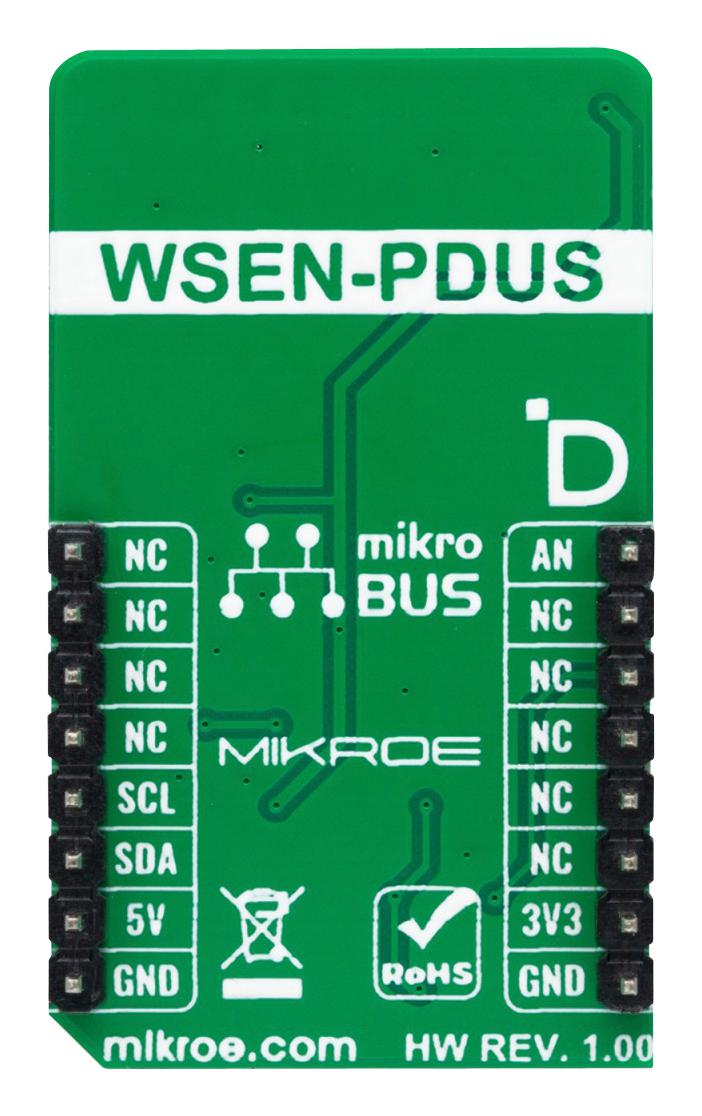

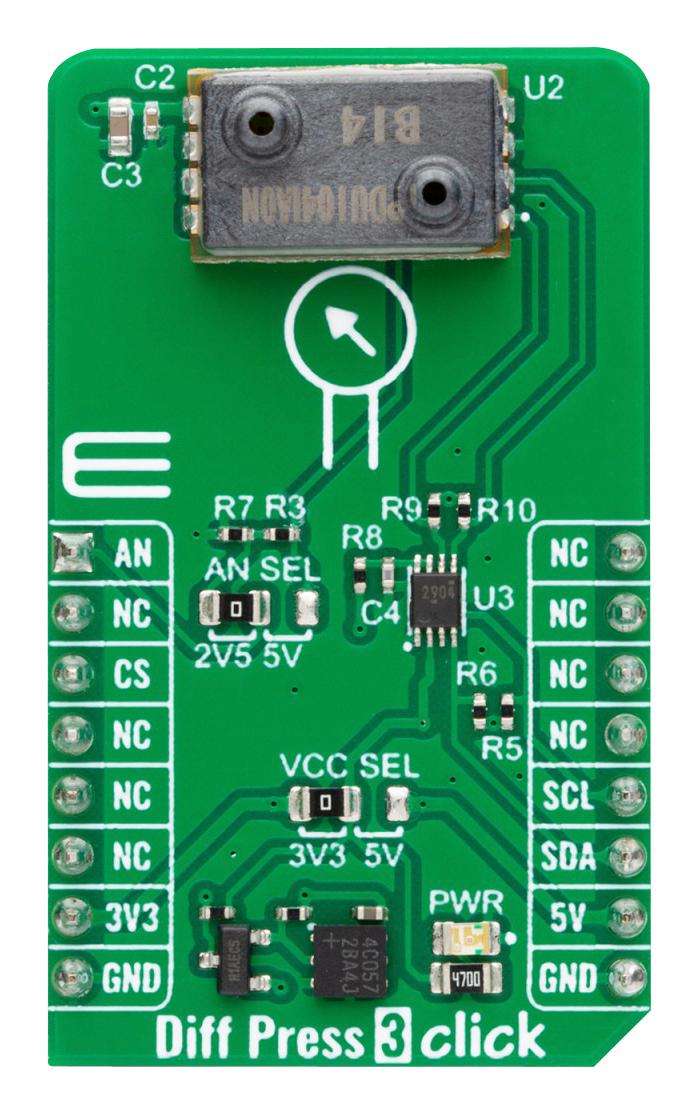

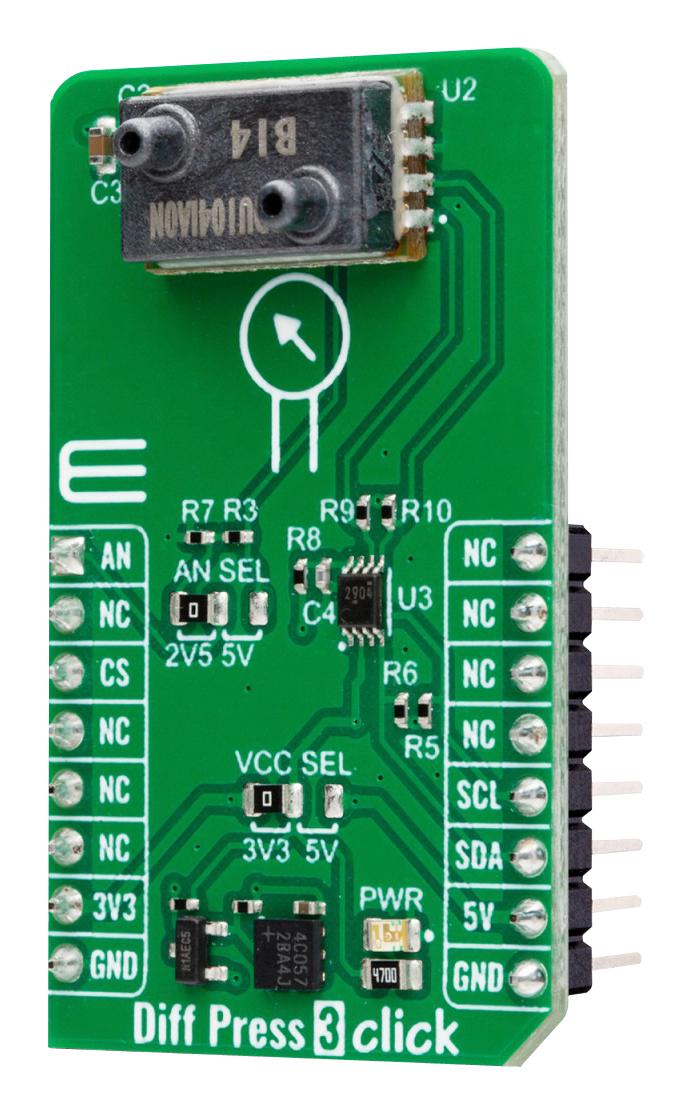

MIKROE-5771 is a Diff Press 3 Click compact add-on board that can measure differential pressure. It features the WSEN-PDUS (2513130810401), a differential pressure sensor from Würth Elektronik. The sensor is MEMS based and uses a piezo-resistive sensing principle. It is a fully calibrated pressure sensor with 15-bit digital and 11-bit analogue outputs. In addition to pressure measurement, the 2513130810401 WSEN-PDUS sensor also has an embedded temperature sensor. This Click board� makes the perfect solution for the development of HVAC, filter monitoring, gas leak detection applications, and more.
- Low power consumption
- Excellent accuracy
- Digital and analogue readings
- Calibrated sensor and MEMS-based piezo-resistive principle
- Additional temperature sensor that can be used for temperature compensation
- Analog, I2C interface
- Supported by mikroSDK-compliant library, which includes functions that simplify software development
- Click board size M is 42.9 x 25.4mm
- 3.3V, 5V input voltage

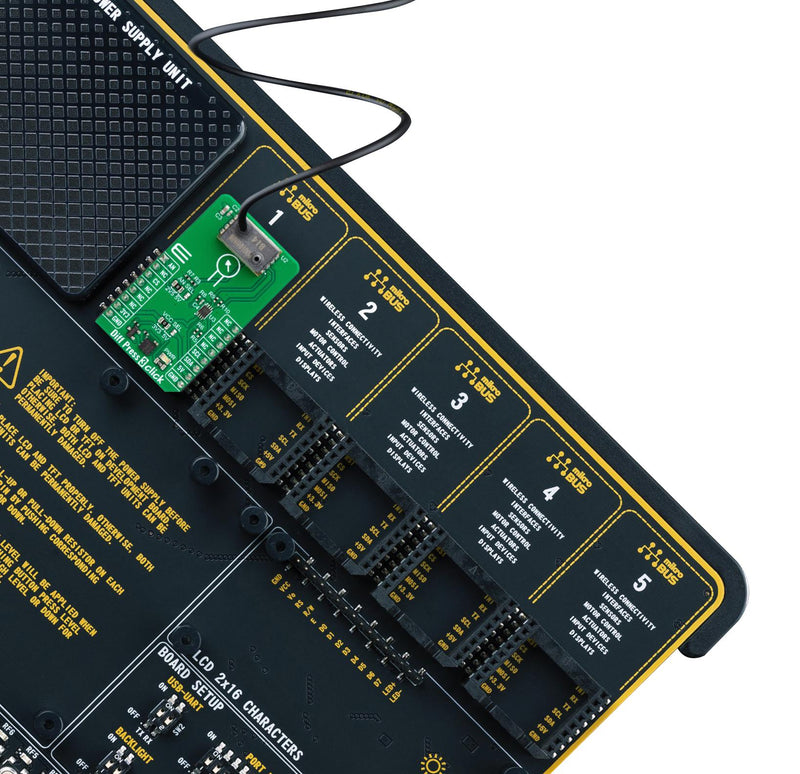

- Fully tested product, ready to be used on a system equipped with the mikroBUS� socket
Product details
Other details
| Brand | MIKROELEKTRONIKA |
| Part Number | MIKROE-5771 |
| Quantity | Each |
| Technical Data Sheet EN |  |
