Description
Product Overview

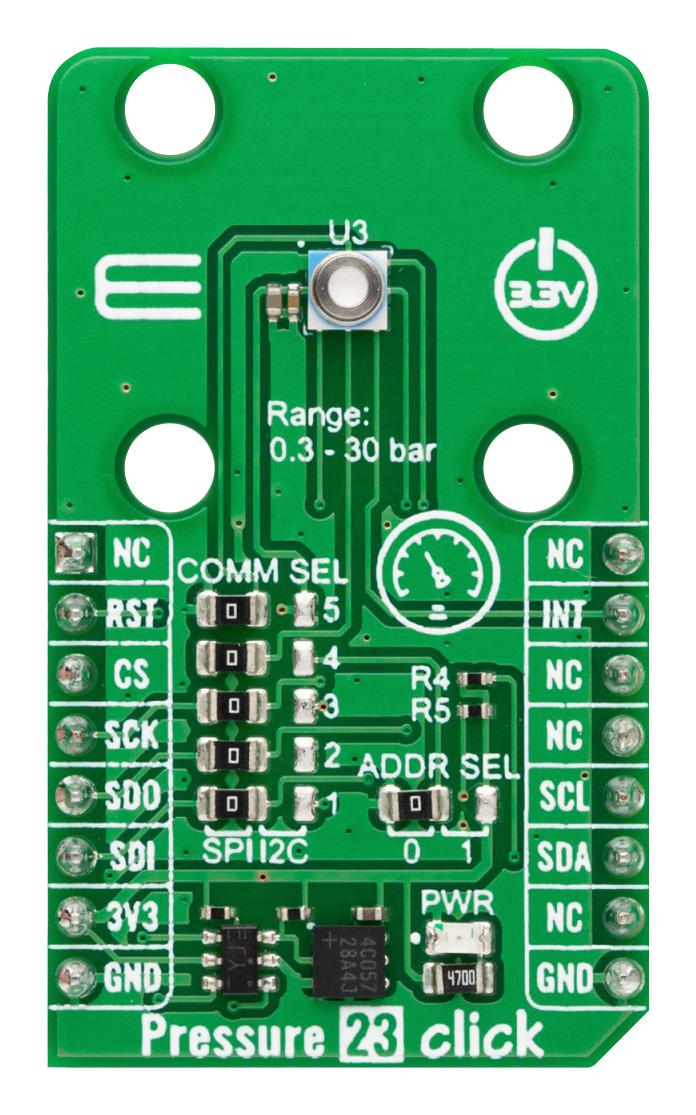

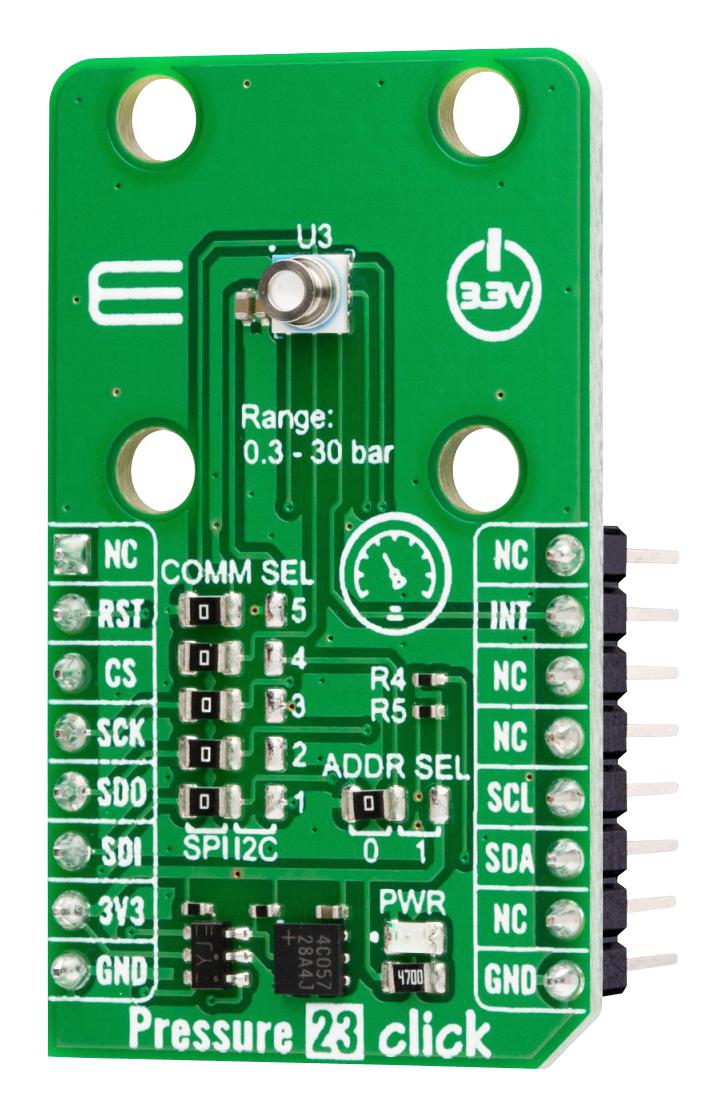

MIKROE-5768 is a pressure 23 click compact add-on board that contains a board-mount pressure sensor. This board features the MS5849-30BA, an ultra-compact chlorine-resistant absolute pressure sensor from TE Connectivity. The sensor is a small digital altimeter operating from 300 up to 30000mbar, optimized for applications where chlorine is present. The sensor�s stainless-steel housing is filled with gel, which makes it robust and enables it to work in harsh environments. This Click board� makes the perfect solution for the development of safety devices in seawater, medical portable devices, disposable � drug treatment, mildly corrosive gases, liquid measurements, and more. Pressure 23 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board� comes as a fully tested product, ready to be used on a system equipped with the mikroBUS� socket.
- High-resolution pressure sensor, fast conversion, 24bit ADC
- Built-in automatic conversion, signalling state by interrupt, programmable filter
- Built-in FIFO, wide operating pressure range, selectable interface
- I2C, SPI interface, ClickID, mikroBUS compatibility
- Click board size M (42.9 x 25.4mm)
- Input voltage is 3.3V
Product details
Other details
| Brand | MIKROELEKTRONIKA |
| Part Number | MIKROE-5768 |
| Quantity | Each |
| Technical Data Sheet EN |  |
