Description

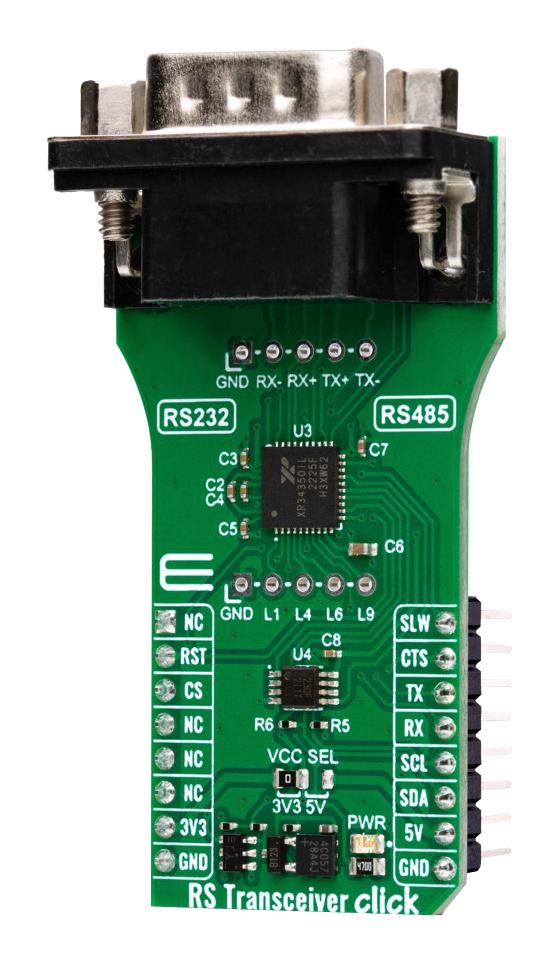

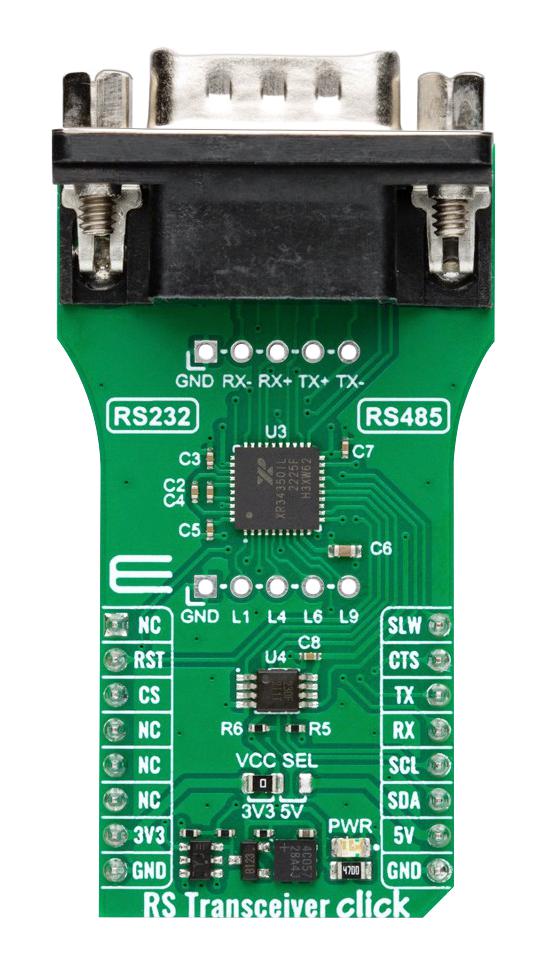

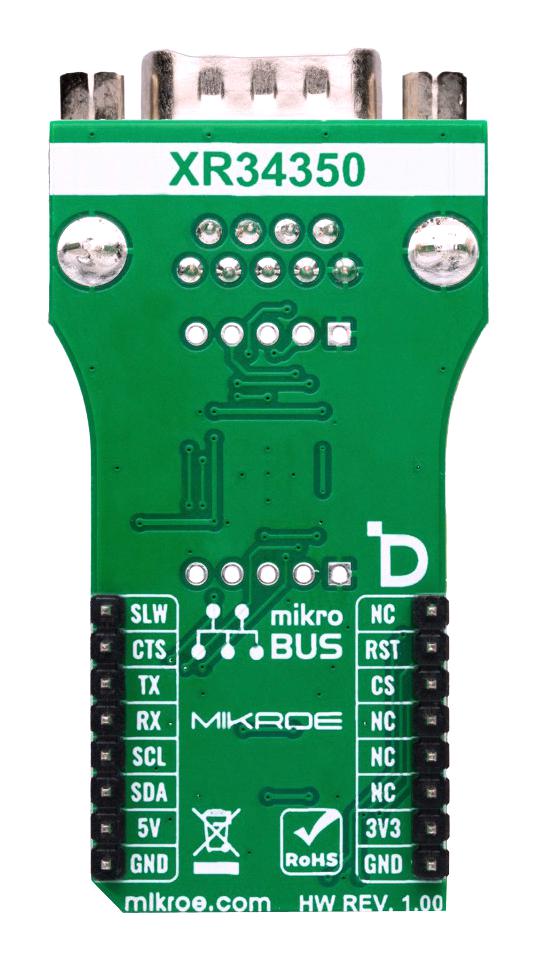

MIKROE-5746 is a RS transceiver compact add-on board that offers an interface between the TTL level UART and RS-232/RS-422/RS-485 communication buses. This board features the XR34350, an RS-232/RS-422/RS-485 serial transceiver with internal termination and wide output swing from MaxLinear. Integrated cable termination and four configuration modes allow all three protocols to be used interchangeably over a single cable over the DE-9 connector. All transmitter outputs and receiver inputs feature robust ESD protection and HBM up to ±15KV. This Click boardâ�¢ makes the perfect solution for the development of low-power serial communications, portable serial devices, point-of-sale equipment, HVAC systems, building automation, and many more applications. RS transceiver is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click boardâ�¢ comes as a fully tested product, ready to be used on a system equipped with the mikroBUSâ�¢ socket.
- RS485/RS422 data rate is 20Kbps
- RS232 data rate is 4Mbps
- High swing driver outputs, half/full duplex, loopback mode, internal termination resistor
- I2C, UART interface
- mikroBUS compatibility
- Supply voltage range from 3.3 to 5V
- Click board size is L (57.15 x 25.4mm)
Product details
Other details
Brand | MIKROELEKTRONIKA |
Part Number | MIKROE-5746 |
Quantity | Each |
Technical Data Sheet EN | ![]() |
