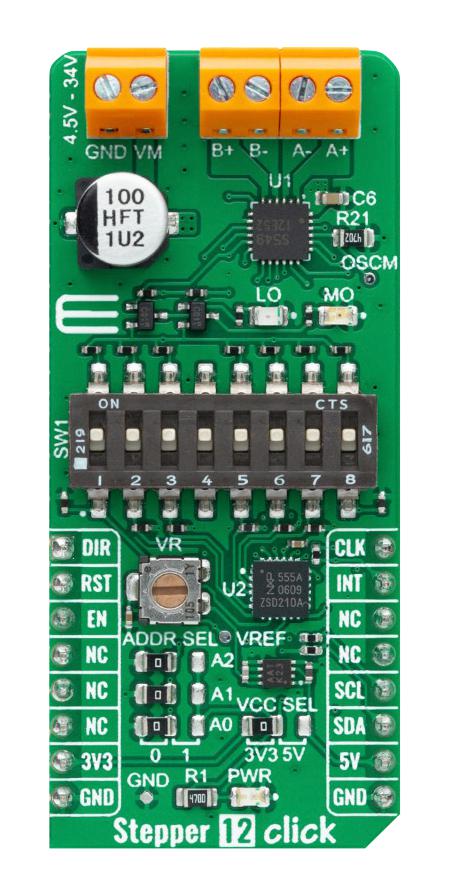

Stepper 12 Click is a compact add-on board that contains a bipolar stepper motor driver. This board features the TB67S549FTG, a two-phase bipolar stepping motor driver from Toshiba Semiconductor. It supports a PWM constant-current control drive without a current sense resistor for motor-current detection owing to the built-in function of the ACDS and allows full-step to 1/32 steps resolution for less motor noise and smoother control. It has a wide operating voltage range of 4.5V to 34V with an output current capacity of 1.5A maximum and several anomaly detection indicators. This Click board� makes the perfect solution for small stepping motors in various applications such as office automation and commercial and industrial equipment. Stepper 12 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board� comes as a fully tested product, ready to be used on a system equipped with the mikroBUS� socket.
- Low power consumption
- Capable of controlling one bipolar stepping motor
- Operational in full, half, quarter, 1/8, 1/16, and 1/32 step resolutions
- Built-in a mixed decay mode
- GPIO, I2C interface
- mikroBUS compatibility
- L (57.15 x 25.4 mm) size
Other details
Brand |
MIKROELEKTRONIKA |
Part Number |
MIKROE-5303 |
Quantity |
Each |
Technical Data Sheet EN |
|
