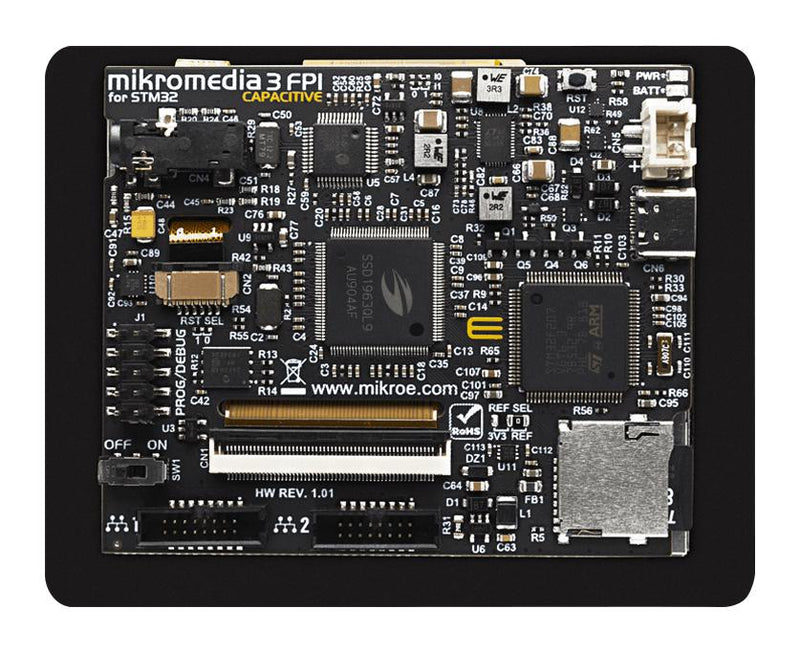

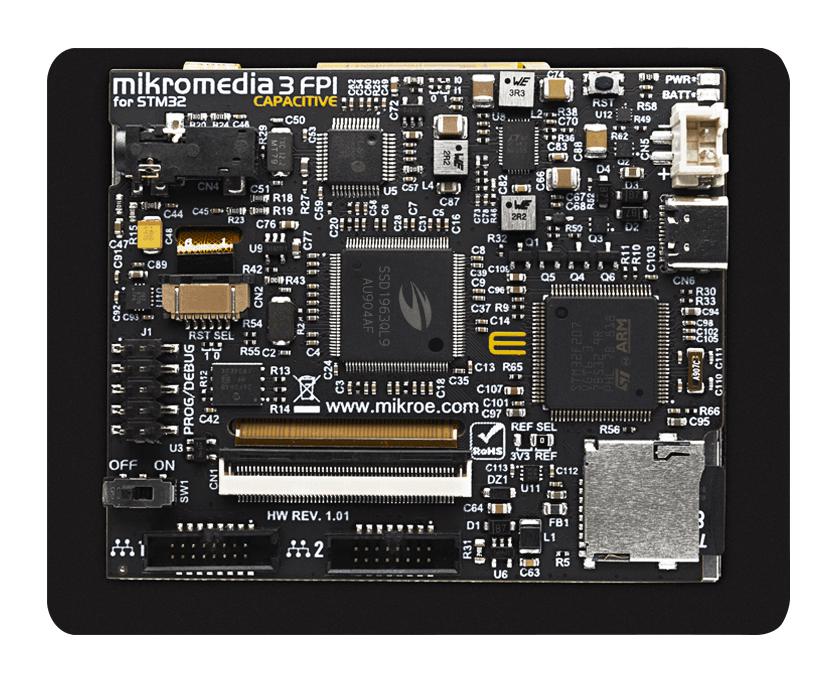

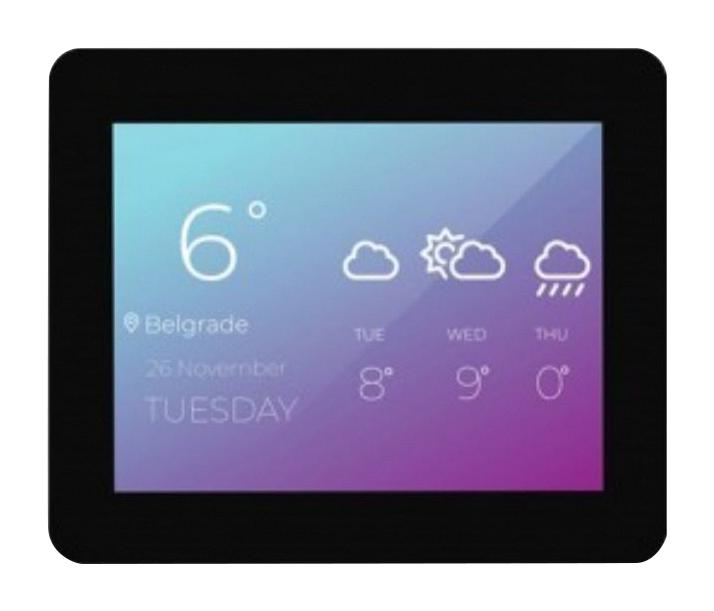

mikromedia 3 for STM32 CAPACITIVE FPI with bezel is a compact development board designed as a complete solution for the rapid development of multimedia and GUI-centric applications. By featuring a 3.5" capacitive touch screen driven by the powerful graphics controller that can display the 24-bit colour palette (16.7 million colours), along with a DSP-powered embedded sound CODEC IC, represents a perfect solution for any type of multimedia application. The mikromedia 3 for STM32 CAPACITIVE FPI features USB, digital motion sensor, battery charging functionality, SD-Card reader, and much more, expanding its use beyond the multimedia. Two compact-sized mikroBUS Shuttle connectors represent the most distinctive connectivity feature, allowing access to a huge base of Click boards�.
- STM32 CAPACITIVE FPI uses the STM32F407VGT6 or STM32F207VGT6 MCU
- Board requires the use of an external programmer and debugger, preferably CODEGRIP or mikroProg
- Four mounting holes at all four corners allow simple installation with mounting screws
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-4312 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
