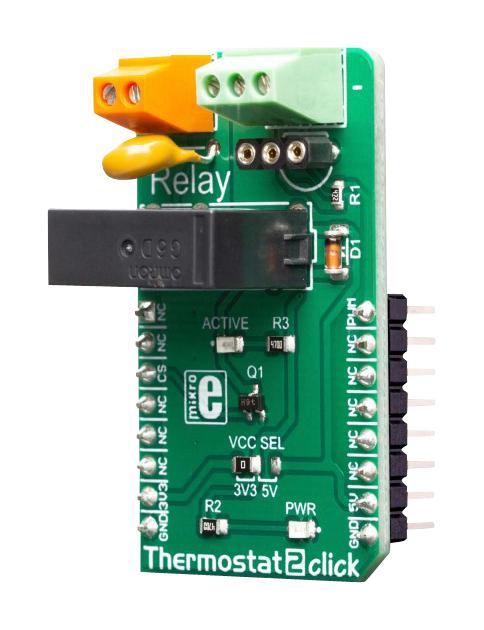

Thermostat 2 click is a general-purpose thermostat Click boardâ�¢ designed to be used with any temperature sensor based on the DS1820 sensor design: 3-pin package with 1-Wire® communication interface. The Click boardâ�¢ is equipped with a 3-pole terminal and a 3-pin female socket. DS1820 (or compatible) sensor can be connected either over the terminal or can be installed directly into the socket. The Click boardâ�¢ also contains a high-quality relay from Omron, that can be used to open or close an electric circuit. Despite its small size, it can be used with voltage up to 30VDC/220AC and current up to 5A.
- 1-Wire, GPIO interface
- 42.9 x 25.4mm size
Product details
| Accessory Type:
Thermostat 2 Click Board
|
| For Use With:
mikroLab/EasyStart/mikromedia Starter Development Kits
|
| Product Range:
-
|
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-3415 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
