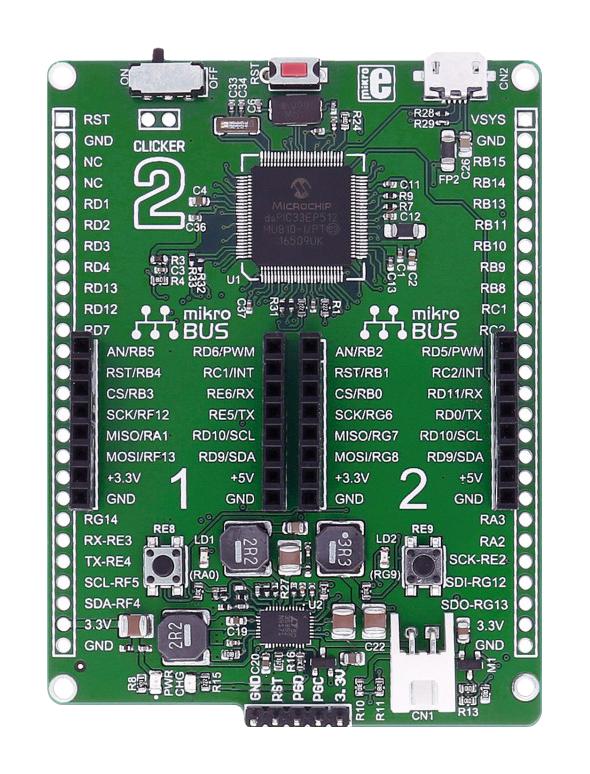

Clicker 2 for dsPIC33 is a compact development kit with two mikroBUS� sockets for click board� connectivity. You can use it to quickly build your own gadgets with unique functionalities and features. It carries the dsPIC33EP512MU810, a 16-bit microcontroller, two indication LEDs, two general purpose buttons, a reset button, an ON/OFF switch, a li-polymer battery connector, a micro USB connector and two mikroBUS� sockets. A mikroProg connector and a 2x26 pinout for interfacing with external electronics are also provided. The mikroBUS� connector consists of two 1x8 female headers with SPI, I2C, UART, RST, PWM, Analog and Interrupt lines as well as 3.3V, 5V and GND power lines. clicker 2 for dsPIC33 board can be powered over a USB cable.
- Battery-powered Click board two-seater
- 8MHz crystal oscillator
- LTC3586 USB power manager IC
- 32.768KHz crystal oscillator
- Power and charge indication LEDs
Product details
| Silicon Manufacturer |
Microchip |
| No. of Bits |
16bit |
| Silicon Family Name |
dsPIC33 |
| Core Architecture |
dsPIC |
| Core Sub-Architecture |
dsPIC33 |
| Silicon Core Number |
DSPIC33EP512MU810-I/PT |
| Kit Contents |
Clicker-2 Development Board DSPIC33EP512MU810-I/PT |
| Product Range |
- |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-2567 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
