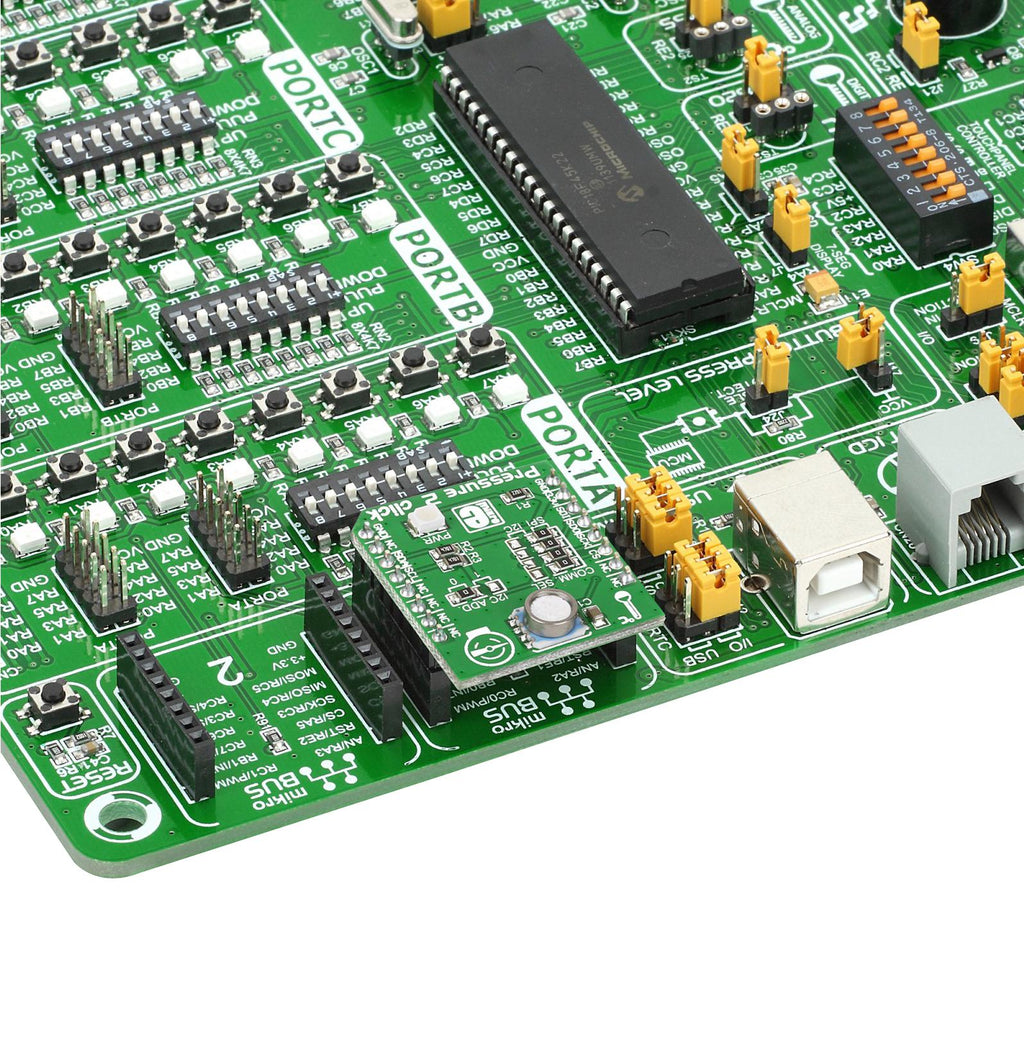

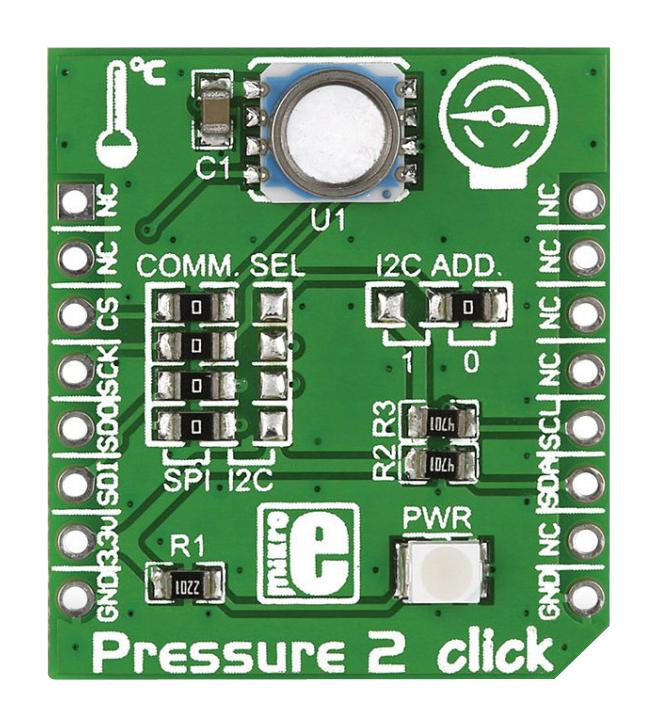

Pressure 2 click is a compact add-on board that contains a board-mount pressure sensor. This board features the MS580314BA01-00, a digital absolute pressure and altimeter sensor module from TE Connectivity Measurement Specialties. The MS580314BA01-00 measures pressure from 0 to 14.000mbar, operating temperature range and provides pressure accuracy from -200 to +100mbar with high stability, low power consumption, and internal factory-calibrated coefficients. It converts output data into a 24-bit digital value and sends the information via a configurable host interface that supports SPI and I2C serial communications. This Click board� is suited for various pressure-based applications, altitude tracking, industrial, consumer, weather stations, and more. Pressure 2 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board� comes as a fully tested product, ready to be used on a system equipped with the mikroBUS� socket.
- 3.3V supply voltage
- Click board size is 28.6 x 25.4mm
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-1880 |
| Quantity |
Each |
