Description

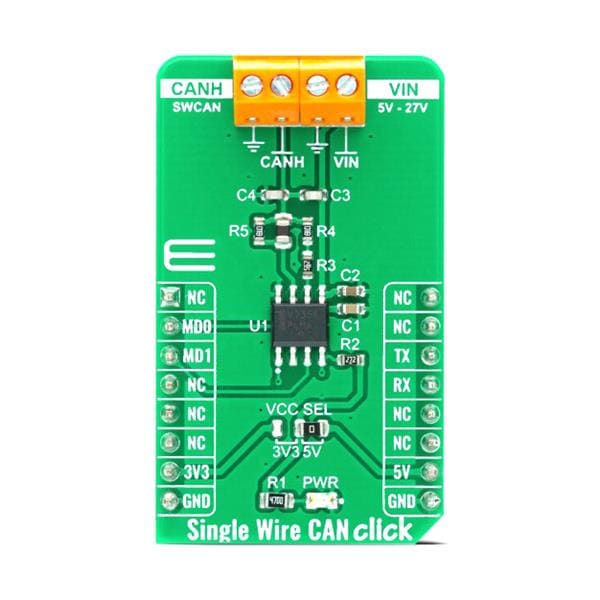

Mikroe Single Wire CAN Click has an IC for a single wire data link capable of operating with various protocols like the Controller Area Network (CAN).
Features & Specs
- On-board modules
- ON Semiconductor NCV7356D1R2G Single Wire CAN transceiver, which operates from a supply voltage from 5V to 27V with a bus speed up to 40kbps
- Low power consumption
- Fully integrated receiver filter
- Loss of ground protection
- Undervoltage lockout
- GPIO, UART interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Features & Specs
- On-board modules
- ON Semiconductor NCV7356D1R2G Single Wire CAN transceiver, which operates from a supply voltage from 5V to 27V with a bus speed up to 40kbps
- Low power consumption
- Fully integrated receiver filter
- Loss of ground protection
- Undervoltage lockout
- GPIO, UART interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Documentation
