Description

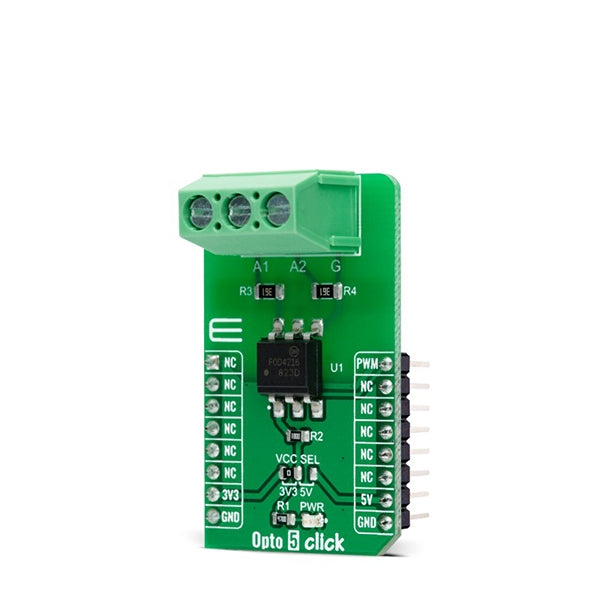

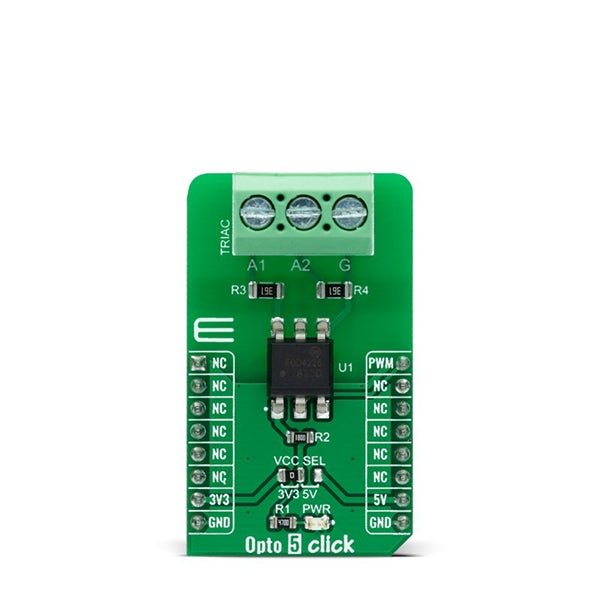

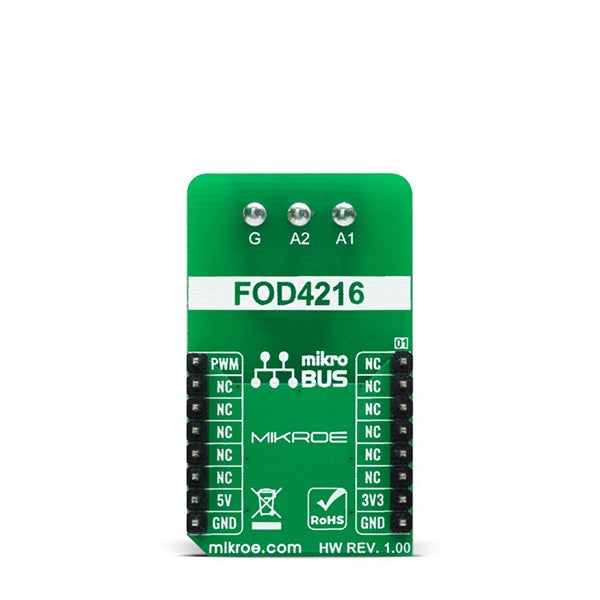

Opto 5 Click is a compact add-on board that provides uncomplicated safety isolation from the high voltage.
Features & Specs
- Interface: PWM
- Compatibility: mikroBUS™
- Dimensions: 42.9 x 25.4mm
- Input Voltage: 3.3V or 5V
- Supply Voltage: min. 3.3V, Max. 5V
- Off−State Output Terminal Voltage: 600V
- Isolation Voltage: 5000 Vrms
- Maximum LED Trigger Current: 1.3mA
- Operating Temperature Range: Min. -55°C, Typ. +25°C, Max. +100°C
Features & Specs
- Interface: PWM
- Compatibility: mikroBUS™
- Dimensions: 42.9 x 25.4mm
- Input Voltage: 3.3V or 5V
- Supply Voltage: min. 3.3V, Max. 5V
- Off−State Output Terminal Voltage: 600V
- Isolation Voltage: 5000 Vrms
- Maximum LED Trigger Current: 1.3mA
- Operating Temperature Range: Min. -55°C, Typ. +25°C, Max. +100°C
Documentation
