Description

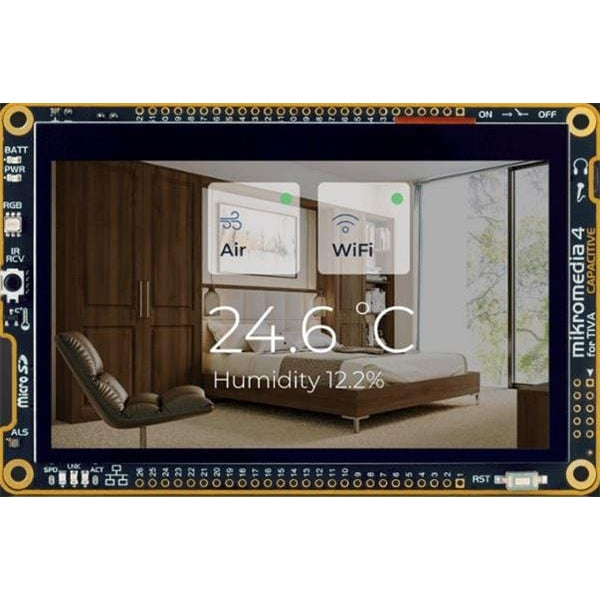

Mikroe Mikromedia 5 for TIVA Capacitive is a compact development board designed as a complete solution for the rapid development of multimedia.
Features & Specs
- 5" TFT display with capacitive touch screen
- Powerful graphics controller with 24-bit color palette (16.7 million colors)
- DSP-powered embedded sound CODEC IC
- No additional hardware modifications required
- Powerful 32-bit Texas Instruments TM4C129XNCZADI3 microcontroller
- Four mounting holes at all four corners allow simple installation with mounting screws
- Nice stylish casing
- WiFi module labeled as CC3100 enables WiFi connectivity offering the TCP/IP stack, a powerful crypto engine with 256-bit AES support, WPA2 security, SmartConfig™ technology, and much more
- Dedicated audio CODEC IC, labeled as VS1053B supports many different audio formats, commonly found on various digital audio devices
- Programmed and debugged over the JTAG/SWD compatible 2x5-pin header
- FXOS8700CQ advanced integrated 3-axis accelerometer and 3-axis magnetometer detects many different motion-related events
- Two independent controllers, the Raster Controller and the LCD Interface Display Driver (LIDD) controller
- Power Supply Unit (PSU) provides a clean and regulated power, necessary for a proper operation of the mikromedia 5
- microSD card slot allows storing large amounts of data externally, on a microSD memory card
- USB peripheral module, allowing simple USB connectivity
- Ethernet controller is integrated in TM4C129L(X)NCZAD microcontroller, with a variety of useful features
- The RTC peripheral utilizes a separate power supply source, typically a battery
- An ambient light sensor (ALS) can be used for dimming the screen intensity in low-light conditions
- An infrared (IR) receiver with the integrated PIN diode and a demodulation section allows simple control over an IR remote controller to be implemented
- The MCP9700A, an integrated low-power linear active thermistor allows measurement of the ambient temperature
- A high-brightness RGB LED option can be used to provide visual feedback in a very simple way
- Headers & On-Off switch
- Most of the host MCU pins are routed to the two 1x26 pin headers, making them available for further connectivity
- Reset button located on the front side of the board, used to generate a LOW logic level on the microcontroller reset pin
Features & Specs
- 5" TFT display with capacitive touch screen
- Powerful graphics controller with 24-bit color palette (16.7 million colors)
- DSP-powered embedded sound CODEC IC
- No additional hardware modifications required
- Powerful 32-bit Texas Instruments TM4C129XNCZADI3 microcontroller
- Four mounting holes at all four corners allow simple installation with mounting screws
- Nice stylish casing
- WiFi module labeled as CC3100 enables WiFi connectivity offering the TCP/IP stack, a powerful crypto engine with 256-bit AES support, WPA2 security, SmartConfig™ technology, and much more
- Dedicated audio CODEC IC, labeled as VS1053B supports many different audio formats, commonly found on various digital audio devices
- Programmed and debugged over the JTAG/SWD compatible 2x5-pin header
- FXOS8700CQ advanced integrated 3-axis accelerometer and 3-axis magnetometer detects many different motion-related events
- Two independent controllers, the Raster Controller and the LCD Interface Display Driver (LIDD) controller
- Power Supply Unit (PSU) provides a clean and regulated power, necessary for a proper operation of the mikromedia 5
- microSD card slot allows storing large amounts of data externally, on a microSD memory card
- USB peripheral module, allowing simple USB connectivity
- Ethernet controller is integrated in TM4C129L(X)NCZAD microcontroller, with a variety of useful features
- The RTC peripheral utilizes a separate power supply source, typically a battery
- An ambient light sensor (ALS) can be used for dimming the screen intensity in low-light conditions
- An infrared (IR) receiver with the integrated PIN diode and a demodulation section allows simple control over an IR remote controller to be implemented
- The MCP9700A, an integrated low-power linear active thermistor allows measurement of the ambient temperature
- A high-brightness RGB LED option can be used to provide visual feedback in a very simple way
- Headers & On-Off switch
- Most of the host MCU pins are routed to the two 1x26 pin headers, making them available for further connectivity
- Reset button located on the front side of the board, used to generate a LOW logic level on the microcontroller reset pin
Documentation
