Description

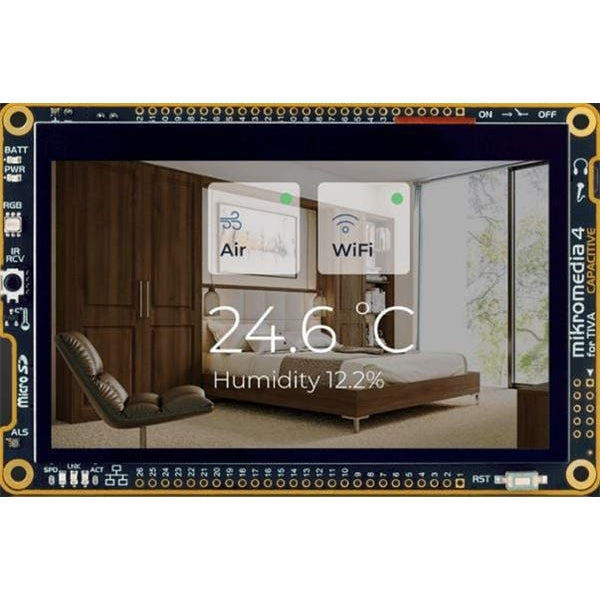

Mikroe Mikromedia 4 for TIVA Capacitive is a complete solution for the rapid development of multimedia and GUI-centric applications.
Features & Specs
- 4.3" TFT display with capacitive touch screen
- Powerful graphics controller that can display the 24-bit color palette (16.7 million colors)
- DSP-powered embedded sound CODEC IC
- No additional hardware modifications required
- Powerful 32-bit Texas Instruments TM4C129XNCZADI3 microcontroller
- Fur mounting holes at all four corners
- Dedicated audio CODEC IC, labeled as VS1053B
- USB, digital motion sensor, battery-charging functionality, SD card reader, and much more
- Two standardized 1x26 pin headers
- Power Supply Unit (PSU) provides a clean and regulated power
- microSD card slot allows storing large amounts of data externally
- The host MCU is equipped with the USB peripheral module, allowing simple USB connectivity
- Ethernet controller is integrated in TM4C129L(X)NCZAD microcontroller
- RTC peripheral utilizes a separate power supply source, typically a battery
- Ambient light sensor (ALS) can be used for dimming the screen intensity in low-light conditions
- An infrared (IR) receiver with the integrated PIN diode and a demodulation section allows simple control over an IR remote controller
- MCP9700A integrated low-power linear active thermistor allows measurement of the ambient temperature
- A High-brightness RGB LED option can be used to provide visual feedback
- Reset button located on the front side of the board
Features & Specs
- 4.3" TFT display with capacitive touch screen
- Powerful graphics controller that can display the 24-bit color palette (16.7 million colors)
- DSP-powered embedded sound CODEC IC
- No additional hardware modifications required
- Powerful 32-bit Texas Instruments TM4C129XNCZADI3 microcontroller
- Fur mounting holes at all four corners
- Dedicated audio CODEC IC, labeled as VS1053B
- USB, digital motion sensor, battery-charging functionality, SD card reader, and much more
- Two standardized 1x26 pin headers
- Power Supply Unit (PSU) provides a clean and regulated power
- microSD card slot allows storing large amounts of data externally
- The host MCU is equipped with the USB peripheral module, allowing simple USB connectivity
- Ethernet controller is integrated in TM4C129L(X)NCZAD microcontroller
- RTC peripheral utilizes a separate power supply source, typically a battery
- Ambient light sensor (ALS) can be used for dimming the screen intensity in low-light conditions
- An infrared (IR) receiver with the integrated PIN diode and a demodulation section allows simple control over an IR remote controller
- MCP9700A integrated low-power linear active thermistor allows measurement of the ambient temperature
- A High-brightness RGB LED option can be used to provide visual feedback
- Reset button located on the front side of the board
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 33462.1 |
| 3-5 | ₹ 33120.65 |
| 5-10 | ₹ 32437.75 |
| 10+ | ₹ 31754.85 |
Bulk discount will be automatically applied during checkout based on quantity.
