Description

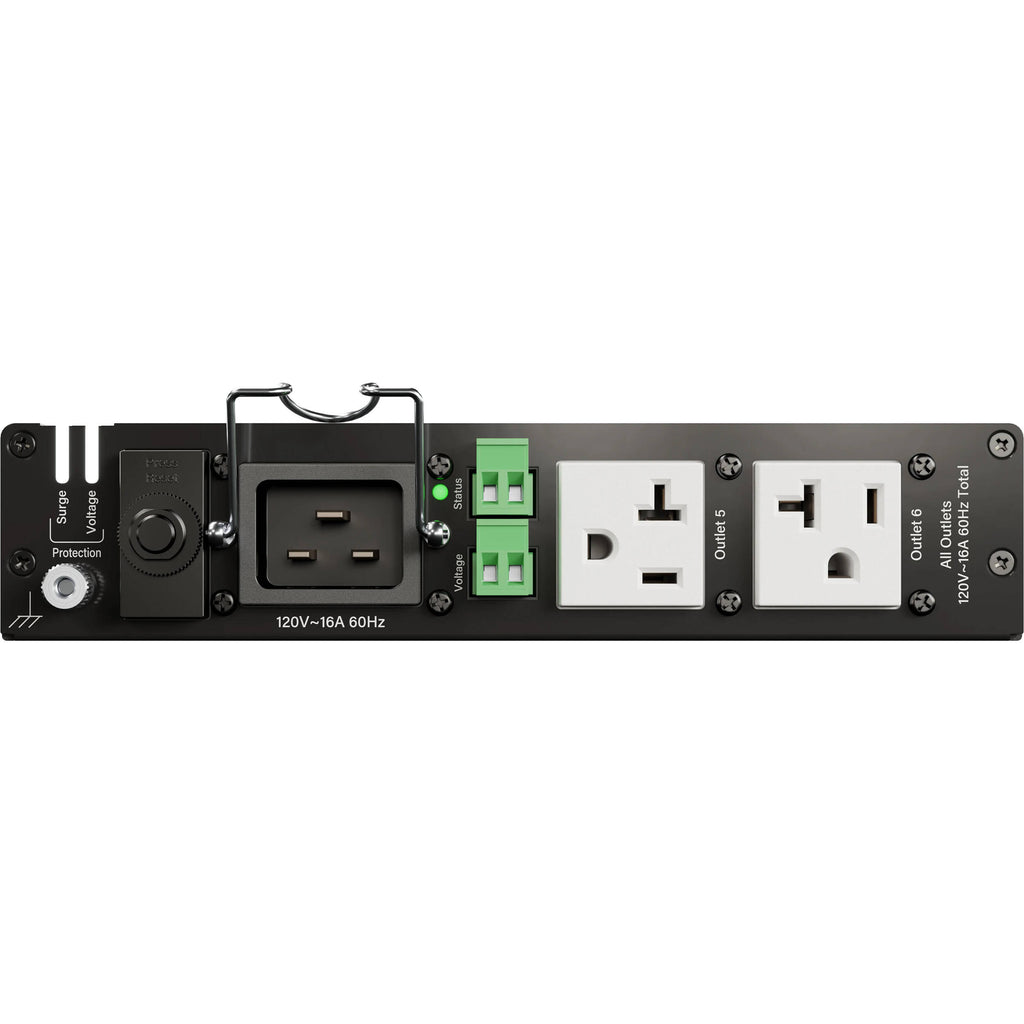

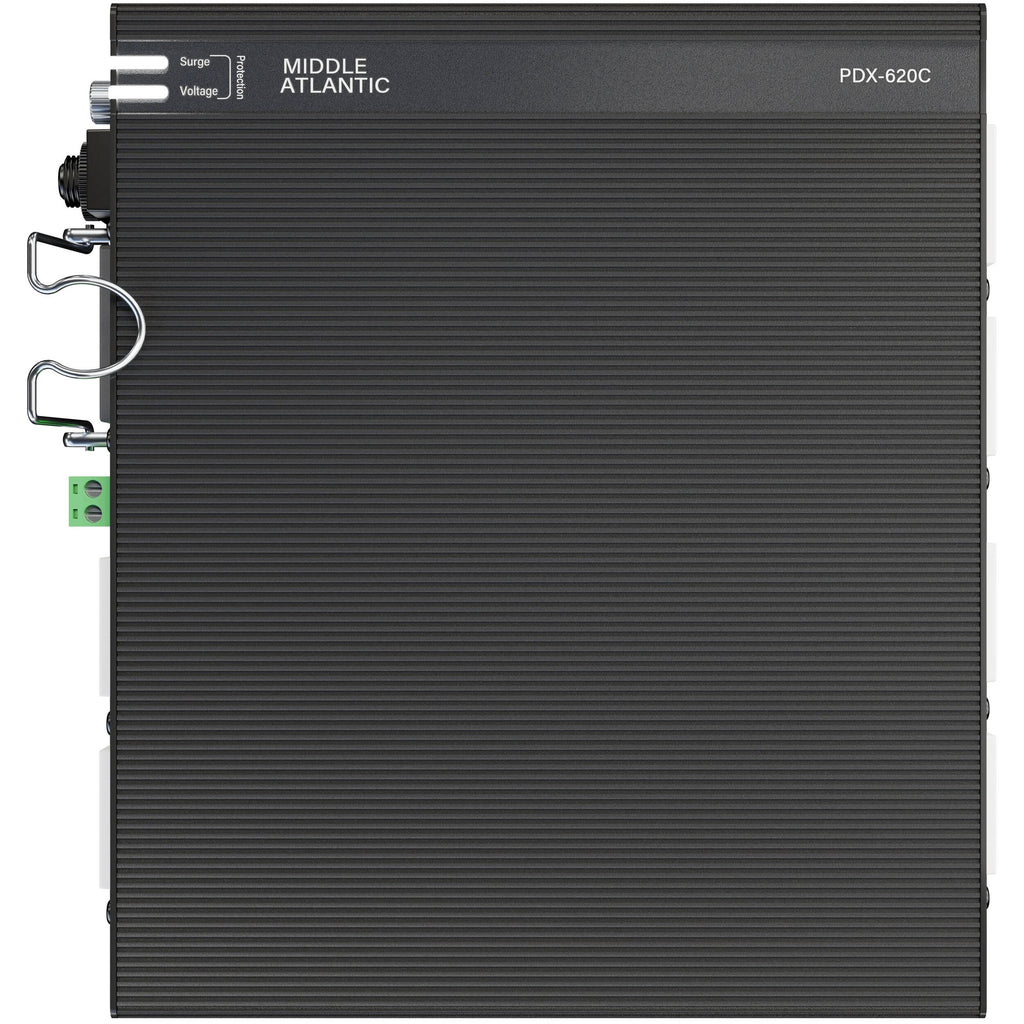

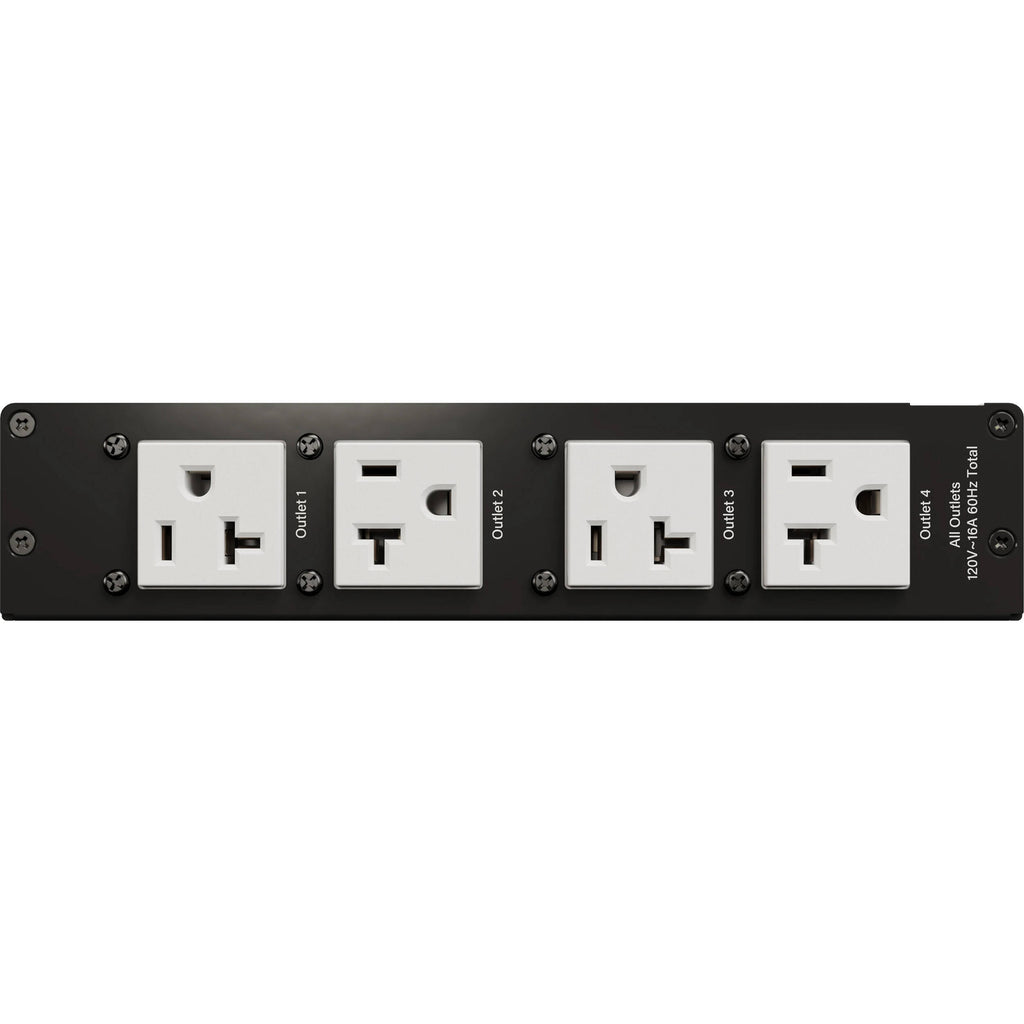

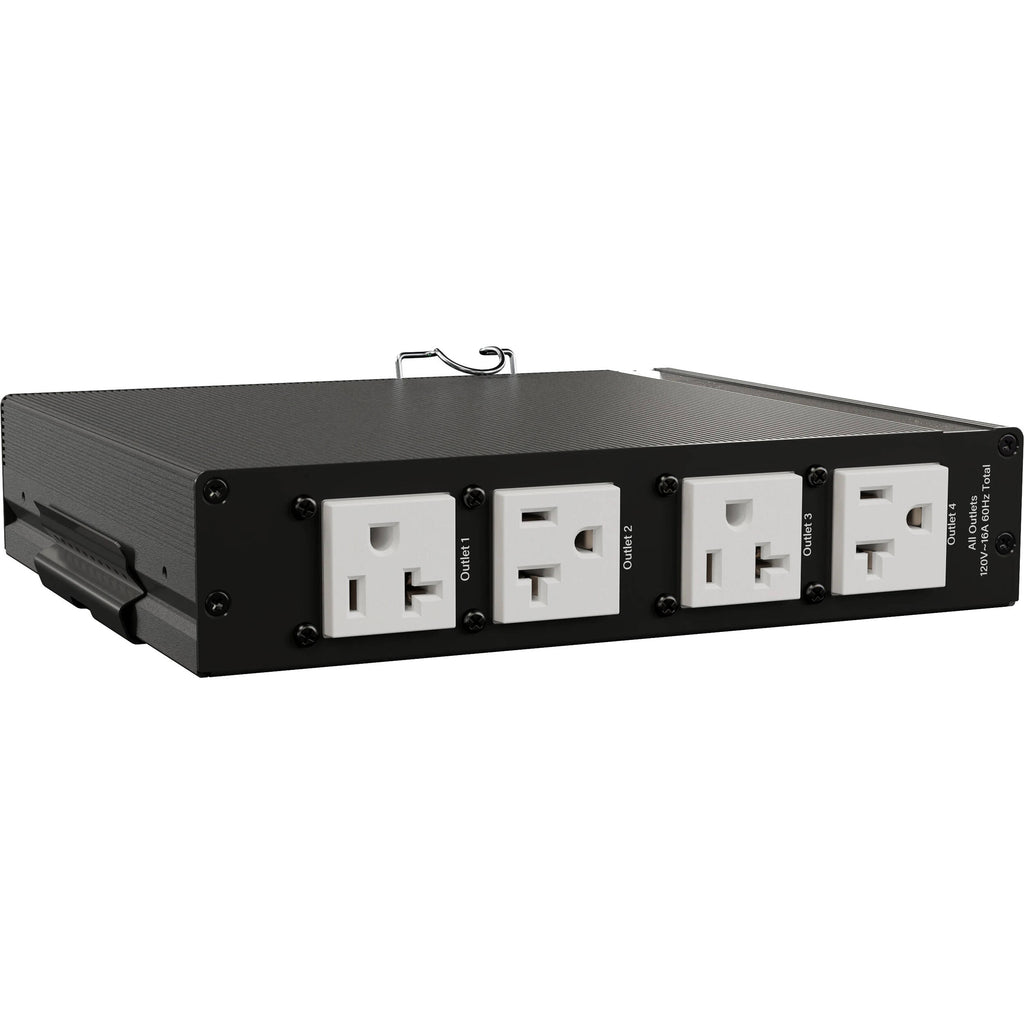

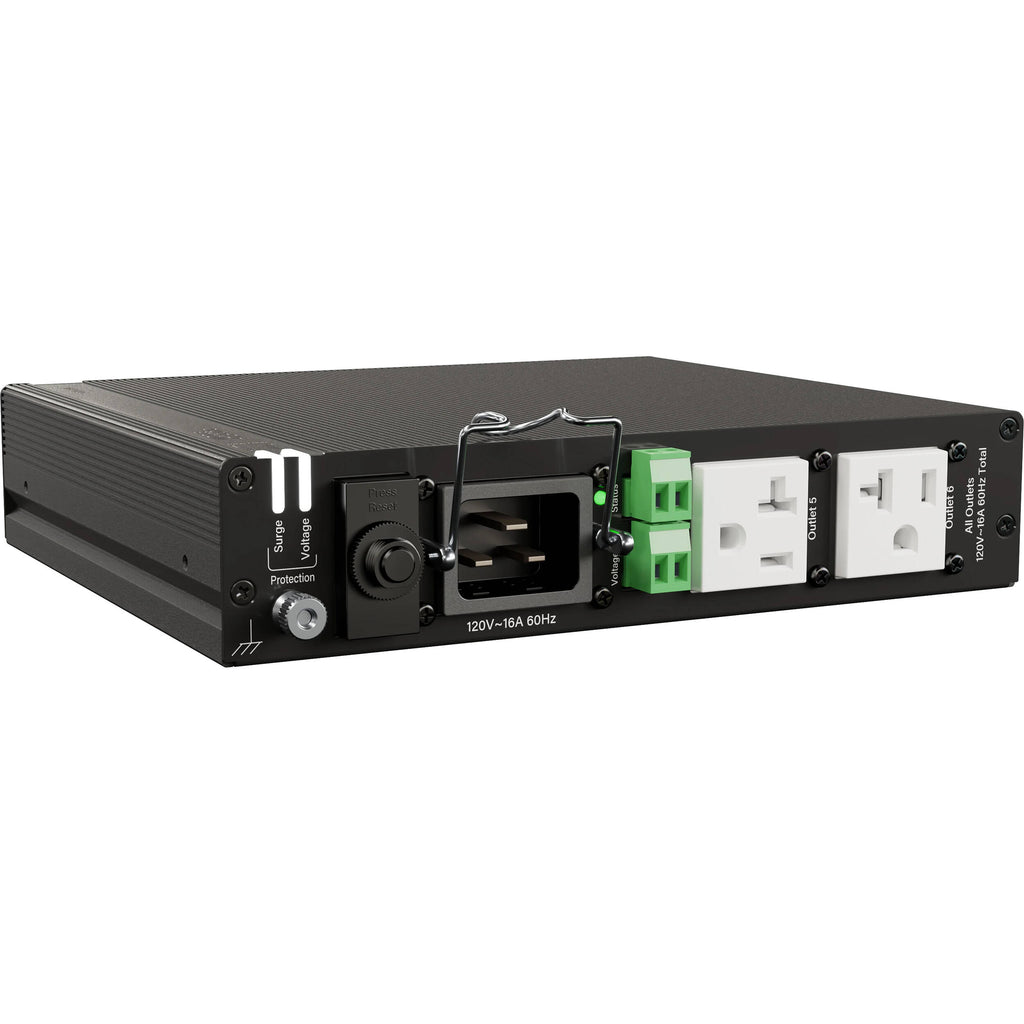

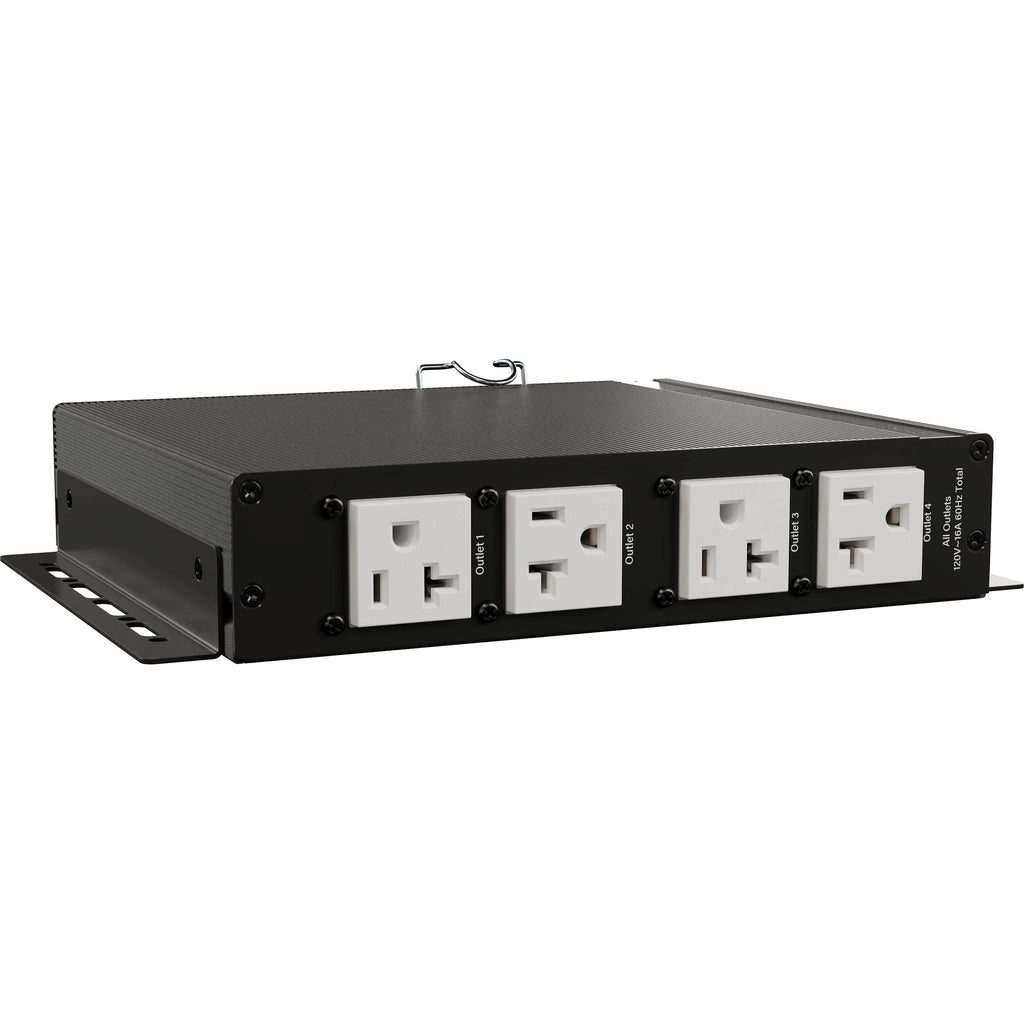

Middle Atlantic PDX-620C Overview
Get two-outlet power protection anywhere you need it with the compact Middle Atlantic PDX-620C 20A 2-Outlet Multi-Stage Power Distribution Unit. The compact design of the PDX-620C is perfect for behind-the-display applications in digital signage and home theater.
The PDX-620C offers three stages of MOV surge protection to ensure the safety of your equipment from over and under voltage scenarios. Two NEMA 5-20R outlets are positioned for easier connection of power plugs, including DC transformers (wall warts), eliminating blocked outlets. Multiple mounting options for flexible installation and a 2' power cord are included. If 2' is not the right length, the standard three-prong IEC power inlet allows you to easily replace the cable with your desired length.
Items Included
- Middle Atlantic PDX-620C 20A 2-Outlet Multi-Stage Power Distribution Unit
- Power Cord (2')
- Mounting Hardware
Additional Resources
No additional resources available
Middle Atlantic PDX-620C Specs
| Metering |
None
|
| Battery Backup |
No
|
| Outlets |
2x NEMA 5-20R
|
| Additional I/O |
2x RJ45
|
| Surge Protection |
Yes: 705 Joules
|
| Type |
Power Strip / Surge Suppressor
|
| Amp Rating |
20 A
|
| Number of Circuits |
1
|
| Metering |
None
|
| Battery Backup |
No
|
| Typical Backup Runtime |
Not Specified by Manufacturer
|
| Integrated Lamps |
No
|
| Outlets |
2x NEMA 5-20R
|
| Wall Plug Type |
NEMA 5-20P
|
| AC Power I/O |
1x IEC Input
|
| Lamp I/O |
No
|
| Additional I/O |
2x RJ45
|
| Wireless |
No
|
| AC Input Power |
120 VAC, 60 Hz
|
| Output Voltage |
120 VAC, 60 Hz
|
| DC Output Power |
Not Specified by Manufacturer
|
| Output Current |
20 A (Maximum)
|
| Load Capacity |
Not Specified by Manufacturer
|
| Sequencing Delay |
Yes
|
| Protection Types & Modes |
Line to Neutral, Overvoltage, Undervoltage, Metal-Oxide Varistor (MOV), Manual Reset
|
| Circuit Breaker |
Yes: with Push-Button Reset
|
| Undervoltage Protection |
100 V
|
| Overvoltage Protection |
135 V
|
| Clamping Voltage |
135 V (Line to Neutral)
|
| Clamping Response Time |
< 1 ns
|
| Maximum Spike Current |
15 A
|
| Maximum Spike Voltage |
135 V
|
| Surge Protection |
Yes: 705 Joules
|
| Cable Length |
2' / 0.6 m
|
| Certifications |
FCCClass B, ICES7, UL62368, UL1449
|
| Cable Management |
No
|
| Dimensions |
8.15 x 7 x 1.7" / 20.7 x 17.8 x 4.3 cm
|
