Description
Middle Atlantic PDX-920R Overview

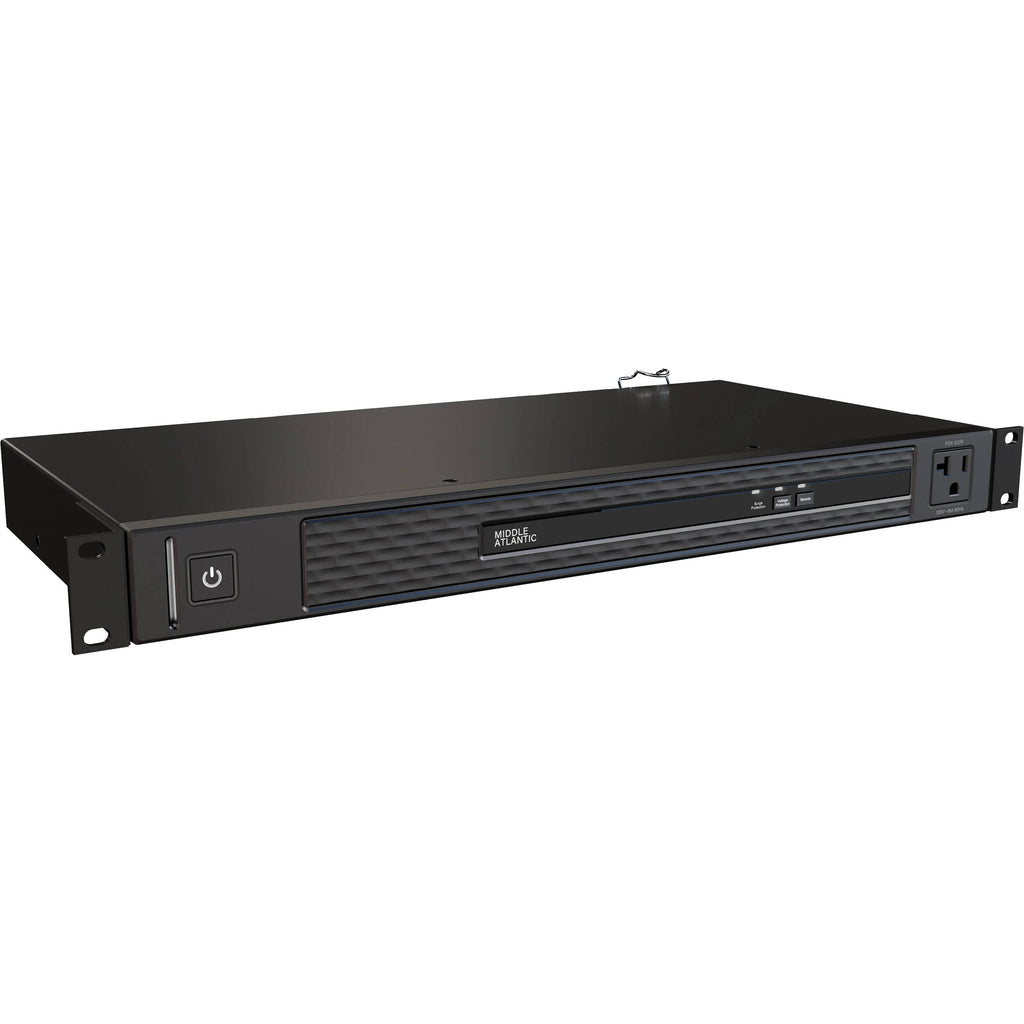

Distribute power to devices in your rack using the NEXSYS 9-Outlet Rackmount PDU with Multi-Stage Surge Protection from Middle Atlantic, which supports a nominal voltage of 120V at 60 Hz, with a voltage range of 80 to 140 VAC, a peak load of 20A, and a rated load of 16A. It distributes that power to nine NEMA 5-20R outlets and connects to a wall outlet using a integrated IEC-320 C20 outlet and an included 9' IEC to NEMA 5-15P power cord. Also featured is a 500V protection rating and automatic recovery. This Rackmount PDU may be controlled using the contact closure on its rear.
Multi-Stage MOV Surge Protection
- Protects equipment without contaminating system ground
- Limited 3-year warranty
- Three stages of surge protection
Worried About the Under/Over Voltage? Don't.

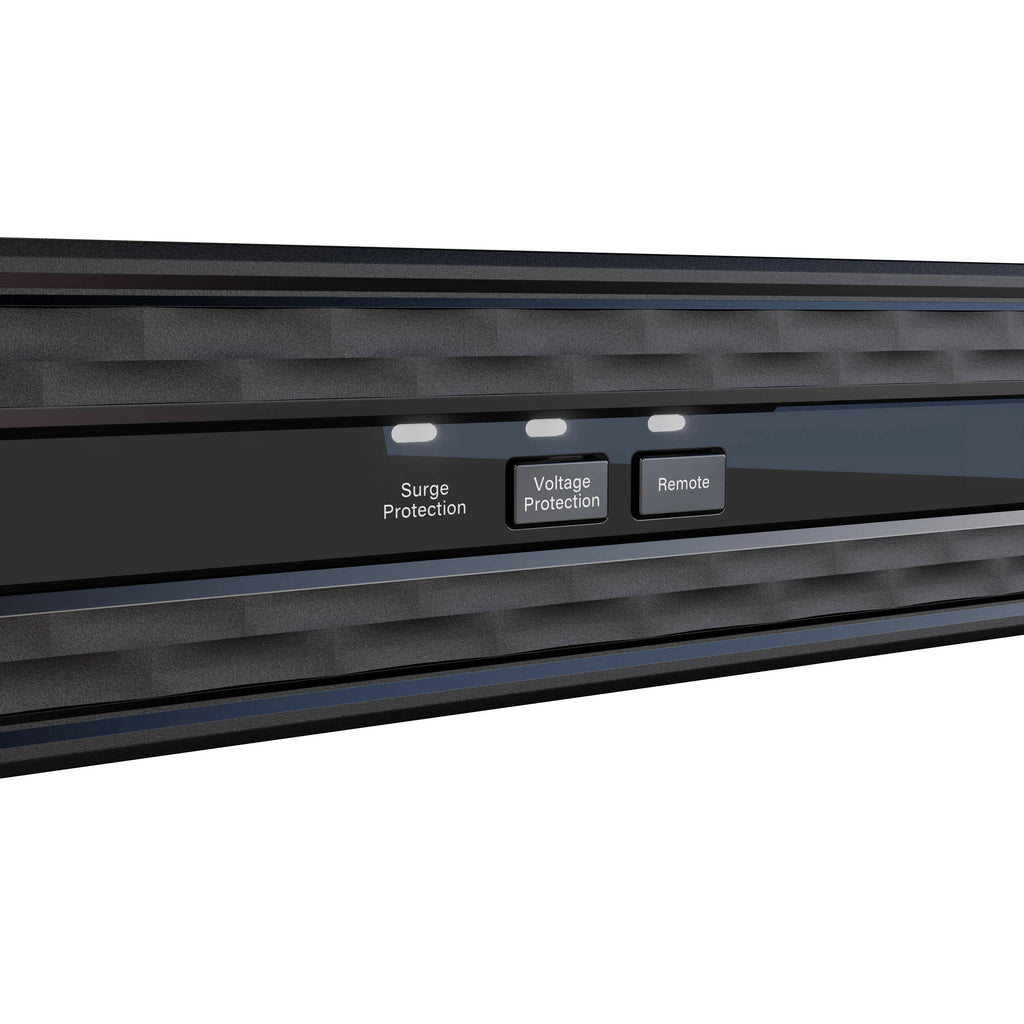

With the selectable on/off voltage protection from the front of the unit, it gives the option to protect sensitive equipment from over/under voltage scenarios. If the voltage protection is on and an over or under voltage event happens, the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range, the PDU will automatically turn the outlets back on.

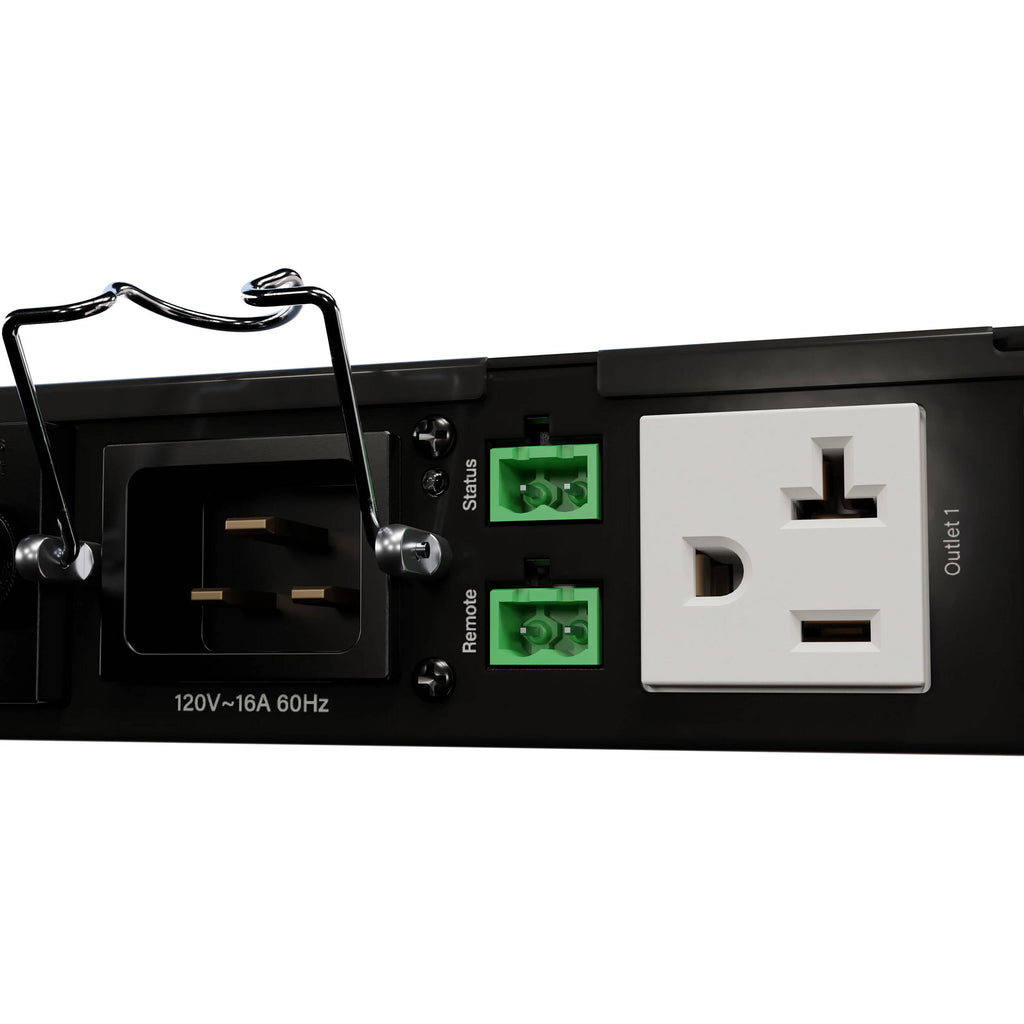

IEC Inlet
Allows for cleaner cable management with the included 9' cord.
Tired of Blocked Outlets?

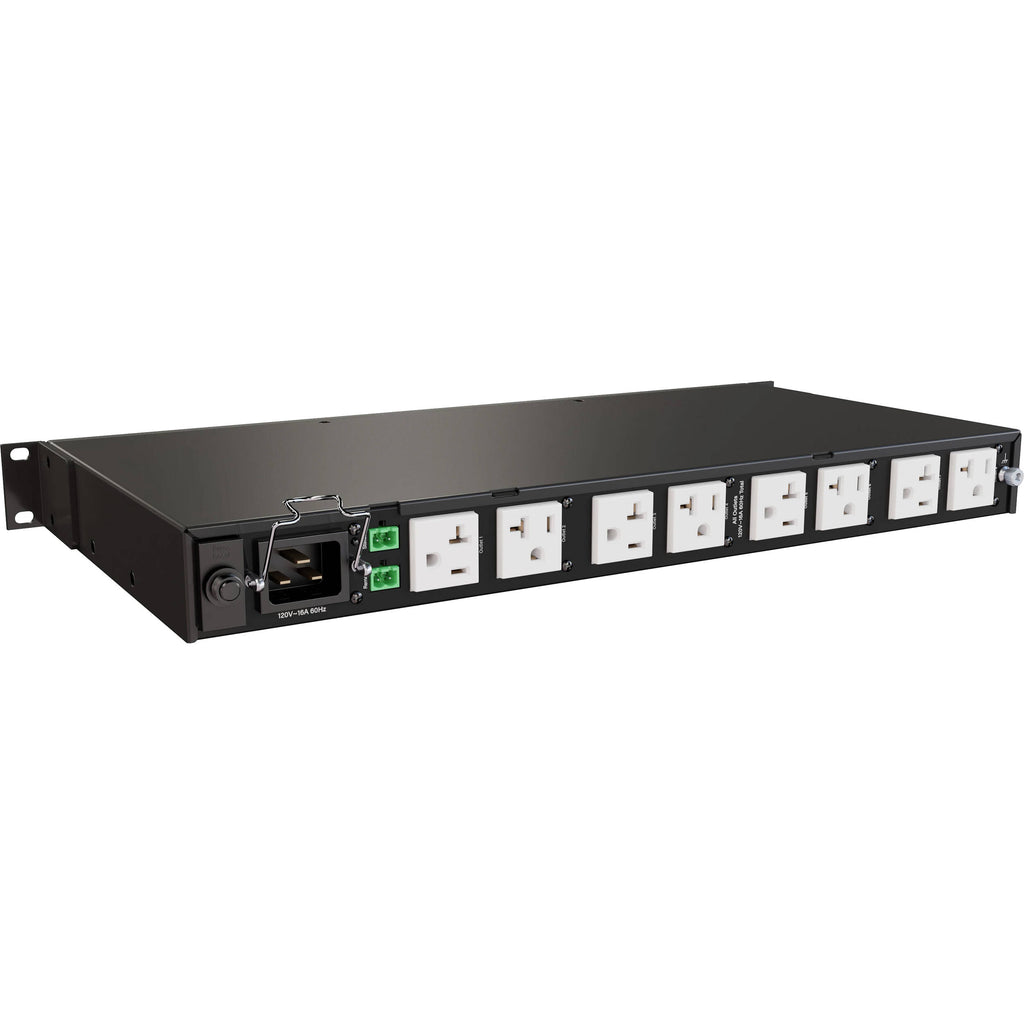

You should be able to use all of the outlets you pay for. The 8 rear outlets are oriented for easier plugging of DC transformers (wall warts), helping to eliminate blocked outlets.
For Your Convenience

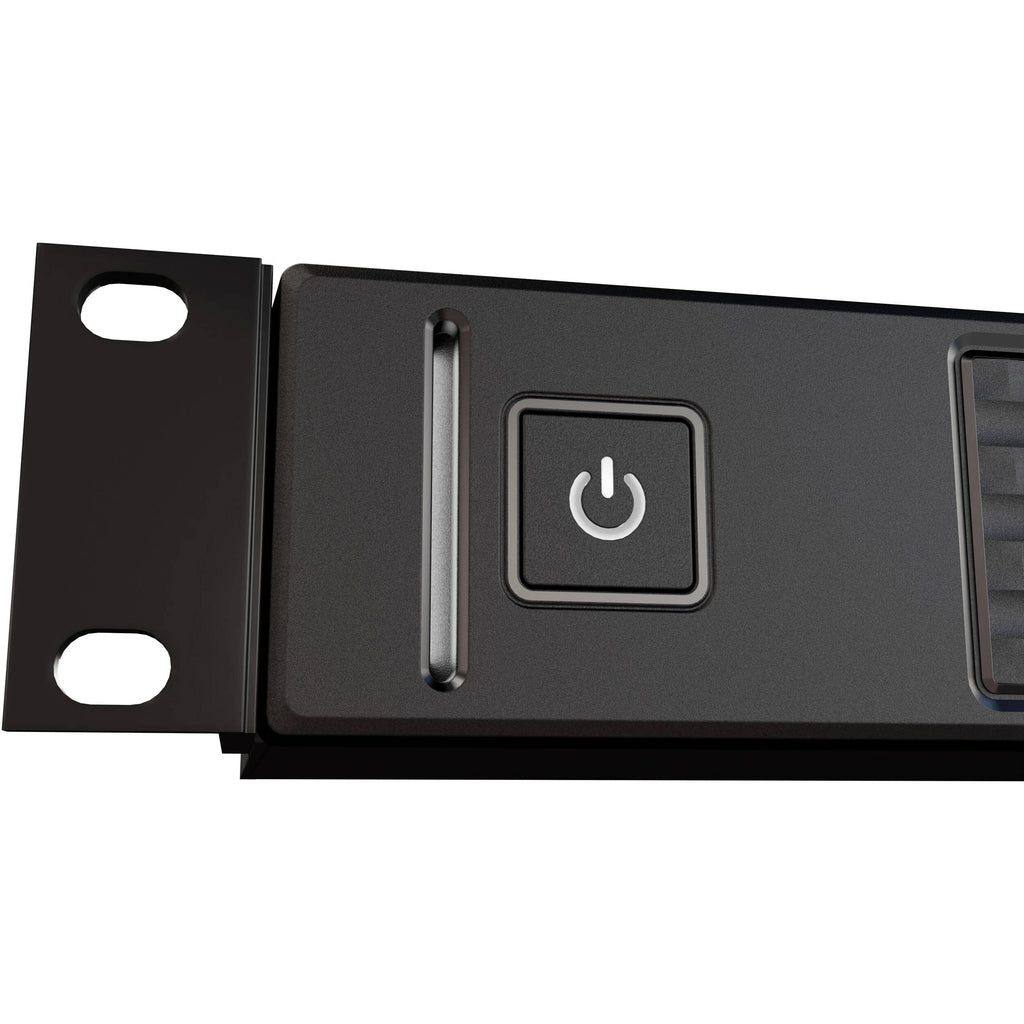

There is an outlet on the front of the unit if you need it.
UPC: 656747396250
Items Included
- Middle Atlantic NEXSYS 9-Outlet Rackmount PDU with Multi-Stage Surge Protection (20A)
- IEC-320 C14 to NEMA 5-15P Power Cord (9.0' / 2.7m)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Middle Atlantic PDX-920R Specs
Key Specs
| Metering |
None
|
| Battery Backup |
No
|
| Outlets |
9x NEMA 5-20R
|
| Additional I/O |
No
|
| Type |
Distributor
|
| Amp Rating |
16 A
|
| Number of Circuits |
Not Specified by Manufacturer
|
| Metering |
None
|
| Battery Backup |
No
|
| Integrated Lamps |
No
|
Connections
| Outlets |
9x NEMA 5-20R
|
| Wall Plug Type |
NEMA 5-15P
|
| Lamp I/O |
No
|
| Additional I/O |
No
|
| Wireless |
No
|
Electrical
| AC Input Power |
80 to 140 VAC, 60 Hz
|
| DC Output Power |
Not Specified by Manufacturer
|
| Load Capacity |
Not Specified by Manufacturer
|
| Sequencing Delay |
Yes
|
Protection & Conditioning
| Protection Types & Modes |
Line to Neutral, EMI Filter
|
| Circuit Breaker |
Yes: 20 A
|
| Clamping Voltage |
330 V (Line to Neutral)
|
| Transformer Isolated |
No
|
| EMI/RFI Noise Filtration |
20 dB (100 kHz to 1 MHz)
|
Physical
| Rackmount Size |
1 U
|
| Cable Length |
9' / 2.7 m
|
| Certifications |
FCC Class B, ICES 7, UL 62368, UL 1449
|
| Cable Management |
No
|
| Dimensions |
19 x 8.8 x 1.8" / 48.3 x 22.4 x 4.6 cm
|
| Weight |
8.6 lb / 3.9 kg
|
Packaging Info
| Package Weight |
10.685 lb
|
| Box Dimensions (LxWxH) |
22.7 x 13.8 x 4.3"
|
