Description
Middle Atlantic UPX-RLNK-2000R-8 Overview
- 1Description
- 2Outlets
- 3Connectivity
- 4Rackmount Design
- 5Hot Swap Battery
- 6LCD Display

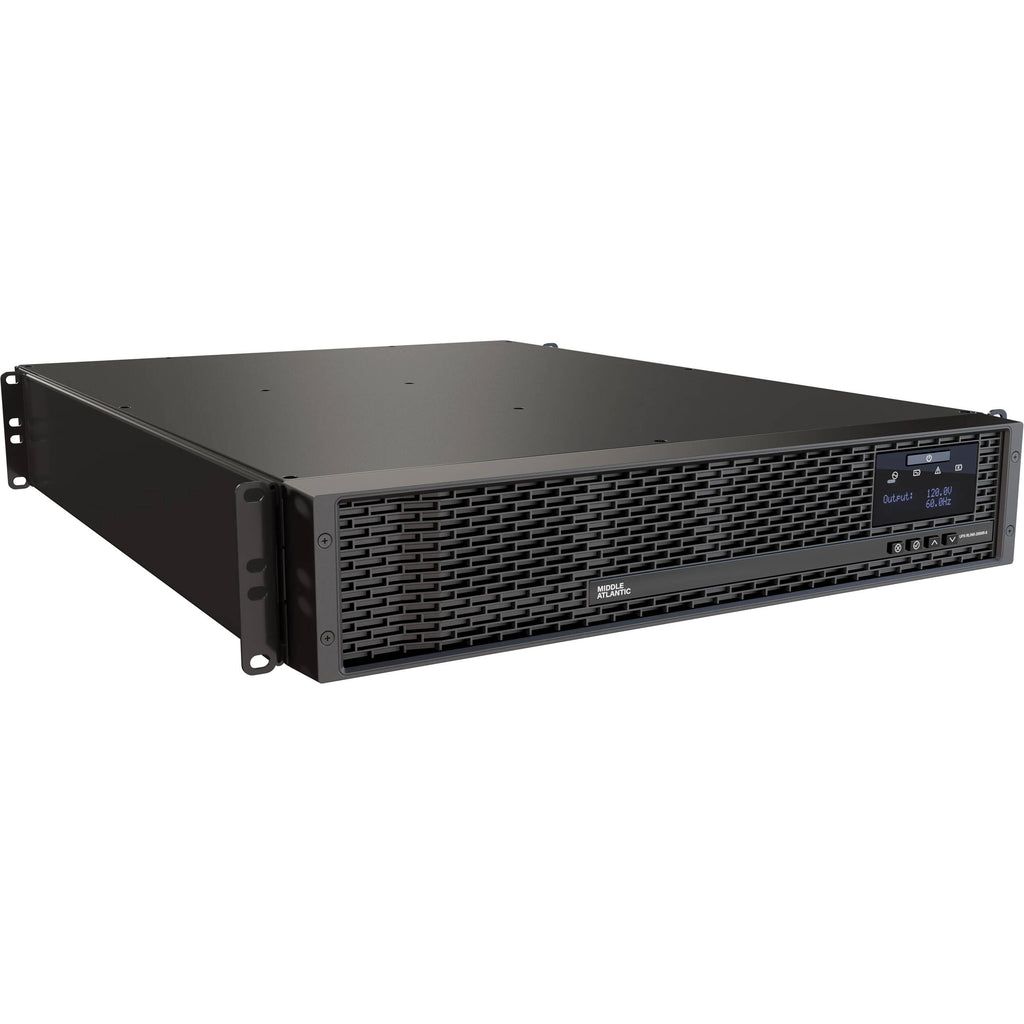

Add a layer of protection to your system with the Middle Atlantic NEXSYS 2000VA UPS Backup. The NEXSYS allows IT professionals to properly shut down essential networking and server equipment in the event of a power failure and also guards against electrical fluctuations for optimal protection.
Sporting Line Interactive Topology and an integrated battery system, the NEXSYS first utilizes automatic voltage regulation to temper electrical loads with a max capacity of 2000 VA and 1800W. 120VAC input through the NEMA 5-20P plug provides you with an adjustable output range of 90 to 146 VAC across eight NEMA 5-20R outlets, supporting your equipment with ease. With 1,000 joules surge protection and an integrated circuit breaker, the NEXSYS reduces the impact of power fluctuations, ensuring your equipment is well guarded from potential damage. The internal battery provides you with 3 minutes of operating runtime at a full load and up to 10 minutes at a half load.
In the Box
- Middle Atlantic NEXSYS 2000VA UPS Backup
- Limited 3-Year Manufacturer Warranty (For NEXSYS)
- Limited 2-Year Manufacturer Warranty (For Battery)
- Description

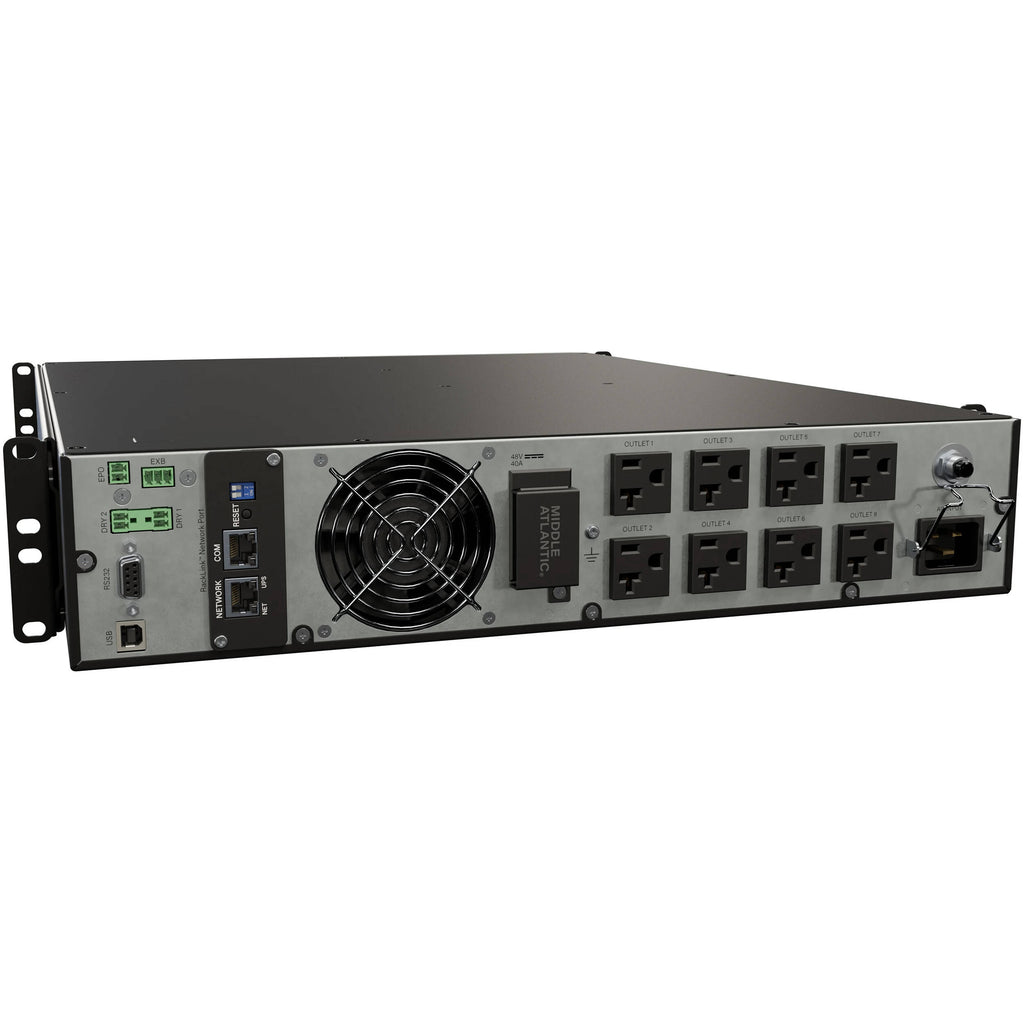

- Outlets
- Connectivity
- Rackmount Design
- Hot Swap Battery

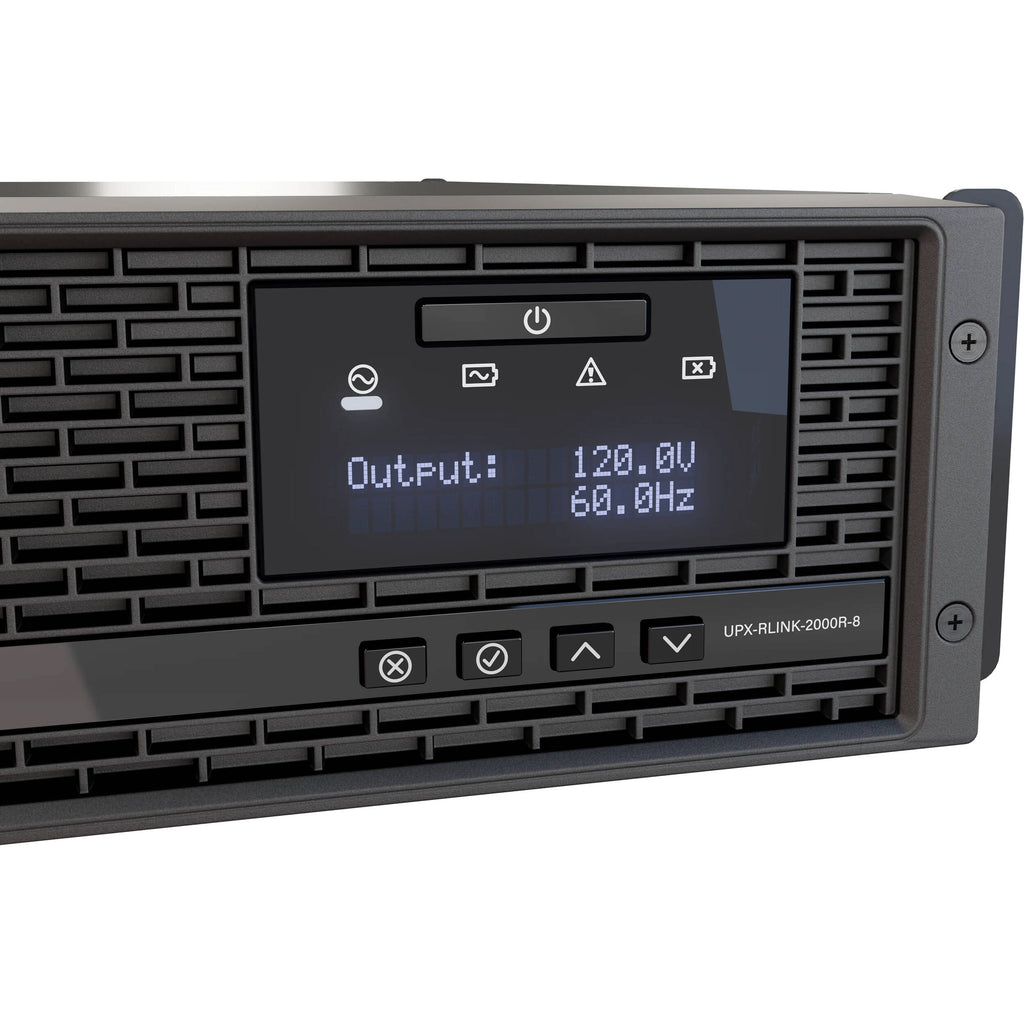

- LCD Display
Middle Atlantic UPX-RLNK-2000R-8 Specs
| Total Outlets |
8x NEMA 5-20R
|
| Plug Type |
NEMA 5-20P
|
| Surge Energy Rating |
1000 Joules
|
| Maximum Wattage |
1800 W
|
| Full-Load Runtime |
3 Minutes
|
| Total Outlets |
8x NEMA 5-20R
|
| Protected Outlets |
8x NEMA 5-20R (Battery and Surge)
|
| Plug Type |
NEMA 5-20P
|
| SmartSlot Interface |
No
|
| Coax Protection |
No
|
| Data Line Protection |
No
|

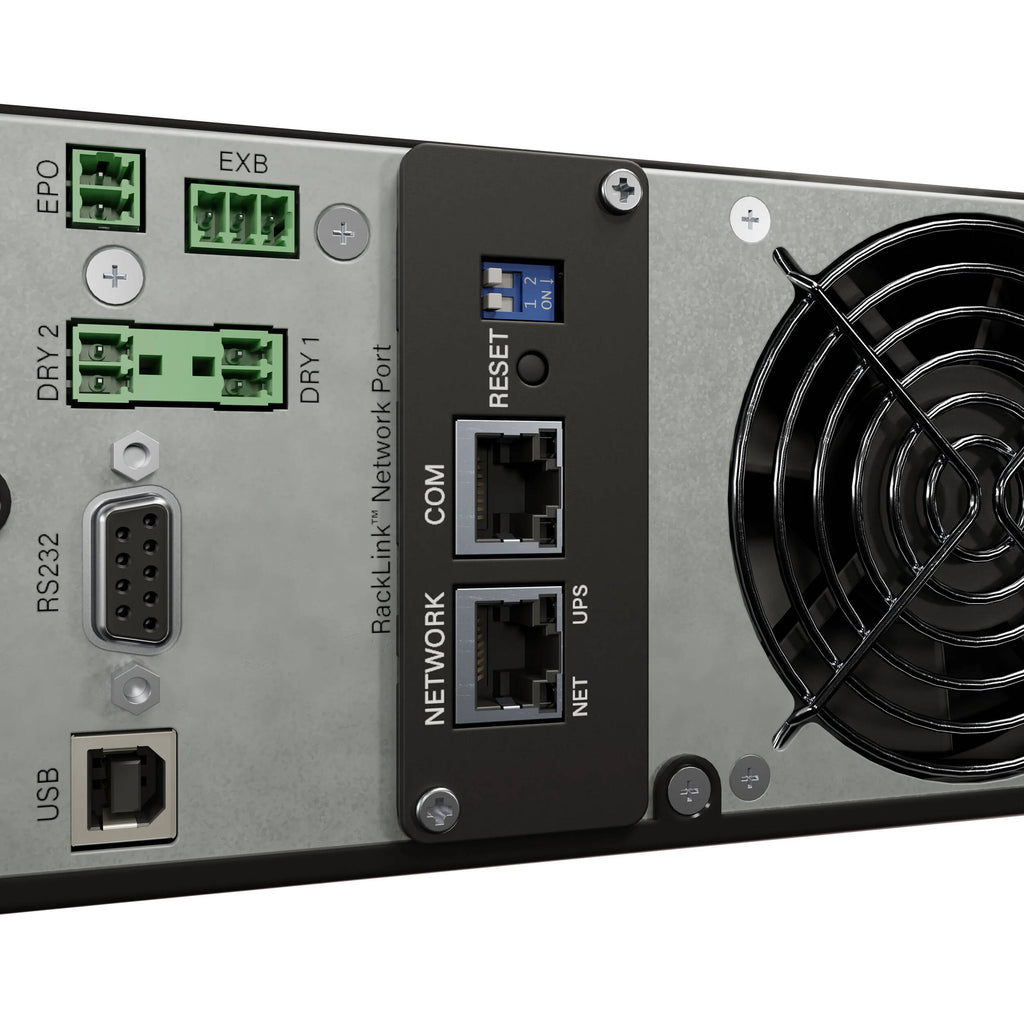

| Communications |
USB via Type-B
Gigabit Ethernet via RJ45 Serial via DE-9/DB-9 |
| Topology |
Line Interactive
|
| Surge Energy Rating |
1000 Joules
|
| Maximum Wattage |
1800 W
|
| Nominal Input Voltage |
2000 VAC
|
| Input Voltage Range |
0 to 120 VAC
|
| Input Voltage Adjustable Range |
80 to 158 VAC
|
| Input Frequency |
50/60 Hz
|
| Nominal Output Voltage |
120 VAC
|
| Load Capacity |
2000 VA
|
| Chemistry |
Lead-Acid
|
| Full-Load Runtime |
3 Minutes
|
| Half-Load Runtime |
10 Minutes
|
| Recharge Time |
6 to 8 Hours
|
| User Replaceable |
Yes
|
| Replacement Battery |
UPX-RPLBATT-C
|
| Hot-Swap Support |
Yes
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
0 to 95%
|
| Storage Temperature |
5 to 113°F / -15 to 45°C
|
| Noise Level |
50 dBA
|
| Certifications |
cTUVus, FCC, RoHS, ENERGY STAR 2.0
|
| Rackmount Size |
2 RU
|
| Dimensions (W x H x D) |
17.3 x 3.4 x 23.6" / 43.9 x 8.6 x 59.9 cm
|
| Weight |
63.05 lb / 28.6 kg
|
