Middle Atlantic FANTOP-138DC Overview

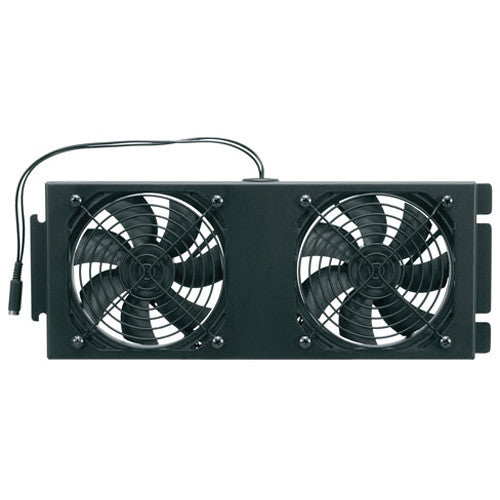

The flat black FANTOP-138DC 138 CFM Essex Fan Top from Middle Atlantic features two 32 dBA energy-efficient DC fans that are designed to remove heat. It attaches to the top of QAR and MMR Series racks and is designed for simple installation - slide into place and tighten. Two Essex Fan Tops can be used for up to 276 CFM of air flow. This helps ensure that the installed AV systems run reliably.
Specially designed for quick and easy integration with Essex racks
Can be attached to the top of any QAR and MMR series rack
Slide into place and tighten for simple installation
Two fan tops can be used per rack for up to 276 CFM of air flow
Includes two 32 dBA energy-efficient DC fans
Can be controlled via Essex Thermostatic Fan Control (available separately)
In the Box
- Middle Atlantic FANTOP-138DC 138 CFM Essex Fan Top for QAR and MMR Series Racks (Flat Black)
- Limited 3-Year Manufacturer Warranty
Middle Atlantic FANTOP-138DC Specs
For Use with |
Essex QAR and MMR series racks |
Air Flow |
138 CFM |
Compliance |
RoHS, GREENGUARD |
Dimensions |
13.97 x 5.36 x 1.48" (35.48 x 13.61 x 3.76 cm) |
Weight |
3.6 lb (1.6 kg) |
Packaging Info
Package Weight |
3.6 lb |
Box Dimensions (LxWxH) |
16.25 x 6.25 x 2.562" |
