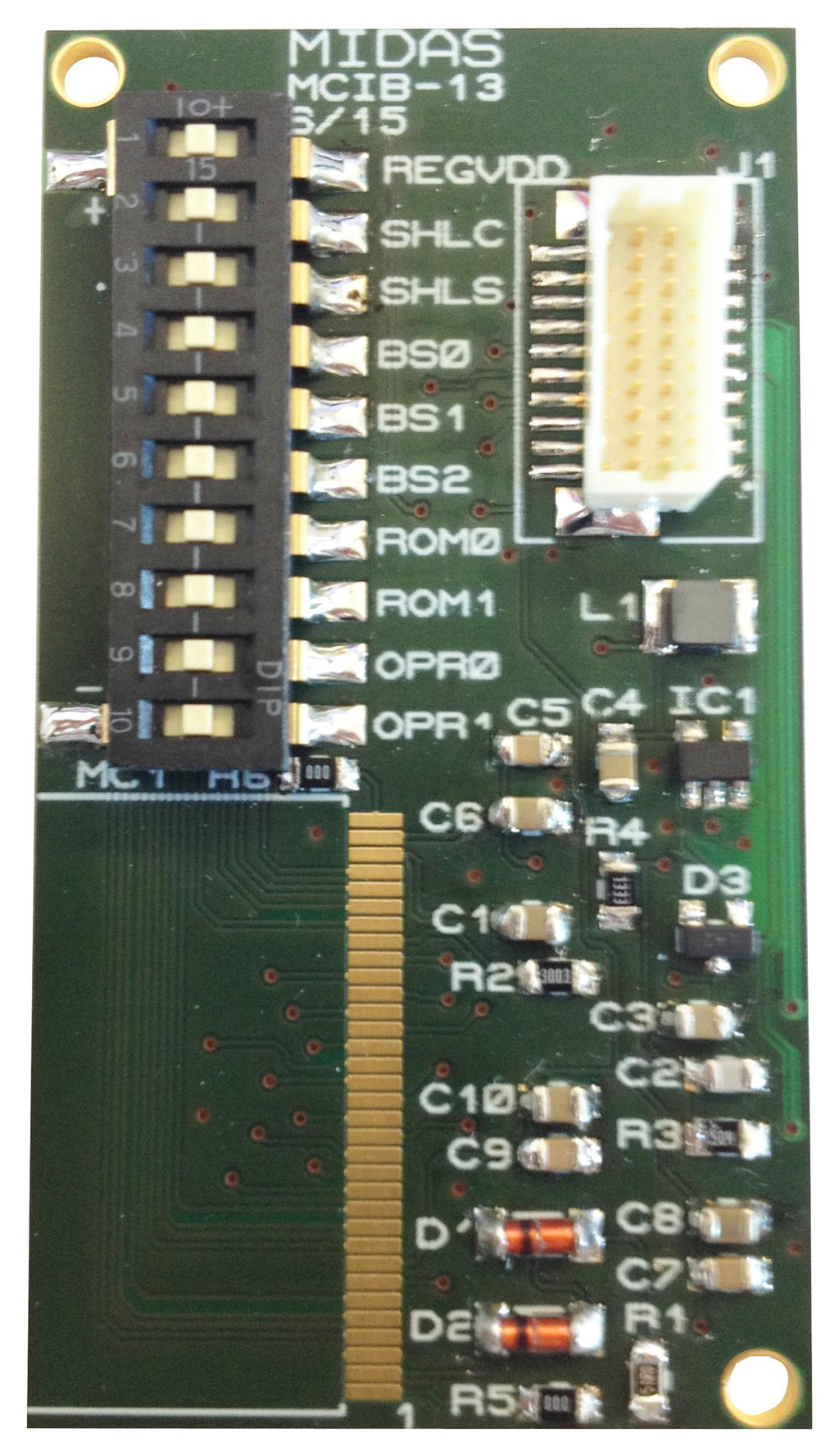

- Interface board - direct solder on for 33 way 0.7mm pitch TAB Alphanumeric OLEDS
- Optional - When used with MCIB-12 this board is compatible with UC32 controllers
- 20 way 1.0mm pitch SHD connector
- Enable/disable internal regulator
- Select scanning direction for COM signal, mapping, communication protocol
- Set appropriate character ROM, character ROM/RAM management
- Compatible with MCOT42005A, MCOT22005A, and MCOT21605A OLED modules
- Dimensions - 70 x 35 x 6mm
Other details
| Brand |
MIDAS |
| Part Number |
MCIB-13 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD/Ultra_Librarian EN |
|
