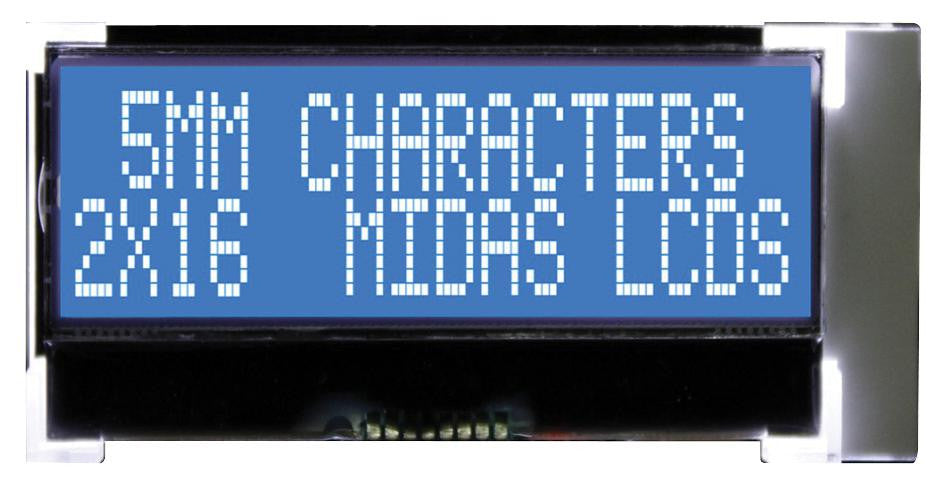

- Alphanumeric / character LCD module
- 2 lines of 16 characters - 2 x 16 also referred to as 16 x 2
- Negative mode STN material (also referred to as BSTN)
- Appearance - white characters on blue background
- Transmissive technology, generally for indoor applications
- Chip on glass construction (COG)
- On glass controller ST7032i or equivalent
- English/Japanese font sets
- 3V to 5V logic supply, I2C interface
- Display duty 1/16, Driving bias 1/5
- White LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70�C wide operating temperature range
- 8 pin SIL (bottom middle) connection, 1.27mm pitch
- Overall max dimensions - 62.8 x 23.0 x 6.3mm
- Viewing area - 51.5 x 12.2mm
- 5mm character (actual dimension 2.60 x 4.67mm)
Product details
| Logic Voltage |
3V to 5V |
| Display Construction |
COG |
| Operating Temperature Min |
-20�C |
| Backlighting Colour |
White |
| Character Size |
4.67mm |
| Operating Temperature Max |
70�C |
| Display Appearance |
White on Blue |
| Character Count x Line |
16 x 2 |
| LCD Display Type |
BSTN |
| Product Range |
MCCOG21605D6W Series |
| Display Mode |
Transmissive |
| Interface Type |
I2C |
| Font Set |
English, Japanese |
| Packaging |
Each |
| Module Size |
62.8mm x 23mm |
Other details
| Brand |
MIDAS |
| Part Number |
MCCOG21605D6W-BNMLWI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
