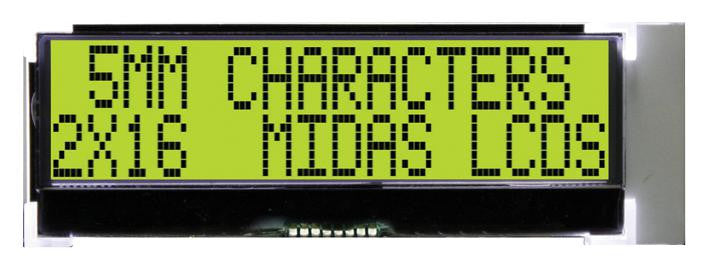

- Alphanumeric / character LCD module
- 2 lines of 16 characters - 2 x 16 also referred to as 16 x 2
- Positive mode yellow/green STN material
- Appearance - blue/black characters on yellow/green background
- Transflective technology, generally for indoor and outdoor applications
- Chip on glass construction (COG)
- On glass controller ST7032i or equivalent
- English/Japanese font sets
- 3V to 5V logic supply, I2C interface
- Display duty 1/16, Driving bias 1/5
- Yellow/green LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70�C wide operating temperature range
- 8 pin SIL (bottom middle) connection, 1.27mm pitch
- Overall max dimensions - 74.2 x25.2 x 6.3mm
- Viewing area - 61.0 x15.1mm
- 5mm character (actual dimension 2.95 x 5.55mm)
Product details
| Logic Voltage |
3V to 5V |
| Display Construction |
COG |
| Operating Temperature Min |
-20�C |
| Backlighting Colour |
Yellow / Green |
| Character Size |
5.55mm |
| Operating Temperature Max |
70�C |
| Display Appearance |
Black on Yellow / Green |
| Character Count x Line |
16 x 2 |
| LCD Display Type |
STN |
| Product Range |
MCCOG21605C6W Series |
| Display Mode |
Transflective |
| Interface Type |
I2C |
| Font Set |
English, Japanese |
| Packaging |
Each |
| Module Size |
74.2mm x 25.2mm |
Other details
| Brand |
MIDAS |
| Part Number |
MCCOG21605C6W-SPTLYI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
