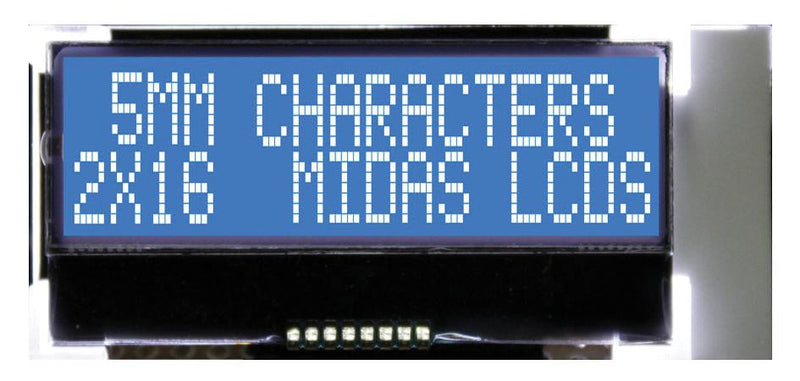

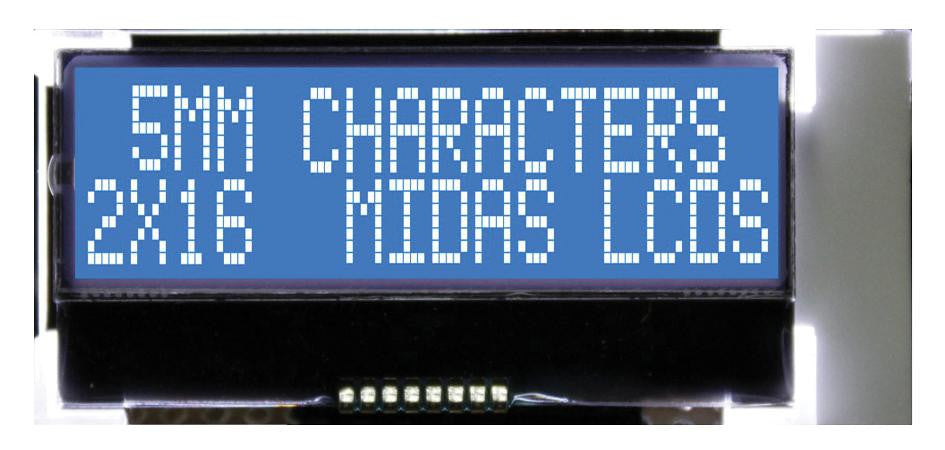

- Alphanumeric / character LCD module
- 2 lines of 16 characters - 2 x 16 also referred to as 16 x 2
- Negative mode STN material (also referred to as BSTN)
- Appearance - white characters on blue background
- Transmissive technology, generally for indoor applications
- Chip on glass construction (COG)
- On glass controller ST7032i or equivalent
- English/Japanese font sets
- 3V to 5V logic supply, I2C interface
- Display duty 1/16, Driving bias 1/5
- White LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 8 pin SIL (bottom middle) connection, 1.27mm pitch
- Overall max dimensions - 51.2 x20.7 x 6.3mm
- Viewing area - 40.0 x 10.0mm
- 5mm character (actual dimension 2.00 x 3.8mm)
Product details
| Logic Voltage |
3V to 5V |
| Display Construction |
COG |
| Operating Temperature Min |
-20°C |
| Backlighting Colour |
White |
| Character Size |
3.79mm |
| Operating Temperature Max |
70°C |
| Display Appearance |
White on Blue |
| Character Count x Line |
16 x 2 |
| LCD Display Type |
BSTN |
| Product Range |
MCCOG21605B6W Series |
| Display Mode |
Transmissive |
| Interface Type |
I2C |
| Font Set |
English, Japanese |
| Packaging |
Each |
| Module Size |
51.2mm x 20.7mm |
Other details
| Brand |
MIDAS |
| Part Number |
MCCOG21605B6W-BNMLWI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
