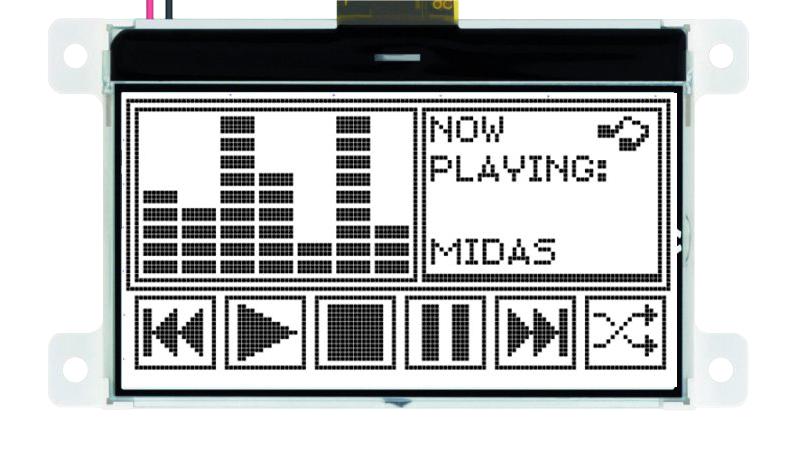

- Graphic LCD (Liquid Crystal Display) display with 128 x 64 pixels
- FSTN transflective, white LED backlight
- Black dots on a white background appearance
- Parallel interface, ST7565P controller
- 3V driving voltage, 6 o'clock viewing angle
- 30-way, 0.5mm pitch, flat flexi
- Operating temperature range from -20°C to +70°C
- Chip on glass construction
- 89.70mm x 49.80mm x 6.00mm overall size and 69.00mm x 36.50mm viewing area
- 0.47mm x 0.47mm pixel size
Other details
| Brand |
MIDAS |
| Part Number |
MCCOG128064C6WD-FPTLW |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
