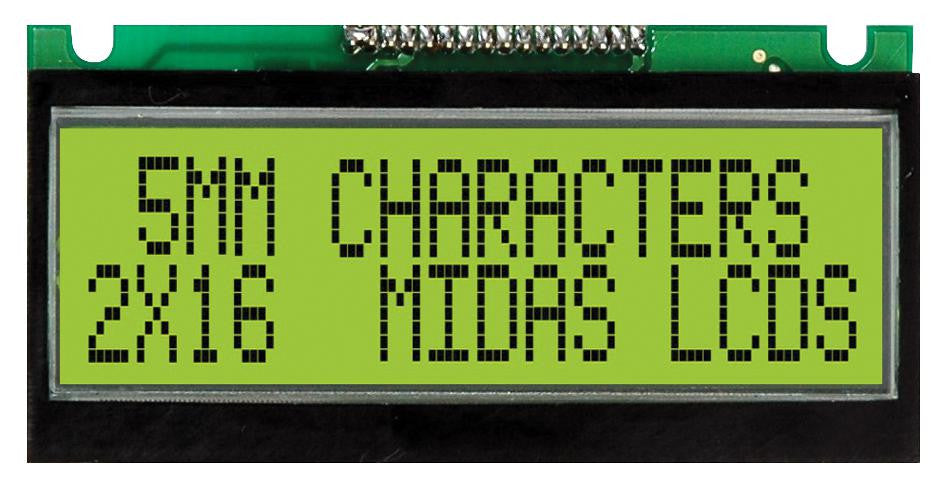

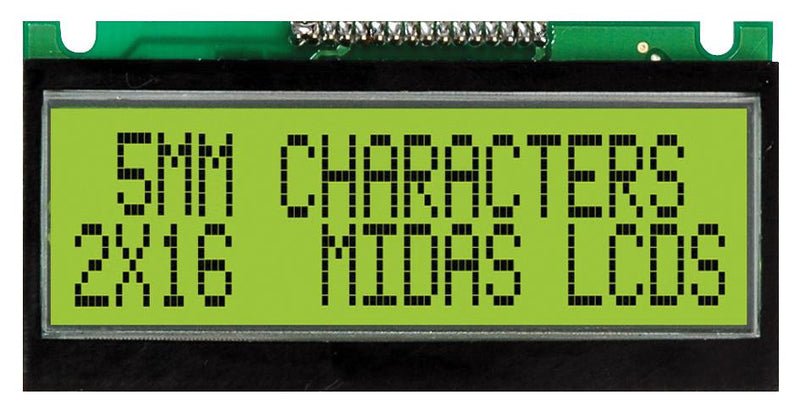

- Alphanumeric / character LCD module
- 2 lines of 16 characters - 2 x 16 also referred to as 16 x 2
- Positive mode yellow/green STN material
- Appearance - blue/black characters on yellow/green background
- Transflective technology, generally for both indoor and outdoor applications
- Chip on board construction (COB) for easy mounting
- On board controller SPLC780 or equivalent (HD44780 derivative)
- English/Japanese font sets
- 5V logic supply, standard parallel interface
- Display duty 1/16, Driving bias 1/5
- Yellow/green LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70�C wide operating temperature range
- 16 way through hole SIL (top middle) connection, 2.54mm pitch
- Overall max dimensions - 59.0 x 29.3 x 5.5mm
- Viewing area - 52.0 x 15.0mm
- 5mm character (actual dimension 2.45 x 4.67mm)
Product details
| Logic Voltage |
5V |
| Display Construction |
COB |
| Operating Temperature Min |
-20�C |
| Backlighting Colour |
Yellow / Green |
| Character Size |
4.67mm |
| Operating Temperature Max |
70�C |
| Display Appearance |
Black on Yellow / Green |
| Character Count x Line |
16 x 2 |
| LCD Display Type |
STN |
| Product Range |
MC21605F6WE Series |
| Display Mode |
Transflective |
| Interface Type |
Parallel |
| Font Set |
English, Japanese |
| Packaging |
Each |
| Module Size |
59mm x 29.3mm |
Other details
| Brand |
MIDAS |
| Part Number |
MC21605F6WE-SPTLY |
| Quantity |
Each |
