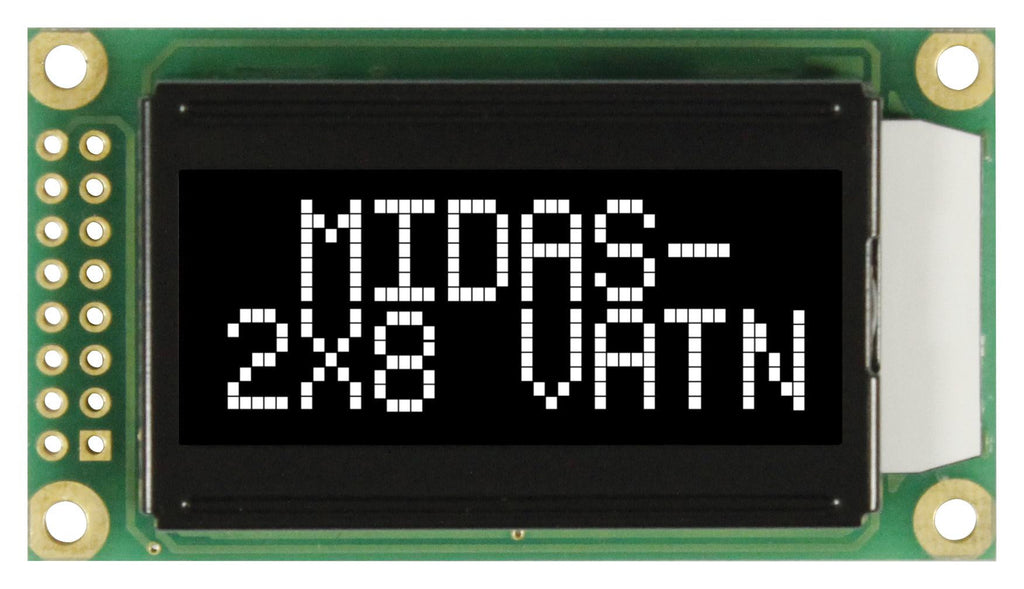

- Alphanumeric / character LCD module
- 2 lines of 8 characters - 2 x 8 also referred to as 8 x 2
- Negative mode VATN material (Vertical Aligned TN)
- Appearance - white characters on black background
- Transmissive technology, generally for indoor applications
- Low cost aesthetic alternative to OLED technology
- Chip on board construction (COB) for easy mounting
- On board controller RW1063 or equivalent (HD44780 similar)
- English/Japanese font sets
- 5V logic supply, standard parallel interface
- Display duty 1/16, Driving bias 1/5
- White LED backlight
- Preferred view angle - 12 o'clock
- -20 to +70�C wide operating temperature range
- 16 way through hole DIL (side, left, 2x8) connection, 2.54mm pitch
- Overall max dimensions - 58.0 x 32.0 x 13.2mm
- Viewing area - 38.0 x 16.0mm
- 5mm character (actual dimension 2.96 x 5.56mm)
Product details
| Logic Voltage |
5V |
| Display Construction |
COB |
| Operating Temperature Min |
-20�C |
| Backlighting Colour |
White |
| Character Size |
5.56mm |
| Operating Temperature Max |
70�C |
| Display Appearance |
White on Black |
| Character Count x Line |
8 x 2 |
| LCD Display Type |
VATN |
| Product Range |
MC20805A12WSeries |
| Display Mode |
Transmissive |
| Interface Type |
Parallel |
| Font Set |
English, Japanese |
| Packaging |
Each |
| Module Size |
58mm x 32mm |
Other details
| Brand |
MIDAS |
| Part Number |
MC20805A12W-VNMLW |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
