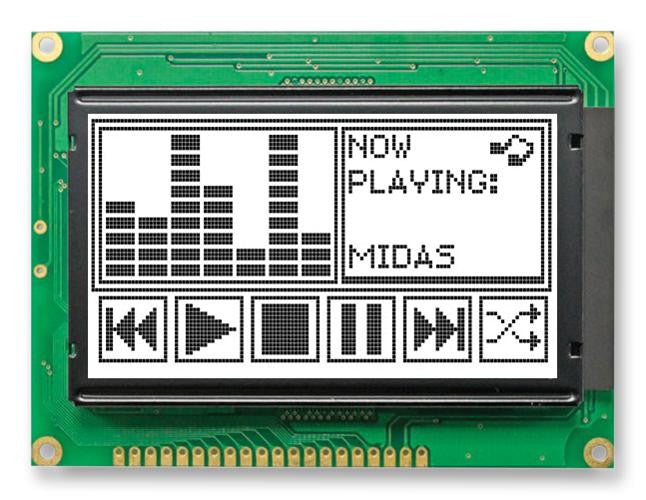

- Graphic LCD module
- Resolution 160x80 dots (160 x 80)
- Positive mode FSTN material
- Appearance black dots on white background
- Transflective technology, for both outdoor and indoor applications
- Chip on Board construction (COB) for easy mounting and connection
- Onboard RA6963 or equivalent Controller with standard parallel interface
- Controller provides onboard 128 character fonts (English/European)
- 5V logic supply
- 1/80 display dut
- White LED backlight
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 20-way through-hole SIL connection (bottom, right) with 2.54mm pitch
- Overall dimensions - 100.0 x 54.0 x 14.6mm
- Viewing area - 72.0 x 40.0mm
- Dot size - 0.39 x 0.39mm
Product details
| Logic Voltage |
3V to 5V |
| Display Construction |
COB |
| Operating Temperature Min |
-20�C |
| Backlighting Colour |
White LED |
| Operating Temperature Max |
70�C |
| Display Appearance |
Black on White |
| LCD Display Type |
FSTN |
| Product Range |
MC160080A6WSeries |
| Display Mode |
Transflective |
| Interface Type |
Parallel |
| Resolution |
160 x 80 |
| Font Set |
English, Euro, Japanese |
| Packaging |
Each |
| Module Size |
100mm x 54mm |
Other details
| Brand |
MIDAS |
| Part Number |
MC160080A6W-FPTLW |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
