Description
MID49 M49-DB11 Overview

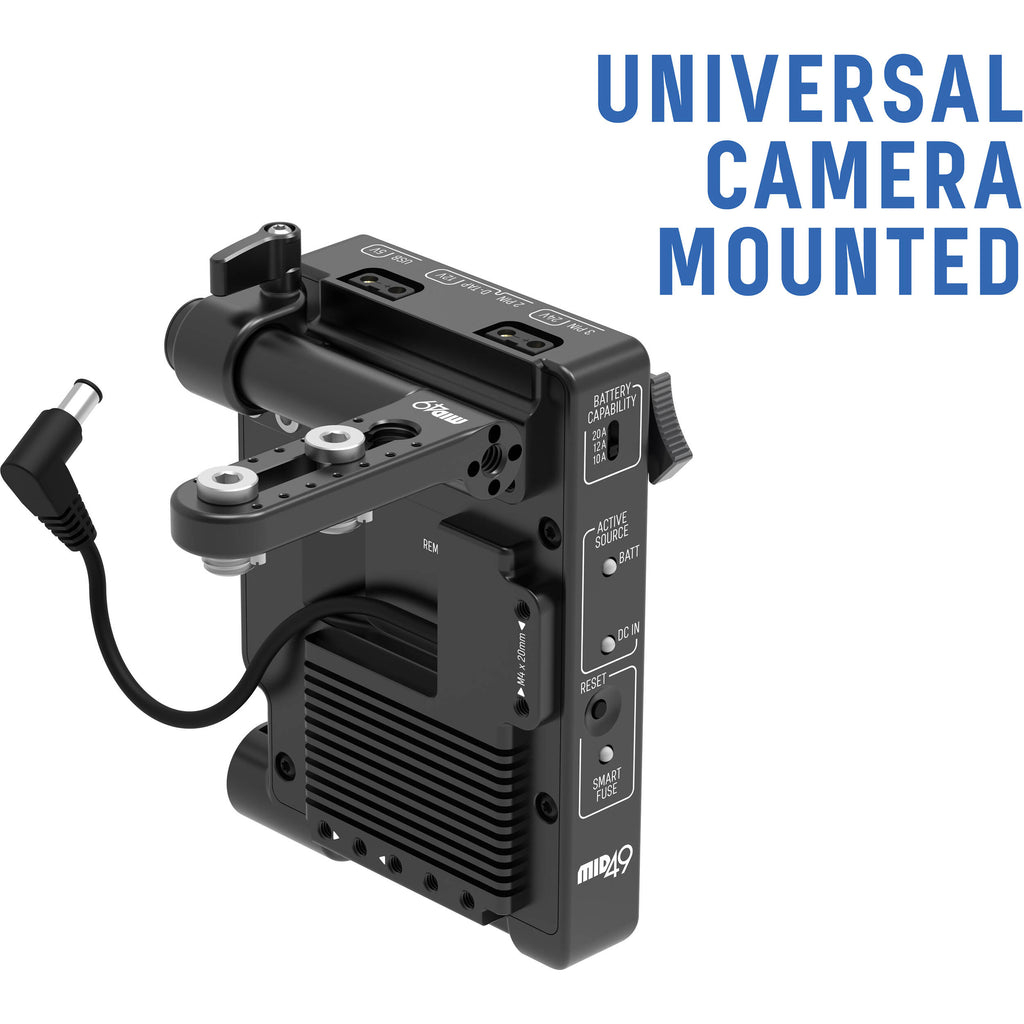

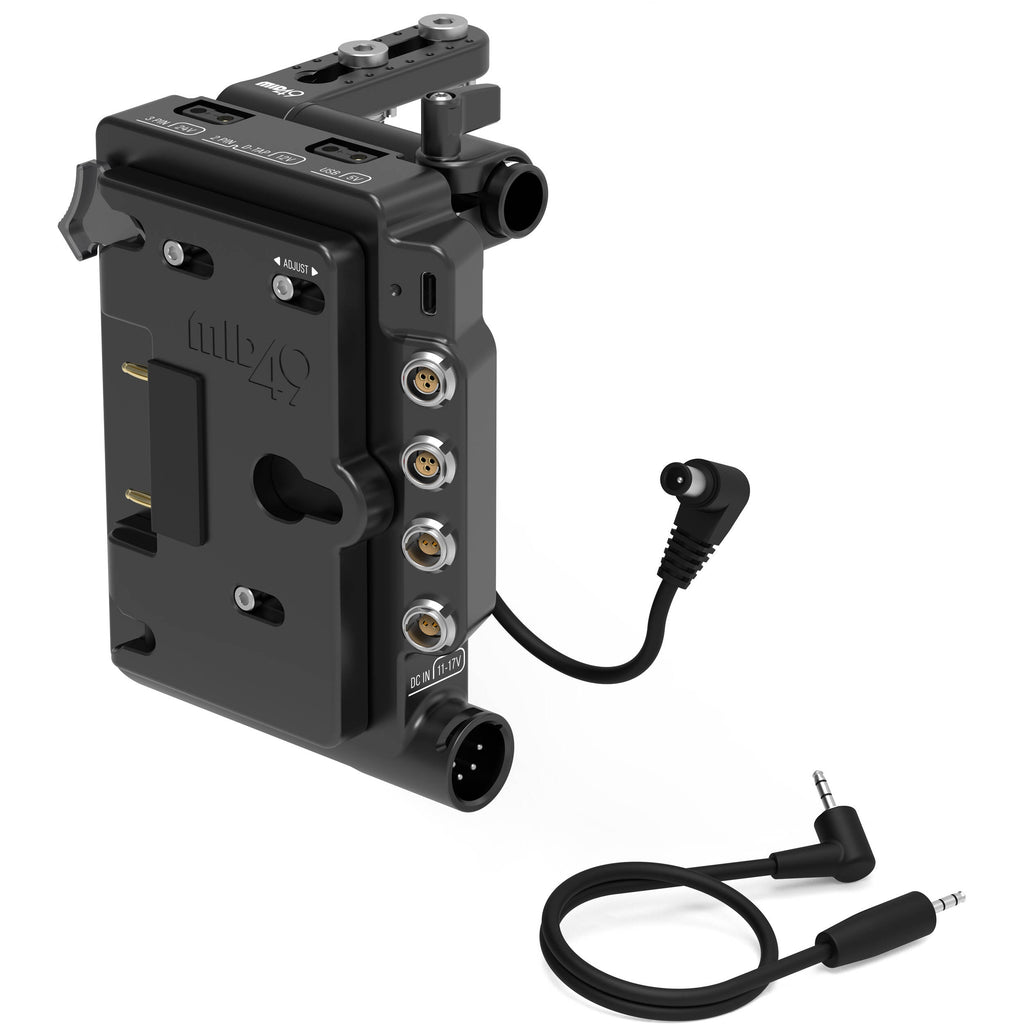

Control power on your Sony FX6 or FX9 camera rig with the Gold mount DB11 Universal Camera-Mounted Power Distribution Box from MID49. Designed to mount onto any third-party rear top plate using 1/4"-20 and/or 3/8"-16 screws, this power distribution unit provides multiple power outputs and a Gold mount battery plate for a professional, high-capacity battery.
Additional Details
- An integrated single 15mm rod clamp provides additional mounting options
- The mounting hinge can be tilted up to allow a battery to be installed directly onto the camera battery mount
- Power your camera and accessories using D-Tap, 3-pin Fischer with run/stop, and 2-pin LEMO outputs, as well as a USB-C PD port for fast charging small devices
- The included remote LANC cable enables remote start/stop capability using 3-pin Fischer devices
- The unit plugs directly into the camera using the integrated barrel cable, and it features a 4-pin XLR input
- Supports hot-swapping, so the camera can switch to DC input when you're changing out the battery
- This box uses SMART FUSE power management to monitor camera power and send the remaining energy to connected accessories
- Short circuit protection provides instant power shutdown to protect your gear
UPC: 737879864234
- MID49 DB11 Universal Camera-Mounted Power Distribution Box for Sony FX6/FX9 (Gold Mount)
- LANC Cable
- Limited 1-Year Manufacturer Warranty
No additional resources available
MID49 M49-DB11 Specs
| Compatibility |
Sony FX6 / FX9
|
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
15 mm Rod Clamp, Thumbscrew Attachments
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
1 x 1/4"-20 Male Top
1 x 3/8"-16 Male Top |
| Indicator |
No
|
| Inputs/Outputs |
1x 2.5 mm Barrel Output
1x XLR 4-Pin (11 to 17 VDC) Input 2x D-Tap/P-Tap Output 2x LEMO 2-Pin Output 2x Fischer 3-Pin (24 VDC / 2.5 A) Output 1x USB-C (5 VDC / 3 A) Output |
| Adapter / Cable |
Built-In Adapter
? Output: Barrel Male ? Cable: Length Unspecified |
Packaging Info
| Package Weight |
1.535 lb
|
| Box Dimensions (LxWxH) |
7.4 x 7.3 x 3.2"
|
